reglscatterpy

Fast, interactive scatterplots for single-cell and spatial data — right in your notebook.

Plot millions of cells, then use your mouse: pan, zoom, lasso a population, toggle cell types in the legend — and read your selection straight back into Python. It speaks AnnData, MuData, SpatialData, pandas and numpy, and works in Jupyter, JupyterLab, VS Code and Colab.

Live demo  •  Examples  •  Documentation

Under the hood it renders with regl-scatterplot (WebGL), and it's the Python twin of the R package reglScatterplotR — both drive the same compiled widget, so a plot looks and behaves identically in R and Python.

Install

pip install reglscatterpy            # numpy, pandas, anywidget
pip install anndata                  # for AnnData; mudata / spatialdata as needed

Quick start

Give it an AnnData, say which embedding to show (basis=) and what to colour by — an obs column or a gene name. That's it:

import scanpy as sc
import reglscatterpy as rs

adata = sc.datasets.pbmc3k_processed()
rs.scatterplot(adata, basis="umap", color_by="louvain")   # colour by cell type
rs.scatterplot(adata, basis="umap", color_by="CST3")      # …or by a gene

basis= accepts short names like "umap" / "pca" (resolved to the obsm key X_umap, … — case-insensitive). For a plain DataFrame, give the coordinate columns with x= / y= instead:

import numpy as np, pandas as pd
df = pd.DataFrame({"x": np.random.rand(10_000), "y": np.random.rand(10_000),
                   "ct": np.random.choice(list("ABC"), 10_000)})
rs.scatterplot(df, x="x", y="y", color_by="ct")

Plots are 700 px wide by default (not the full cell width). Pass width= (pixels) for another size, or width=None to fill the cell.

Gallery

Categorical colouring	Continuous (gene) colouring
filter_by distribution sliders	Linked grid (compose)

_{All panels are rendered from real pbmc3k (2,638 PBMCs) — regenerate them with the maintainer scripts.}

See it in action

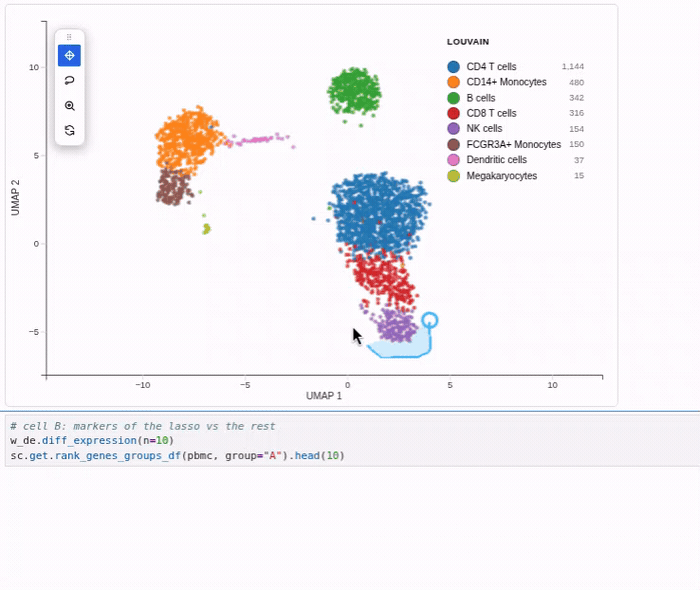

Markers of a selection — lasso a population and call diff_expression; you get scanpy-native results (here, the T-cell markers of a lassoed T/NK region).

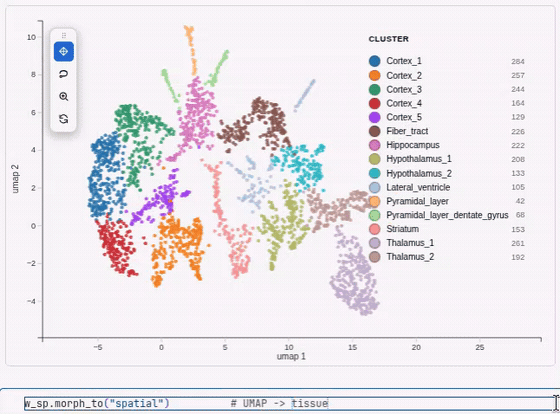

Morph between embeddings — cells glide from a UMAP into their tissue coordinates and back, with colour and selection carried through the transition.

Selections and analysis

The point of an interactive plot is the round-trip — circle some cells and keep working with them in Python. Pass interactive=True to get the live, kernel-linked widget (the default plot is a portable snapshot; see Static vs. interactive):

w = rs.scatterplot(adata, basis="umap", color_by="louvain", interactive=True)
w                          # show it, then lasso a population in the browser

Read the selection back — or set it from Python:

w.selection                # -> [12, 87, 134, ...]  positional indices
adata[w.selection]         # subset the AnnData directly
sub = w.subset()           # same thing, convenience

w.selection = list(range(100))   # drive it from Python to highlight points

Label cells you lassoed (curate cell types by hand) — the label is written straight into adata.obs:

w.annotate("cell_type", "T cells")    # writes adata.obs["cell_type"] for those cells
# lasso another cluster, w.annotate("cell_type", "B cells"), …then re-plot:
rs.scatterplot(adata, basis="umap", color_by="cell_type")

Get the top marker genes of a selection vs the rest (or vs another lasso). Both DE calls return scanpy's native result and auto-save it to adata.uns, so the rest of the scanpy world just works:

import scanpy as sc
w.diff_expression(n=10)                        # selection "A" vs rest -> adata.uns["rank_genes_groups"]
sc.get.rank_genes_groups_df(adata, group="A")  # tidy table when you want one
sc.pl.rank_genes_groups(adata)                 # scanpy's own plot, straight after

a = w.selection                                # save group A
# (lasso group B)
w.diff_expression(a, w.selection)              # A vs B

Or split a single lasso by an obs column (e.g. condition / time) and compare its levels — one clean adata.uns entry, one column per level:

res = w.diff_expression_by("condition")        # each level vs the rest
res["names"].dtype.names                        # ('D30', 'Y1', 'Y2')
w.diff_expression_by("condition", group_a="D30", group_b="Y1")   # one pair
w.diff_expression_by("condition", key_added="cond_de")           # choose the uns key

Which engine? By default DE uses scanpy when it's installed and warns if it has to fall back. Pass engine="scanpy" to require it (raises instead of falling back), or run it on the GPU: engine="gpu" needs only cupy (~19× faster on 120k cells — a Welch t-test with the reductions on the GPU), and engine="rapids" uses rapids-singlecell for GPU logreg. See the Widget API for the full table.

See what a region is made of:

w.composition("louvain")           # count + fraction per cluster in the selection

Spatial data

Anything with coordinates in obsm["spatial"] plots the same way — just point basis at it. Great for Visium, Xenium, MERFISH, CosMx, … (see the squidpy Xenium tutorial for getting data in):

import squidpy as sq
import reglscatterpy as rs

adata = sq.datasets.visium_hne_adata()         # public mouse-brain Visium
rs.scatterplot(adata, basis="spatial", color_by="cluster")    # tissue map
rs.scatterplot(adata, basis="spatial", color_by="Olfm1")      # a gene, in situ

A Xenium / MERFISH run read with sq.read.xenium(...) (or any AnnData with a spatial embedding) works identically — bump point_size for sparse tissue:

rs.scatterplot(adata, basis="spatial", color_by="leiden", point_size=3)

And because both layouts live in the same object, you can morph between them — watch clusters snap from a UMAP into their tissue positions:

w = rs.scatterplot(adata, basis="umap", color="leiden", interactive=True)
w                                  # the UMAP
w.morph_to("spatial")              # animate UMAP -> tissue coordinates
w.morph_to("umap", duration=800)   # …and back (ms)

The active filter, legend selection, colours and lasso are kept through the transition. (Atlas-scale progressive=True plots don't morph — the point set isn't fully resident.)

Linked views

Colour one embedding by several genes / columns at once — pass a list and you get a linked grid, one panel per value, with camera + lasso kept in sync:

rs.scatterplot(adata, basis="umap", color_by=["louvain", "CST3", "NKG7"])

A list of names means "one panel per name". A raw per-point colour vector must be a numpy array / pandas Series (not a list of strings).

Or compose pre-built plots — e.g. compare embeddings side by side. compose() auto-upgrades plain plots to live widgets, so you don't need interactive=True on each:

from reglscatterpy import scatterplot, compose

a = scatterplot(adata, basis="umap", color_by="leiden")
b = scatterplot(adata, basis="pca",  color_by="leiden")
compose([a, b])            # 2-up grid, linked camera + selection

A lasso or legend filter on one panel propagates to the others by original cell — even across panels coloured by different variables, and even when the panels are progressive=True. A view reset on one panel resets the group. A list of bases works the same way, and basis × color can both be lists (the basis × colour grid, capped at 16 panels):

rs.scatterplot(adata, basis=["umap", "tsne", "pca"], color="leiden")

Atlas-scale rendering

By default scatterplot() keeps huge datasets interactive without silently hiding cells, via max_points (default "auto"):

# AUTO (default): caps at 500k with a density-preserving subsample that KEEPS
# rare cell types. The plot stays honest: an on-figure "500,000 of 3,900,000
# shown" caption, a one-time warning, and w.selection still indexes ALL rows.
rs.scatterplot(adata, basis="umap", color_by="cell_type")

# ALL POINTS RESIDENT (the Allen ABC-Atlas method): every cell on the GPU,
# camera-only pan/zoom — smooth up to ~4M cells on a decent GPU.
rs.scatterplot(adata, basis="umap", color_by="cell_type", max_points=None)

For datasets larger than ~4M, use progressive=True — a light density overview that re-renders all cells inside the viewport as you zoom in (no preprocessing, lasso stays complete):

rs.scatterplot(adata, basis="umap", color_by="cell_type", progressive=True,
               progressive_opts={"detail_max_points": 300_000, "overscan": 0.6})

• detail_max_points — max points per zoomed-in viewport (lower = smoother pan).
• overscan — margin fetched around the view so panning has no hard cuts.

Rule of thumb: max_points=None for ~2–4M real atlases; progressive=True beyond that. The two subsample modes are "density" (default, keeps rare types) and "random" (uniform fallback).

Static by default, interactive on request

By default a plot renders as a self-contained snapshot (a sandboxed <iframe> with the WebGL bundle and data baked in) — like a plotly figure, it shows in JupyterLab, Notebook 7, VS Code and Colab, and survives reopening the notebook with no kernel. It stays fully interactive visually — pan, zoom, lasso, legend, tooltips, PNG/SVG/PDF export — but, having no kernel link, it can't send a selection back to Python.

For the Python round-trip (w.selection, annotate, diff_expression, linked compose grids) pass interactive=True:

w = rs.scatterplot(adata, basis="umap", color_by="leiden", interactive=True)
w                          # lasso some cells…
adata[w.selection]         # …read them back in Python

Use the default for figures you want to keep/share, and interactive=True while you're actively selecting (it needs a running kernel and, like any Jupyter widget, may show blank on reopen).

Save a standalone HTML (offline, kernel-free)

The Python equivalent of R's htmlwidgets::saveWidget: one self-contained .html that inlines the widget and the plot's data, so it opens in any browser with no kernel and no internet:

w = rs.scatterplot(adata, x="X_umap", color_by="leiden")
rs.save_html(w, "umap.html")      # or:  w.to_html("umap.html")

It's fully interactive (pan/zoom, legend, lasso, tooltips, PNG/SVG/PDF export) but a snapshot — no kernel, so the Python round-trips only work in the live notebook. The bundle is inlined gzip-compressed (~0.5 MB), so a one-plot file is well under 1 MB.

A whole notebook → one HTML report (no re-running)

Plain jupyter nbconvert --to html leaves the plots blank. The fix that avoids re-executing a heavy notebook is record mode: call rs.record_html() once at the top, run your notebook normally, and each plot bakes a static interactive copy into its own cell output. After that:

import reglscatterpy as rs
rs.record_html()                 # run once near the top, then work as usual
# ... rs.scatterplot(...) cells ...

# now either of these makes a report WITHOUT re-running anything:
jupyter nbconvert --to html analysis.ipynb
reglscatterpy-report analysis.ipynb -o analysis_report.html

reglscatterpy-report (and rs.save_notebook_html(...)) default to not re-executing — they reuse recorded outputs and share one copy of the bundle across all plots. Pass --execute / execute=True to re-run a notebook that wasn't recorded. Needs nbconvert + ipykernel (pip install 'reglscatterpy[report]').

Recorded plots are a one-way snapshot — w.selection / w.annotate no longer round-trip. Call rs.record_html(False) to go back to the live widget.

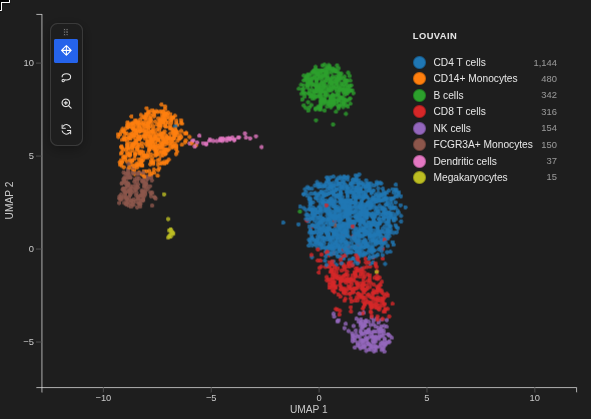

Theme (light / dark / auto)

Plots are a white "figure card" by default — portable, and matching the exported HTML. To make the live widget follow your notebook, pass theme=:

rs.scatterplot(adata, basis="umap", color="leiden", theme="auto")   # dark in a dark theme
rs.scatterplot(adata, basis="umap", color="leiden", theme="dark")   # always dark

• "light" (default) — white card.
• "dark" — dark card with light axes/legend.
• "auto" (alias "system") — dark only when the host (VS Code / JupyterLab) is in a dark theme.

Set it once per session with rs.set_theme("auto") (rs.get_theme() reads it back). A per-call theme= overrides the global; an explicit background_color= / axis_color= always wins. The theme only affects the live widget; an exported .html stays portably light.

Additional options

Richer tooltips — show extra fields (obs columns or genes) on hover:

rs.scatterplot(adata, x="X_umap", color_by="leiden",
               tooltip_by=["n_genes", "sample", "CST3"])

Outlines & highlighting — add_outline=True rings every point (scanpy-style, small/medium plots); w.highlight([...]) persistently marks a chosen subset that survives double-click and new lassoes:

rs.scatterplot(adata, basis="umap", color_by="cluster", add_outline=True)

w = rs.scatterplot(adata, basis="umap", color_by="cluster", interactive=True)
w.highlight([12, 87, 134], color="red")   # ring + size bump on these cells
w.highlight([])                            # clear

Encode more variables — put a numeric column or a gene on point size or opacity too:

rs.scatterplot(adata, basis="umap", color_by="leiden", size_by="n_genes")  # or size_by="CST3"
rs.scatterplot(adata, basis="umap", color_by="leiden", opacity_by="total_counts")

Toolbar & legend — toolbar="left" (or "top", "none") shows an in-plot toolbar (pan, lasso, zoom-to-selection, reset, screenshot); zoom_on_selection=True auto-frames a lasso; the categorical legend shows a live per-category count (legend_counts=False to hide); alpha= sets a global transparency.

Supported objects

Input	x (embedding)	color_by / group_by
AnnData	obsm key ("X_umap", "umap", "spatial", …)	obs column or var_names feature
MuData	global obsm or "modality:embedding"	obs column or "modality:feature"
SpatialData	table's obsm (defaults to "spatial")	table's obs / features
pandas.DataFrame	column name	column name or vector
numpy.ndarray	column index	vector

Same plot in R and Python

rs.scatterplot(...) mirrors R's reglScatterplot(...): color_by / group_by, point_size, opacity, point_color, pixel_ratio, continuous_palette / categorical_palette, custom_colors, vmin / vmax, center_zero, filter_by, legend styling, enable_download, and more. Equivalence is locked down by tests/test_payload_parity.py, which checks the Python payload byte-for-byte against R fixtures.

A backend="jscatter" option also exists if you'd rather render with jupyter-scatter (pip install reglscatterpy[render]); the default native widget is recommended.

The widget bundle

src/reglscatterpy/static/widget.js is a built artifact (an anywidget ESM bundle). Its source — the shared rendering widget plus the anywidget adapter — lives in the reglScatterplotR repo under js/. To refresh it after a JS change, build there and copy the result here:

# from a sibling checkout of reglScatterplotR
cd reglScatterplotR/js && npm install && npm run build
cp dist/widget.js ../../reglscatterpy/src/reglscatterpy/static/widget.js

Develop / test

pip install -e .[dev]
pytest          # extraction tests skip cleanly without anndata/scipy
