Rubycond

Pressure by Ruby Luminescence (PRL) software to determine pressure in diamond anvil cell experiments

Install

1. Download and install Anaconda or Miniconda:

   • Anaconda
     https://docs.anaconda.com/anaconda/install/

   • Miniconda
     https://docs.anaconda.com/free/miniconda/miniconda-install/

2. from anaconda prompt (windows) or terminal (Ubuntu & MAC) create a virtual environment with name "my_env":

conda create -n my_env pip

3. activate the virtual environment with

conda activate my_env

4. install rubycond with:

pip install rubycond

5. OPTIONAL: Install the python-seabreeze for the Ocean Optics spectrometers:

conda install -c conda-forge seabreeze
seabreeze_os_setup

6. launch rubycond:

rubycond

Shortcut

In windows the rubycond.exe can be found in the virtual environment Scripts folder, usually something like:

• C:\Users\username\anaconda3\envs\my_env\Scripts
• C:\Users\username\miniconda\envs\my_env\Scripts

To check where the virtual environment has been installed:

conda env list

Manual

Operating modes

Rubycond can operate in two modes, Connected or Stand Alone. If the parameter stand_alone in the the init file (Rubycond_init.txt) is set to False, Rubycond will start in Stand Alone mode. If the parameter stand_alone is set to True, Rubycond will try to load the spectrometer drivers and start in Connected mode. If an error occurs while opening the driver, Rubycond will start in Stand Alone mode.

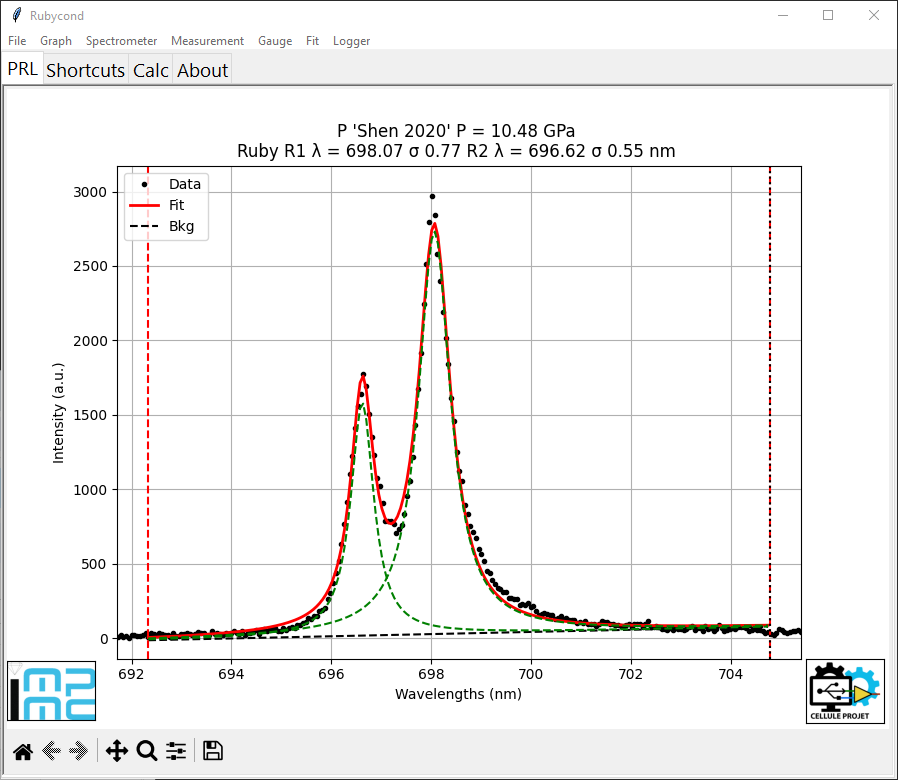

Connected mode

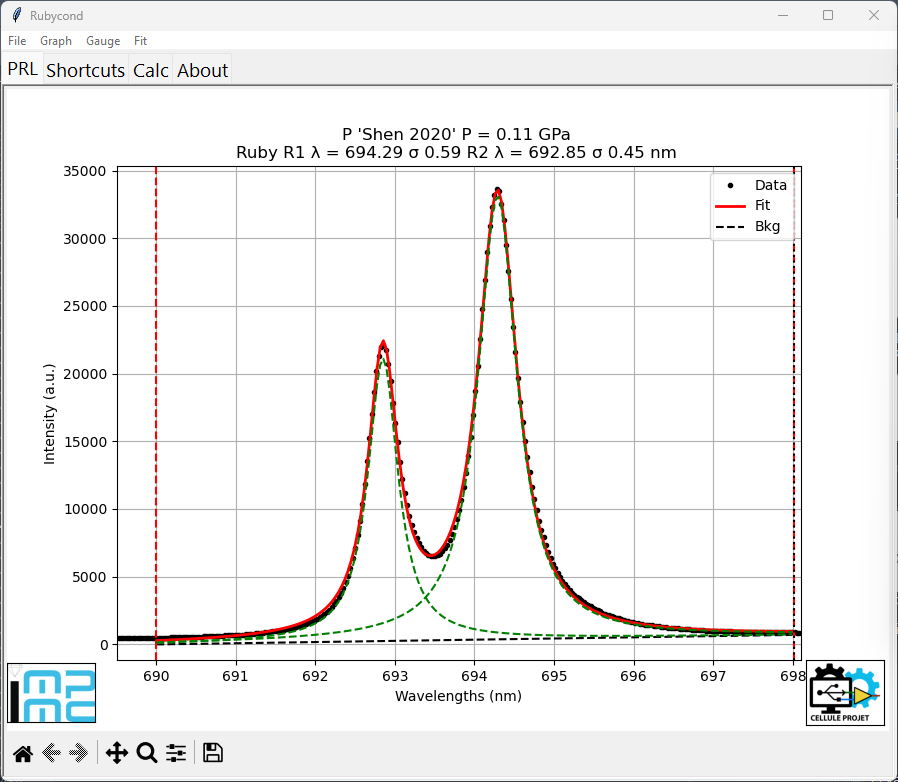

Stand Alone mode

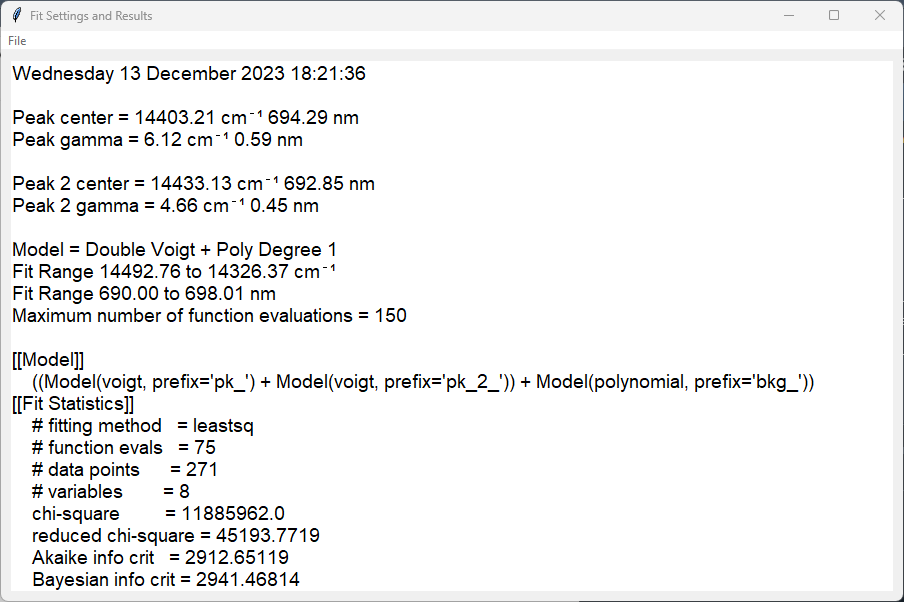

Fit Window

A separate window that shows all the details of the fit results

Tab Shortcuts

• List of available shortcuts

ctrl + # = Select the # Tab

ctrl + z = Set Fit:Min as cursor
ctrl + x = Set Fit:Max as cursor
ctrl + c = Zoom to fit
ctrl + q = Rescale to full scale
ctrl + f = Fit snap
ctrl + g = Fit continuos

ctrl + r = Read file
ctrl + s = Save image
ctrl + v = Save fit

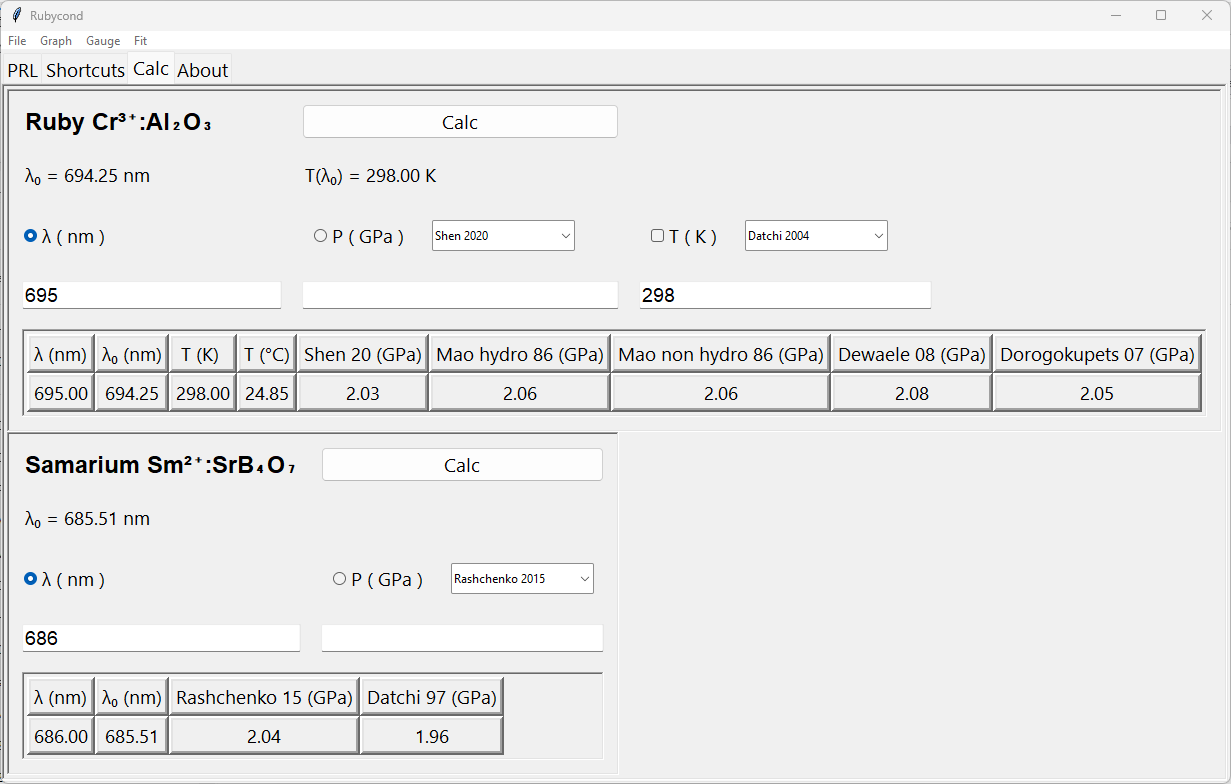

Tab Calc

• Let the user to perform simulations using different gauges, wavelenght, pressure and temperatures for Ruby and gauges, wavelenght and pressure for Samarium.

Menus

[!IMPORTANT] All main program controls are performed by menus, shortcuts or menu activation via the Alt key

File

• Save :warning: Not Available in Stand Alone mode

  • Save the data in txt format, wavelenghts, intensity, plus all the accumulations if the Measurement:Accumulation option is selected. Save the header in rtf format, with a resume of the performed analisys. Save the main figure in png format.

• Save Fit

  • Save the data in txt format, wavelenghts, intensity, best fit (peak 1 , peak 2 and background if Double Function) plus all the accumulations if the Measurement:Accumulation option is selected. Save the header in rtf format, with a resume of the performed analisys. Save the main figure in png format.

• Open File

  • Read data from txt file, letting the user to select the x / first column units (nm or cm⁻¹)

• Quit

  • Quit the main program

Graph

• Rescale Y

  • Rescale the Y axis

• Rescale X

  • Rescale the X axis

• Rescale XY

  • Rescale the X and the Y axis

• Rescale to Fit

  • rescale to the selected fit range, see Fit:Min and Fit:Max

• X axis units nm cm⁻¹

  • switch the Wavelenghts unit beetween nm and cm⁻¹

Spectrometer :warning: Menu Not Available in Stand Alone mode

• Model

  • Shows the spectrometer model and serial number

• User Calibration

  • If selected use the calibation saved in the init file Rubycond_init.txt as
    Wavelengths (nm) = calibration_i + calibration_c1 * pixels + calibration_c2 * pixels² + calibration_c3 * pixels³

• Electronic Dark

  • If requested and supported the average value of electric dark pixels on the ccd of the spectrometer is subtracted from the measurements to remove the noise floor in the measurements caused by non optical noise sources (correct_dark_counts for HR4000)

• Take Background

  • save the current acquisition as background reference

• Subtract Background

  • substract the background reference from the current acquisition

• Calibrate

  • launch the sub-routine Rubycond_calibrator

Measurement :warning: Menu Not Available in Stand Alone mode

• Snap

  • perform a single acquisition

• Acquire

  • start a nuos acquisition

• Int Time (s)

  • change the acquisition integration time in seconds, default value is 0.1 seconds

• Accumulation

  • change the number of accumulations, default value is 1

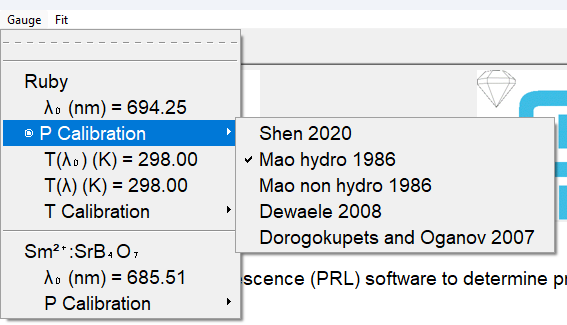

Gauge

This menu allows to choose the gauge to be used and to change the default values for the reference wavelenghts and temperatures to be used both for Ruby and Samarium Sm²⁺:SrB₄O₇.

• Ruby

  • λ₀ (nm) = 694.25
  • P Calibration
    • Shen 2020
    • Mao hydro 1986
    • Mao non hydro 1986
    • Dewaele 2008
    • Dorogokupets and Oganov 2007
  • T(λ₀) (K) = 298
  • T(λ) (K) = 298
  • T Calibration
    • Datchi 2004

• Sm²⁺:SrB₄O₇

  • λ₀ (nm) = 685.51
  • P Calibration
    • Rashchenko 2015
    • Datchi 1997

Fit

[!IMPORTANT] Fit are always performed to the data with Wavelenghts in cm⁻¹ If sigma_vary = False, when Voight or Double Voigt functions are selected the sigma corresponding to the gaussian component is fixed to the value of sigma (cm-1) (See init file Rubycond_init.txt)

• Snap

  • perform a single fit

• Continuos

  • start a continuos fitting routine

• Function

  • Voigt
  • Gauss
  • Lorentz
  • Double Voigt
  • Double Gauss
  • Double Lorentz

• Poly Degree

  • change the polynomial degree up to 7

• Min NNN

  • Show the fit range minimum value and let to change it. Enter value let the user to manually input the new value, Set NNN directly set the value NNN wher NNN is the actual cursor position showed by a dotted vertical line on the graph (left mouse click on the graph to change it)

• Max NNN

  • Show the fit range minimum value and let to change it. Enter value let the user to manually input the new value, Set NNN directly set the value NNN wher NNN is the actual cursor position showed by a dotted vertical line on the graph (left mouse click on the graph to change it)

• Iter Lim

  • The maximum number of iterations used in the minimization routine. The default value is 150

• Autoupdate

  • If not selected the Fit initial condition are automatically evaluated when the Fit range is changed (Fit:Min and Fit:Max), so not taking in account eventual changement in the afterwards acquired signal.
  • If selected the Fit results are used as the Fit initial condition in the next Fit.

• Clean Graph

  • Remove the Fit plot from the graph

Logger :warning: Menu Not Available in Stand Alone mode

• Logger ON/OFF

  • Turn ON / OFF the log functionality

• Logger Time (s)

  • select the log save frequency in seconds

• Log Directory

  • show the selected logging directory, can be changed during logging

Logger :warning: Not Available in Stand Alone mode

The logger will automatically create a log file in the log directory. A new file will be create if the log directory is changed. The filename format is:

• %y%m%d_%H%M%S.txt, i.e. 02 Jan 2024 12:03:04 => '240102_120304.txt'

The logger will save 3 files for each log using the format:

• %y%m%d_%H%M%S_header.rtf
  • Main info of the measurement, including the fit results if the fit is selected
• %y%m%d_%H%M%S_img.png
  • Image as displayed on the software
• %y%m%d_%H%M%S_data.txt
  • All the data, including the fit results if the fit is selected

The logger will add a line to the log file with the following parameters:

• Beginning of the 3 files filename (starting with %y%m%d_%H%M%S)
• Unix time of the log
• Measurement:Int Time (s)
• Measurement:Accumulation
• R1_center
• R1_gamma
• R1_fwhm
• R2_center (if selected)
• R2_gamma (if selected)
• R2_fwhm (if selected)
• Fit:Min
• Fit:Max
• Selected Pressure Gauge (if selected)
• Selected Temperature Gauge (if selected)
• Pressure
• Temperaure

Init file Rubycond_init.txt

In windows the init file can be found in the virtual environment packages folder, usually something like:

• C:\Users\username\anaconda3\envs\my_env\Lib\site-packages\rubycond

Init file example:

[Settings]
stand_alone = False

[Spectrometer]
calibration_i = 1
calibration_c1 = 1
calibration_c2 = 0
calibration_c3 = 0
sigma_vary = False
sigma (cm-1) = 0.637

Tested Spectrometers

Ocean Optics HR4000, based on python-seabreeze
