KD discovers the governing partial differential equation from data: give it a field sampled on a spatiotemporal grid, get back a symbolic PDE. The same Model.fit also takes a plain feature table and returns a scalar expression y = f(X). Five in-house algorithms (SGA, DLGA, DISCOVER, EqGPT, LLM4ED) and two external baselines (PySR, PySINDy) run behind one kd.Model API, sharing a single dataset interface, term evaluator, and HTML report.

Install

Requires Python >= 3.11. With uv, one install works on every machine: --torch-backend=auto picks the PyTorch build that matches the hardware (CUDA when a driver is present, CPU otherwise).

uv venv
uv pip install sail-kd --torch-backend=auto

With plain pip, pip install sail-kd pulls PyTorch from PyPI, which on Linux is the CUDA build (about 4 GB with its NVIDIA libraries). On a machine without a GPU, install the CPU build first; pip install sail-kd then keeps it:

pip install torch --index-url https://download.pytorch.org/whl/cpu
pip install sail-kd

Model(algorithm="pysr") needs the PySR extra, whose first import downloads a Julia runtime: uv pip install "sail-kd[pysr]". For a development checkout, git clone https://github.com/Scientific-Artificial-Intelligence-Lab/kd.git && cd kd && uv sync.

The experimental controller is available through the agent extra:

uv pip install "sail-kd[agent]" --torch-backend=auto
kd-agent setup
kd-agent run --data sample.npz "Find the equation governing this data."

Setup saves an OpenAI-compatible or Anthropic endpoint, model and API key. Each run writes a Markdown report in its workspace. kd-agent --help works with a base install; running the controller requires the extra. For PySR searches through the controller, install sail-kd[agent,pysr].

Quick start

import kd

# The bundled Burgers benchmark: a 256 × 201 field on an (x, t) grid.
dataset = kd.load_burgers()

model = kd.Model(algorithm="sga", generations=5, seed=0)
model.fit(dataset)

print(model.best_expr_)    # u_t = -1*mul(u_x, u) + 0.1002*diff2_x(u)
print(model.best_score_)   # -28.78 (AIC, lower is better)

The printed expression is KD's canonical function-call notation (funcall IR): mul(u_x, u) is $u,u_x$ and diff2_x(u) is $u_{xx}$, so five generations of search recover

$$u_t = -u,u_x + 0.1002,u_{xx}$$

against a ground truth of $u_t = -u,u_x + 0.1,u_{xx}$. The same run narrated step by step, with the figures it produces, is Getting started.

Your own data enters through kd.load, which takes a catalog id or a file path and reads the file on evidence rather than on a guess:

kd.inspect_file("1D_Burgers_Sols_Nu0.01.hdf5")           # every array: key, shape, dtype, range
dataset = kd.load("1D_Burgers_Sols_Nu0.01.hdf5", select={"sample": 0})   # a PDEBench file
dataset = kd.load("run.mat", coords={"x": "x", "t": "t"}, fields={"u": "usol"}, lhs="u_t")

A registered layout (PDEBench HDF5, the self-describing kd-npz convention) builds the dataset by itself; otherwise you name the arrays with coords= / fields=, or pass loader=, a function of your own. Arrays you already hold go through kd.PDEDataset.from_arrays (see Use your own data).

Tabular data

Model.fit also accepts a TabularDataset: a plain feature table, searched for y = f(X) with no fields, no derivatives, and no term library. The example below uses the bundled TLC-CC measurements, 74 chromatography conditions.

import kd

dataset = kd.load_tlc_cc(target="start")     # X = (R_F, r), y = V_S

model = kd.Model("discover", generations=100, seed=0,
                 batch_size=500, reward_alpha=0.005, max_length=15).fit(dataset)

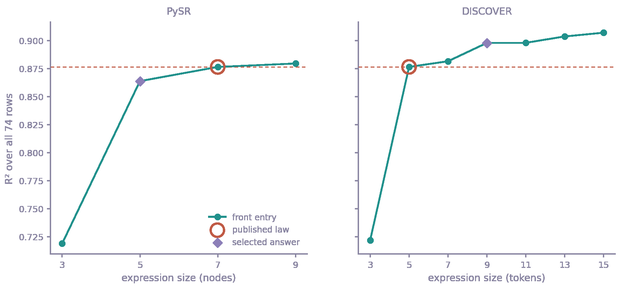

for entry in model.result_.pareto_front():
    print(entry.complexity, entry.loss, entry.scale, entry.expression)

Tabular scoring is scale-free: a Pareto entry holds the raw candidate in entry.expression and its fitted outer coefficient in entry.scale. At this budget and seed the complexity-5 entry div(r, add(0.0737, R_F)) with scale 6.634 normalizes to $r/(0.151,R_F + 0.0111)$, against the published $r/(0.147,R_F + 0.0114)$.

"discover" and "pysr" run in tabular mode. Both on the same table: examples/12_symbolic_regression.py; the worked comparison, with the Pareto fronts side by side, is Column chromatography.

Algorithms

The five in-house algorithms are refactored re-implementations of methods developed in this lab. Swap the algorithm= string to switch; all seven share one dataset interface and one result object.

Algorithm	algorithm=	Origin	Approach
SGA	"sga"	Chen et al. 2022 (SGA-PDE)	Genetic algorithm over symbolic expression trees
DLGA	"dlga"	Xu et al. 2020	Neural-network surrogate + genetic algorithm
DISCOVER	"discover"	Du et al. 2024	LSTM controller + policy gradient
EqGPT	"eqgpt"	Xu et al. 2025 (EqGPT)	Pretrained generative GPT proposes candidate PDEs, then reward-guided fine-tuning
LLM4ED	"llm4ed"	Du et al. 2024 (LLM4ED)	An LLM proposes candidate equations as text, scored by a sparse-regression reward
PySR	"pysr"	external, Cranmer 2023	Genetic programming over expression trees (pip install "sail-kd[pysr]")
PySINDy	"pysindy"	external, de Silva et al. 2020	Native STLSQ sparse regression over the KD term library

Beyond field data, "discover" and "pysr" also run on a feature table (above), and "sga" and "pysindy" also accept a sketch (below).

EqGPT needs its pretrained GPT weights, which are not vendored; see examples/16_eqgpt.py for where to place them. LLM4ED runs fully offline with an injected provider, or against any OpenAI-compatible API (see examples/17_llm4ed.py).

Each algorithm's own settings go through the same call: any field of its config carries as a keyword argument, so kd.Model(algorithm="pysindy", threshold=0.2, normalize_columns=True) and kd.Model(algorithm="dlga", pop_size=200, epsilon=1e-4) need no per-algorithm call form. An unknown name is rejected with the accepted ones listed. kd.instrument_schemas() returns one row per algorithm, its config fields with types and defaults plus the facade parameters (generations, population, seed, ...), so a caller holding only JSON can configure any algorithm without hardcoding names.

Datasets

Simulated PDE datasets

The simulated datasets come from this lab's PDE-discovery papers: SGA-PDE (Chen et al., Phys. Rev. Research 4, 023174, 2022), EqGPT (Xu et al., Nat Commun 16, 10255, 2025) and LLM4ED (Du et al., Phys. Fluids 36, 097121, 2024).

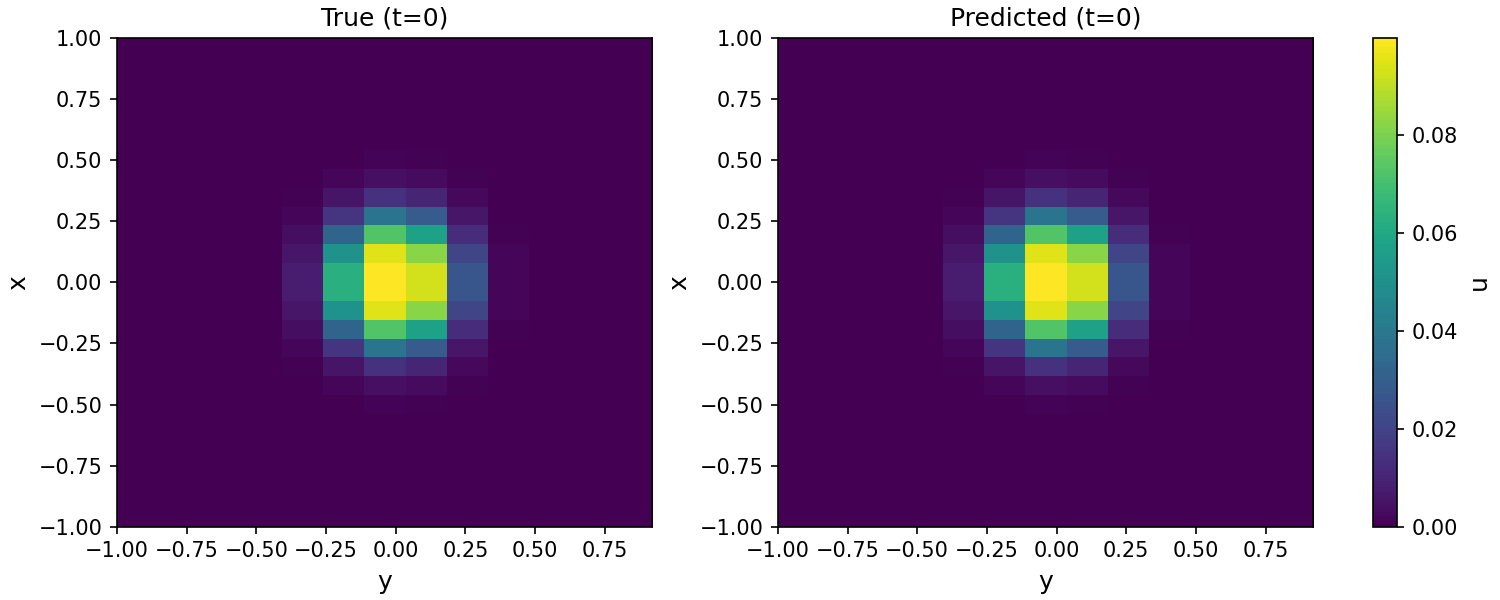

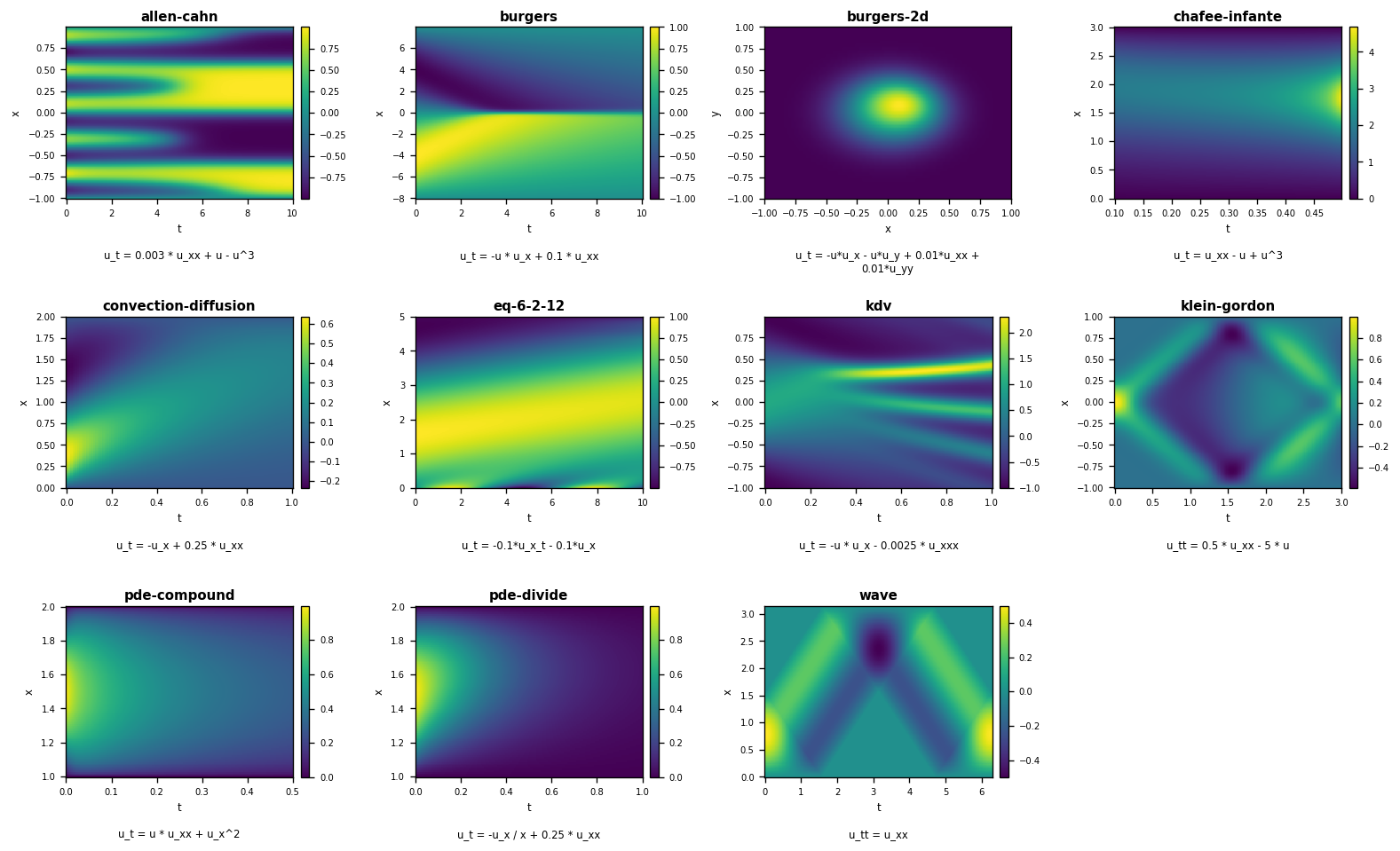

The catalog runs from Burgers and KdV to 2D Burgers, Klein-Gordon and the Fisher family. Load any bundled dataset with kd.load("burgers") or kd.load_burgers(), or browse the catalog programmatically with kd.list_datasets() / kd.get_dataset(id); each entry carries its .source and .license (see NOTICE). kd.generate_burgers_data(), kd.generate_diffusion_data(), ... build synthetic datasets on demand, and remote entries are fetched with kd.load_from_hub(id).

Governing equation, grid and source for every entry: Bundled datasets.

Real-world experimental data

KD also bundles measured data, not only simulation:

Dataset	Type	Measured quantity	Size	Reference
wave-breaking	wave-tank experiment (Imperial College London)	surface elevation η(t, x) of wave groups approaching breaking	314,478 points (one of the paper's 12 experiments)	Xu et al., Nat Commun 16, 10255 (2025)
tlc-cc	automated chromatography experiment	column retention volumes V_S, V_E vs (R_F, r)	2 tables × 74 conditions	Xu et al., Nat Commun 16, 832 (2025)

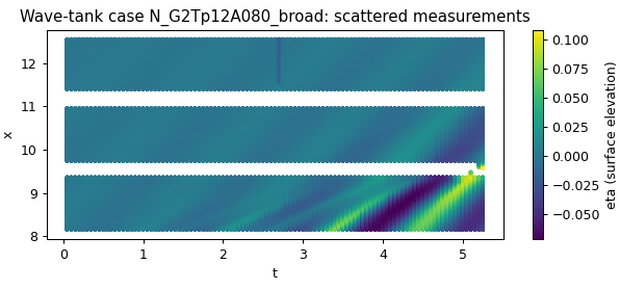

wb = kd.load_wave_breaking()          # η(t, x): scattered wave-tank points
cc = kd.load_tlc_cc(target="start")   # X = (R_F, r), y = V_S

Wave breaking is surface elevation of focused wave groups approaching breaking, reconstructed frame by frame from camera images in the wave-tank experiments of the EqGPT paper, bundled as scattered (t, x, η) points. TLC-CC is column-chromatography retention volumes measured on an automated platform (192 compounds, 4 g silica columns), aggregated to mean start and end retention volumes over 74 (R_F, r) conditions, ready for KD's scalar symbolic-regression entries. Experimental background, protocols and references for both are in the papers and their Supplementary Information (wave breaking, TLC-CC).

Examples

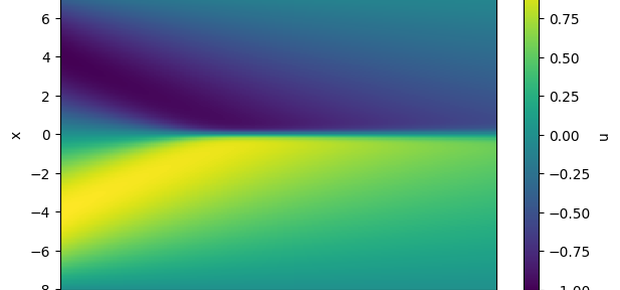

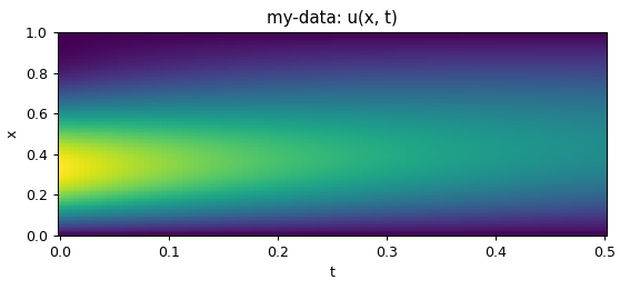

Getting started Load a bundled benchmark, fit in one call, read the result.	Use your own data Two coordinate arrays and one field array, from NumPy to a fitted equation.
Breaking waves The published EqGPT equation, reproduced on 12 wave-tank experiments.	Column chromatography Two algorithms on one 74-row table, both recovering the published formula.

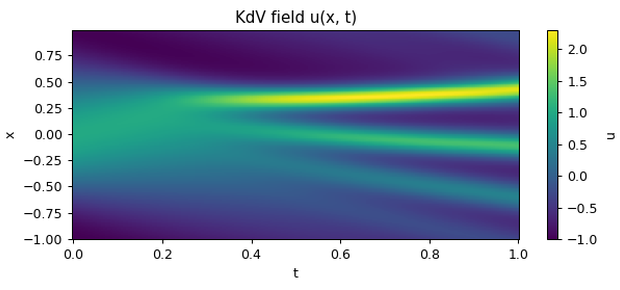

KdV walkthrough A 200-generation SGA-PDE fit on the KdV benchmark, read term by term, with every figure and the report.

Nineteen runnable scripts covering every algorithm are in examples/, including 09_compare_algorithms.py, which runs the algorithms on one dataset and ranks the discovered equations on a single NMSE ruler.

Discovery with a sketch

A blind search starts from "any equation could be here". When part of the law is already settled physics, fit(dataset, sketch=...) states that part and searches only the rest. A pinned term is subtracted from the regression target before the search and restored exactly in the solution, so the search cannot spend budget rediscovering it. A hole declares how many terms may fill it and what shapes they may take (derivative-order cap, allowed operators, fields, axes).

The exit is certified: outcome.solution is published only when the discovered law satisfies every clause, and otherwise the run reports outcome.best_candidate plus the clause that failed. "sga" and "pysindy" accept sketches today; an algorithm that cannot honor a clause refuses the fit with a ValueError naming that clause instead of searching wider than declared.

The full walkthrough, including how the two backends differ, is examples/21_sketch_discovery.py (about 30 seconds).

More in KD

Score candidate terms	Fit and score a term set directly, or classify one without fitting, with a per-term rejection report	examples/11 · API
Checkpoint and resume	Atomic search-state checkpoints during fit, plus a manifest.json ledger to pick a resume point from	examples/10 · Guide
Batch experiments	A declarative algorithm × dataset plan, run into a sealed evidence store with environment fingerprints and consensus reports	examples/19 · Guide
HTML reports	Convergence, parity, residual maps, field comparisons, the equation in LaTeX, and each algorithm's own search diagnostics	examples/03 · Guide
Dataset preview	kd.preview(dataset) audits axes, spacing, field statistics and the left-hand side before a search	Data requirements

Origins and acknowledgements

The SGA, DLGA, DISCOVER, EqGPT, and LLM4ED algorithms are refactored re-implementations of methods developed in this lab; credit for the methods belongs to the original works:

• SGA-PDE: Chen et al., SGA-PDE; also the source of several bundled datasets (see NOTICE)
• DLGA: Xu et al. 2020
• DISCOVER: Du et al., DISCOVER
• EqGPT: Xu et al., EqGPT, Nat Commun 16, 10255 (2025); also the source of several bundled datasets, including the wave-breaking experiments (see NOTICE)
• LLM4ED: Du et al., LLM4ED, Phys. Fluids 36, 097121 (2024)

KD also builds on PySR and PySINDy (optional external baselines), SymPy, and PyTorch.

License

Apache-2.0. Copyright 2026 Mao, Hao and the Scientific Artificial Intelligence Lab.
