samplesheet-parser 1.3.0

Format-agnostic parser for Illumina SampleSheet.csv files — supports IEM V1 and BCLConvert V2

samplesheet-parser

Format-agnostic parser for Illumina SampleSheet.csv files.

Supports both the classic IEM V1 format (bcl2fastq era) and the modern BCLConvert V2 format (NovaSeq X series) — with automatic format detection, bidirectional conversion, index validation, Hamming distance checking, diff comparison, multi-sheet merging, programmatic sheet creation, and a full-featured CLI.

Docs: https://illumina-samplesheet.readthedocs.io/ | PyPI: https://pypi.org/project/samplesheet-parser/

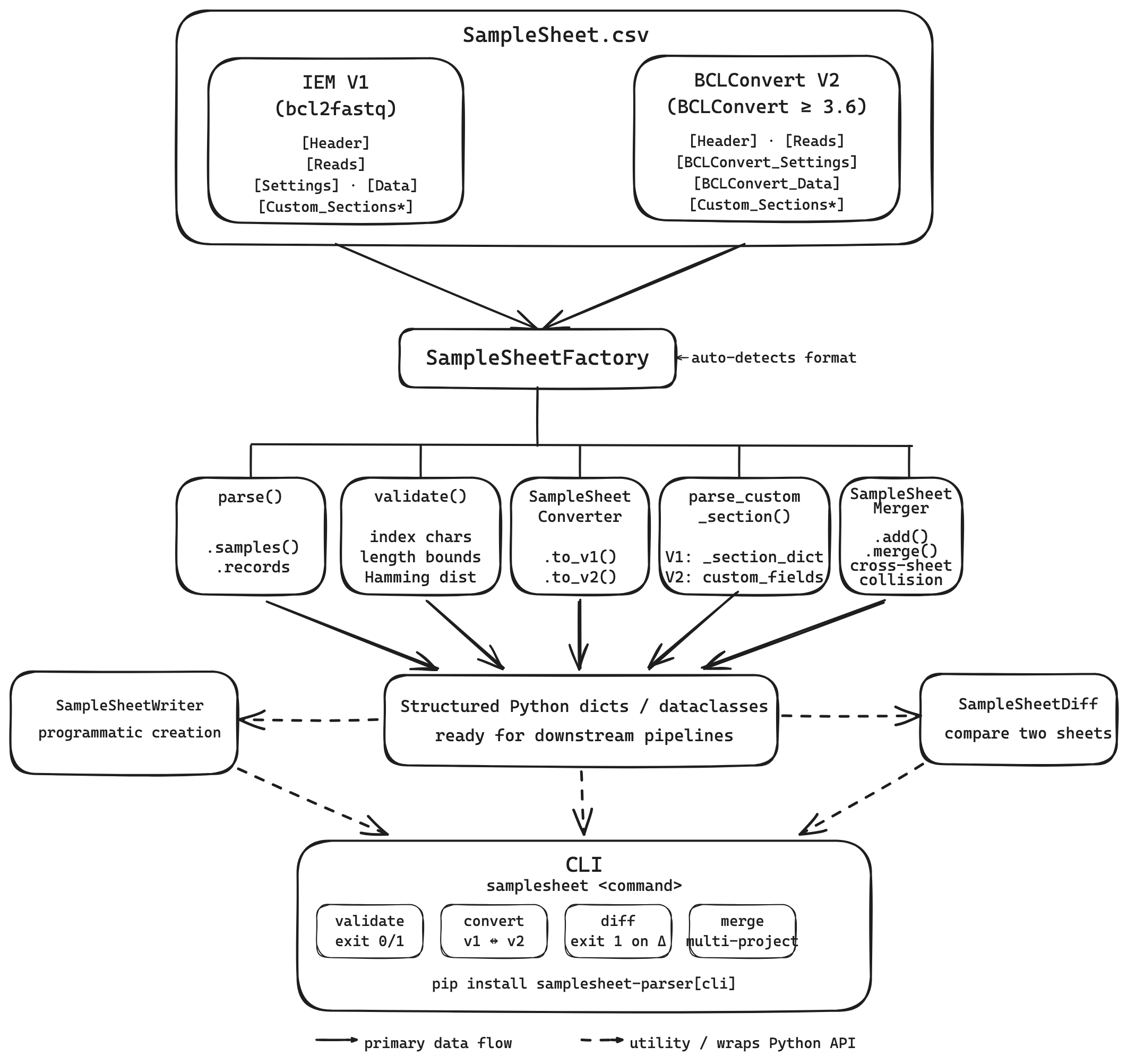

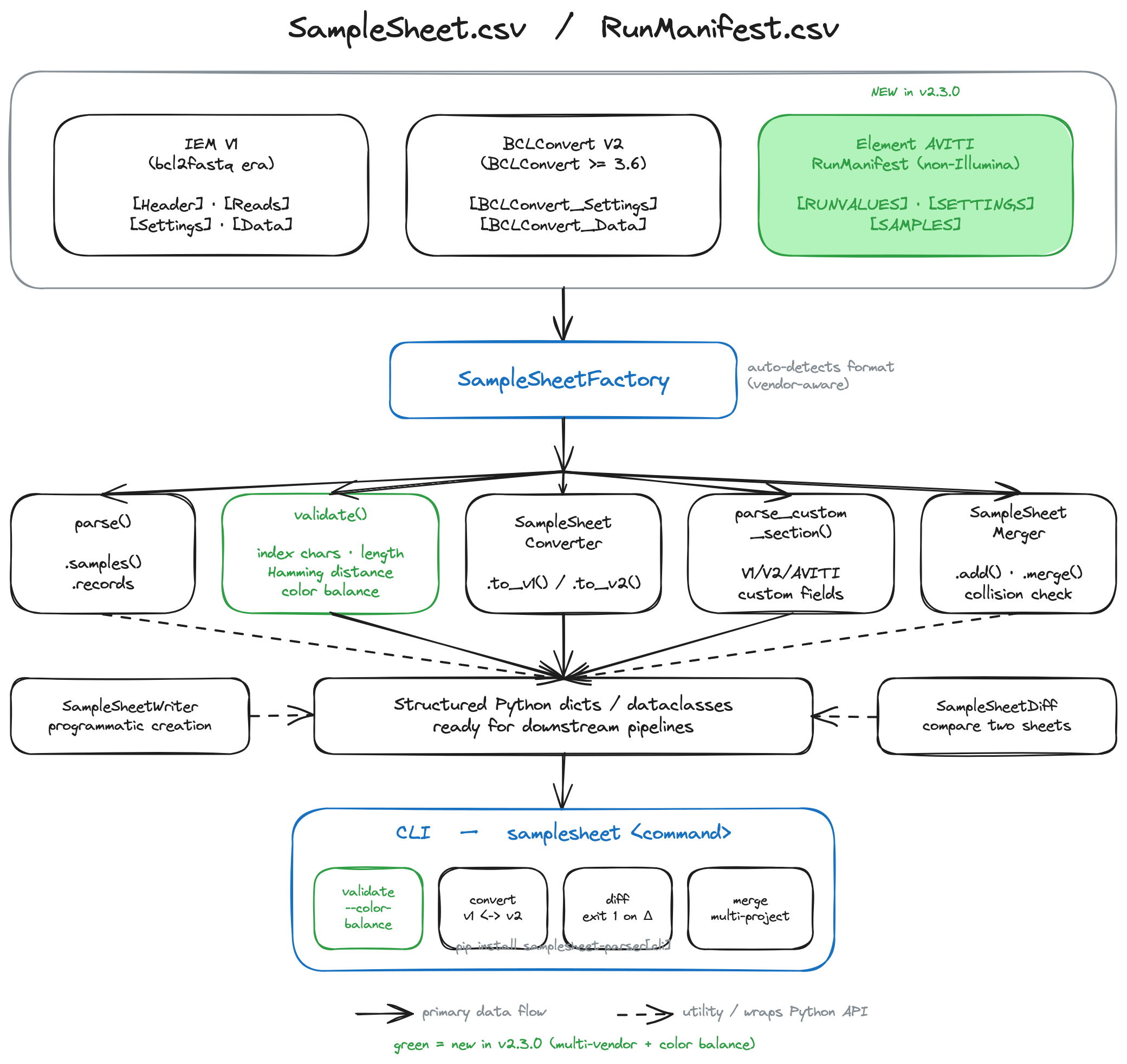

SampleSheetFactory auto-detects the format and routes to the correct parser. Both formats share a common interface — SampleSheetConverter handles bidirectional conversion, SampleSheetValidator catches index and adapter issues, SampleSheetDiff compares two sheets across any combination of V1/V2 formats, SampleSheetMerger combines multiple per-project sheets into one, and SampleSheetWriter builds or edits sheets programmatically. The samplesheet CLI exposes all of this from the shell.

---

The problem this solves

Labs running mixed instrument fleets — older NovaSeq 6000 alongside newer NovaSeq X series — produce two incompatible SampleSheet formats. BCLConvert V2 sheets use [BCLConvert_Settings] / [BCLConvert_Data] sections, OverrideCycles for UMI encoding, and FileFormatVersion in the header. IEM V1 sheets use IEMFileVersion and a flat [Data] section.

Existing tools either hard-code one format or require the caller to know which format they have. samplesheet-parser auto-detects the format, exposes a consistent interface for both, converts between formats, validates index integrity (including Hamming distance), diffs sheets to catch accidental changes before a run starts, and writes new sheets programmatically — so you never have to hand-edit a CSV again.

---

Installation

# Core library only
pip install samplesheet-parser

# With the CLI (adds typer)
pip install "samplesheet-parser[cli]"

Requires Python 3.12+. No mandatory runtime dependencies beyond loguru.

---

Quickstart

Auto-detect format (recommended)

from samplesheet_parser import SampleSheetFactory

factory = SampleSheetFactory()
sheet = factory.create_parser("SampleSheet.csv", parse=True)

print(factory.version)      # SampleSheetVersion.V1 or .V2
print(sheet.index_type())   # "dual", "single", or "none"

for sample in sheet.samples():
    print(sample["sample_id"], sample["index"])

V1 parser directly

from samplesheet_parser import SampleSheetV1

sheet = SampleSheetV1("SampleSheet.csv")
sheet.parse()

print(sheet.experiment_name)   # "MyRun_20240115"
print(sheet.read_lengths)      # [151, 151]
print(sheet.adapters)          # ["CTGTCTCTTATACACATCT"]
print(sheet.index_type())      # "dual"

for sample in sheet.samples():
    print(sample["sample_id"], sample["index"], sample["index2"])

V2 parser + UMI extraction

from samplesheet_parser import SampleSheetV2

sheet = SampleSheetV2("SampleSheet.csv")
sheet.parse()

# OverrideCycles: Y151;I10U9;I10;Y151 → 9 bp UMI in Index1
print(sheet.get_umi_length())       # 9
rs = sheet.get_read_structure()
print(rs.umi_location)              # "index2"
print(rs.read_structure)            # {"read1_template": 151, "index2_length": 10, "index2_umi": 9, ...}

Format conversion

from samplesheet_parser import SampleSheetConverter

# V1 → V2
SampleSheetConverter("SampleSheet_v1.csv").to_v2("SampleSheet_v2.csv")

# V2 → V1  (lossy — V2-only fields are dropped with a warning)
SampleSheetConverter("SampleSheet_v2.csv").to_v1("SampleSheet_v1.csv")

Validation

from samplesheet_parser import SampleSheetFactory, SampleSheetValidator

sheet = SampleSheetFactory().create_parser("SampleSheet.csv", parse=True)
result = SampleSheetValidator().validate(sheet)

print(result.summary())
# PASS — 0 error(s), 2 warning(s)

for w in result.warnings:
    print(w)
# [WARNING] INDEX_DISTANCE_TOO_LOW: Indexes for 'S1' and 'S2' in lane '1'
#   have a Hamming distance of 1 (minimum recommended: 3).
#   This may cause demultiplexing bleed-through.

for err in result.errors:
    print(err)
# [ERROR] DUPLICATE_INDEX: Index 'ATTACTCG+TATAGCCT' appears more than once in lane 1

Diff two sheets

from samplesheet_parser import SampleSheetDiff

diff = SampleSheetDiff("old/SampleSheet.csv", "new/SampleSheet.csv")
result = diff.compare()

print(result.summary())
# Diff (V1 → V2):
#   2 header/settings change(s)
#   1 sample(s) added: SAMPLE_009
#   1 sample(s) with field changes

if result.has_changes:
    for change in result.sample_changes:
        print(change)
    # Sample 'SAMPLE_002' (lane 1):
    #   Index: 'TCCGGAGA' → 'GGGGGGGG'

    for s in result.samples_added:
        print(f"Added: {s['Sample_ID']}")

Works across any combination of V1 and V2 — field names are normalised before comparison so V1-only columns (I7_Index_ID, Sample_Name, etc.) do not generate spurious diffs.

Build or edit a sheet

from samplesheet_parser import SampleSheetWriter
from samplesheet_parser.enums import SampleSheetVersion

# Build a V2 sheet from scratch
writer = SampleSheetWriter(version=SampleSheetVersion.V2)
writer.set_header(run_name="MyRun_20240115", platform="NovaSeqXSeries")
writer.set_reads(read1=151, read2=151, index1=10, index2=10)
writer.set_adapter("CTGTCTCTTATACACATCT")
writer.set_override_cycles("Y151;I10;I10;Y151")
writer.add_sample("SAMPLE_001", index="ATTACTCGAT", index2="TATAGCCTGT", project="Proj")
writer.add_sample("SAMPLE_002", index="TCCGGAGACC", index2="ATAGAGGCAC", project="Proj")
writer.write("SampleSheet.csv")   # validates before writing by default

# Load an existing sheet, edit it, write back
from samplesheet_parser import SampleSheetFactory

sheet = SampleSheetFactory().create_parser("SampleSheet.csv", parse=True)
editor = SampleSheetWriter.from_sheet(sheet)
editor.remove_sample("SAMPLE_005")
editor.update_sample("SAMPLE_002", index="GGGGGGGGGG")
editor.write("SampleSheet_updated.csv")

write() runs SampleSheetValidator before writing by default — pass validate=False to skip. from_sheet(sheet, version=SampleSheetVersion.V1) converts format while editing.

---

Merge multiple sheets

Combine per-project sheets from a single run into one merged sheet. Conflicts (index collisions, read-length mismatches, adapter disagreements) are surfaced as structured results rather than silent failures.

from samplesheet_parser import SampleSheetMerger
from samplesheet_parser.enums import SampleSheetVersion

result = (
    SampleSheetMerger(target_version=SampleSheetVersion.V2)
    .add("ProjectA.csv")
    .add("ProjectB.csv")
    .add("ProjectC.csv")
    .merge("SampleSheet_combined.csv")
)

print(result.summary())
# Merged 3 sheet(s) → SampleSheet_combined.csv (12 samples) — 0 conflict(s), 0 warning(s)

if result.has_conflicts:
    for c in result.conflicts:
        print(c)
    # [CONFLICT] INDEX_COLLISION: Index 'ATTACTCG+TATAGCCT' in lane 1
    #   appears in both ProjectA.csv and ProjectB.csv

for w in result.warnings:
    print(w)
    # [WARNING] MIXED_FORMAT: Input sheets are a mix of V1 and V2 formats.
    #   All will be converted to V2 for output.

Mixed V1/V2 inputs are automatically converted to the target format. Pass abort_on_conflicts=False to write output even when conflicts exist.

---

CLI

Install the CLI extra and use the samplesheet command directly from the shell:

pip install "samplesheet-parser[cli]"

validate

# Text output — exit 0 if clean, exit 1 if errors
samplesheet validate SampleSheet.csv

# JSON output for CI pipelines
samplesheet validate SampleSheet.csv --format json

convert

samplesheet convert SampleSheet_v1.csv --to v2 --output SampleSheet_v2.csv
samplesheet convert SampleSheet_v2.csv --to v1 --output SampleSheet_v1.csv

diff

# Exit 0 if identical, exit 1 if any differences detected
samplesheet diff old/SampleSheet.csv new/SampleSheet.csv

# JSON output for scripting
samplesheet diff old/SampleSheet.csv new/SampleSheet.csv --format json

merge

# Clean merge — exit 0
samplesheet merge ProjectA.csv ProjectB.csv --output combined.csv

# Merge three sheets to V1 format
samplesheet merge ProjectA.csv ProjectB.csv ProjectC.csv --to v1 --output combined.csv

# Write output even if conflicts are found
samplesheet merge ProjectA.csv ProjectB.csv --output combined.csv --force

# JSON output
samplesheet merge ProjectA.csv ProjectB.csv --output combined.csv --format json

Exit codes (all commands):

Code	Meaning
0	Success / no issues
1	Errors found (invalid sheet, conflicts, differences detected)
2	Usage error (missing file, bad argument)

---

Format detection logic

The factory uses a three-step detection strategy — no format hints required from the caller:

1. Header discriminator — scan [Header] for FileFormatVersion (→ V2) or IEMFileVersion (→ V1)
2. Section name scan — if no header key found, look for [BCLConvert_Settings] / [BCLConvert_Data] in the full file (→ V2)
3. Default — fall back to V1 (broadest compatibility with legacy files)

The detector reads only as much of the file as needed — stopping after [Header] in the common case.

---

Validation checks

Code	Level	Description
EMPTY_SAMPLES	error	No samples in Data section
INVALID_INDEX_CHARS	error	Index contains non-ACGTN characters
INDEX_TOO_LONG	error	Index longer than 24 bp
DUPLICATE_INDEX	error	Two samples share an index in the same lane
DUPLICATE_SAMPLE_ID	error	Same Sample_ID appears twice in one lane
INDEX_TOO_SHORT	warning	Index shorter than 6 bp
INDEX_DISTANCE_TOO_LOW	warning	Two indexes in the same lane have Hamming distance < 3, risking demultiplexing bleed-through
NO_ADAPTERS	warning	No adapter sequences configured
ADAPTER_MISMATCH	warning	Adapter is non-standard

Hamming distance checking

Indexes that are too similar cause read bleed-through between samples during demultiplexing — a common cause of low-quality runs that is not caught by a simple duplicate check. The validator computes the Hamming distance between every pair of indexes within each lane and warns when the distance falls below the recommended minimum of 3.

For dual-index sheets, the I7 and I5 sequences are combined before comparison, so a pair that is close on I7 but well-separated on I5 (as most dual-index kits are designed) is not incorrectly flagged.

# Custom threshold — stricter than the default of 3
from samplesheet_parser.validators import SampleSheetValidator, ValidationResult

samples = sheet.samples()
result = ValidationResult()
SampleSheetValidator()._check_index_distances(samples, result, min_distance=4)

---

Merger conflict and warning codes

Code	Level	Description
PARSE_ERROR	conflict	An input sheet could not be parsed
INDEX_COLLISION	conflict	The same index appears in the same lane across two sheets
READ_LENGTH_CONFLICT	conflict	Sheets specify different read lengths or cycle counts
MERGE_VALIDATION_ERROR	conflict	Post-merge validation of the combined sheet failed
MIXED_FORMAT	warning	Input sheets are a mix of V1 and V2 formats
INDEX_DISTANCE_TOO_LOW	warning	Cross-sheet index pair has Hamming distance below threshold
ADAPTER_CONFLICT	warning	Adapter sequences differ between sheets (primary sheet adapters are used)
INCOMPLETE_SAMPLE_RECORD	warning	A sample row is missing Sample_ID or index and was skipped

---

Diff

SampleSheetDiff compares two sheets — any combination of V1 and V2 — and returns a structured DiffResult across four dimensions:

Dimension	What is compared
Header	Key/value changes in [Header] / [BCLConvert_Settings]
Reads	Read length or cycle count changes
Samples added / removed	Keyed on Sample_ID + Lane
Sample field changes	Per-sample field-level diffs (index, project, etc.)

result = SampleSheetDiff("before.csv", "after.csv").compare()

result.has_changes          # bool
result.summary()            # one-paragraph human-readable summary
result.header_changes       # list[HeaderChange]
result.samples_added        # list[dict]
result.samples_removed      # list[dict]
result.sample_changes       # list[SampleChange]

# Inspect per-sample changes
for sc in result.sample_changes:
    print(sc.sample_id, sc.lane)
    for field, (old, new) in sc.changes.items():
        print(f"  {field}: {old!r} → {new!r}")

V1-only metadata columns (I7_Index_ID, I5_Index_ID, Sample_Name, Description) are suppressed when comparing V1 against V2 so that format differences do not generate noise.

---

UMI / OverrideCycles parsing

The V2 OverrideCycles field encodes read structure including UMI positions:

OverrideCycles	UMI length	UMI location
Y151;I10;I10;Y151	0	—
Y151;I10U9;I10;Y151	9	index2
U5Y146;I8;I8;U5Y146	5	read1

sheet.get_umi_length()       # → int
sheet.get_read_structure()   # → ReadStructure dataclass

---

API reference

SampleSheetFactory

Method / attribute	Returns	Description
create_parser(path, *, clean, experiment_id, parse)	SampleSheetV1 | SampleSheetV2	Auto-detect format and return appropriate parser
get_umi_length()	int	UMI length from the current parser
.version	SampleSheetVersion	Detected format version

SampleSheetV1 / SampleSheetV2 (shared interface)

Method / attribute	Returns	Description
parse(do_clean=True)	None	Parse all sections
samples()	list[dict]	One record per unique sample
index_type()	str	"dual", "single", or "none"
.adapters	list[str]	Adapter sequences
.experiment_name	str | None	Run/experiment name

V2-only

Method	Returns
get_umi_length()	int
get_read_structure()	ReadStructure

SampleSheetConverter

Method	Returns	Notes
to_v2(output_path)	Path	Converts IEM V1 → BCLConvert V2
to_v1(output_path)	Path	Converts BCLConvert V2 → IEM V1 (lossy)
.source_version	SampleSheetVersion	Auto-detected format of input

SampleSheetValidator

Method	Returns	Description
validate(sheet)	ValidationResult	Run all checks; returns structured result
_check_index_distances(samples, result, min_distance=3)	None	Hamming distance check (callable directly for custom thresholds)

SampleSheetWriter

Method / attribute	Returns	Description
SampleSheetWriter(version=)	—	Instantiate for SampleSheetVersion.V1 or .V2
from_sheet(sheet, version=)	SampleSheetWriter	Load a parsed sheet for editing; optionally change output format
set_header(*, run_name, platform, ...)	self	Set header fields (fluent)
set_reads(*, read1, read2, index1, index2)	self	Set read cycle counts (fluent)
set_adapter(adapter_read1, adapter_read2)	self	Set adapter sequences (fluent)
set_override_cycles(override)	self	Set OverrideCycles string — V2 only (fluent)
set_software_version(version)	self	Set SoftwareVersion — V2 only (fluent)
set_setting(key, value)	self	Set an arbitrary settings key/value (fluent)
add_sample(sample_id, *, index, ...)	self	Append a sample row (fluent)
remove_sample(sample_id, *, lane=)	self	Remove sample(s) by ID, optionally scoped to a lane (fluent)
update_sample(sample_id, *, lane=, **fields)	self	Update fields on an existing sample in-place (fluent)
write(path, *, validate=True)	Path	Serialise to disk; validates first by default
to_string()	str	Serialise to string without writing to disk
.sample_count	int	Number of samples currently in the writer
.sample_ids	list[str]	Sample IDs currently in the writer

---

SampleSheetDiff

Method	Returns	Description
compare()	DiffResult	Full comparison across header, reads, settings, and samples

DiffResult

Attribute / method	Type	Description
has_changes	bool	True if any difference was detected
summary()	str	Human-readable one-paragraph summary
header_changes	list[HeaderChange]	Header, reads, and settings diffs
samples_added	list[dict]	Records present in new sheet only
samples_removed	list[dict]	Records present in old sheet only
sample_changes	list[SampleChange]	Per-sample field-level diffs
source_version	SampleSheetVersion	Format of the old sheet
target_version	SampleSheetVersion	Format of the new sheet

---

---

SampleSheetMerger

Method / attribute	Returns	Description
SampleSheetMerger(target_version=)	—	Instantiate; default target is SampleSheetVersion.V2
add(path)	self	Register an input sheet path (fluent)
merge(output_path, *, validate=True, abort_on_conflicts=True)	MergeResult	Run the merge and write output

MergeResult

Attribute / method	Type	Description
has_conflicts	bool	True if any conflict was recorded
sample_count	int	Number of samples in the merged output
output_path	Path | None	Path written; None if write was aborted
source_versions	dict[str, str]	Per-input-file detected format version
conflicts	list[MergeConflict]	Structured conflict records
warnings	list[MergeConflict]	Structured warning records
summary()	str	Human-readable one-line summary

---

CI / pre-commit integration

The CLI exits with meaningful codes (0 = clean, 1 = issues, 2 = error), making it easy to wire into automated pipelines.

GitHub Actions

Add a validation step to any workflow that touches SampleSheet.csv:

# .github/workflows/validate-samplesheet.yml
name: Validate SampleSheet

on:
  push:
    paths:
      - '**/SampleSheet.csv'
  pull_request:
    paths:
      - '**/SampleSheet.csv'

jobs:
  validate:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4

      - uses: actions/setup-python@v5
        with:
          python-version: '3.12'

      - run: pip install "samplesheet-parser[cli]"

      - name: Validate SampleSheet
        run: samplesheet validate SampleSheet.csv --format json

pre-commit hook

Gate commits that touch any SampleSheet.csv in the repository:

# .pre-commit-config.yaml
repos:
  - repo: local
    hooks:
      - id: samplesheet-validate
        name: Validate SampleSheet.csv
        entry: samplesheet validate
        language: python
        additional_dependencies: ["samplesheet-parser[cli]"]
        files: SampleSheet\.csv$
        pass_filenames: true

Install and run once to verify:

pip install pre-commit
pre-commit install
pre-commit run samplesheet-validate --all-files

Stricter Hamming distance in CI

If your lab uses longer indexes (10 bp+), raise the minimum Hamming distance threshold to catch borderline cases earlier:

samplesheet validate SampleSheet.csv --min-hamming 4

This is especially useful in CI where you want to prevent runs that will likely fail demultiplexing.

---

Contributing

git clone https://github.com/chaitanyakasaraneni/samplesheet-parser
cd samplesheet-parser
pip install -e ".[dev,cli]"

# Run tests
pytest tests/ -v

# Run demo scripts
python scripts/demo_converter.py
python scripts/demo_diff.py
python scripts/demo_writer.py

See CONTRIBUTING.md for the full local testing guide and PR checklist.

---

Citation

@software{kasaraneni2026samplesheetparser,
  author  = {Kasaraneni, Chaitanya},
  title   = {samplesheet-parser: Format-agnostic parser for Illumina SampleSheet.csv},
  year    = {2026},
  url     = {https://github.com/chaitanyakasaraneni/samplesheet-parser},
  version = {1.1.0}
}

---

License

Apache 2.0 — see LICENSE.

---

Related resources

• Illumina IEM V1 SampleSheet reference (Knowledge Article #2204)
• BCLConvert Software Guide
• Upgrading from bcl2fastq to BCLConvert
• Illumina index design recommendations
