sciwidgets

PySide6 building blocks for scientific desktop apps: parameter sliders and panels described in JSON, Matplotlib plot canvases, DataFrame tables, LaTeX labels, dialogs, and app support (launcher, updates, Help menu), in light and dark mode.

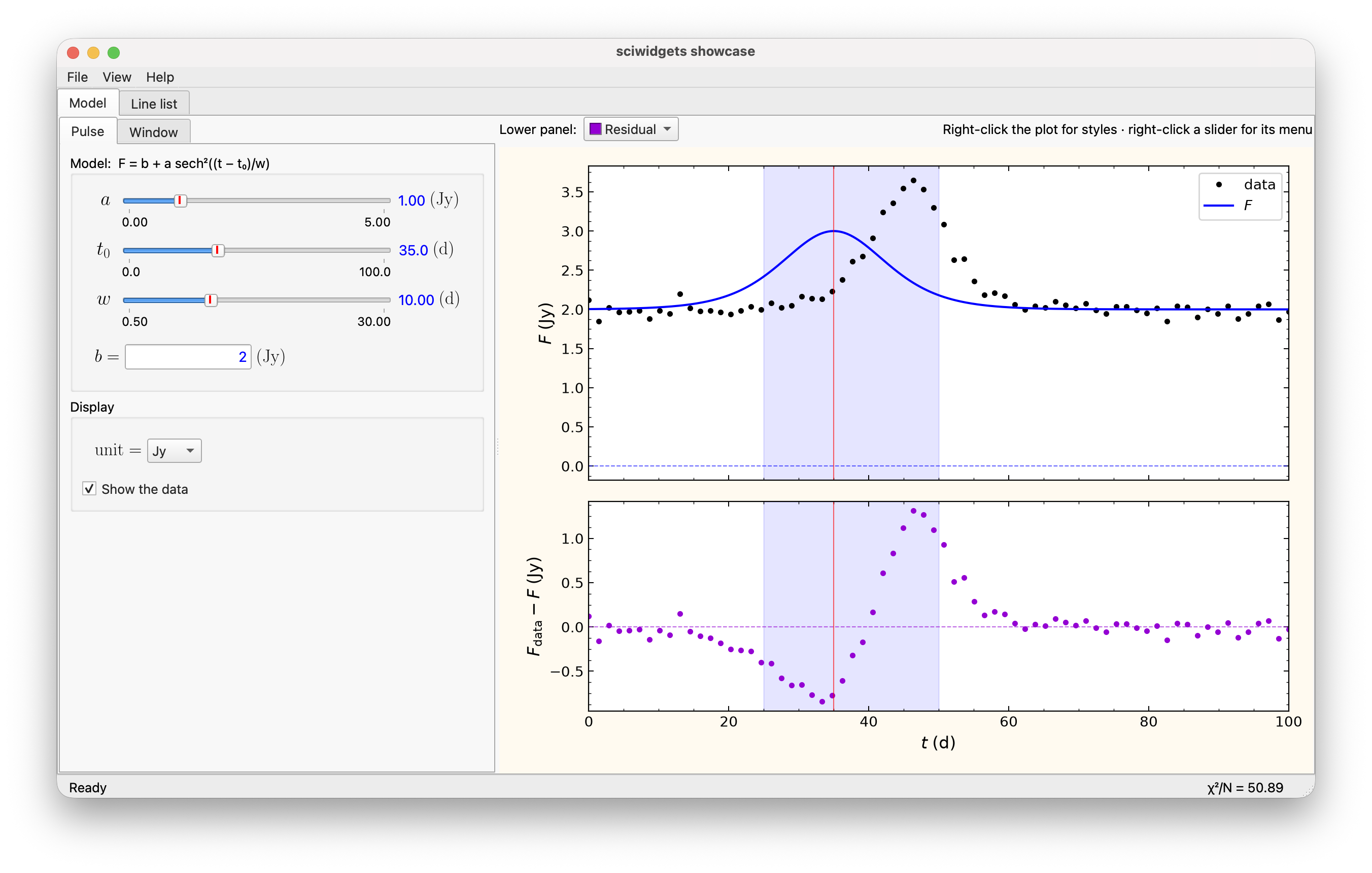

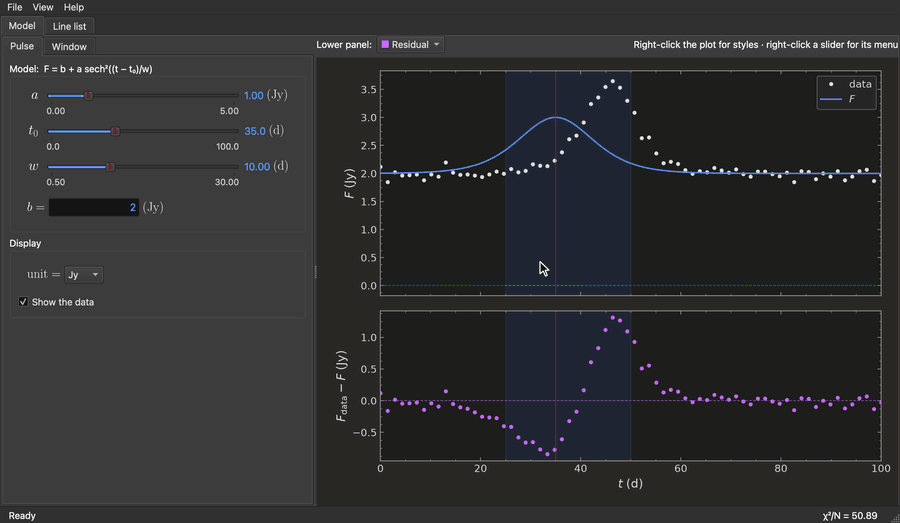

The showcase above is python -m sciwidgets: a panel built from a JSON description drives the plot, with a line-list table in the second tab and dark mode in the View menu. Fitting the pulse by eye, a slider's Set Value dialog, and switching to dark mode:

The widgets were written for Maxwell Bloch Studio and moved into this package so other apps can share them.

Features

• Math labels: MathLabel renders LaTeX through Matplotlib and scales cleanly as SVG. It uses your system LaTeX when installed and falls back to Matplotlib's mathtext otherwise.
• Sliders: integer, float, array, range and multi-variable sliders with LaTeX names and units, optional range labels, a default-value marker and a right-click menu (save/reset default, set value, ±inf, edit range and format; see it in action).
• Scientific number format: "{:.3S}" displays values as 1.23×10⁴.
• Validated input: NumericLineEdit checks numbers and limits while typing and marks invalid input with a red frame.
• Parameter widgets: line edit, combo box and toggle sharing one interface with the sliders (get_value / set_value, get_config / set_config) and name/value columns that line up across a panel.
• Parameter panels: build groups, columns and tabs of parameter widgets from a JSON-style description, with templates and shared defaults, and read or restore all values as one dict.
• Plot canvas: Matplotlib panels, twins, legends and markers from a description; data by curve id; a right-click style menu for curves, grids and spans whose changes save as plain data.
• Tables: a read-only view of a pandas DataFrame with formats, coloured columns, rich-text headers, sorting, a column chooser and CSV export.
• Dialogs: information, warning, error, question, rich-text and About dialogs.
• Splash screen: your picture with the app name and version drawn on it, sharp on Retina, and start-up messages from anywhere in the app.
• App support: install a double-click launcher, check for and run updates from PyPI, and a shared Help menu with the User Guide and About.
• Light and dark mode: everything follows the system appearance, or set_color_scheme(app, "dark"); plots and tables get readable dark colours, and exports stay light.

Components

Installation

pip install sciwidgets

Requires Python 3.10+, PySide6 6.5+, Matplotlib and NumPy (installed automatically). A LaTeX installation is optional. The table widgets need pandas: pip install "sciwidgets[table]".

Quick start

import sys

from PySide6.QtWidgets import QApplication, QVBoxLayout, QWidget

from sciwidgets.params import FloatRangeSlider, FloatSlider
from sciwidgets.style import apply_sci_style

app = QApplication(sys.argv)
apply_sci_style(app)  # required, see "Style" below

win = QWidget()
layout = QVBoxLayout(win)

t1 = FloatSlider(
    label="T_1", unit=r"\mathrm{ms}",
    min_val=0.1, max_val=10.0, init_val=1.0, val_fmt="{:.2f}",
    min_limit=0.0, min_limit_inclusive=False,
)
band = FloatRangeSlider(
    label=r"\nu", unit=r"\mathrm{GHz}",
    min_val=6.60, max_val=6.75, init_vals=(6.65, 6.70), val_fmt="{:.3f}",
)
layout.addWidget(t1)
layout.addWidget(band)

t1.valueChanged.connect(lambda v: print("T1 =", v))
band.valueChanged.connect(lambda v: print("band =", v["range"]))

win.show()
sys.exit(app.exec())

Labels and units are written in LaTeX math mode, without the $ signs.

Style

The widgets rely on SciStyle, a Fusion-based Qt style, for part of their behaviour: clicking a slider groove moves the handle there, disabled sliders get a flat groove, and invalid numeric input gets a red frame. Apply it once at startup:

from sciwidgets.style import apply_sci_style

apply_sci_style(app, my_app_style_sheet)  # your own rules are appended

The widgets, plots and tables follow light and dark mode by themselves; set_color_scheme(app, "light" | "dark" | "system") chooses one, for example from a View menu.

Signals

valueChanged, defaultChanged and configChanged are emitted only for user actions (dragging, typing, the context menu, dialogs). Setting values from code with set_value, set_config and similar methods is silent, so loading saved parameters never triggers your handlers. Read the new state with get_value() / get_config() after setting it.

Demos

python -m sciwidgets runs the showcase above. Each subpackage also has a demo of its own:

python -m sciwidgets.labels
python -m sciwidgets.dialogs
python -m sciwidgets.params
python -m sciwidgets.params.sliders
python -m sciwidgets.window
python -m sciwidgets.panel
python -m sciwidgets.plot
python -m sciwidgets.table
python -m sciwidgets.splash

Versions

Versions follow semantic versioning; what changed in each is in CHANGELOG.md. Pin a compatible range in your app's requirements (for example sciwidgets~=0.13.0) and move to a newer version when you are ready to test it.

Development

From the repo root:

pip install -e ".[dev]"
pytest

The tests run without a window (Qt's offscreen platform) and take a few seconds. Pushing a tag vX.Y.Z publishes a GitHub Release with that version's section of CHANGELOG.md.

python tools/screenshots.py retakes the pictures in docs/figures/ from the demos (--list for the names, --dark to check dark mode). On macOS it captures the windows with title bar and shadow; the terminal needs Screen Recording permission. python tools/gifs.py records the animations from scripted sessions (slider drags, menus, dialogs).

Citing

If you use sciwidgets in published work, please cite it; GitHub's Cite this repository button gives the reference (from CITATION.cff).

License

MIT License. See LICENSE.
