secure-cartography 2.5.2

Network Discovery, Topology Mapping, and Vulnerability Assessment

Secure Cartography

Network Discovery, Topology Mapping, and Vulnerability Assessment

Secure Cartography crawls your network via SNMP and SSH, maps the topology from CDP/LLDP neighbors, and scans discovered platforms against the NIST vulnerability database — all from a single desktop application with zero server infrastructure. Built by a network engineer, for network engineers.

---

What It Does

Discover → Visualize → Arrange → Export → Scan

1. Discover your network from a seed IP using SNMP (v2c/v3) with SSH fallback — CDP and LLDP neighbor crawling across Cisco, Arista, Juniper, and more
2. Visualize the topology in an interactive Cytoscape.js viewer with vendor coloring and platform icons
3. Arrange nodes interactively and save your layout — positions persist across sessions
4. Export to Draw.io (position-matched to your viewer layout), yEd GraphML, PNG, CSV, or JSON
5. Scan discovered platforms against the NIST NVD for known CVEs with severity ratings

No database. No web server. No Docker. Just pip install secure-cartography and go.

---

What's New in v2.5

Feature	Description
Layout persistence	Save/restore node positions in .layout.json sidecar files — arrangements survive across sessions
Position-matched Draw.io export	Draw.io output mirrors your interactive viewer layout instead of computing its own
Focus maps	Select a node, open a 1-hop neighborhood view for troubleshooting adjacencies
NX-OS platform detection	tfsm_fire parses show version into clean platform strings like "Cisco Nexus9000 C9504 9.3(11)"
NX-OS CVE scanning	Security Analysis now maps NX-OS, IOS-XE short format, and IOS platforms to NVD CPE queries
LLDP port resolution	Cascading fallback resolves garbage port IDs from Juniper, Linux, and Arista
sysName dedup	Multi-homed devices discovered via different IPs no longer produce duplicate nodes
Ghost node filter	NX-OS command artifacts eliminated from topology
Hosts file support	--hosts-file enables discovery in environments without DNS

See RELEASE_NOTES_2_5.md for full details.

---

Features

Discovery Engine

• SNMP-first discovery with automatic SSH fallback
• CDP and LLDP neighbor detection across vendors
• Platform detection via tfsm_fire — structured parsing of show version output instead of regex on raw text
• Two-pass LLDP resolution — correctly handles lldpLocPortNum vs ifIndex
• LLDP remote port resolution — cascading fallback for Juniper/Linux garbage port IDs
• Bidirectional link validation — only confirmed connections appear in topology
• Concurrent crawling — discover 20+ devices simultaneously
• Post-discovery sysName dedup — multi-homed devices produce one node, not duplicates
• Ghost node filtering — NX-OS command artifacts eliminated from topology
• Depth-limited recursion — control how far the crawler goes
• Exclusion patterns — skip devices by hostname, sys_name, or sysDescr
• No-DNS mode — use IPs directly from neighbor tables (home lab friendly)
• Hosts file resolution — --hosts-file for environments without DNS

Topology Viewer & Map Management

• Embedded Cytoscape.js viewer — interactive network visualization with pan, zoom, drag
• Vendor-specific styling — Cisco (blue), Arista (green), Juniper (orange) with platform icons
• Layout persistence — save node positions to .layout.json sidecar files, auto-restored on reopen
• Focus maps — select nodes and open a 1-hop neighborhood viewer for troubleshooting
• Nine layout algorithms — Dagre, fCoSE, Cola, breadthfirst, concentric, and more
• Connected-only filtering — hide orphan and leaf nodes for infrastructure-only views
• Undiscovered peer nodes — referenced but unreachable devices shown with dashed borders
• Theme-aware — visualization adapts to Cyber/Dark/Light themes
• Node editing — double-click to update device details, poll via SNMP

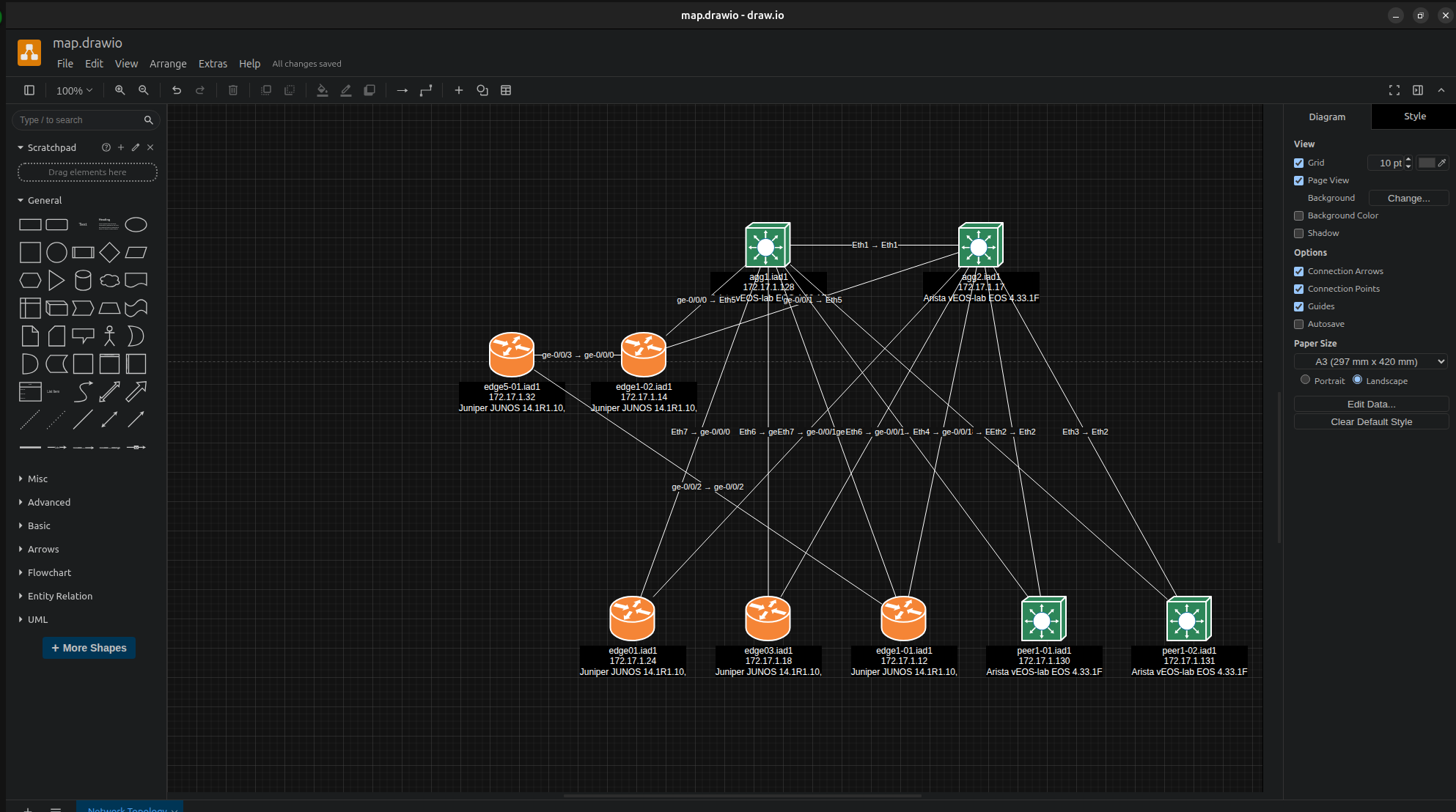

Draw.io Export

One-click export to Draw.io format for professional network documentation:

• Position-matched layout — Draw.io output mirrors your interactive viewer arrangement
• Cisco mxgraph stencils — native Draw.io shapes for switches, routers, firewalls
• Vendor coloring — automatic fill colors (Cisco blue, Juniper orange, Arista green)
• Interface labels — port-to-port connections preserved on edges
• Hierarchical fallback — tree layout when no viewer positions are available
• Universal compatibility — open in Draw.io desktop, web (diagrams.net), or VS Code extension

Additional Export Formats

Format	Use Case
yEd (GraphML)	Professional diagrams with automatic layouts and port labels
PNG	Quick image export for reports and presentations
CSV	Device inventory for spreadsheets and vulnerability analysis
JSON	Raw topology data for custom processing

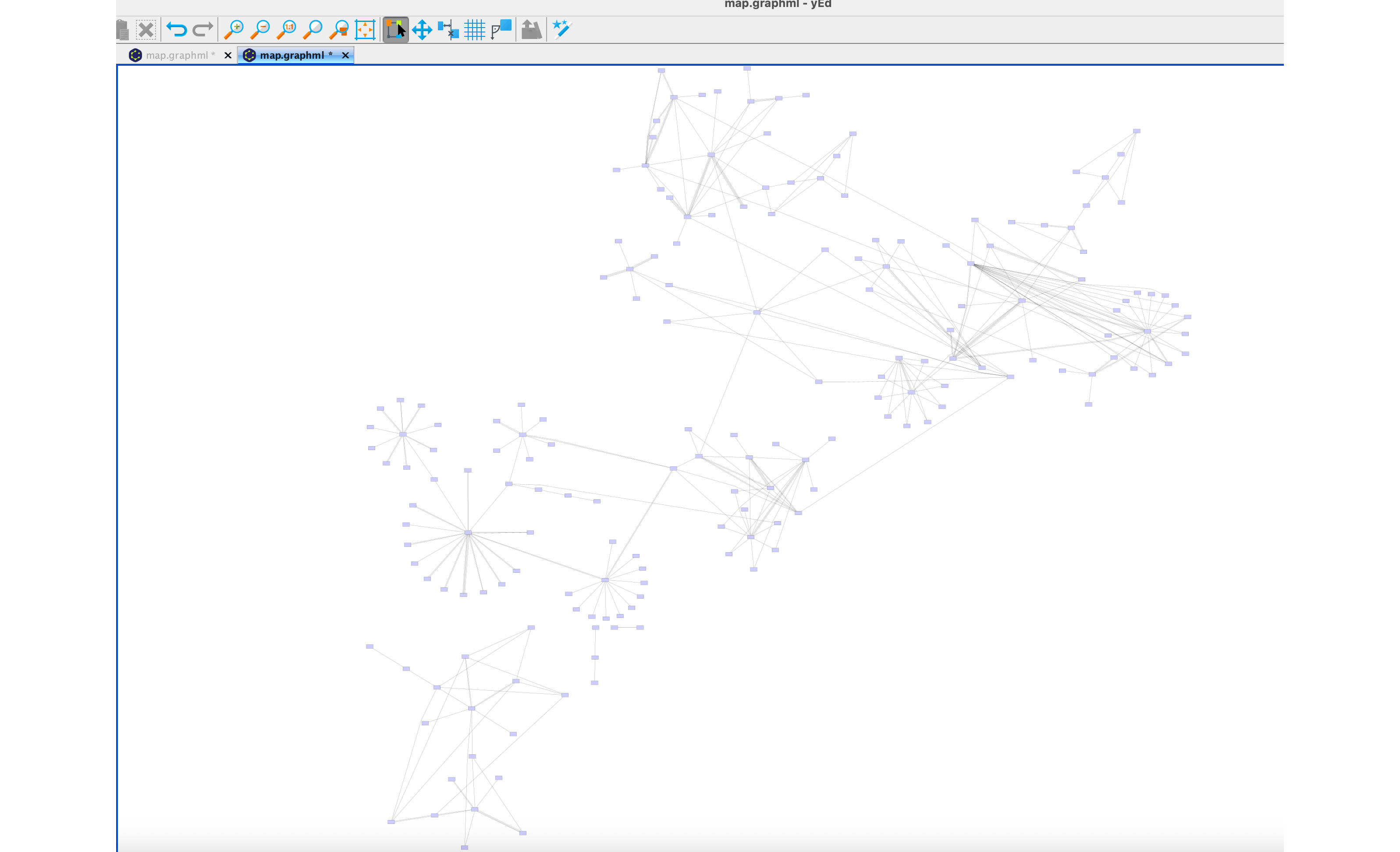

Scale

Secure Cartography handles production-sized networks — the topology viewer, Draw.io, and yEd exports all work at 300+ node scale with hundreds of connections.

Security Analysis (CVE Vulnerability Scanning)

• Platform-to-CPE mapping — parses Cisco IOS/IOS-XE/NX-OS, Arista EOS, Juniper JUNOS, Palo Alto, Fortinet
• NIST NVD integration — queries National Vulnerability Database for known CVEs
• Severity color-coding — CRITICAL/HIGH/MEDIUM/LOW at a glance
• Local CVE cache — SQLite cache avoids repeated API calls
• Export reports — CSV export with affected devices per CVE
• Device-centric view — "Export by Device" shows CVE counts per device for remediation planning

Credential Management

• Encrypted SQLite vault — AES-256-GCM encryption at rest
• Multiple credential types — SSH (password + key), SNMPv2c, SNMPv3
• Priority ordering — try credentials in sequence until one works
• Credential discovery — auto-detect which credentials work on which devices

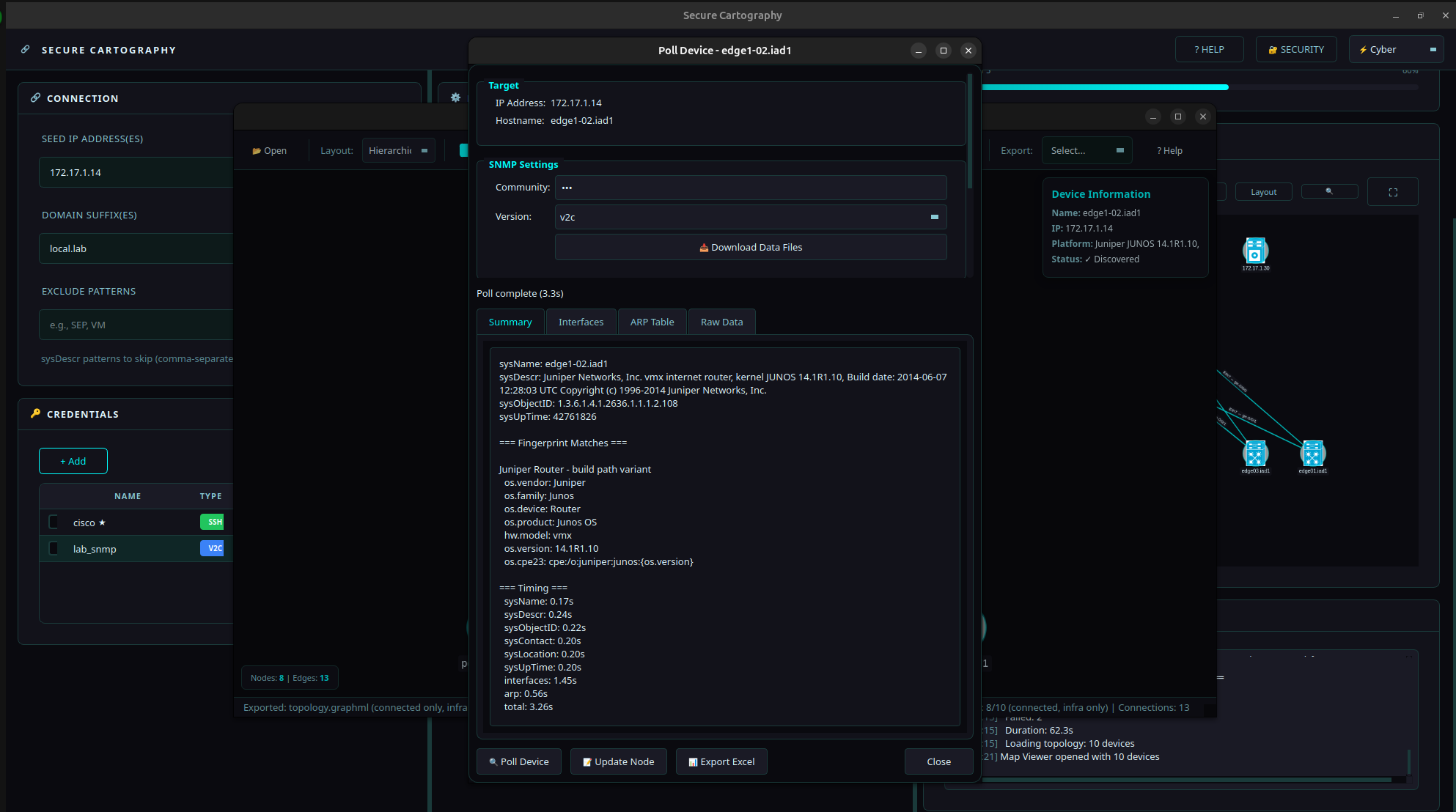

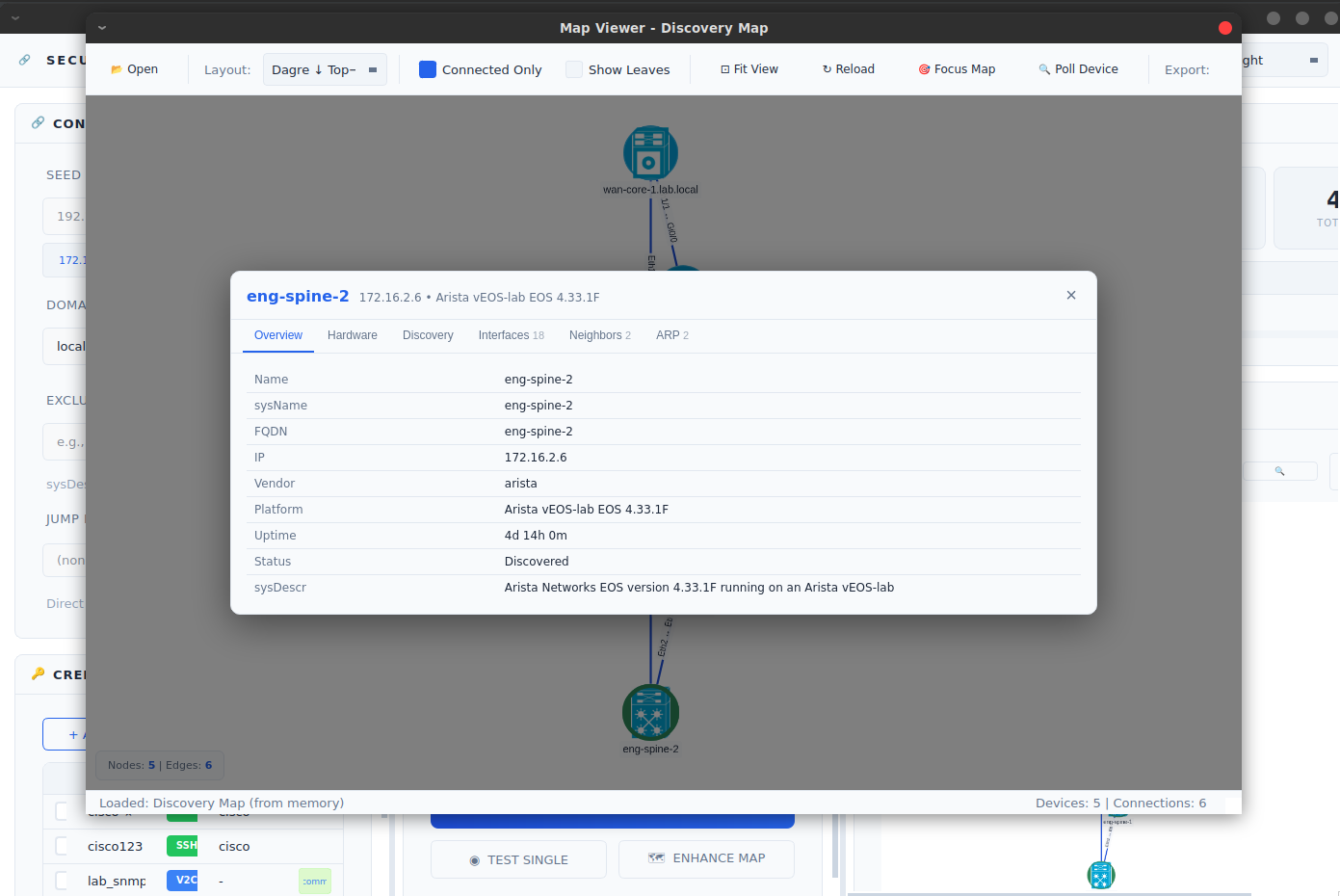

Interactive Device Polling

Poll individual devices directly from the Map Viewer for on-demand identification and inventory — no full discovery required.

• SNMP fingerprinting — identifies vendor, model, OS version via Rapid7 Recog patterns
• Interface inventory — collects ifTable with MAC addresses and OUI vendor lookup
• ARP table collection — neighbor IP/MAC mappings with vendor identification
• Two operating modes:
  • Local mode — direct SNMP using pysnmp-lextudio (works on Windows/Linux/Mac)
  • Proxy mode — for targets only reachable from a jump host (SNMP Proxy)
• Export to Excel — multi-sheet workbook with Summary, Interfaces, and ARP data

Themed GUI

• Three themes — Cyber (cyan), Dark (gold), Light (blue)
• Real-time progress — live counters, depth tracking, log output
• Responsive design — UI remains interactive during discovery
• Click-to-inspect — node details (hostname, IP, platform) on selection

Supported Platforms

Vendor	SNMP	SSH	CVE Mapping
Cisco IOS/IOS-XE	✓	✓	✓
Cisco NX-OS	✓	✓	✓
Arista EOS	✓	✓	✓
Juniper JUNOS	✓	✓	✓
Palo Alto PAN-OS	—	—	✓
Fortinet FortiOS	—	—	✓

Others will appear via SNMP sysDescr fingerprinting; vendor-specific testing has focused on the above.

---

Screenshots

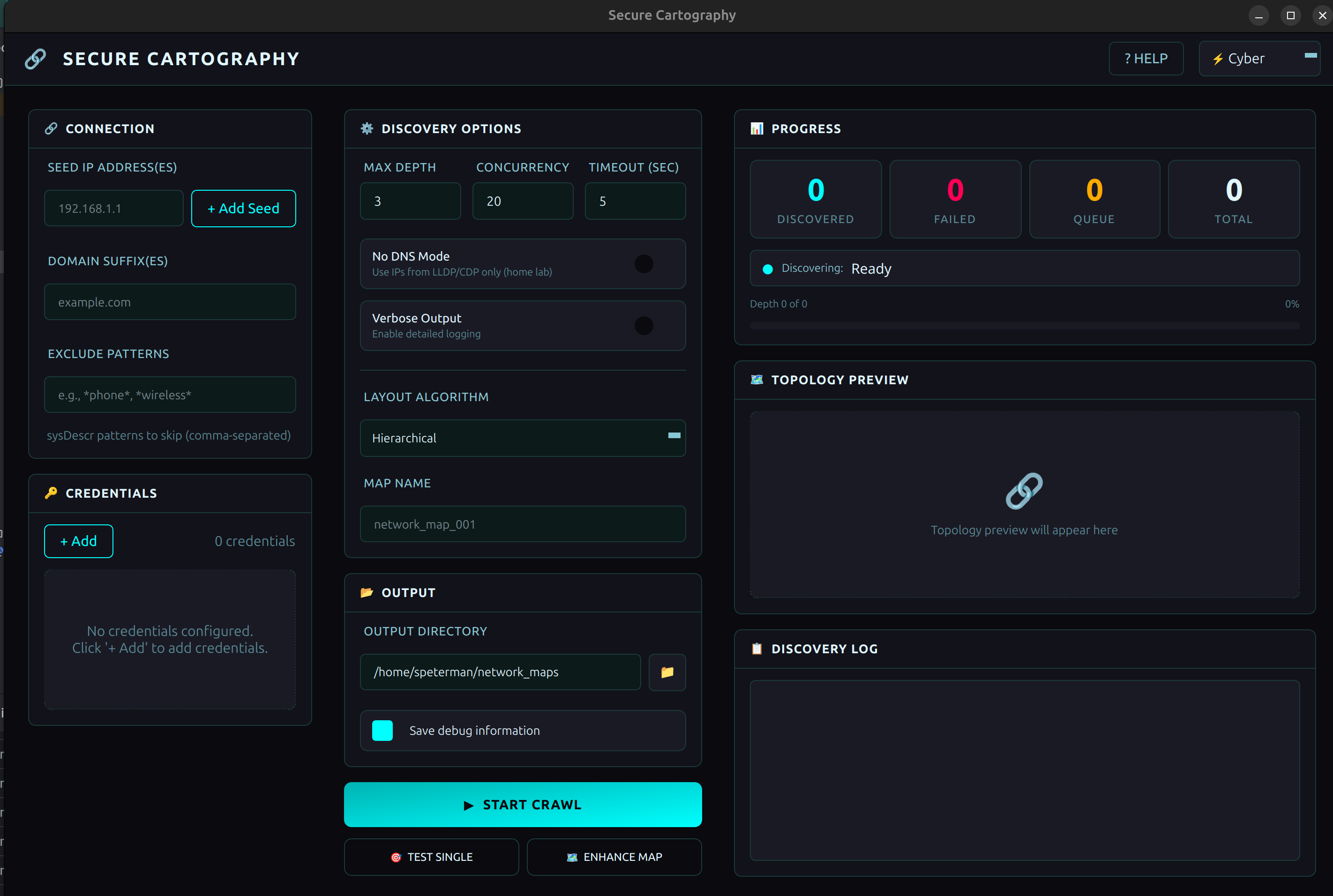

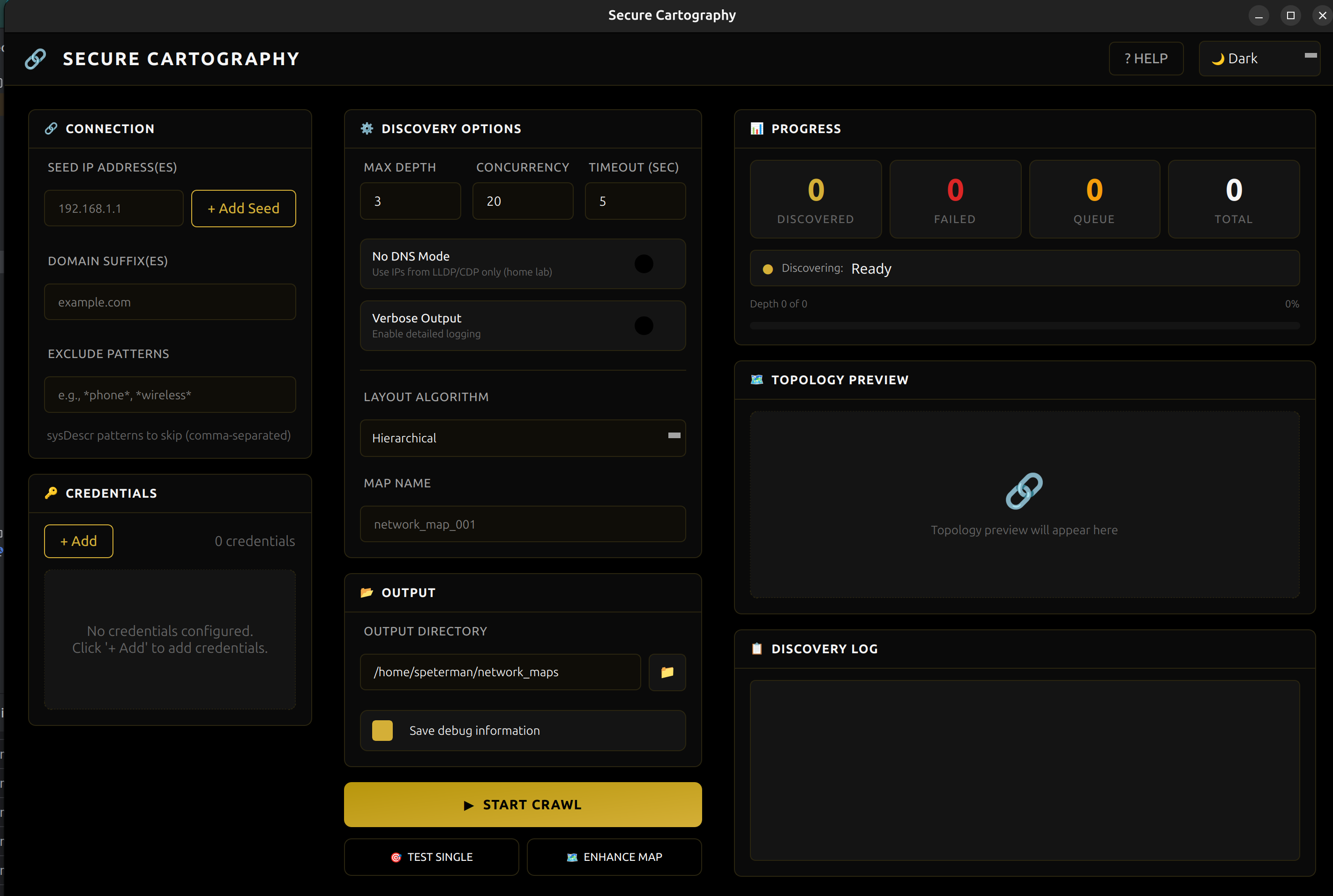

Cyber - Teal accents	Dark - Gold accents	Light - Blue accents

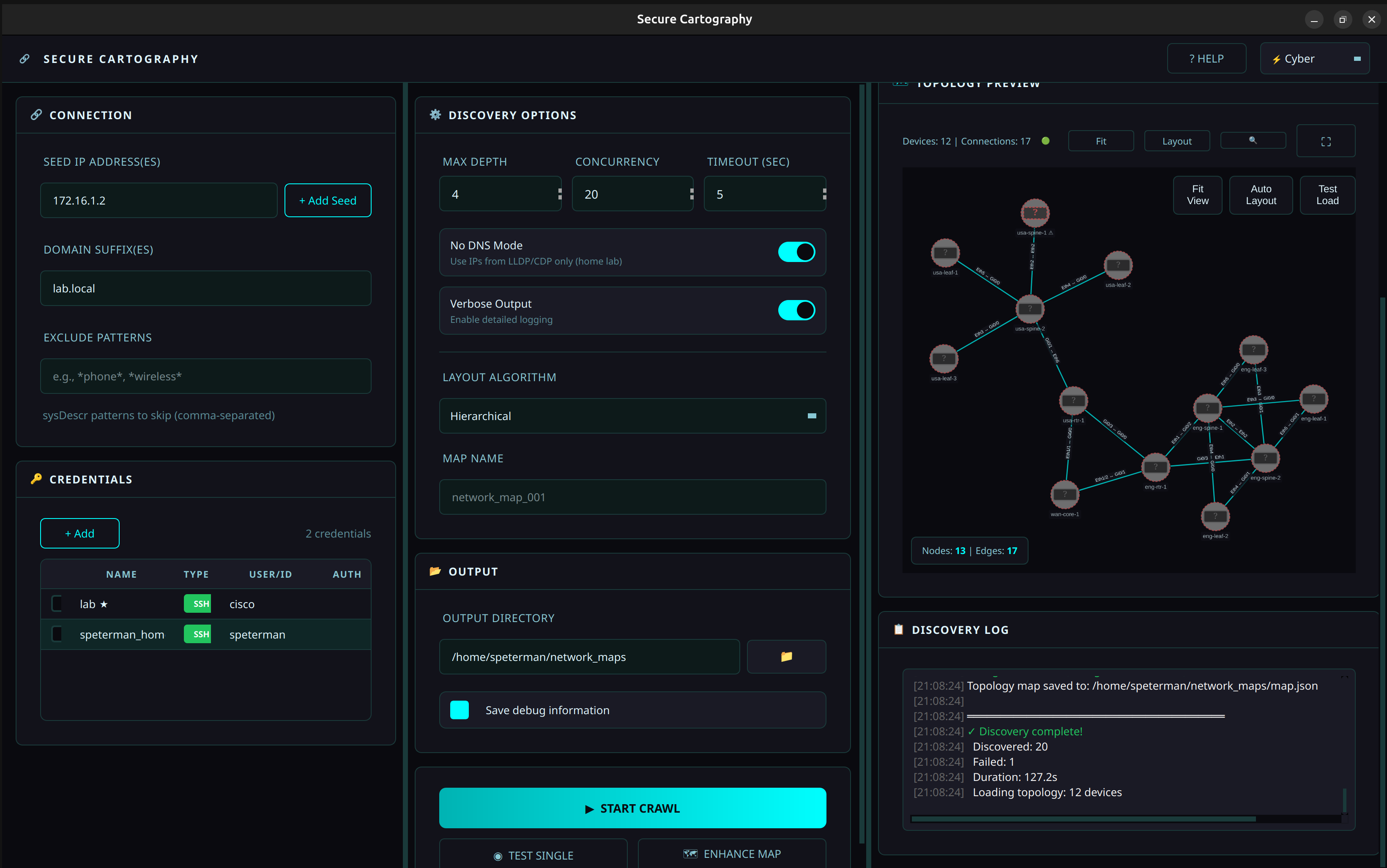

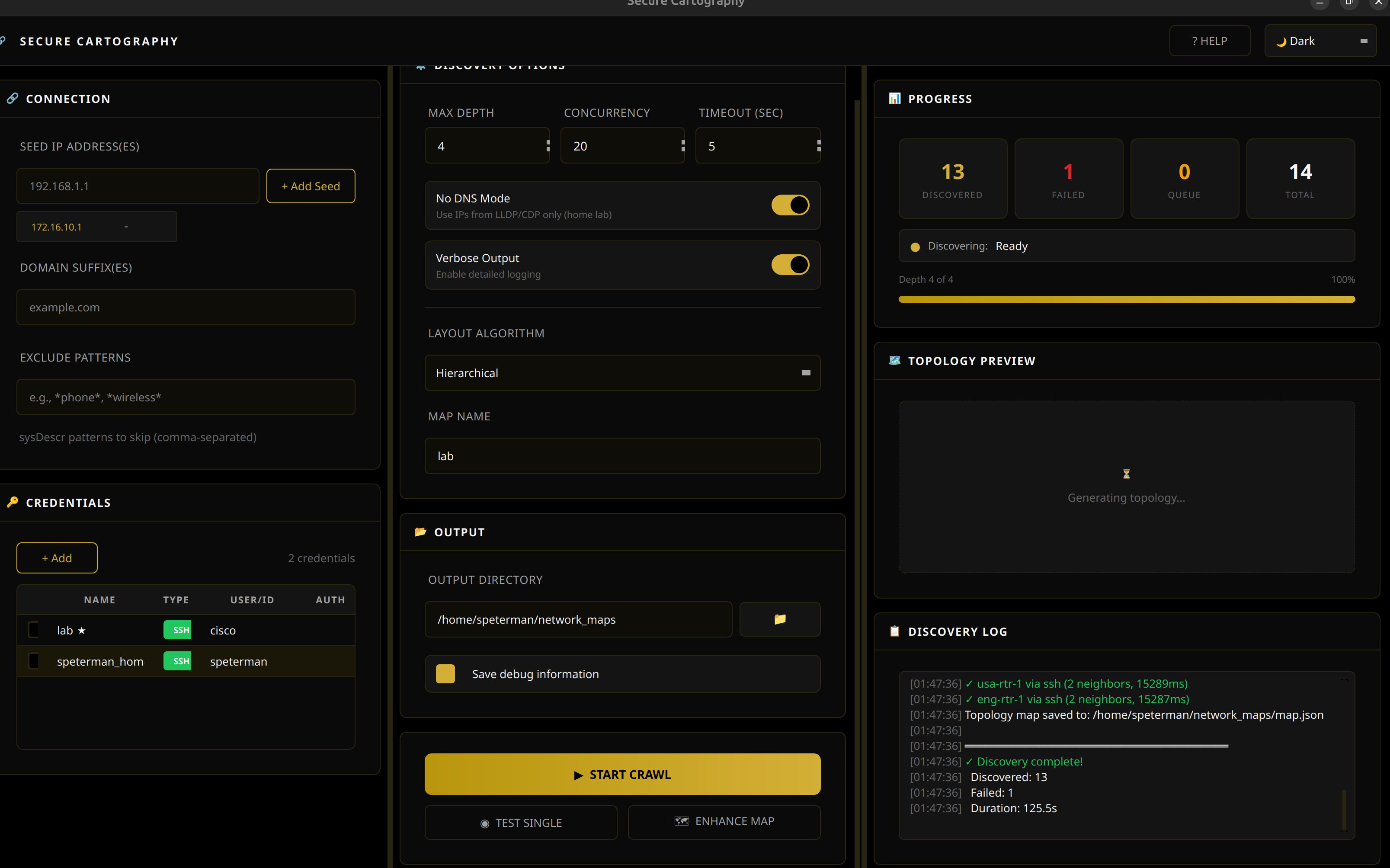

Topology Preview - Cyber	Topology Preview - Dark	Topology Preview - Light

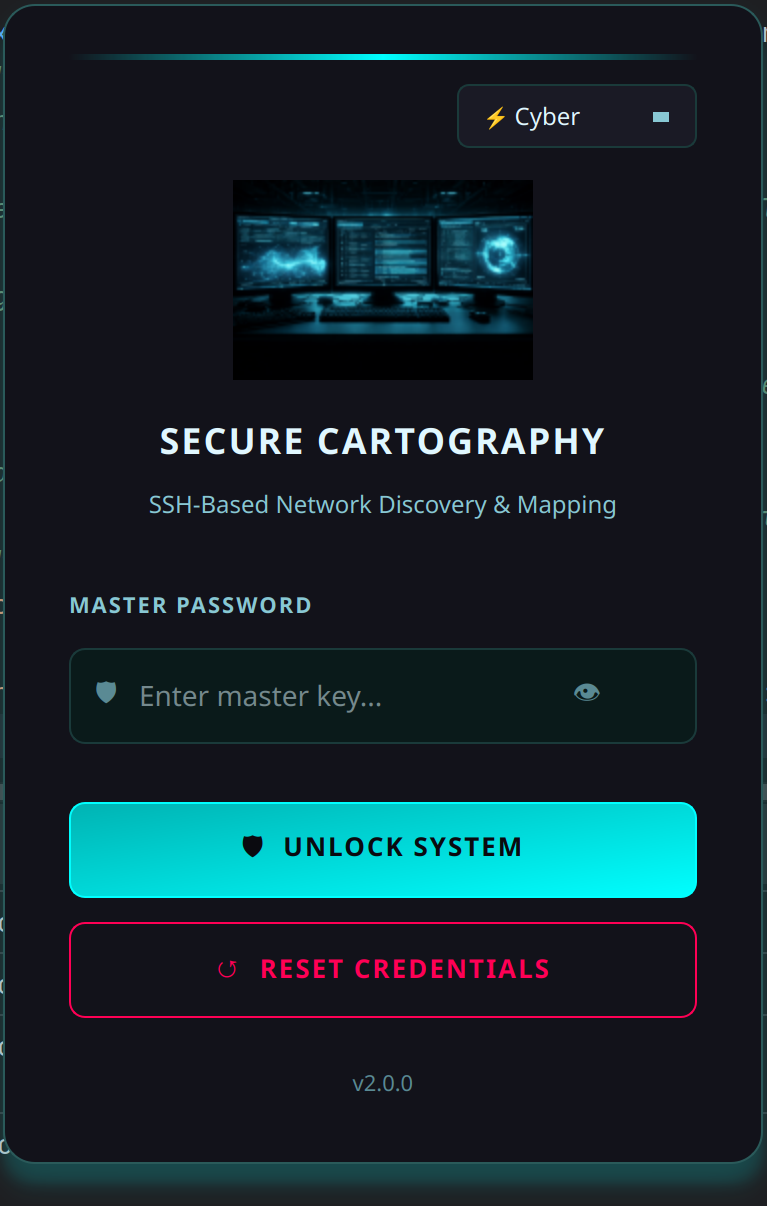

Login - Cyber	Login - Dark	Login - Light

---

Installation

Prerequisites

• Python 3.10 or higher
• pip

From Source

git clone https://github.com/scottpeterman/secure_cartography.git
cd secure_cartography
pip install -e .

Dependencies

# Core
pip install pysnmp-lextudio paramiko cryptography textfsm aiofiles

# GUI
pip install PyQt6 PyQt6-WebEngine
```scale

---

## Quick Start

### 1. Initialize the Credential Vault
```bash
# Create vault and set master password
python -m sc2.scng.creds init

# Add SNMP credential
python -m sc2.scng.creds add snmpv2c snmp-readonly --community public

# Add SSH credential
python -m sc2.scng.creds add ssh network-admin --username admin

# List credentials
python -m sc2.scng.creds list

2. Test Connectivity

# Quick SNMP test (no vault needed)
python -m sc2.scng.discovery test 192.168.1.1 --community public

# Test with vault credentials
python -m sc2.scng.discovery device 192.168.1.1

3. Run Discovery

# Basic crawl
python -m sc2.scng.discovery crawl 192.168.1.1 -d 3

# With options
python -m sc2.scng.discovery crawl 192.168.1.1 10.0.0.1 \
    -d 5 \
    --domain corp.example.com \
    --exclude "phone,wireless,linux" \
    --output ./network_maps

4. Launch GUI

python -m sc2.ui

5. Security Analysis

After running discovery, click the 🔐 SECURITY button in the header bar to open the Security Analysis window:

1. Load CSV - Import the devices.csv from your discovery output
2. Review Mappings - Verify auto-detected platform → CPE mappings
3. Sync Selected - Query NIST NVD for CVEs (optional: add free API key for faster rate limits)
4. Analyze Results - Review CVEs sorted by severity
5. Export Report - Generate CSV with CVEs and affected devices

---

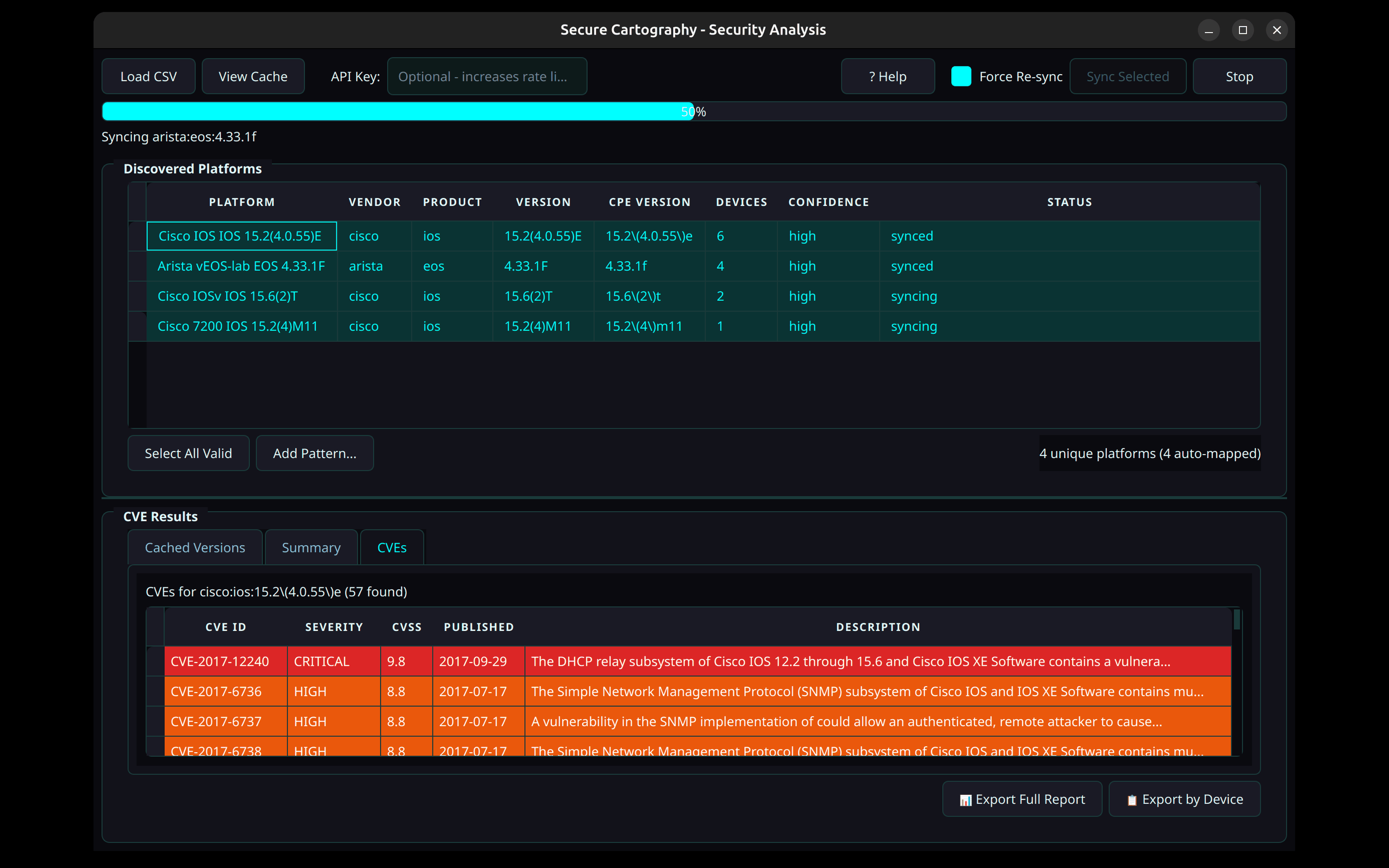

Security Analysis Workflow

The Security Analysis module transforms your network inventory into an actionable vulnerability report.

Platform Recognition

Secure Cartography automatically parses platform strings into CPE (Common Platform Enumeration) format:

"Cisco IOS IOS 15.2(4.0.55)E" → cpe:2.3:o:cisco:ios:15.2(4.0.55)e:*:*:*:*:*:*:*
"Arista vEOS-lab EOS 4.33.1F" → cpe:2.3:o:arista:eos:4.33.1f:*:*:*:*:*:*:*

CVE Lookup

Queries the NIST National Vulnerability Database for known vulnerabilities:

• Results cached locally in ~/.scng/cve_cache.db
• Free NVD API key increases rate limits (get one at nvd.nist.gov)

Export Options

Two export formats for different use cases:

Export	Format	Use Case
Export Report	One row per CVE	Security team review, compliance audits
Export by Device	One row per device	Remediation planning, patch prioritization

Jump Host Workflow

When your desktop doesn't have SNMP access:

1. SSH to a jump host with network access
2. Run discovery via CLI: python -m sc2.scng.discovery crawl ...
3. Copy devices.csv back to your desktop
4. Open in GUI → Security Analysis → Load CSV → Sync

---

Architecture

sc2/
├── scng/                      # Discovery engine
│   ├── creds/                 # Credential vault
│   │   ├── vault.py           # Encrypted SQLite storage
│   │   ├── models.py          # SSH, SNMPv2c, SNMPv3 dataclasses
│   │   ├── resolver.py        # Credential testing & discovery
│   │   └── cli.py             # Credential management CLI
│   │
│   ├── discovery/             # Discovery engine
│   │   ├── engine.py          # Async orchestration, crawl logic
│   │   ├── models.py          # Device, Neighbor, Interface
│   │   ├── cli.py             # Discovery CLI
│   │   │
│   │   ├── snmp/              # SNMP collection
│   │   │   ├── walker.py      # Async GETBULK table walks
│   │   │   └── collectors/    # system, interfaces, lldp, cdp, arp
│   │   │
│   │   └── ssh/               # SSH fallback
│   │       ├── client.py      # Paramiko wrapper
│   │       ├── collector.py   # Vendor detection, command execution
│   │       └── parsers.py     # TextFSM integration
│   │
│   └── utils/
│       └── tfsm_fire.py       # TextFSM auto-template selection
│
├── export/                    # Export modules
│   ├── graphml_exporter.py    # yEd GraphML export
│   └── drawio_exporter.py     # Draw.io export with vendor styling
│
└── ui/                        # PyQt6 GUI
    ├── themes.py              # Theme system (Cyber/Dark/Light)
    ├── login.py               # Vault unlock dialog
    ├── main_window.py         # Main application window
    ├── help_dialog.py         # Help system (GUI/CLI/Security docs)
    │
    ├── assets/
    │   └── icons_lib/
    │       └── platform_icon_drawio.json  # Draw.io icon mappings
    │
    └── widgets/               # Custom themed widgets
        ├── panel.py               # Base panel with title bar
        ├── connection_panel.py    # Seeds, domains, excludes
        ├── credentials_panel.py   # Credential management UI
        ├── discovery_options.py   # Depth, concurrency, toggles
        ├── output_panel.py        # Output directory config
        ├── progress_panel.py      # Stats, progress bar
        ├── discovery_log.py       # Styled log output
        ├── discovery_controller.py # Discovery↔UI bridge with throttled events
        ├── topology_preview_panel.py  # Preview container (singleton)
        ├── topology_viewer.py     # QWebEngineView + Cytoscape.js bridge
        ├── topology_viewer.html   # Cytoscape.js visualization
        ├── map_viewer_dialog.py   # Full-screen topology viewer
        ├── security_widget.py     # CVE vulnerability analysis
        ├── tag_input.py           # Tag/chip input widget
        ├── toggle_switch.py       # iOS-style toggle
        └── stat_box.py            # Counter display boxes

---

Topology Viewer

The Map Viewer is the centerpiece of the documentation workflow. Arrange your topology interactively, save the layout, and export to Draw.io — the output mirrors what you see on screen.

Discovery → map.json → Interactive Viewer → Save Layout → Draw.io Export (position-matched)
                                          → Focus Map (1-hop neighborhood)
                                          → PNG / CSV / GraphML / JSON

See the Features section above for full details.

---

CLI Reference

Secure Cartography provides two CLI modules that can be used independently of the GUI:

• sc2.scng.creds - Credential vault management
• sc2.scng.discovery - Network discovery engine

Both CLIs support --help on all commands and subcommands.

---

Credential Management (sc2.scng.creds)

usage: scng-creds [-h] [--vault-path VAULT_PATH] [--password PASSWORD]
                  {init,unlock,add,list,show,remove,set-default,test,discover,change-password,deps} ...

Global Options

Option	Description
-v, --vault-path	Path to vault database (default: ~/.scng/credentials.db)
-p, --password	Vault password (or set SCNG_VAULT_PASSWORD env var)

Commands

init - Initialize a new vault

python -m sc2.scng.creds init
python -m sc2.scng.creds init --vault-path /path/to/custom.db

add - Add credentials

# SSH with password (prompts for password)
python -m sc2.scng.creds add ssh admin-cred --username admin --password

# SSH with key file
python -m sc2.scng.creds add ssh key-cred --username automation --key-file ~/.ssh/id_rsa

# SNMPv2c
python -m sc2.scng.creds add snmpv2c readonly --community public

# SNMPv3 (authPriv)
python -m sc2.scng.creds add snmpv3 snmpv3-cred \
    --username snmpuser \
    --auth-protocol sha256 \
    --auth-password authpass123 \
    --priv-protocol aes128 \
    --priv-password privpass123

list - List all credentials

python -m sc2.scng.creds list

Output shows credential name, type, priority, and default status.

show - Show credential details

python -m sc2.scng.creds show admin-cred
python -m sc2.scng.creds show admin-cred --reveal  # Show passwords/communities

remove - Delete a credential

python -m sc2.scng.creds remove old-credential

set-default - Set credential as default for its type

python -m sc2.scng.creds set-default admin-cred

test - Test credential against a host

python -m sc2.scng.creds test admin-cred 192.168.1.1
python -m sc2.scng.creds test readonly 10.0.0.1

discover - Find which credentials work on a host

python -m sc2.scng.creds discover 192.168.1.1

Tests all credentials and reports which ones succeed.

change-password - Change vault master password

python -m sc2.scng.creds change-password

deps - Check required dependencies

python -m sc2.scng.creds deps

---

Network Discovery (sc2.scng.discovery)

usage: scng.discovery [-h] {test,device,crawl} ...

Commands

test - Quick SNMP connectivity test (no vault required)

python -m sc2.scng.discovery test 192.168.1.1 --community public
python -m sc2.scng.discovery test 192.168.1.1 --community public --verbose

device - Discover a single device

python -m sc2.scng.discovery device 192.168.1.1
python -m sc2.scng.discovery device core-switch.example.com --output ./results

crawl - Recursive network discovery

usage: scng.discovery crawl [-h] [-d DEPTH] [--domain DOMAINS] [--exclude EXCLUDE_PATTERNS]
                            [-o OUTPUT] [-v] [--no-dns] [-c CONCURRENCY] [-t TIMEOUT]
                            [--no-color] [--timestamps] [--json-events]
                            seeds [seeds ...]

Option	Description
seeds	One or more seed IP addresses or hostnames
-d, --depth	Maximum discovery depth (default: 3)
--domain	Domain suffix for hostname resolution (repeatable)
--exclude	Exclusion patterns for devices to skip (repeatable, comma-separated)
-o, --output	Output directory for results
-v, --verbose	Enable debug output
--no-dns	Disable DNS lookups; use IPs from LLDP/CDP directly
-c, --concurrency	Maximum parallel discoveries (default: 20)
-t, --timeout	SNMP timeout in seconds (default: 5)
--no-color	Disable colored terminal output
--timestamps	Show timestamps in log output
--json-events	Output events as JSON lines (for GUI/automation integration)

Crawl Examples

# Basic crawl from single seed
python -m sc2.scng.discovery crawl 192.168.1.1

# Multiple seeds with depth limit
python -m sc2.scng.discovery crawl 10.1.1.1 10.2.1.1 --depth 5

# With domain suffix for DNS resolution
python -m sc2.scng.discovery crawl core-sw01 --domain corp.example.com --domain example.com

# Exclude devices by pattern (matches hostname, sys_name, or sysDescr)
python -m sc2.scng.discovery crawl 192.168.1.1 --exclude "linux,vmware,phone"

# Multiple exclude flags also work
python -m sc2.scng.discovery crawl 192.168.1.1 \
    --exclude "linux" \
    --exclude "phone" \
    --exclude "wireless"

# Home lab mode (no DNS, faster)
python -m sc2.scng.discovery crawl 192.168.1.1 --no-dns

# High concurrency for large networks
python -m sc2.scng.discovery crawl 10.0.0.1 -c 50 -d 10 -o ./enterprise_map

# Full production example
python -m sc2.scng.discovery crawl \
    core-rtr-01.dc1.example.com \
    core-rtr-01.dc2.example.com \
    --depth 8 \
    --domain dc1.example.com \
    --domain dc2.example.com \
    --exclude "linux,esxi,vcenter,phone,wireless,ups" \
    --concurrency 30 \
    --timeout 10 \
    --output ./network_discovery_$(date +%Y%m%d) \
    --verbose

Exclusion Patterns

The --exclude option filters devices from propagating the crawl. Patterns are:

• Case-insensitive substring matches
• Comma-separated for multiple patterns in one flag
• Matched against three fields: sysDescr, hostname, and sys_name

This means exclusions work for both SNMP-discovered devices (via sysDescr) and SSH-discovered devices (via hostname).

Pattern	Matches
linux	Any device with "linux" in sysDescr, hostname, or sys_name
rtr-lab,sw-test	Devices with "rtr-lab" OR "sw-test" in any field
phone,wireless,ap-	Common patterns to skip IP phones and APs

Note: Excluded devices are still discovered (credentials tested, data collected), but their neighbors are not queued for further discovery. This prevents the crawl from expanding through non-network infrastructure.

---

Output Format

Discovery creates per-device folders with JSON data:

discovery_output/
├── core-switch-01/
│   ├── device.json      # System info, interfaces
│   ├── cdp.json         # CDP neighbors
│   └── lldp.json        # LLDP neighbors
├── dist-switch-01/
│   └── ...
├── devices.csv          # Device inventory (for Security Analysis)
├── discovery_summary.json
├── topology.graphml     # yEd-compatible graph
└── map.json             # Topology with bidirectional validation

map.json (Topology)

{
  "core-switch-01": {
    "node_details": {
      "ip": "10.1.1.1",
      "platform": "Arista vEOS-lab EOS 4.33.1F"
    },
    "peers": {
      "dist-switch-01": {
        "ip": "10.1.1.2",
        "connections": [
          ["Eth1/1", "Gi0/1"],
          ["Eth1/2", "Gi0/2"]
        ]
      }
    }
  }
}

devices.csv (Security Analysis Input)

hostname,ip,platform,vendor,model,serial
core-switch-01,10.1.1.1,Cisco IOS IOS 15.2(4.0.55)E,cisco,WS-C3850-24T,FCW2134L0NK
dist-switch-01,10.1.1.2,Arista vEOS-lab EOS 4.33.1F,arista,vEOS,SN-VEOS-01

---

GUI Theme System

The GUI uses a comprehensive theme system with three built-in themes:

Theme	Primary	Accent	Use Case
Cyber	#0a0a0f	#00ffff (cyan)	SOC/NOC aesthetic
Dark	#000000	#d4af37 (gold)	Professional elegance
Light	#ffffff	#2563eb (blue)	Bright environments

See README_Style_Guide.md for widget styling details.

---

Documentation

Document	Description
RELEASE_NOTES_2_5.md	v2.5 release notes — discovery engine + topology viewer
README_Creds.md	Credential vault API and CLI
README_scng.md	Discovery engine architecture
README_SNMP_Discovery.md	SNMP collection details
README_SSH_Discovery.md	SSH fallback module
README_Progress_events.md	GUI progress event reference
README_Style_Guide.md	PyQt6 widget theming guide
snmp_proxy/README.md	SNMP proxy deployment for remote polling

---

Development Status

✅ Implemented

• SNMP discovery (v2c, v3) with SSH fallback
• Async crawl engine with concurrent workers and progress events
• Credential vault with AES-256-GCM encryption
• CDP and LLDP neighbor detection with bidirectional validation
• LLDP remote port resolution (Juniper/Linux/Arista)
• Platform detection via tfsm_fire structured parsing
• Post-discovery sysName dedup for multi-homed devices
• Ghost node filtering for NX-OS artifacts
• CLI for credentials and discovery with hosts file support
• Themed GUI (Cyber/Dark/Light) with real-time progress
• Interactive Cytoscape.js topology viewer with nine layout algorithms
• Layout persistence with sidecar .layout.json files
• Focus maps with 1-hop neighborhood expansion
• Position-matched Draw.io export with Cisco stencils and vendor coloring
• Export to yEd GraphML, PNG, CSV, JSON
• CVE vulnerability scanning via NIST NVD (IOS, IOS-XE, NX-OS, EOS, JUNOS, PAN-OS, FortiOS)
• Interactive SNMP device polling with Rapid7 Recog fingerprinting
• OUI vendor lookup for MAC addresses

📋 Planned

• Credential auto-discovery integration
• Settings persistence
• Topology diff (compare discoveries over time)

---

Technical Notes

Threading Architecture

The GUI uses a careful threading model to prevent UI lockups:

• Discovery runs in QThread - async engine wrapped in worker thread
• Events throttled at source - high-frequency events (stats, topology) rate-limited before emission
• QueuedConnection for all signals - ensures slots execute on main thread
• WebView isolation - no webview updates during active discovery; topology loads once at completion

Topology Data Transfer

Python→JavaScript communication uses base64 encoding:

# Python side
b64_data = base64.b64encode(json.dumps(topology).encode()).decode()
self._run_js(f"TopologyViewer.loadTopologyB64('{b64_data}')")

// JavaScript side
loadTopologyB64(b64String) {
    const jsonString = atob(b64String);
    this.loadTopology(jsonString);
}

This avoids JSON escaping issues with complex network data containing special characters.

Security Analysis Architecture

The Security Widget operates independently of the discovery engine:

• Platform parsing - regex patterns extract vendor/product/version from sysDescr strings
• CPE generation - converts parsed data to NIST CPE 2.3 format
• NVD API client - async queries with rate limiting and caching
• SQLite cache - ~/.scng/cve_cache.db stores CVE data to avoid repeated API calls
• Device tracking - maps CVEs back to specific hostnames/IPs from discovery CSV

---

Security Considerations

• Master password is never stored; derived key is held in memory only while vault is unlocked
• Credentials are encrypted with AES-256-GCM before storage
• Salt is randomly generated per installation
• No credentials in logs - discovery output never includes passwords/communities
• Vault auto-locks when application exits
• CVE cache is local - no sensitive data sent to NVD (only CPE queries)

---

Performance

Typical discovery rates:

• Single device (SNMP): 2-5 seconds
• Single device (SSH fallback): 5-15 seconds
• 100 devices: 3-8 minutes with 20 concurrent workers
• 750+ devices: ~4-5 hours (production tested, 88%+ success rate)

Security Analysis:

• NVD API (no key): 5 requests per 30 seconds
• NVD API (with key): 50 requests per 30 seconds
• Cached lookups: instant

GUI remains responsive during discovery due to throttled event architecture.

---

License

This project is licensed under the GNU General Public License v3.0 - see LICENSE for details.

---

Author

Scott Peterman - Network Engineer

• GitHub: @scottpeterman
• Homepage: scottpeterman

Built by a network engineer who got tired of manually drawing topology diagrams.

---

Acknowledgments

• Network visualization powered by Cytoscape.js
• SNMP operations via pysnmp-lextudio
• SSH via Paramiko
• CLI parsing with TextFSM
• GUI powered by PyQt6
• Encryption via cryptography
• CVE data from NIST National Vulnerability Database
• Device fingerprinting via Rapid7 Recog
• OUI database from Wireshark
• Draw.io stencils from mxgraph Cisco library
