segfix

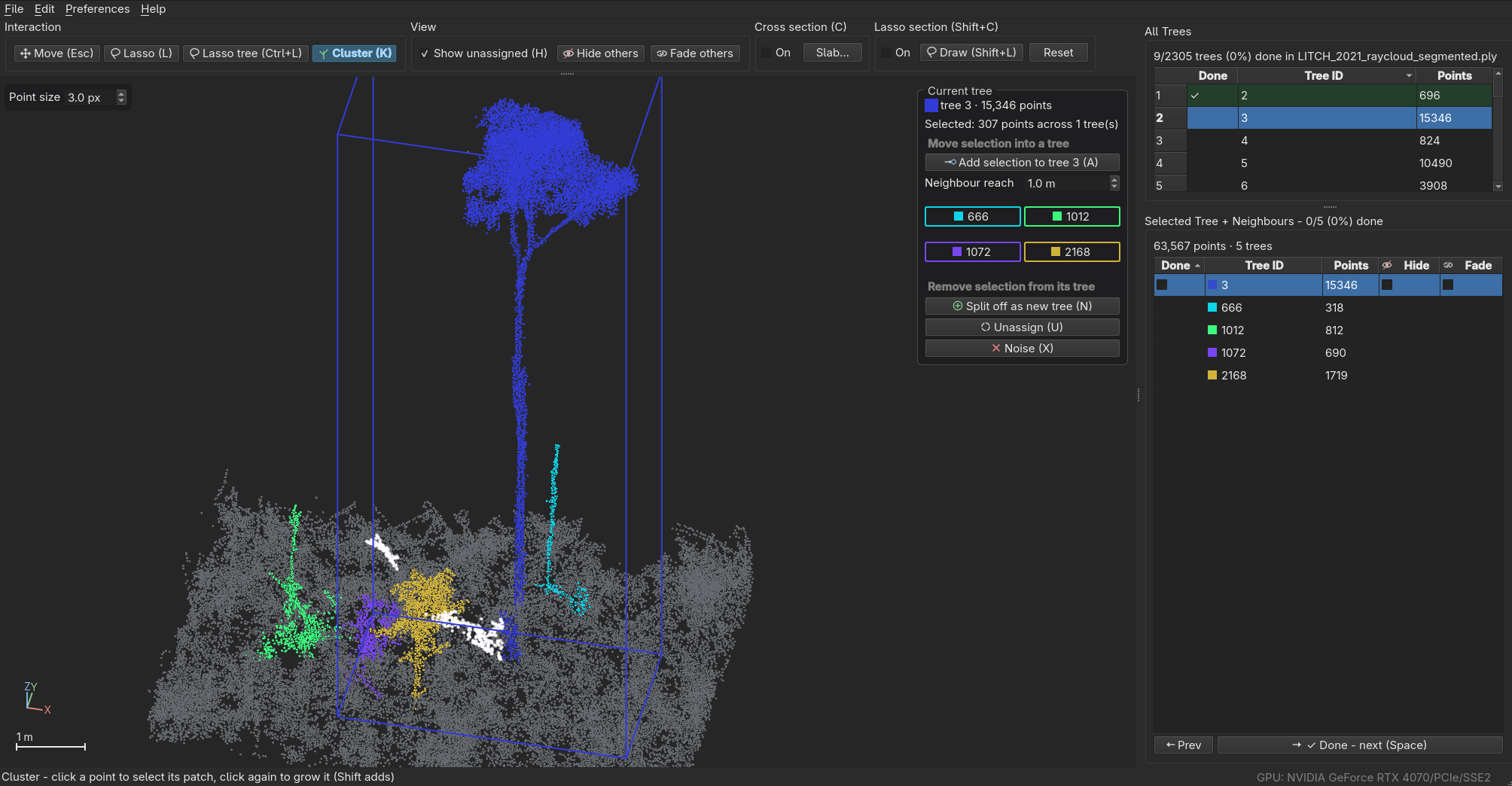

A GUI tool to fix the instance segmentation of tree point clouds. Load a segmented LiDAR cloud, see each tree in its own colour, and correct mistakes by lassoing points and reassigning, splitting off, or dismissing them, then save back to a corrected version of the input, retaining all fields.

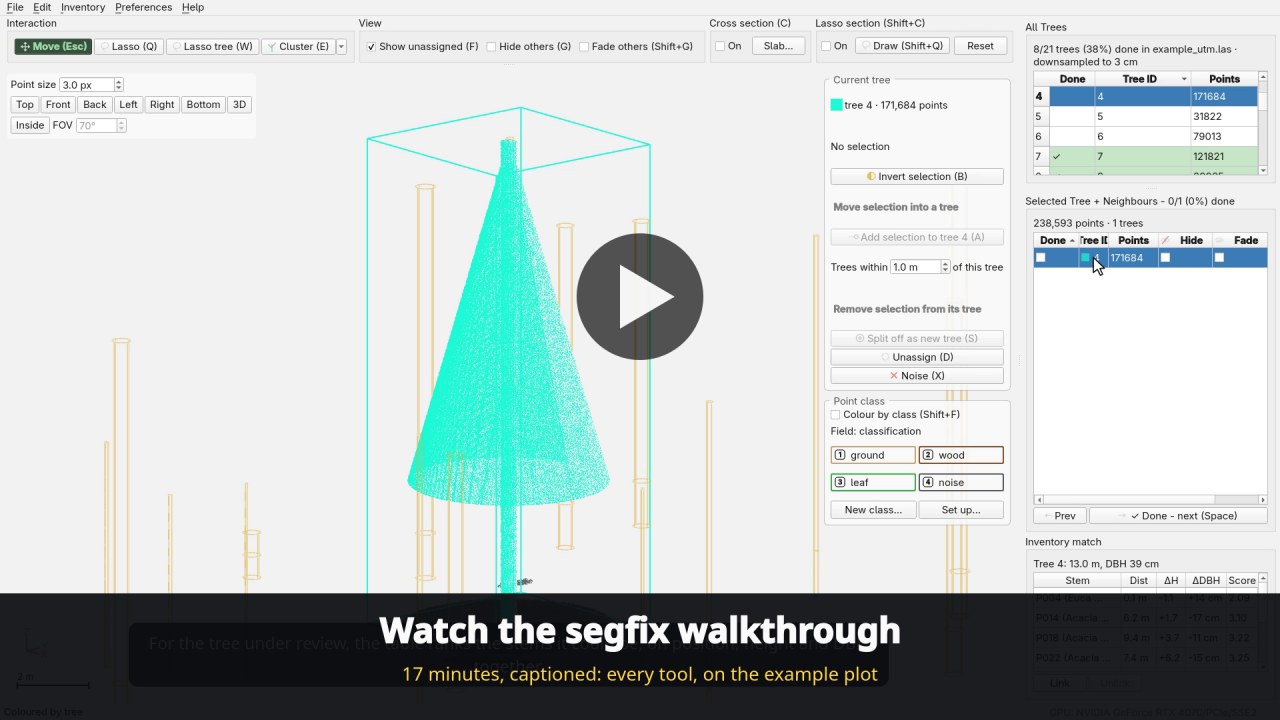

Walkthrough video

A 12-minute captioned tour of every tool, fixing every tree in the example cloud from scripts/make_sample.py, including large coordinates and dense clouds. Click to watch:

Testing is done on Fedora Linux 44 and Windows 11. macOS should work but has not been tested.

Contributing

Feedback, issues, and PRs all welcome. For issues please use GitHub issues (not a personal message) so the community can benefit.

Install

Requires Python 3.10–3.12. The package is on PyPI: pypi.org/project/segfix.

pip install segfix

The startup dialog tells you when a newer release is on PyPI, and its Update… button runs pip install --upgrade for you (restart segfix afterwards). Running from a clone instead, it tracks new commits on the branch you're on and updates with git pull + pip install -e ., so a development checkout stays a checkout.

Using a dedicated environment:

conda create -n segfix python=3.11
conda activate segfix
pip install segfix

From source

For development, or to get scripts/make_sample.py:

git clone https://github.com/tim-devereux/segfix.git
cd segfix
pip install -e .

Run

segfix

segfix will open a startup dialog. Double-click a recent project to reopen it, or click New Project… to import a point cloud file. Importing copies the file into a new project folder (created inside the directory you pick, named after the source file) and opens that copy, edits are always saved to the copy, never the original source file.

Every project opened this way is recorded in ~/.config/segfix/registry.json (a plain JSON file) so it shows up in the "Recent projects" list next time, most-recently-opened at the top and preselected, each row showing how long ago it was last opened.

The per-point tree ID field is auto-detected (treeID, PredInstance, label, …); override with --label-field NAME if needed. Labels that can't be a real tree ID, negatives (other than the noise marker) and values that overflow a signed 32-bit int, both of which some pipelines use as a "no tree" sentinel, are folded into unassigned on load, so they don't show up as spurious trees.

Accepted formats

Binary PLY, RGB-segmented (raycloudtools) or with a label field, and LAS. Both store their points as fixed-size records at a known offset, which is what lets treecatalog.py memory-map a whole plot, read back just the points of one tree, and on save patch only the label bytes that changed.

raycloudtools output

raycloudtools' rayextract trees writes <plot>_segmented.ply, a binary PLY with no label column, each point instead coloured by tree (x y z time nx ny nz red green blue alpha, double xyz). segfix detects the RGB encoding, maps each distinct colour to a tree, and treats pure black (0, 0, 0) as unsegmented. Import the .ply directly; Save patches the colour bytes of points whose tree changed, in place, so the file stays in exactly the format rayextract produced.

One caveat: noise (X) and unassigned points are both written back as black, so once such a file is reloaded the two are indistinguishable (segfix's .segfix.json sidecar still remembers which were noise for the current project). New trees created during editing (N, splits) get a deterministic colour derived from their id.

arbor output

arbor's pipeline (arbor segment …) writes <plot>_output/<plot>_segmented.laz, a point cloud with a per-point treeID Extra-Bytes column (0 = unassigned). Import that .laz directly: segfix decompresses it to a .las working copy in the project folder (the original .laz is never touched), you fix the treeIDs with the workflow below, and Save patches the .las in place and re-compresses a fresh .laz beside it for arbor to re-read.

One caveat: if a cloud's treeID column is an unsigned type, points you dismiss as noise (X) are written back as 0 (unassigned), segfix's own .segfix.json sidecar still remembers they were noise, but a reader of the LAS alone cannot tell noise from unassigned. (arbor writes a signed treeID, so this does not apply to its output.)

Large coordinates

Georeferenced clouds (UTM, State Plane, …) have coordinates in the millions, while the detail that matters for fixing a segmentation is sub-metre. segfix stores coordinates as 32-bit floats, as the GPU does, and a float32 carries only about 7 significant digits: a northing around 7,000,000 m is kept to the nearest half metre.

So when any coordinate is more than 10 km from the origin, segfix offers a global shift on load, the way CloudCompare does: a round offset, added to every coordinate, that brings the cloud near the origin. The suggested shift puts the cloud's minimum corner within a metre of the origin; you can edit X, Y and Z before choosing Apply Shift, or choose Keep Original Coordinates.

The shift applies to this session only. Nothing is written back: Save patches only the label (or, for RGB-segmented PLY, colour) bytes, so the file keeps its real, georeferenced coordinates byte for byte.

If you keep the original coordinates, the cloud loads with that lost precision, and segfix skips the dense-cloud check below: a spacing measured on coordinates rounded to half a metre would be meaningless, so it won't offer to downsample.

Dense clouds

On load segfix measures the cloud's typical point spacing. If points are closer than 2 cm it offers to downsample for the session, one point per voxel (2 cm by default, editable in the prompt), which is plenty to see and re-label a tree but a fraction of the points to draw and lasso. Choose Keep Full Resolution and nothing changes.

Downsampling is a working-set choice, not a destructive one. Nothing is written until you save, and on Save the labels you edited are interpolated back onto every original point: each full-resolution point follows the nearest kept point that was the same tree as it, and only where that kept point is one you actually re-labelled, so untouched parts of the cloud keep their original labels byte for byte. The saved file has all of its points and all of its fields, in the format it came in.

The one thing to know is that a voxel is the resolution limit while you work: where two trees' points share a voxel, one label represents it, and unassigned points that fall inside a tree's voxels aren't separately selectable until you reload at full resolution. Pick a voxel smaller than the detail you need to separate. Edits that move a whole tree (X or U on the current tree, a complete merge) still reach every one of its original points, including any in voxels where another tree's or the ground's point was the one kept.

Editing workflow

The menu bar carries the session-level actions: File ▸ Open Project… (Ctrl+O, reopens the startup dialog and switches project without a manual restart) and Save Project (Ctrl+S); Edit ▸ Undo / Redo (Ctrl+Z / Ctrl+Shift+Z); Preferences ▸ Theme ▸ Light / Dark, applied immediately and remembered (via QSettings) for next launch; and Help ▸ About segfix for the version, links, and full MIT licence.

Navigation matches CloudCompare: clouds open Z-up, left-drag rotates, right-drag pans, wheel zooms. Double-click a point while navigating to recentre the orbit on it. A metric scale bar and an X/Y/Z orientation tripod sit in the bottom-left of the view; the point size spinner floats in the top-left.

The right-hand panel holds two tables. All Trees (top) lists every tree in the file, a Done column (✓ when reviewed), tree ID and point count, with a running N/M trees (X %) done line above it, double-click a row to load that tree plus its spatial neighbours into the 3D view. Selected Tree + Neighbours (below) is the review queue for what's currently loaded: a Done checkbox per tree, a 👁 column to hide one from the view, a Fade column to ghost one (still shown, still selectable), and the Prev / Done buttons. Both read the same <cloud>.segfix.json sidecar, written next to the working copy, so a half-finished plot resumes where you left off. Finished rows in either table get a green tint. The Current tree actions (Add selection, send-to-neighbour, Split / Unassign / Noise) float as a fixed column pinned to the right edge of the 3D view, next to the points they act on.

1. Double-click a tree in All Trees. The camera flies to it and a wireframe box marks it. To declutter a crowded view, use the 👁 (hide) or Fade column in the lower table on specific trees, or Hide others / Fade others in the top-bar View group to do it to every loaded tree except the one under review. Fading keeps a tree visible as faint context and still lets the lasso grab its points; hiding removes it from both.

2. Inspect it. If it's correct, press Space, the tree is marked done, progress is saved, and the next unfinished tree in the loaded set becomes current. That's the loop.

3. If it needs fixing, select points with the lasso: press L, drag a freehand loop (Shift adds), Esc to go back to navigating. The tree under review is always the implicit target.

   Key	Operation
   Space	Mark current tree done, jump to next unfinished
   ← / →	Previous / next tree (without marking done)
   L	Lasso select
   Ctrl+L	Lasso, but only points already in the current tree, grabs a clean patch out of an overlapping crown
   K	Cluster select: click a point to take the connected patch of its tree; click the same spot again to loosen the gap and grow it
   [ / ]	Tighten / loosen the cluster gap one step
   Esc	Back to camera / navigation
   A	Add selection to the current tree (missing branches, unassigned canopy)
   N	Split selection off as a new tree (it joins the queue unreviewed)
   U	Unassign selection, or the whole current tree if nothing is selected
   X	Mark selection as noise, or the whole current tree if nothing is selected (dismiss a bush/wall in one key)
   Delete / Backspace	Same as X (mark noise)
   H	Show/hide the unassigned + noise points
   C	Cross section on/off
   Shift+L	Draw a lasso-section outline
   Shift+C	Lasso section on/off
   Ctrl+Z / Ctrl+Shift+Z	Undo / Redo (also on the Edit menu)
   Ctrl+S	Save Project (also on the File menu)
   Ctrl+O	Open another project

   Cluster (K) is the other way to select: click a point and it takes the patch of that point's tree that is physically connected to it. How wide a hole still counts as connected is the gap, in multiples of the cloud's point spacing. It starts at 1×, deliberately tight, so a first click is a small seed; click the same spot again to loosen it a step and grow the patch (1× → 1.5× → 2× … up to 16×), or use [ / ], or the ▾ beside the Cluster button for a slider. Changing the gap re-runs your last click, so the patch grows or shrinks on screen as you go. The gap goes back to 1× when you switch Cluster off, or when the selection is cleared (after A/N/U/X, a click on empty space, or moving to another tree).

   To move stray points to a neighbour instead, lasso them and click one of the → id buttons in the Current tree panel, one per tree within "reach" metres of this one. Clicking that neighbour's table row to make it current and pressing A does the same thing.

   To merge an over-segmented fragment back in, lasso the whole fragment and press A; there is no separate merge key.

4. For a crowded canopy, two tools in the top bar cut the view down. Both fold into the same visibility as the 👁 column, so hidden points are also unselectable and the lasso can't grab through them:

   • Cross section (C), a slab along X, Y or Z, set with two sliders.
   • Lasso section (Shift+C), same idea, but the kept region is an outline you draw (Shift+L, then drag). It's frozen into a point mask as you release, so the camera moves freely afterwards.

   Both reset when a new tree is loaded.

5. Leftover unassigned points may hide missed trees: they're loaded alongside every tree you open, so lasso one and press N to promote it to a tree of its own (it joins the queue unreviewed).

6. Save (Ctrl+S) writes to the project copy, never the original import. It patches only the points whose label changed, in place, so the header and every other column are untouched byte for byte.

Layout

Tests

pytest        # core model, operations, and IO round-trip (no GUI needed)
