spacr

spaCR

Spatial phenotype analysis of CRISPR screens.

spaCR is an end-to-end platform for image-based pooled CRISPR screens, high-content microscopy, and single-cell phenotype discovery. It connects raw microscopy images and sequencing reads to segmentation, measurements, annotation, predictive models, screen scores, quality control, and publication-ready results.

Every object stays traceable. Images, masks, measurements, annotations, model predictions, barcodes, and experimental identifiers are linked through a SQLite-backed project rather than scattered across unrelated files.

Why spaCR?

One connected workflow. Move from microscope output and FASTQ files to object-level phenotypes and gene-level screen results.
Biology-aware data model. Keep plate, well, field, object, crop, annotation, prediction, and barcode identities linked.
Desktop and headless operation. Use the PySide6 application interactively or run the same modules on a workstation, server, or cluster.
Live visual feedback. Preview masks, tracks, timelapse frames, training metrics, activation maps, and image embeddings where the corresponding module supports them.
Reproducible execution. Validate settings, record manifests, preserve run journals, rotate logs, resume supported jobs, and export reports with settings and package versions.
CPU and GPU execution. Run general analysis on CPU and use CUDA automatically for supported segmentation and deep-learning workloads.

Installation options

The lightweight desktop installers include a private Python runtime, so users do not need to install Python or conda first:

Install the Qt application into an existing Python environment with:

python -m pip install "spacr[qt]"
spacr

Detailed desktop, headless, development, and conda instructions appear in Installation details.

Features

Core

Module	Feature	Description
Core	Image pipeline	Runs the connected image-to-object processing workflow.
Qt application	Desktop interface	Provides the modern module-based desktop application.
Batch	Headless execution	Runs validated modules from scripts, servers, and clusters.
Logging	Reproducible runs	Records settings, manifests, journals, progress, and rotating logs.

Data and I/O

Module	Feature	Description
I/O	Image import	Reads microscopy images and maintains linked project data.
I/O	Format converter	Converts ND2, CZI, LIF, and OME-TIFF acquisitions.
I/O	Project import	Imports external images, masks, tables, and databases.
Object data	Object schema	Links images, masks, crops, measurements, and identifiers.
I/O	Database browser	Filters, inspects, and exports project SQLite tables.
Stitching	Align and stitch	Registers tile layouts and writes large stitched canvases.

Segmentation and masks

Module	Feature	Description
Mask	2D mask generation	Generates cell, nucleus, pathogen, and organelle masks.
Mask	3D mask generation	Segments volumetric image stacks.
Mask	4D mask generation	Segments volumetric time series.
Mask	Live preview	Previews segmentation settings before a full run.
Cellpose	Make masks	Creates and edits mask-training datasets.
Cellpose	Train Cellpose	Trains custom segmentation checkpoints.
Cellpose	Model comparison	Compares masks, counts, and agreement between models.
Cellpose	Model zoo	Finds, verifies, downloads, and benchmarks checkpoints.

Tracking and timelapse

Module	Feature	Description
Timelapse	Object tracking	Links objects with IoU, Trackpy, btrack, Trackastra, or ultrack.
Timelapse	Track preview	Shows tracks on demand before full processing.
Timelapse	Motility assay	Summarizes displacement, velocity, persistence, and infection.

Measurements

Module	Feature	Description
Measure	2D measurements	Measures morphology, intensity, texture, and colocalization.
Measure	3D measurements	Measures objects throughout volumetric image stacks.
Measure	4D measurements	Measures volumetric objects over time.
Measure	Object crops	Writes database-linked single-object images and arrays.

Annotation

Module	Feature	Description
Annotate	Manual annotation	Reviews crops and saves labels directly to the database.

AI and machine learning

Module	Feature	Description
Computer vision	Image classification	Trains and applies PyTorch CNN and transformer models.
Computer vision	Live training metrics	Streams loss, accuracy, and training images to TensorBoard.
Machine learning	Measurement classification	Trains interpretable classical and boosted models.
Image UMAP	Interactive embedding	Inspects points, draws clusters, and writes labels to SQLite.
Computer vision	Activation maps	Explains predictions with Captum, SmoothGrad, and TorchCAM.
Computer vision	Training-run comparison	Compares metrics and settings across model runs.
Hyperparameters	Hyperparameter search	Searches supported embedding and model settings.
Qt AI	AI-assisted console	Connects supported modules to local AI command-line tools.

Sequencing and screen analysis

Module	Feature	Description
Sequencing	Map barcodes	Maps row, column, and gRNA barcodes from FASTQ reads.
Statistics	Regression	Estimates guide, gene, condition, and control effects.
Simulation	Screen simulation	Explores pooled-screen designs over parameter grids.

Visualization, QC, and reporting

Module	Feature	Description
Plotting	Plate viewer	Displays measurement heatmaps and spatial plate effects.
Analysis	Annotator agreement	Quantifies agreement and exposes conflicting annotations.
Report	Analysis report	Builds HTML or PDF reports with QC and provenance.

Biological assays

Module	Feature	Description
Assays	Plaque assay	Quantifies plaque number, area, intensity, and morphology.
Assays	Recruitment	Compares marker recruitment between conditions.
Toxoplasma analysis	Invasion assay	Distinguishes attached and invaded parasites.
Assays	Replication assay	Summarizes parasites per vacuole and replication rates.

Automation and specialist tools

Module	Feature	Description
Batch	Plate queue	Chains several plates through a shared workflow.
Batch	Batch runner	Queues modules and reports dependency-aware failures.
Computer vision	Training-only pipeline	Trains an existing image dataset without rebuilding crops.
Cellpose	Model sweep	Compares available Cellpose models on the same images.

Tutorials

Tutorials are coming soon.

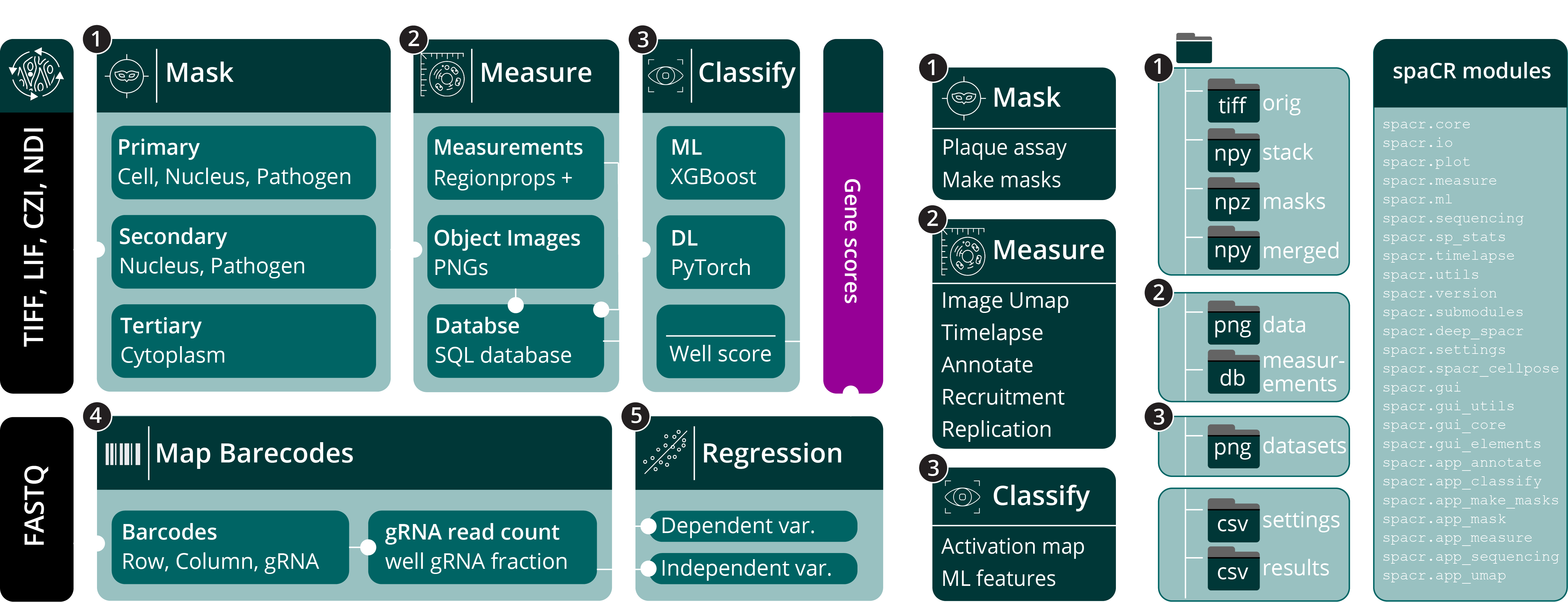

Workflow

Microscopy images (TIFF, OME-TIFF, LIF, CZI, and ND2) and sequencing reads (FASTQ) enter complementary image-analysis and barcode-mapping pipelines. Object tables, crops, annotations, predictions, guide identities, QC results, and well-level summaries can then be analyzed together.

Quick start

The recommended installation uses an isolated conda environment with Python 3.12 and the Qt desktop extra:

conda create -n spacr python=3.12 -y
conda activate spacr
python -m pip install --upgrade pip
python -m pip install "spacr[qt]"
spacr

spaCR supports Python 3.9 through 3.14 (except Python 3.14.1, which is excluded by torchvision). Python 3.12 is recommended for the broadest combination of optional scientific packages. Linux is recommended for CUDA workflows; macOS and Windows are also supported.

Installation details

Lightweight installers — no conda or existing Python required

No conda installation and no existing Python installation are required. The installer downloads a private Python 3.12 runtime, Qt, PyTorch, spaCR, and the scientific dependencies during installation. PyTorch automatically selects a compatible GPU backend when one is detected and otherwise installs its CPU build. The installer download therefore stays small while the installed application is complete and isolated from system Python.

On Linux, make the downloaded installer executable before opening it:

chmod +x SpaCR-*-Linux-x86_64-Online.run
./SpaCR-*-Linux-x86_64-Online.run

The installer validates spaCR, Qt, PyTorch, and dependency consistency before replacing an older installation, so an interrupted update leaves the previous working environment in place.

Desktop application from PyPI

python -m pip install "spacr[qt]"
spacr

Headless or server installation

python -m pip install spacr
spacr-run --list

Latest development branch

git clone https://github.com/EinarOlafsson/spacr.git
cd spacr
git switch nightly
python -m pip install -e ".[qt]"

Conda environments

The native conda-forge recipe is ready in conda-forge/recipe. Conda-forge requires a one-time reviewed onboarding pull request before the package name becomes available. After that review, every PyPI release is detected, tested, and published by the conda-forge update bot:

conda install -c conda-forge spacr

The short one-time maintainer procedure is documented in conda-forge/README.md.

Optional capabilities

Install only the extras needed by your workflow:

python -m pip install "spacr[trackastra]"    # transformer tracking
python -m pip install "spacr[ultrack]"       # global-optimization tracking
python -m pip install "spacr[attribution]"   # TorchCAM methods
python -m pip install "spacr[boosting]"      # LightGBM and CatBoost
python -m pip install "spacr[zernike]"       # Zernike measurements
python -m pip install "spacr[btrack]"        # btrack timelapse tracking
python -m pip install "spacr[czi,nd2,lif]"   # vendor file readers

Optional dependency availability varies by Python version. In particular, ultrack currently limits spacr[all] on Python 3.13, and TorchCAM’s NumPy constraint limits the attribution extra there. The core package and Qt application remain supported. On Python 3.14, btrack is supported through its optional extra. The high-performance pylibCZIrw CZI converter remains optional and outside the tested profile. Other timelapse backends and czifile-based CZI reading remain available.

The legacy Tk interface remains available as spacr-legacy but is no longer under active development.

Command-line entry points

spacr                                      # Qt application
spacr-run --list                           # list headless modules
spacr-run --describe MODULE                # inspect a module contract
spacr-run MODULE --settings settings.csv   # execute a module
spacr-run validate --module MODULE \
    --settings settings.csv                # validate before running
spacr-repro --help                         # reproducibility tools

Set SPACR_LOG_LEVEL=DEBUG when troubleshooting. Rotating logs are stored under ~/.spacr/logs/spacr.log.

Project data model

A typical project contains:

normalized channel stacks and object masks;
merged image/mask arrays;
measurements/measurements.db with object-linked tables;
per-object PNG crops and dataset splits;
annotations and model predictions;
barcode mappings and screen-level summaries;
settings snapshots, manifests, QC scorecards, and run reports.

This layout lets desktop modules, headless jobs, and external analysis code work on the same source of truth.

Data

Citing spaCR

If spaCR contributes to your research, cite:

Olafsson EB, et al. A pooled image-based CRISPR screen identifies EAF1 as a T. gondii modulator of ESCRT subversion.

bioRxiv preprint · software archive

Contributing and support

Bug reports and focused feature requests are welcome through GitHub Issues. When reporting a failure, include the spaCR version, operating system, Python version, module settings, and the relevant log excerpt.

spaCR is released under the MIT License.
