streamlit-sigmajs

A Streamlit component for interactive property graph visualization, powered by Sigma.js.

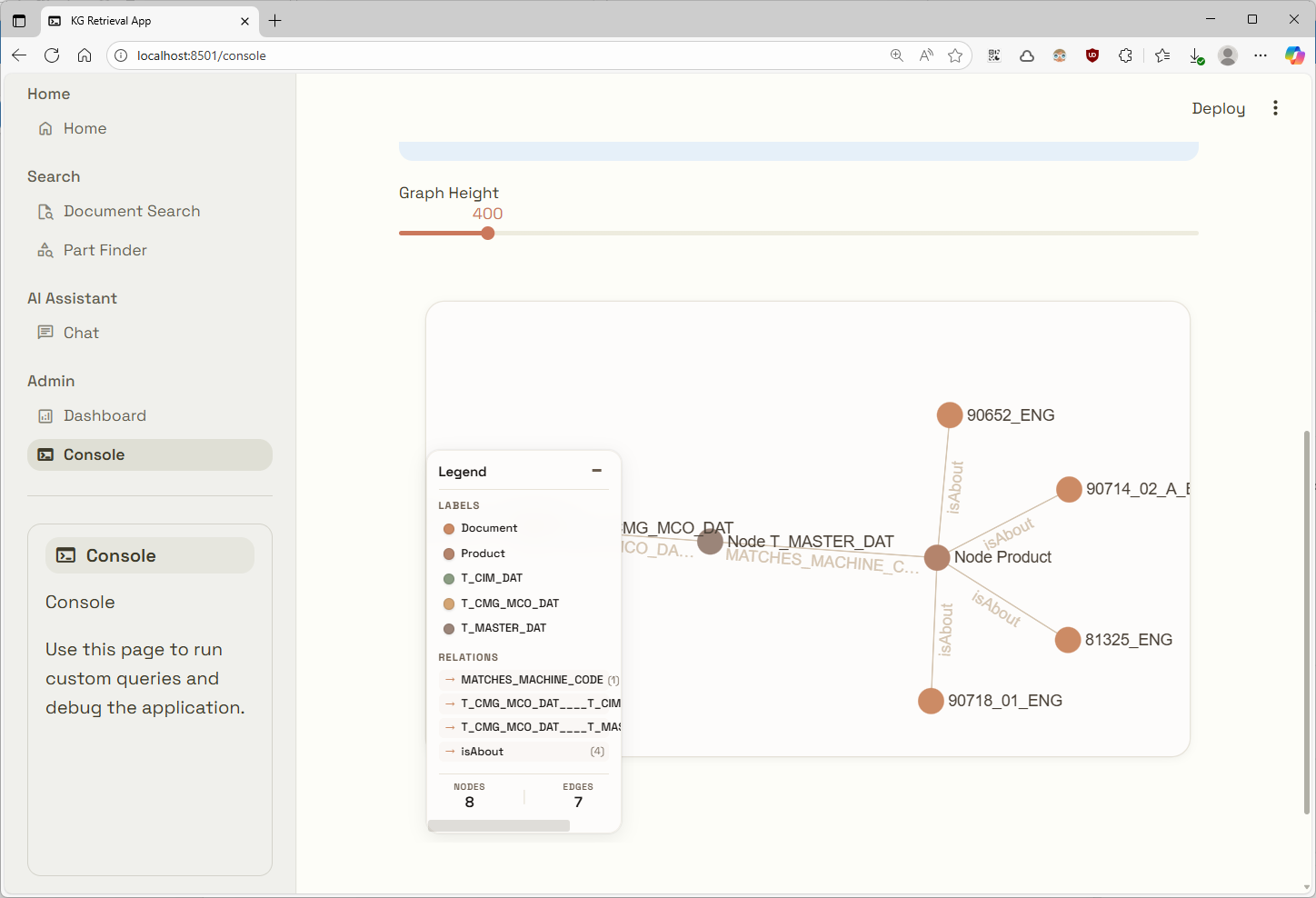

Demo

Roadmap

• Basic graph visualization
• Node and edge styling
• In-component node and edge selection
• Python interaction callbacks
• Graph layouts
• Theming

Local Installation

Install the Python package and development dependencies:

uv sync --extra dev

To build your frontend code, run the following commands from the st_sigma/frontend directory:

npm ci
npm run build

To run in development mode with hot-reloading, in the st_sigma/frontend directory, run:

npm ci
npm run start

To start the bundled example app, run:

uv run --with neo4j streamlit run st_sigma/example.py

Install from PyPI

uv add streamlit-sigmajs

Build and publish to PyPI

1. Update the version in pyproject.toml.
2. Build the frontend and Python distributions:

cd st_sigma/frontend
npm ci
npm run build
cd ../..
uv build

3. Validate the distributions locally:

uvx twine check dist/*

PyPI releases are published by the publish GitHub Actions workflow using Trusted Publishing. Push a version tag such as v0.1.2, or manually dispatch the workflow for an existing tag. No PyPI API token is stored in GitHub.

Usage

The graph visualizer takes a customized graph dictionary in its graphData argument. You can convert a Neo4j graph result to the required dictionary using the neo4jgraph_to_sigma utility function. The neo4jgraph_to_sigma function takes a neo4j.Graph object as input, usually the results you get from driver.execute_query(..., result_transformer_=neo4j.Result.graph).

import streamlit as st
from st_sigma import st_sigmagraph, neo4jgraph_to_sigma

import neo4j
from neo4j import GraphDatabase

NEO4J_URI = "bolt://localhost:7677"
NEO4J_USER = "neo4j"
NEO4J_PASSWORD = "your_password"

def query_neo4j_graph(query):

    with GraphDatabase.driver(NEO4J_URI, auth=(NEO4J_USER, NEO4J_PASSWORD)) as driver:
        result = driver.execute_query( query, result_transformer_ = neo4j.Result.graph )

        return result


query = st.text_area(
    "Enter Cypher Query",
    value="MATCH (n)-[r]->(m) RETURN n, r, m LIMIT 4",
    height=100
)

st.subheader("Component with variable args")


height = st.slider("Graph Height", min_value=200, max_value=800, value=600, step=50)


if st.button("Visualize Graph"):
    try:
        with st.spinner("Querying Neo4j..."):
            result = query_neo4j_graph(query)
            result = neo4jgraph_to_sigma(result)

            if not result["nodes"]:
                st.warning("No nodes found in the query result.")
            else:
                st.success(f"Found {len(result['nodes'])} nodes and {len(result['relationships'])} relationships")

                st_sigmagraph(
                    graphData=result,
                    height=height,
                    key="neo4j_graph"
                )
    except Exception as e:
        st.error(f"Error: {str(e)}")
