synapse-sr 0.1.0

Observation-consistent super-resolution of Sentinel-2 imagery to a 2 m grid

Documentation | Quick start | Examples | API

synapse-sr turns a Sentinel-2 L2A scene into a 2.0 m red, green, blue and near-infrared product. The network adds only the structure the 10 m measurement cannot see. Everything the satellite did observe is pinned by a physical model of the instrument and cannot be changed. Every result reports how much of each pixel came from the observation and how much from the learned prior.

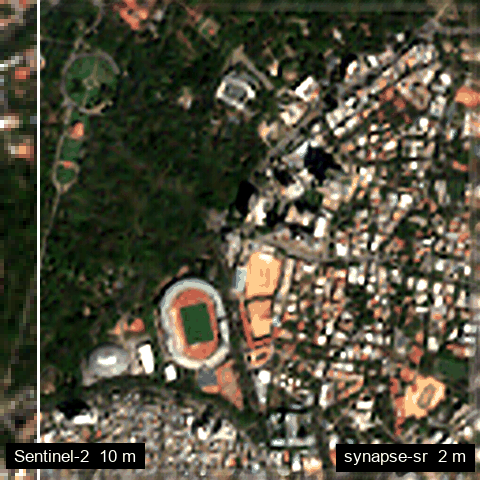

_{RV University, Bengaluru. Sentinel-2 L2A 10 m (left) and synapse-sr 2 m (right), 6 February 2025.}

Table of contents

• Overview
• Installation
• Quick start
• From download to 2 m
• Numpy, torch and xarray inputs
• Large scenes
• Support, confidence and consistency
• Command line
• Offline use
• Examples
• How it works
• Limitations
• Citation
• Acknowledgements

Overview

Installation

pip install synapse-sr

Without the fused kernel, a PyTorch implementation is used. It matches the fused kernel to a relative error of 1.7e-7 and is slower. Run synapse-sr --env to see what is active. Full details: Installation.

Quick start

import synapse_sr

result = synapse_sr.super_resolve("sentinel2_l2a.tif")
result.save("sentinel2_2m.tif")

With an explicit model object:

from synapse_sr import Pro

model = Pro.from_pretrained(device="cuda")        # weights="model.safetensors" for a local file
result = model.super_resolve("sentinel2_l2a.tif")

result.image          # (4, 5H, 5W) reflectance, B04 B03 B02 B08, 2.0 m grid
result.support        # (5H, 5W) 2 HIGH, 1 MEDIUM, 0 LOW / invalid
result.consistency    # {"B04": 0.95, ...} round trip against the input, in noise units

From download to 2 m

from synapse_sr import Pro, fetch_sentinel2       # pip install "synapse-sr[stac]"

scene = fetch_sentinel2(lat=12.9237, lon=77.4987, start="2025-01-01", end="2025-03-15", size_m=2000)
result = Pro.from_pretrained().super_resolve(scene)   # radiometric offset and cloud mask applied automatically

import matplotlib.pyplot as plt
plt.imshow(result.rgb()); plt.axis("off")

Numpy, torch and xarray inputs

model.super_resolve(array)                                   # (C, H, W) DN or reflectance, 10/12/13-band order
model.super_resolve(array, band_names=["B04", "B03", ...])   # any order, by name
model.super_resolve(tensor)                                  # torch.Tensor (C, H, W) or (1, C, H, W)
model.super_resolve(cube.isel(time=0))                       # xarray with a "band" coordinate (cubo, stackstac)

The model uses B04, B03 and B02 (10 m), B08 (10 m), and B05, B06, B07, B8A, B11 and B12 (20 m, as spectral context). See Inputs and preprocessing.

Large scenes

Scenes of any size and shape are tiled with a real-context halo and assembled on the output grid. The output is always exactly 5H x 5W, with no dropped regions. Tiled and single-window results agree to 0.4 % relative RMS.

result = model.super_resolve("large_scene.tif", tile=64, halo=16)

Support, confidence and consistency

result.x_base         # determined by the Sentinel-2 observation
result.prior          # added by the learned prior, invisible to the sensor; x_base + prior == image
result.support        # 2 HIGH (observation-determined), 1 MEDIUM, 0 LOW (prior-dominated) or invalid
result.confidence     # learned per-pixel error scale (not calibrated)
result.valid          # False on NoData, cloud, cloud shadow, cirrus, saturation

See Support, confidence and consistency.

Command line

synapse-sr scene.tif scene_2m.tif
synapse-sr scene.tif scene_2m.tif --device cpu --weights synapse-pro-v1.safetensors --scl scene_SCL.tif
synapse-sr --env

The output GeoTIFF has nine bands: B04 B03 B02 B08, ERRSCALE_* for each of the four, and SUPPORT. Use --no-confidence to write the four reflectance bands only.

Offline use

model = Pro.from_pretrained(weights="/opt/models/synapse-pro-v1.safetensors")

No network access is needed apart from an optional one-time weight download, which is verified by SHA-256. See Offline and on-premises use.

Examples

Produced with the package itself (tools/make_gifs.py). Left: Sentinel-2 L2A at 10 m. Right: synapse-sr at 2 m. Each area is 1.28 km x 1.28 km.

RV University, Bengaluru	Bengaluru city centre

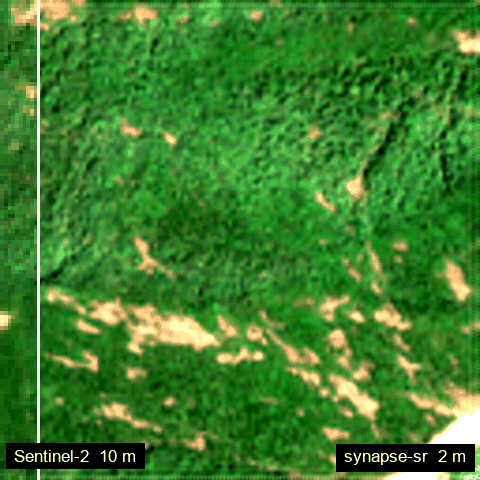

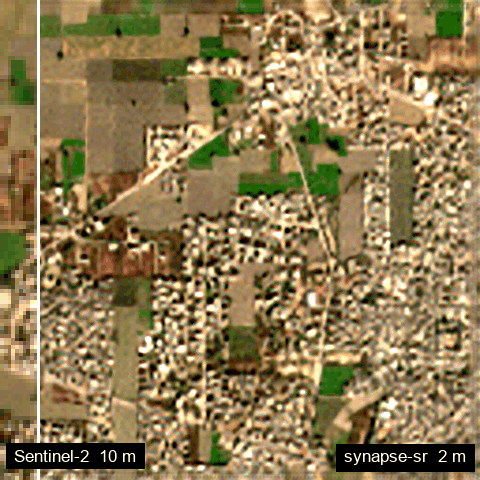

Ludhiana, Punjab: fields	Wayanad, Kerala: landslide-affected hills

More in the Examples section of the documentation.

How it works

x_hat = x_base + P_N(delta)

• x_base: a Tikhonov-regularised inversion of the Sentinel-2 forward model A. Its per-band weight is set so the residual matches sensor noise.
• delta: predicted by SynapseProX5, a 14.4 M-parameter network. It has:
  • a state-space (Mamba) backbone;
  • a gated 20 m spectral-context stem;
  • a frequency mixer;
  • a direct x5 PixelShuffle head.
• P_N = I - A^T (A A^T)^+ A: removes everything the sensor could have observed. A x_hat = A x_base, whatever the network predicts.

Details: How it works.

Limitations

• Grid spacing is not effective resolution. In the controlled bar-pair test, the v0.1 preview checkpoint does not yet certify pairs at 8 m or finer; the official SEN2SR model certifies 6 m. No effective-resolution figure is claimed for this release.
• Only red, green, blue and near-infrared are super-resolved. The six 20 m bands are used as context only.
• Consistency assumes the nominal sensor model and correct geolocation. It degrades with PSF or registration error.
• The confidence map is not calibrated. The support thresholds are heuristic.
• The training reference imagery comes from the United States. Other regions are not separately validated.

Full list: Limitations.

Citation

@software{synapse_sr,
  title  = {synapse-sr: observation-consistent super-resolution of Sentinel-2 imagery},
  author = {Naidu, Sharadh},
  year   = {2026},
  url    = {https://github.com/SharadhNaidu/synapse-sr}
}

Acknowledgements

• The optional fused kernel comes from mamba-ssm (Apache-2.0).
• Sentinel-2 data: Copernicus programme, European Space Agency.

See THIRD_PARTY_NOTICES.
