tablesleuth 0.6.1

TableSleuth - a Textual TUI for Open Table Format forensics (Iceberg, Delta Lake) with data profiling.

TableSleuth

A powerful forensic analysis tool for Parquet files, Apache Iceberg tables, and Delta Lake tables. Available as both a terminal TUI and a browser-based web interface — inspect file structure, metadata, row groups, column statistics, and table evolution.

Key Features

Parquet Analysis

• Deep File Inspection - Comprehensive metadata extraction using PyArrow
• Row Group Analysis - Examine distribution, compression, and statistics
• Column Profiling - Profile data using GizmoSQL (DuckDB over Arrow Flight SQL)
• Data Sampling - Preview and filter data with column selection
• Directory Scanning - Recursively discover and inspect Parquet files

Iceberg Table Analysis

• Snapshot Navigation - Browse table history and metadata evolution
• Performance Testing - Compare query performance across snapshots with comprehensive analysis
  • Multi-factor performance attribution (data volume, MOR overhead, scan efficiency)
  • Accurate MOR overhead detection with read amplification metrics
  • Order-agnostic comparison (works regardless of snapshot chronology)
  • Actionable compaction recommendations with specific thresholds
• Delete File Inspection - Analyze MOR (Merge-on-Read) delete files and read amplification
• Schema Evolution - Track schema changes over time
• Catalog Support - Local SQLite, AWS Glue, and AWS S3 Tables

Delta Lake Analysis

• Version History - Navigate through Delta table versions and time travel
• File Size Analysis - Identify small file problems and optimization opportunities
• Storage Waste - Track tombstoned files and reclaimable storage
• DML Forensics - Analyze MERGE, UPDATE, DELETE operations and rewrite amplification
• Z-Order Effectiveness - Monitor data skipping and clustering degradation
• Checkpoint Health - Assess transaction log health and maintenance needs
• Optimization Recommendations - Get prioritized suggestions for OPTIMIZE, VACUUM, and ZORDER

Interface

• Interactive TUI - Keyboard-driven navigation with rich visualizations
• Browser-Based Web UI - FastAPI + Next.js interface launched with tablesleuth web (v0.6.0+)
• Multi-Source Support - Local files, S3, Iceberg catalogs, and Delta tables
• Performance Optimized - Async operations, caching, and lazy loading

Screenshots

Parquet File Inspection

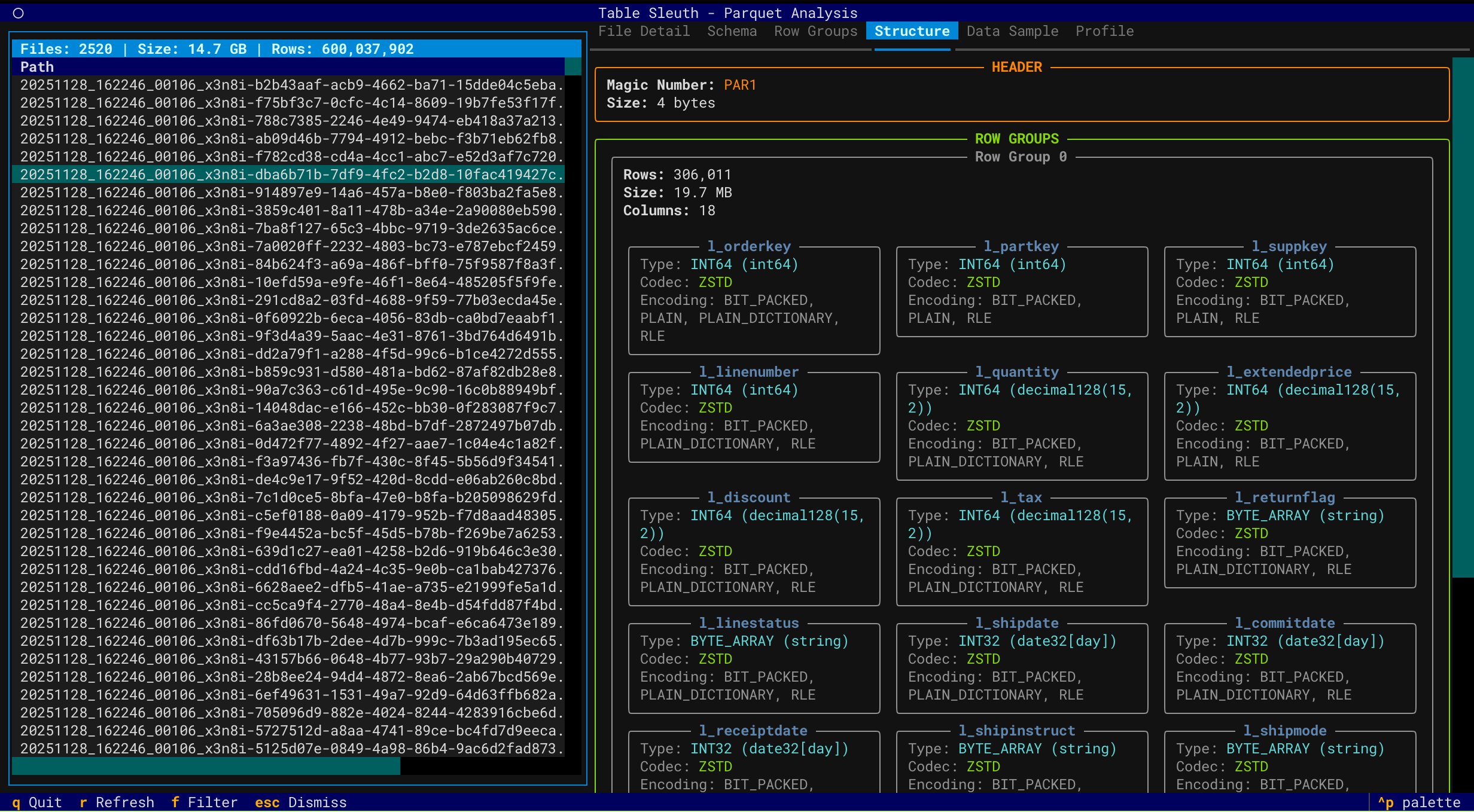

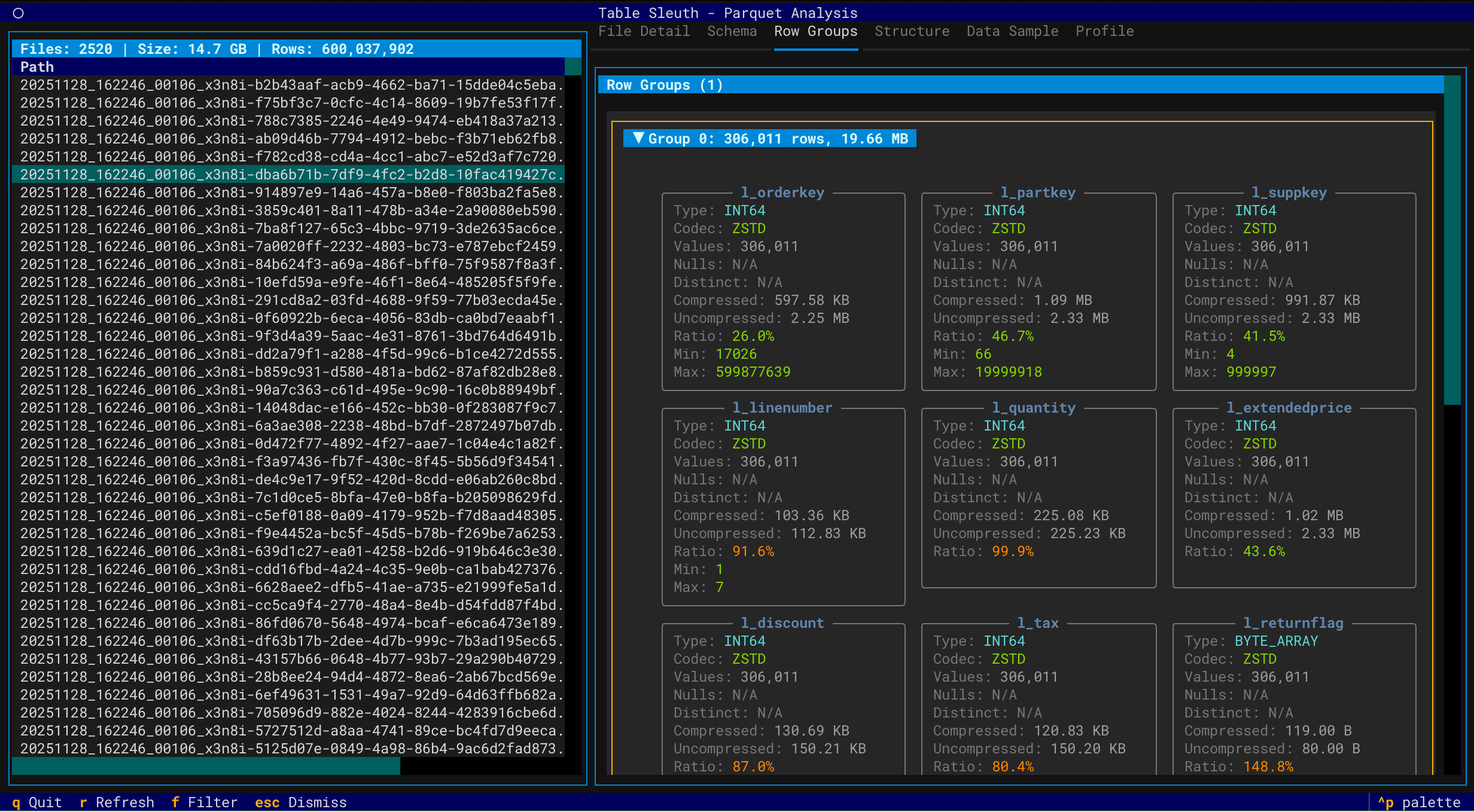

File Structure & Schema	Row Group Analysis

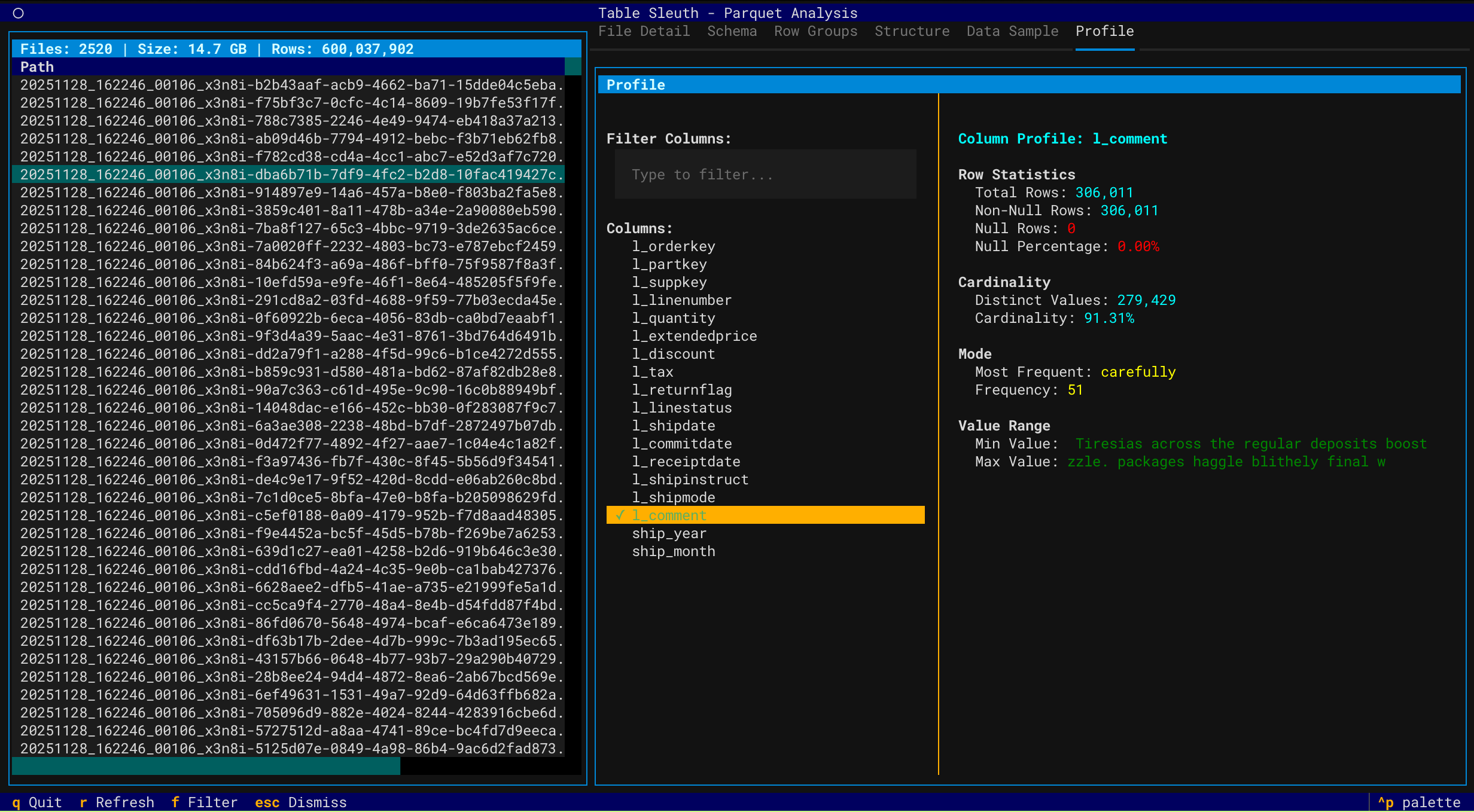

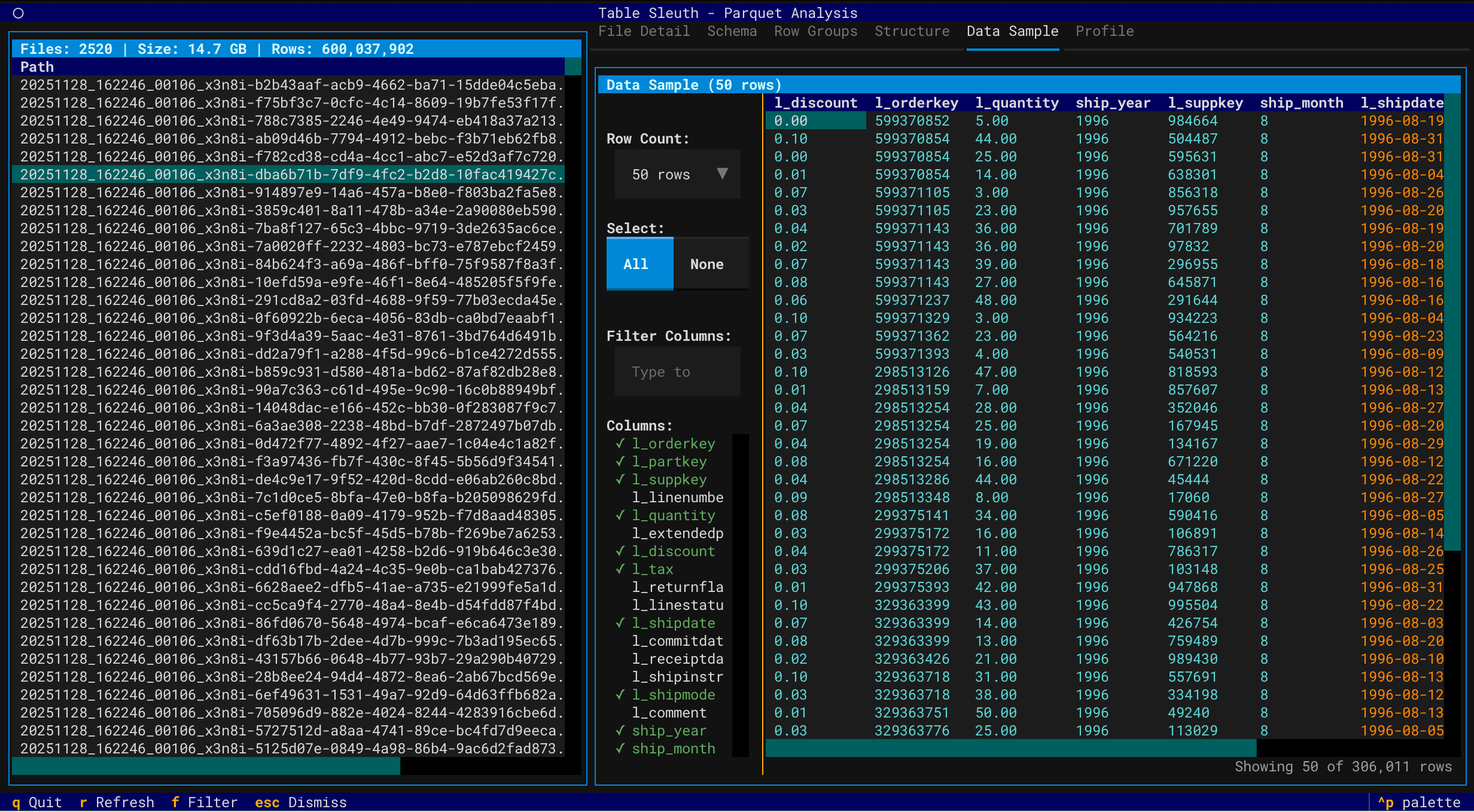

Data Sample View	Column Profiling

Iceberg Table Analysis

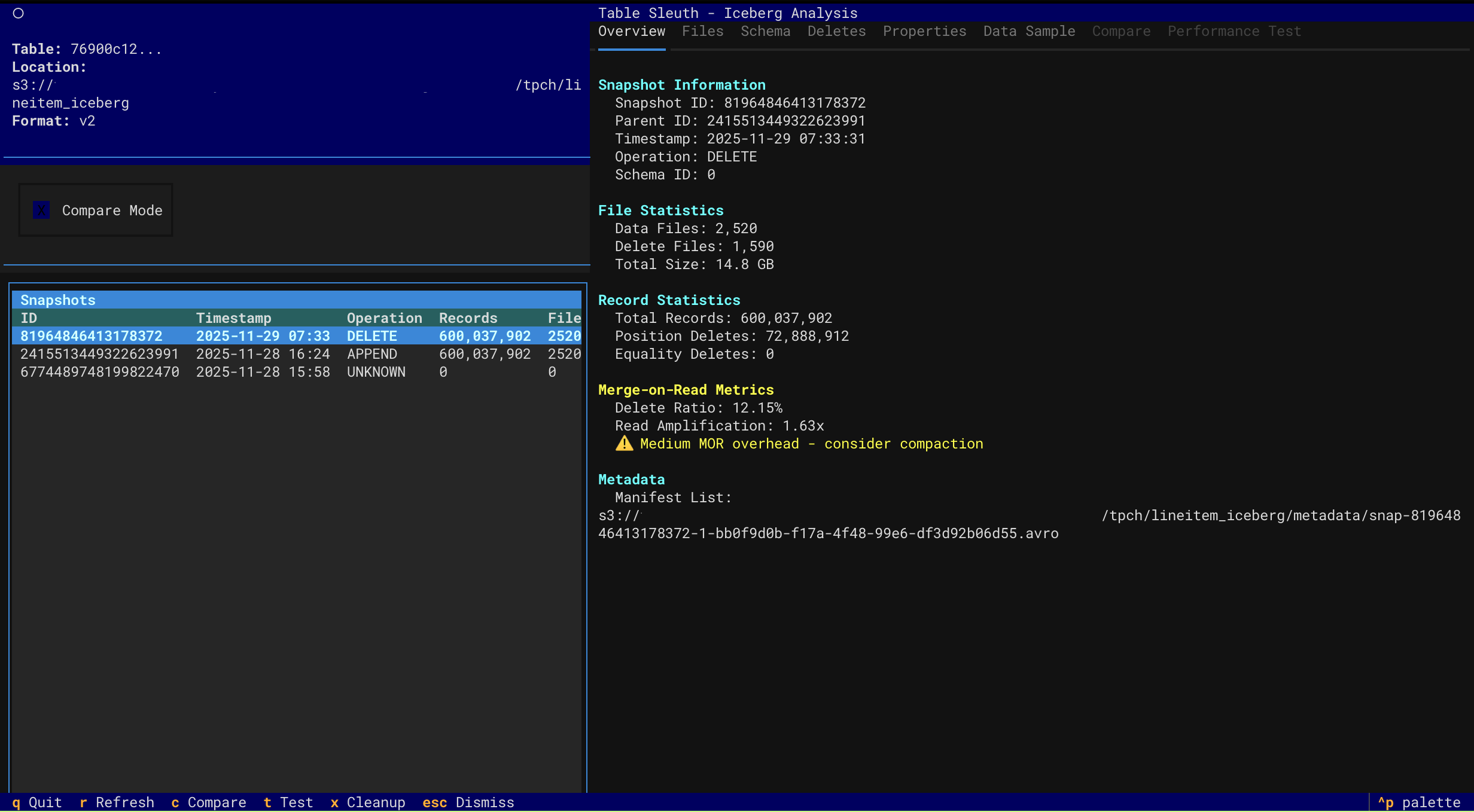

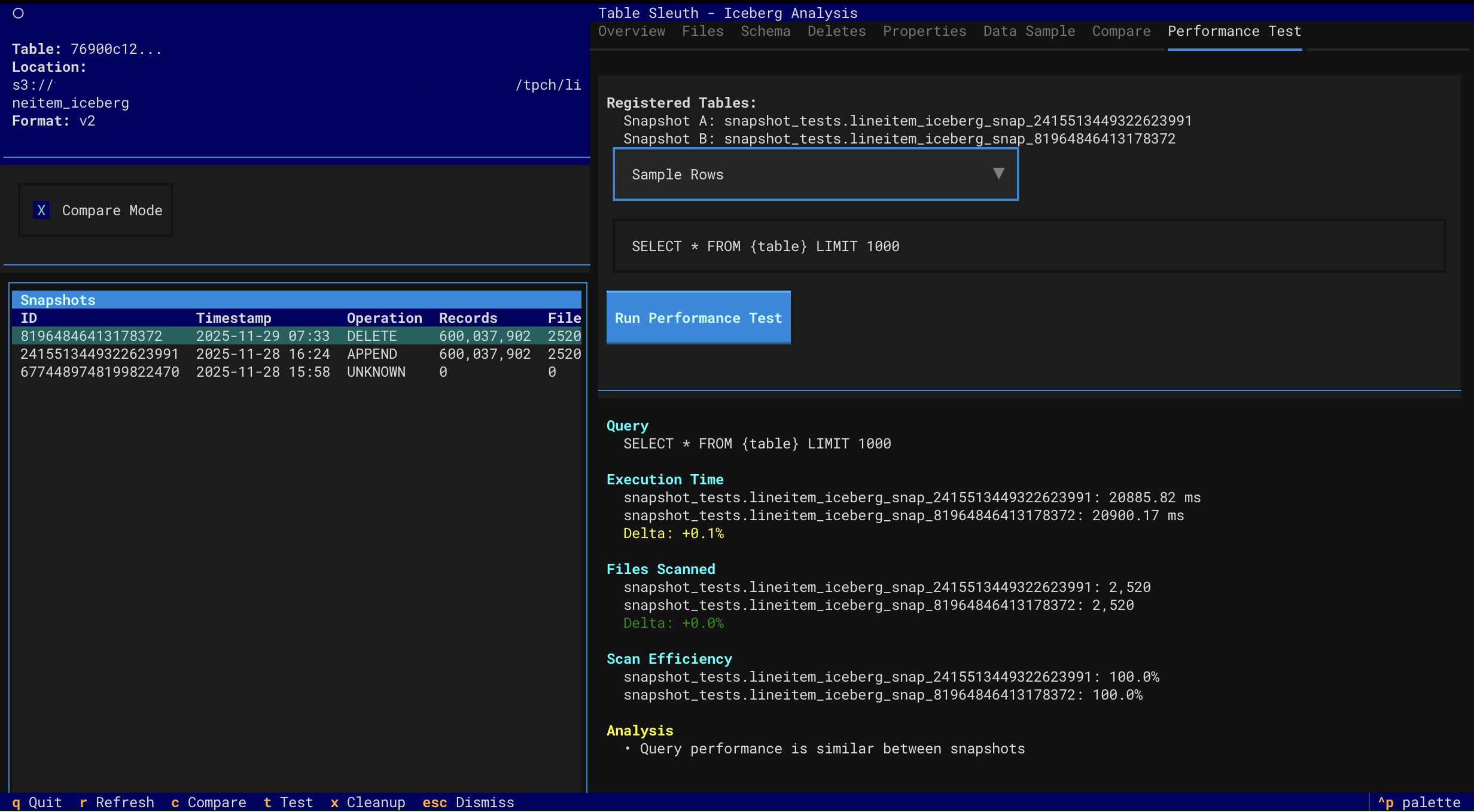

Snapshot Overview	Performance Testing

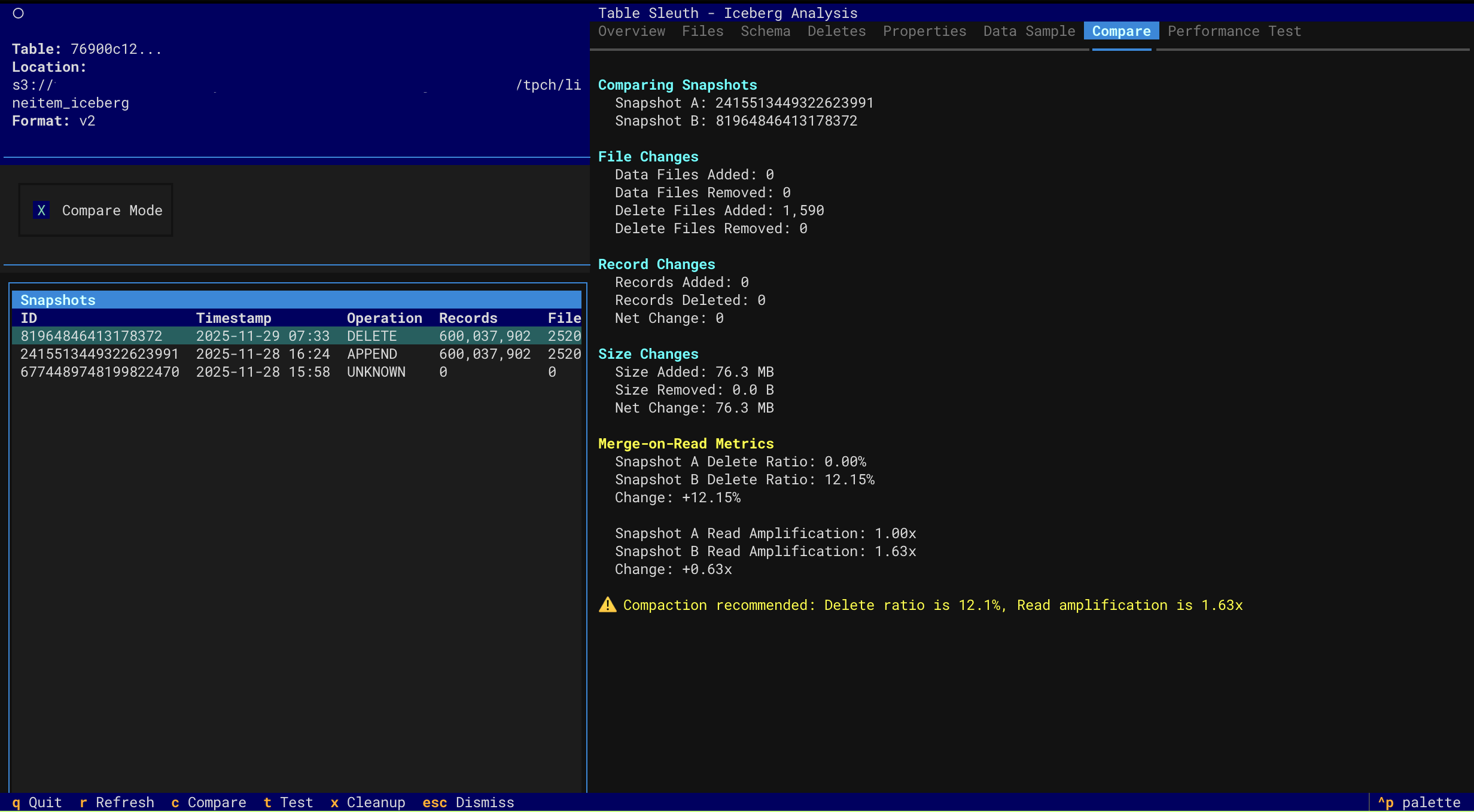

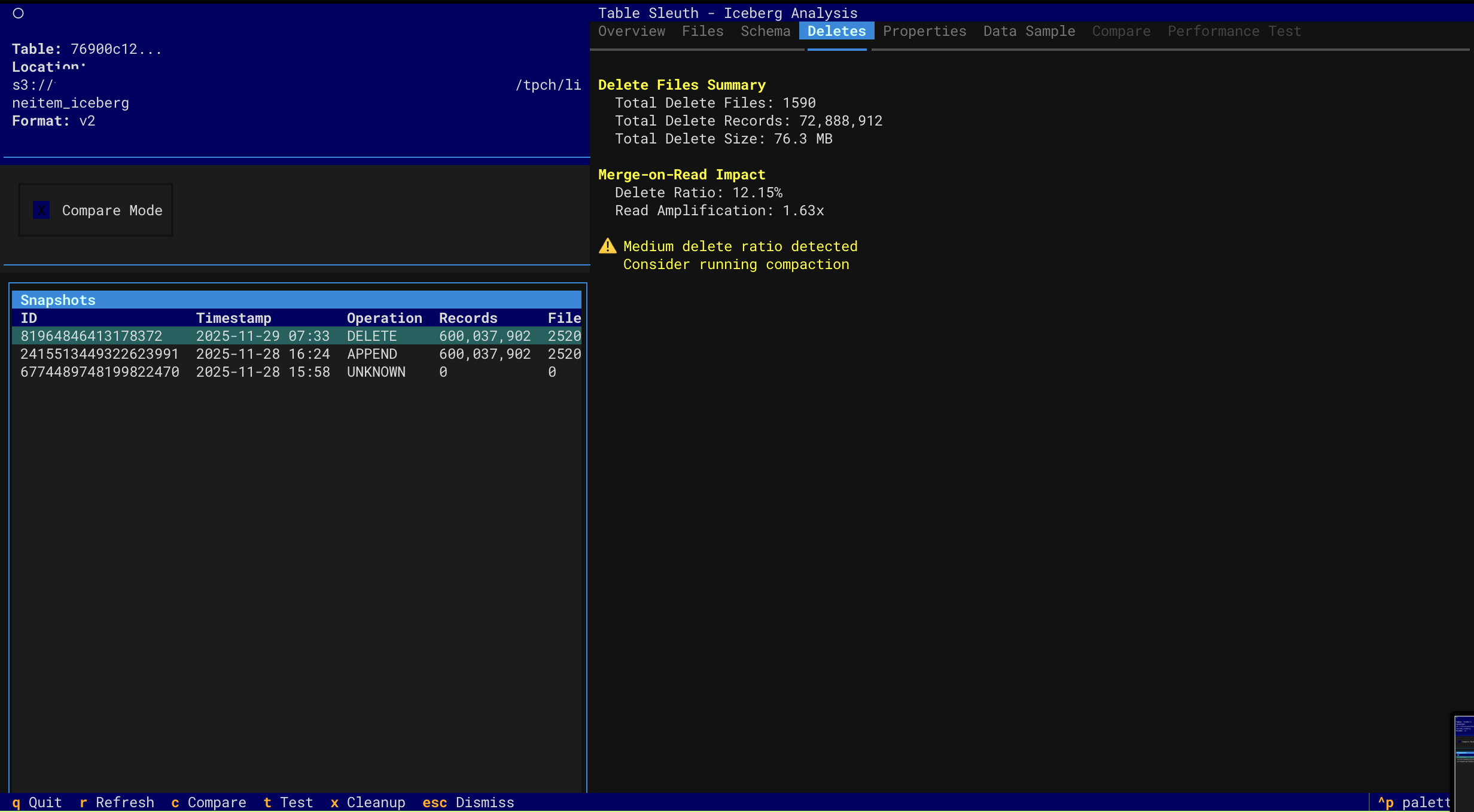

Delete Files (MOR)	Snapshot Comparison

Quick Start

# Install with uv (recommended)
uv sync

# Inspect a Parquet file (TUI)
tablesleuth parquet data/file.parquet

# Inspect a directory (recursive)
tablesleuth parquet data/warehouse/

# Inspect an Iceberg table (TUI)
tablesleuth iceberg --catalog local --table db.table

# Launch the browser-based web UI (v0.6.0+)
pip install tablesleuth[web]
tablesleuth web  # opens http://localhost:8000

# Inspect AWS S3 Tables (using ARN with parquet command)
tablesleuth parquet "arn:aws:s3tables:us-east-2:123456789012:bucket/my-bucket/table/db.table"

📚 Documentation:

• Quick Start Guide - Get started with examples
• Setup Guide - Complete installation and configuration
• User Guide - Comprehensive usage documentation

Installation

Requirements: Python 3.13+ and uv

# Install from PyPI (TUI only)
pip install tablesleuth

# Install with web UI support (v0.6.0+)
pip install tablesleuth[web]

# Or install from source
git clone https://github.com/jamesbconner/TableSleuth
cd TableSleuth
uv sync                    # TUI only
uv sync --extra web        # include web UI dependencies

# Verify installation
tablesleuth --version

# Initialize configuration files
tablesleuth init

See TABLESLEUTH_SETUP.md for detailed setup including AWS, GizmoSQL, and catalog configuration.

Quick Start

# 1. Initialize configuration (first time only)
tablesleuth init

# 2. Edit configuration files
#    - tablesleuth.toml (main config)
#    - .pyiceberg.yaml (catalog config)

# 3. Verify configuration
tablesleuth config-check

# 4. Start inspecting files
tablesleuth parquet data/file.parquet

Configuration

Quick Setup

# Initialize configuration files with interactive prompts
tablesleuth init

# Check configuration and test connections
tablesleuth config-check
tablesleuth config-check -v  # Verbose output

Configuration Files

tablesleuth.toml - Main configuration:

[catalog]
default = "local"  # Default Iceberg catalog

[gizmosql]
uri = "grpc+tls://localhost:31337"
username = "gizmosql_username"
password = "gizmosql_password"
tls_skip_verify = true

Configuration Priority:

1. Environment variables (TABLESLEUTH_*)
2. Local config files (./tablesleuth.toml, ./.pyiceberg.yaml)
3. Home config files (~/tablesleuth.toml, ~/.pyiceberg.yaml)
4. Built-in defaults

Iceberg Catalogs

Configure PyIceberg in .pyiceberg.yaml:

catalog:
  local:
    type: sql
    uri: sqlite:////path/to/catalog.db
    warehouse: file:///path/to/warehouse

For detailed configuration:

• Setup Guide - All catalog types and AWS configuration
• GizmoSQL Deployment - Profiling backend setup

Usage

CLI Commands

# Configuration management
tablesleuth init                    # Initialize config files
tablesleuth init --force            # Overwrite existing config files
tablesleuth config-check            # Validate configuration
tablesleuth config-check -v         # Detailed validation
tablesleuth config-check --with-gizmosql  # Include GizmoSQL connection test

# Web UI (v0.6.0+, requires tablesleuth[web])
tablesleuth web                     # Launch browser UI at localhost:8000
tablesleuth web --host 0.0.0.0 --port 9000  # Custom host/port

# Inspect Parquet files
tablesleuth parquet file.parquet
tablesleuth parquet directory/
tablesleuth parquet s3://bucket/path/file.parquet
tablesleuth parquet file.parquet -v  # Verbose mode

# Inspect Parquet files from Iceberg tables (discovers data files)
tablesleuth parquet --catalog local table.name
tablesleuth parquet --catalog glue --region us-east-2 db.table

# Inspect S3 Tables (use parquet command with ARN)
tablesleuth parquet "arn:aws:s3tables:region:account:bucket/name/table/db.table"

# Inspect Iceberg tables
tablesleuth iceberg --catalog local --table db.table
tablesleuth iceberg /path/to/metadata.json
tablesleuth iceberg s3://bucket/warehouse/table/metadata/metadata.json
tablesleuth iceberg --catalog local --table db.table -v  # Verbose mode

# Inspect Delta Lake tables
tablesleuth delta path/to/delta/table
tablesleuth delta s3://bucket/path/to/delta/table
tablesleuth delta path/to/delta/table --version 5  # Time travel to version 5
tablesleuth delta s3://bucket/table/ --storage-option AWS_REGION=us-west-2
tablesleuth delta path/to/delta/table -v  # Verbose mode

TUI Navigation

Key	Action
q	Quit
r	Refresh
f	Filter columns
Tab	Switch tabs
↑/↓	Navigate
Enter	Select

See User Guide for complete keyboard shortcuts and features.

AWS Deployment

Deploy TableSleuth to AWS EC2 with production-ready infrastructure using AWS CDK (Cloud Development Kit):

cd resources/aws-cdk

# Set required environment variables
export SSH_ALLOWED_CIDR="$(curl -s ifconfig.me)/32"  # Your IP for SSH access
export GIZMOSQL_USERNAME="admin"
export GIZMOSQL_PASSWORD="secure-password"

# Deploy to dev environment
cdk deploy -c environment=dev

Key Features:

• Infrastructure as Code - Version-controlled, reviewable infrastructure changes
• Security Best Practices - Least-privilege IAM, EBS encryption, VPC Flow Logs
• Multi-Environment - Separate dev/staging/prod configurations via CDK context
• Automated Setup - GizmoSQL service, PyIceberg Glue integration, and TableSleuth pre-installed
• Change Preview - Review infrastructure changes before deployment with cdk diff

What's Included:

• EC2 instance with TableSleuth and GizmoSQL pre-configured
• IAM role with S3, Glue, and S3 Tables permissions
• Security group with SSH access from your IP
• Systemd service for GizmoSQL (auto-starts on boot)
• Complete PyIceberg configuration for AWS Glue catalog

Documentation:

• CDK README - Complete deployment guide
• CDK Quick Start - Deploy in 10 minutes
• Future Improvements - Planned enhancements

Optional: GizmoSQL Profiling

Enable column profiling and performance testing with GizmoSQL (DuckDB over Arrow Flight SQL).

Quick Setup:

# Install GizmoSQL (macOS ARM64 example)
curl -L https://github.com/gizmodata/gizmosql/releases/download/v1.12.10/gizmosql_cli_macos_arm64.zip \
  | sudo unzip -o -d /usr/local/bin -

# Start server
gizmosql_server -U username -P password -Q \
  -I "install aws; install httpfs; install iceberg; load aws; load httpfs; load iceberg; CREATE SECRET (TYPE s3, PROVIDER credential_chain);" \
  -T ~/.certs/cert0.pem ~/.certs/cert0.key

Note: The -I initialization commands install DuckDB extensions for AWS/S3/Glue access. For alternative S3 authentication methods, see the DuckDB S3 API documentation.

See GizmoSQL Deployment Guide for complete setup and EC2 deployment.

Architecture

TableSleuth uses a layered architecture:

• CLI Layer - Click-based commands with auto-discovery; includes tablesleuth web (v0.6.0+)
• TUI Layer - Textual-based terminal interface with rich visualizations
• Web API Layer - FastAPI REST backend serving a Next.js static frontend (v0.6.0+)
• Service Layer - Business logic for file inspection, profiling, and discovery
• Integration Layer - PyArrow for Parquet, PyIceberg for tables, GizmoSQL for profiling

See Architecture Guide for detailed technical documentation.

Development

# Install with dev dependencies
uv sync --all-extras

# Run tests
pytest

# Run quality checks
uv run pre-commit run --all-files

# Type checking
mypy src/

# Web UI development (two terminals)
make dev-api        # FastAPI at localhost:8000
make dev-web        # Next.js dev server at localhost:3000

See Development Setup for complete development environment setup.

Documentation

Getting Started

• Quick Start - Examples and common workflows
• Setup Guide - Installation and configuration
• User Guide - Complete feature documentation

AWS Deployment

• CDK Deployment - Production-ready AWS infrastructure
• CDK Quick Start - Deploy in 10 minutes

Advanced Topics

• Performance Profiling - Query performance analysis
• GizmoSQL Deployment - Profiling backend setup
• Web UI Development - Building and running the browser interface

Development

• Development Setup - Dev environment and workflows
• Architecture - System design and technical details
• Developer Guide - API reference and contributing

What's New

v0.6.0 (Latest)

• 🌐 Browser-Based Web UI - New tablesleuth web command launches a FastAPI + Next.js interface
  • Full Parquet, Iceberg, Delta Lake, and GizmoSQL analysis in the browser
  • Optional install: pip install tablesleuth[web]
  • Hot-reload development mode (make dev-api / make dev-web)
  • Pre-built static export bundled in the wheel (no Node.js needed for end users)
• 📊 GizmoSQL Snapshot Comparison API - /gizmosql/compare endpoint for head-to-head snapshot analysis
  • MOR breakdown: per-type file counts, row counts, and bytes (data vs. delete files)
  • Metadata-based scan stats sourced directly from Iceberg snapshot summary fields
  • rows_scanned definition: total-records + position-deletes + equality-deletes (physical reads)
• 🔧 Iceberg Metadata Patching - New patched_iceberg_metadata() context manager
  • Fixes DuckDB current-snapshot-id delete-file bleed when querying older snapshots
  • Fixes DuckDB rejection of uppercase PARQUET format strings in delete manifests
• 📦 Dependency Upgrades - All core libraries updated to latest versions
  • pyiceberg 0.11.0+, deltalake 1.4.2+, textual 0.86.2+, pyarrow 23.0.0+

v0.5.3

• 🚀 AWS CDK Infrastructure - Production-ready CDK implementation for EC2 deployment
  • Replaces legacy boto3 scripts with infrastructure-as-code approach
  • Follows AWS CDK best practices (least-privilege IAM, EBS encryption, VPC Flow Logs)
  • Multi-environment support (dev, staging, prod) with context-based configuration
  • Type-safe configuration using dataclasses and environment variables
  • Automated GizmoSQL service setup with systemd
  • Complete PyIceberg Glue integration out-of-the-box
  • See resources/aws-cdk/README.md for details
• 🔍 Enhanced Iceberg Performance Analysis - Better multi-factor performance comparison
  • Order-agnostic analysis (works regardless of snapshot chronology)
  • Multi-factor attribution: data volume, file counts, MOR overhead, delete ratios, scan efficiency
  • Accurate MOR overhead detection (only when delete files actually exist)
  • Read amplification metrics and compaction recommendations
  • Detailed contributing factors with specific metrics and percentages
• 🔒 Enhanced Security - Improved IAM permissions and encryption
• 📚 Consolidated Documentation - Streamlined deployment guides and removed legacy content

v0.5.1

• 🚀 AWS CDK Infrastructure - Production-ready CDK implementation for EC2 deployment
  • Replaces legacy boto3 scripts with infrastructure-as-code approach
  • Follows AWS CDK best practices (least-privilege IAM, EBS encryption, VPC Flow Logs)
  • Multi-environment support (dev, staging, prod) with context-based configuration
  • Type-safe configuration using dataclasses and environment variables
  • Automated GizmoSQL service setup with systemd
  • Complete PyIceberg Glue integration out-of-the-box
  • See resources/aws-cdk/README.md for details
• 🔍 Enhanced Iceberg Performance Analysis - Better multi-factor performance comparison
  • Order-agnostic analysis (works regardless of snapshot chronology)
  • Multi-factor attribution: data volume, file counts, MOR overhead, delete ratios, scan efficiency
  • Accurate MOR overhead detection (only when delete files actually exist)
  • Read amplification metrics and compaction recommendations
  • Detailed contributing factors with specific metrics and percentages
• 🔒 Enhanced Security - Improved IAM permissions and encryption
• 📚 Consolidated Documentation - Streamlined deployment guides and removed legacy content

v0.5.0

• 🎉 Delta Lake Support - Full Delta table inspection and forensics
  • Version history navigation and time travel
  • File size analysis and small file detection
  • Storage waste tracking (tombstoned files)
  • DML forensics (MERGE, UPDATE, DELETE operations)
  • Z-Order effectiveness monitoring
  • Checkpoint health assessment
  • Optimization recommendations

v0.4.2

• 🎉 Available on PyPI! Install with pip install tablesleuth
• 🔄 Package renamed to tablesleuth for consistency
• 🤖 Automated CI/CD with GitHub Actions
• 📦 Enhanced PyPI metadata and publishing workflow
• 🐛 Bug fixes and stability improvements

v0.4.0

• 🎉 PyPI release
• 🔄 Package renamed to tablesleuth
• 🤖 Automated CI/CD with GitHub Actions
• 📦 Enhanced PyPI metadata and publishing workflow

v0.3.0

• ✅ Parquet file inspection (local and S3)
• ✅ Iceberg snapshot navigation and analysis
• ✅ Delete file inspection and MOR forensics
• ✅ Snapshot comparison and performance testing
• ✅ Column profiling with GizmoSQL
• ✅ AWS Glue and S3 Tables catalog support
• ✅ Interactive TUI with rich visualizations
• ✅ Delta Lake version history and forensics
• ✅ Storage waste analysis and optimization recommendations
• ✅ DML operation forensics and rewrite amplification tracking

Roadmap

• Apache Hudi support
• Schema evolution visualization
• Export capabilities (JSON, CSV reports)
• REST catalog support
• Advanced partition analysis

Contributing

Contributions welcome! See Developer Guide and Development Setup.

License

Apache 2.0 License - See LICENSE for details.

Support

• Issues & Features: GitHub Issues
• Documentation: See docs/ directory
• Changelog: CHANGELOG.md
