TenTags 🏷️

TenTags is a standalone, zero-dependency Advanced Table Markdown library for Python. It turns compact, expressive string formulas into pixel-perfect HTML and native Excel (.xlsx) spreadsheets using 10 core structural and styling tags.

💡 Why TenTags? (Advanced Markdown for Tables)

Standard Markdown (| A | B |) is notoriously rigid when it comes to tables: it cannot merge complex cell grids across rows (rowspan) or columns (colspan), it lacks background fills and typography controls, and it cannot compile directly to native Excel spreadsheets.

TenTags bridges this gap. Think of it as next-generation Table Markdown that gives you:

• 🔀 Advanced Grid Merges: Effortlessly merge cells rightward across columns (<cm>) and downward across rows (<rm>).
• 🎨 Rich Typography & Styling: Inline control over font size (<fs>), bold (<b>), italic (<i>), horizontal alignment (<left>, <center>, <right>), text color (<color=>), and cell fills (<bg=>).
• 📊 Native Excel Export: Directly compiles your markup into styled, production-ready .xlsx files with exact openpyxl grid merges (ws.merge_cells), font weights, text alignments, and pattern fills.
• ⚡ Zero Core Dependencies: Pure Python runtime (xml.etree.ElementTree) that tokenizes and parses at lightning speed.

---

📦 Installation

Install from PyPI via pip:

pip install tentags

If you plan to export to Excel (.xlsx), install the optional excel dependency:

pip install tentags[excel]
# or directly: pip install openpyxl

---

🚀 Quickstart

import tentags

# Define a table expression with custom border color, background fill, and tags
formula = '2,2,1,"#0f172a","solid",0,40, data(Header 1, <b>Header 2</b>; <color=red><i>Red Italic</i></color>, <bg=#e2e8f0>Gray Cell</bg>)'

# 1. Direct rendering to HTML string
html = tentags.render(formula)
print(html)

# 2. Parsing to intermediate TableModel
model = tentags.parse(formula)
print(f"Rows: {model.rows}, Cols: {model.cols}, Border: {model.border_color}")

# 3. Render TableModel to Excel (.xlsx) file
tentags.render_xlsx(model, "styled_report.xlsx")

---

🎨 Advanced Example: Beautiful Styled Table & Merges

Here is how a single, clean TenTags expression generates an enterprise-grade financial dashboard table featuring merged headers (<cm>), custom font sizing (<fs>), cell background colors (<bg=>), text alignment (<left>, <right>), and custom typography (<b>, <i>, <color=>) across both HTML and Excel (.xlsx):

import tentags

# Define an advanced 4x4 styled financial performance grid
formula = '''4,4,1,"#cbd5e1","solid",0,45, data(
    <fs=18><bg=#1e293b><color=white><b><cm>Q3 Financial Performance Dashboard</cm></b></color></bg></fs>, None, None, None;
    <bg=#f1f5f9><b><left>Department</left></b></bg>, <bg=#f1f5f9><b><center>Revenue</center></b></bg>, <bg=#f1f5f9><b><center>Expenses</center></b></bg>, <bg=#f1f5f9><b><center>Net Profit</center></b></bg>;
    <left>Engineering</left>, <right>"$240,000"</right>, <right>"$180,000"</right>, <bg=#dcfce7><color=#166534><b><right>"+$60,000"</right></b></color></bg>;
    <left>Sales & Marketing</left>, <right>"$310,000"</right>, <right>"$210,000"</right>, <bg=#dcfce7><color=#166534><b><right>"+$100,000"</right></b></color></bg>
)'''

# 1. Export directly to native Excel spreadsheet with exact fonts, fills, & merge_cells
model = tentags.parse(formula)
tentags.render_xlsx(model, "Q3_Financial_Dashboard.xlsx")

# 2. Render to responsive HTML string with inline CSS
html_table = tentags.render_html(model)
print(html_table)

📋 Visual Structure & Styling Result:

Department / Header	Revenue	Expenses	Net Profit
Q3 Financial Performance Dashboard (Merged across 4 columns (colspan=4), 18px Bold, White text, Dark Slate #1e293b background)	—	—	—
Department (Left aligned, Light Gray #f1f5f9 BG)	Revenue (Centered, Bold)	Expenses (Centered, Bold)	Net Profit (Centered, Bold)
Engineering (Left aligned)	$240,000 (Right aligned)	$180,000 (Right aligned)	+$60,000 (Right aligned, Bold, Green #dcfce7 BG, Dark Green text)
Sales & Marketing (Left aligned)	$310,000 (Right aligned)	$210,000 (Right aligned)	+$100,000 (Right aligned, Bold, Green #dcfce7 BG, Dark Green text)

---

📊 Excel Matrix Example: Row Merges (<rm>), Column Merges (<cm>) & Colors

To see how TenTags shines as a native Excel spreadsheet generator, here is a 5x5 Enterprise Allocation Matrix utilizing combined row merges (<rm>), multi-column merges (<cm>), and classic Microsoft Excel color palettes (#1F4E78, #DDEBF7, #E2EFDA, #FFF2CC):

import tentags

# Define an Excel matrix with vertical row merges (<rm>) and horizontal column merges (<cm>)
excel_formula = '''5,5,1,"#B0C4DE","solid",0,35, data(
    <fs=16><bg=#1F4E78><color=white><b><cm>2026 Enterprise Budget & Allocation Matrix, None, None, None, None</cm></b></color></bg></fs>;
    <bg=#DDEBF7><b><rm><center>Category</center></rm></b></bg>, <bg=#DDEBF7><b><cm><center>Q1 & Q2 Allocation</center>, None</cm></b></bg>, <bg=#DDEBF7><b><cm><center>Q3 & Q4 Allocation</center>, None</cm></b></bg>;
    <bg=#DDEBF7><b><rm>None</rm></b></bg>, <bg=#F2F2F2><b><center>Hardware</center></b></bg>, <bg=#F2F2F2><b><center>Software</center></b></bg>, <bg=#F2F2F2><b><center>Hardware</center></b></bg>, <bg=#F2F2F2><b><center>Software</center></b></bg>;
    <bg=#FFF2CC><b><left>R&D Division</left></b></bg>, <right>"$150,000"</right>, <right>"$85,000"</right>, <right>"$120,000"</right>, <right>"$95,000"</right>;
    <bg=#E2EFDA><color=#375623><b><left>Total Budget</left></b></color></bg>, <bg=#E2EFDA><color=#375623><b><cm><right>"$235,000"</right>, None</cm></b></color></bg>, <bg=#E2EFDA><color=#375623><b><cm><right>"+$215,000"</right>, None</cm></b></color></bg>
)'''

# Export to a native Excel spreadsheet (.xlsx) with true merged regions & fills
model = tentags.parse(excel_formula)
tentags.render_xlsx(model, "Enterprise_Budget_Matrix.xlsx")

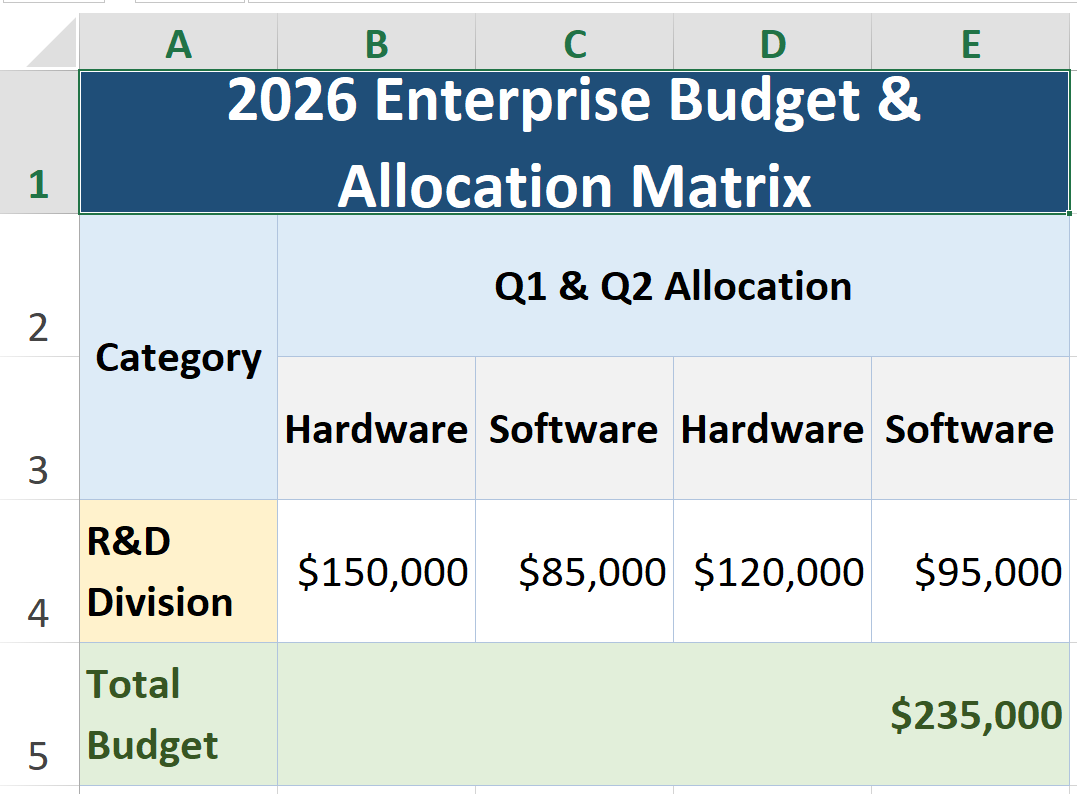

🗓️ Visual Spreadsheet Grid Structure (A1:E5):

Notice how None is passed in slots that get swallowed by an adjacent cell's <cm> horizontal merge or <rm> vertical merge. When opened in Microsoft Excel or rendered in HTML, the boundaries cleanly dissolve into unified multi-cell headers and summary blocks!

---

🏷️ The 10 Tags in data(...)

TenTags derives its name from the 10 core structural and styling tags supported inside the data(...) argument block:

#	Tag / Syntax	Type	Description	Example
1	<fs=...>	Typography	Sets custom font size (font-size in HTML, size in Excel openpyxl).	data(<fs=16>Heading</fs>, Text)
2	<b>...</b>	Typography	Renders cell text in Bold font weight (font-weight: bold).	data(<b>Total</b>, 100)
3	<i>...</i>	Typography	Renders cell text in Italic font style (font-style: italic).	data(<i>Pending</i>, Done)
4	<left>	Alignment	Aligns cell content to the left (text-align: left).	data(<left>Left aligned text)
5	<center>	Alignment	Aligns cell content to the center (text-align: center).	data(<center>Centered text)
6	<right>	Alignment	Aligns cell content to the right (text-align: right).	data(<right>Right aligned $5,000)
7	<color=...>	Text Color	Sets custom HEX or CSS text color (color: ... / font color).	data(<color=#ef4444>Error</color>, OK)
8	<bg=...>	Background Fill	Sets cell background fill color (background-color: ... / PatternFill).	data(<bg=#f8fafc>Summary</bg>, $500)
9	<cm>...</cm>	Column Merge	Merges the cell rightward with adjacent columns (colspan).	data(<cm>Merged Title</cm>, None; A, B)
10	<rm>...</rm>	Row Merge	Merges the cell downward with rows below it (rowspan).	data(<rm>Date</rm>, Job; <cm>, Engineer)

Note on Tag Transfer: When merging (<cm>, <rm>) or expanding ranges across styled cells (<fs>, <b>, <i>, <color>, <bg>, <left>, <center>, <right>), TenTags automatically transfers and preserves all formatting across cell boundaries in both HTML and Excel outputs.

Dynamic Data Expressions: In addition to the 10 markup tags above, TenTags data(...) supports dynamic line numbering (#), variable context substitution (VarName), CSV URL/file import (csv(...)), and cell range expansion (A1:B3).

---

🛠️ API Reference

tentags.render(formula: str, context: dict = None) -> str

Parses the input DSL formula string and returns a complete <table>...</table> HTML string.

• formula: String in format 'rows, cols, border_width, "border_color", "border_style", margin, row_height, data(...)'.
• context: Optional dictionary of variable names and their replacement values ({'VarName': 'Value'}).

tentags.parse(formula: str, context: dict = None) -> TableModel

Parses the formula into a structured TableModel instance containing 2D cell grids (CellDesc), BorderFlags, and styles without generating HTML.

tentags.render_html(model: TableModel) -> str

Renders a previously parsed TableModel instance into an HTML string.

tentags.render_xlsx(model: TableModel, output_filename: str) -> None

Exports a TableModel directly to an Excel .xlsx file using openpyxl. Applies openpyxl.styles.Font (bold, italic, color), openpyxl.styles.PatternFill (background color), and openpyxl.styles.Border according to the table formula.

---

🧪 Running Tests

To run the standalone test suite and generate sample visual outputs (test_output.html, test_output.xlsx, test_style_output.xlsx):

python test_library.py

---

📄 License

Licensed under the MIT License. Copyright (c) 2026 Zhandos Mambetali.
