threefive 3.0.75

threefive is The #1 SCTE-35 Decoder and Encoder on the Planet

Need to inject SCTE-35 into HLS? X9k3.

[ threefive ]

https://github.com/superkabuki/threefive

threefive is the industry leading SCTE-35 tool.

• Decodes SCTE-35 from MPEGTS✔ Base64✔ Bytes✔ DASH✔ Hex ✔ HLS✔ Integers✔ JSON✔ XML✔ XML+Binary✔

• Encodes SCTE-35 to MPEGTS✔ Base64✔ Bytes✔ Hex✔ Integers✔ JSON✔ XML✔ XML+Binary✔

• Injects SCTE-35 Packets into MPEGTS✔.

• Network support for HTTP(s)✔ Multicast✔ UDP✔ SRT✔

• Built-in Multicast Server✔

• Automatic AES decryption✔

---

[ News ]

• Python3 vs. Pypy3 parsing SCTE35 with threefive (watch the cool video)

• threefive now supports Secure Reliable Transport (watch the cool video)

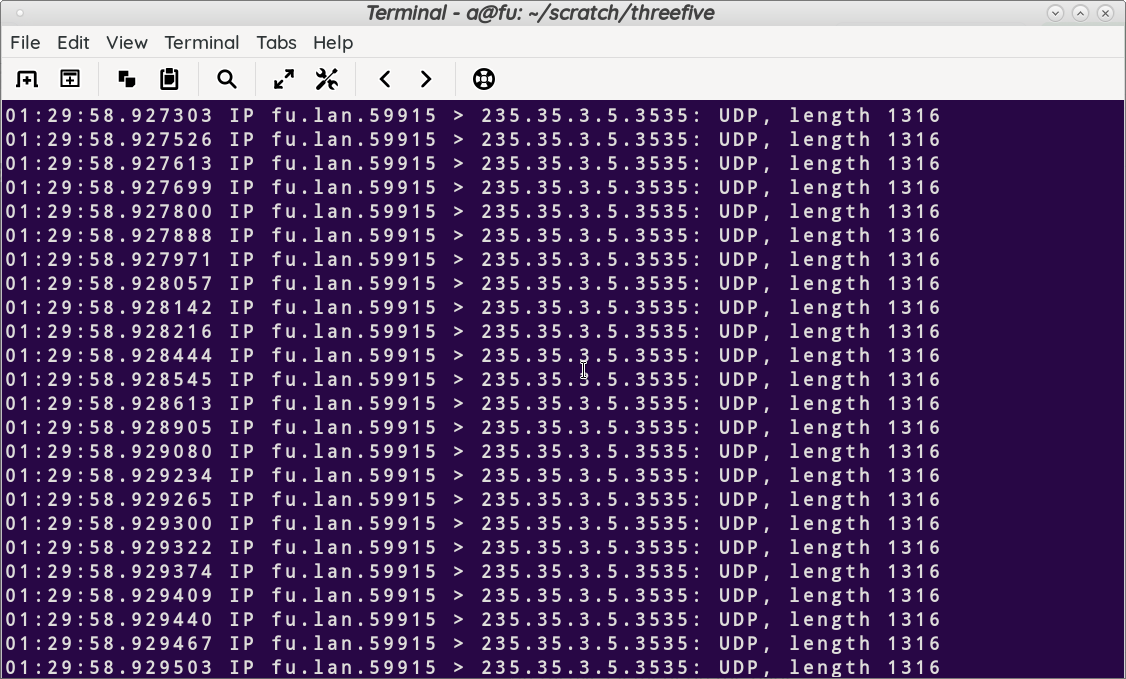

• threefive does Multicast very well, both as a sender and receiver.

---

[ Latest version is v3.0.75 ]

• Super low cyclomatic complexity score

---

[Fun Facts]

• threefive is single threaded.
• threefive has more left shifts than multiplication operations.
• threefive doesn't have a single lambda call.

---

[Examples]

These examples show how to parse SCTE-35
from various SCTE-35 data formats, with both the cli and with the library.

MPEGTS

• MPEGTS streams can be Files, Http(s), Multicast,SRT, UDP Unicast, or stdin.
• cli

threefive https://example.com/video.ts

• wildcards work too.

threefive /mpegts/*.ts

• lib

from threefive import Stream
stream = Stream('https://example.com/video.ts')
stream.decode()

Base64

• cli

threefive '/DAsAAAAAyiYAP/wCgUAAAABf1+ZmQEBABECD0NVRUkAAAAAf4ABADUAAC2XQZU='

• lib

from threefive import Cue
data = '/DAsAAAAAyiYAP/wCgUAAAABf1+ZmQEBABECD0NVRUkAAAAAf4ABADUAAC2XQZU='
cue=Cue(data)
cue.show()

Bytes

• cli

  • Bytes don't work on the cli

• lib

from threefive import Cue
data =  b'\xfc0\x16\x00\x00\x00\x00\x00\x00\x00\xff\xf0\x05\x06\xfe\x00\xc0D\xa0\x00\x00\x00\xb5k\x88'
cue=Cue(data)
cue.show()

Hex

• Can be a hex literal or hex string or bytes.

• cli

threefive  0xfc301600000000000000fff00506fed605225b0000b0b65f3b

• lib

from threefive import Cue
data =  0xfc301600000000000000fff00506fed605225b0000b0b65f3b
cue=Cue(data)
cue.show()

Int

• Can be a literal integer or string or bytes.

• cli

threefive  1583008701074197245727019716796221243043855984942057168199483

• lib

from threefive import Cue
data =  1583008701074197245727019716796221243043855984942057168199483
cue=Cue(data)
cue.show()

JSON

• cli
  • put JSON SCTE-35 in a file and redirect it into threefive
  • cat files to threefive works too.
  • echo JSON or type JSON on the command line.

threefive  < json.json

• lib

 from threefive import Cue
 data = '''{
    "info_section": {
        "table_id": "0xfc",
        "section_syntax_indicator": false,
        "private": false,
        "sap_type": "0x03",
        "sap_details": "No Sap Type",
        "section_length": 22,
        "protocol_version": 0,
        "encrypted_packet": false,
        "encryption_algorithm": 0,
        "pts_adjustment": 0.0,
        "cw_index": "0x00",
        "tier": "0x0fff",
        "splice_command_length": 5,
        "splice_command_type": 6,
        "descriptor_loop_length": 0,
        "crc": "0xb56b88"
    },
    "command": {
        "command_length": 5,
        "command_type": 6,
        "name": "Time Signal",
        "time_specified_flag": true,
        "pts_time": 140.005333
    },
    "descriptors": []
}
'''
cue=Cue(data)
cue.show()

Xml

• cli

  • put xml SCTE-35 in a file and redirect it into threefive
  • cat files to threefive works too.
  • echo xml or type xml on the command line.

   threefive < xml.xml


• lib

from threefive import Cue
data =  '''
<scte35:SpliceInfoSection xmlns:scte35="https://scte.org/schemas/35"
        ptsAdjustment="0" protocolVersion="0" sapType="3" tier="4095">
   <scte35:TimeSignal>
      <scte35:SpliceTime ptsTime="12600480"/>
   </scte35:TimeSignal>
</scte35:SpliceInfoSection>
'''
cue=Cue(data)

cue.show()

Xml+binary

• cli
  • write xml+binary to a file and redirect it to threefive
  • cat files to threefive works too.
  • echo xml+binary or type xml+binary on the command line.

threefive < xmlbin.xml

• lib

from threefive import Cue
data = '''<scte35:Signal xmlns:scte35="https://scte.org/schemas/35">
    <scte35:Binary>/DAWAAAAAAAAAP/wBQb+AMBEoAAAALVriA==</scte35:Binary>
</scte35:Signal>
'''
cue=Cue(data)
cue.show()

More Examples

[ Documentation ]

• use threefive on the web

  • threefive SCTE-35 Online Parser hosted on my server_
  • SCTE-35 Online Parser powered by threefive another online parser powered by threefive
  • SCTE-35 As a Service if you can make an http request, you can parse SCTE-35, no install needed.

• install

  • SCTE-35 Decoding Quick Start threefive makes decoding SCTE-35 fast and easy
  • SCTE-35 Examples examples of all kinds of SCTE-35 stuff

• Command line

  • SCTE-35 Cli decode SCTE-35 on the command line

• Library

  • Using the threefive.Cue class
  • Using the threefive library decode SCTE-35 with less than ten lines of code
  • • threefive Classes threefive is OO, made to subclass
      • Cue Class this class you'll use often
      • Stream Class this is the class for parsing MPEGTS

• Use threefive to stream Multicast threefive is a multicast client and server

• SCTE-35 Sidecar Files threefive supports SCTE-35 sidecar files

• SuperKabuki SCTE-35 MPEGTS Packet Injection inject SCTE-35 into MPEGTS streams

• SCTE-35 HLS parse SCTE-35 in HLS_

• SCTE-35 XML and More XML threefive can parse and encode SCTE-35 xml

• Encode SCTE-35 threefive can encode SCTE-35 in every SCTE-35 format

• Make your threefive script an executable with cython threefive is compatible with all python tools

[Install]

• python3 via pip

python3 -mpip install threefive

• pypy3

pypy3 -mpip install threefive

• from the git repo

git clone https://github.com/superkabuki/scte35.git
cd threefive
make install

---

[Quick Start]

• Most of the stuff in threefive all works the same way.

[cli tool]

• The default action is to read a input and write a SCTE-35 output.

  • Inputs: mpegts, base64, hex, json,and xml, and xmlbin.

  • Outputs: base64, bytes, hex, int, json, xml, and xmlbin.

  • Sources: SCTE35 can read from strings, files, stdin, http(s), multicast,srt and udp.

Input	Output	How to use
mpegts	base64	threefive https://example.com/video.ts base64
base64	hex	threefive '/DAWAAAAAAAAAP/wBQb+AKmKxwAACzuu2Q==' hex
xmlbin	int	threefive < xmlbin.xml int
xml	json	threefive < xml.xml
mpegts	xml+bin	threefive video.ts xmlbin
json	xml	threefive < json.json xml

• Additional functionality in the threefive cli tool.

Description	How To Use
Adjust SCTE-35 PTS values by seconds	threefive bump -i input.ts -o output.ts -b -37.45
Parse HLS for SCTE35	threefive hls https://example.com/master.m3u8
Inject SCTE35 packets	threefive inject -i in.video -s sidecar.txt -o out.ts
Show raw SCTE35 packets	threefive packets udp://@235.35.3.5:3535
Copy MPEGTS stream to stdout at realtime speed	threefive rt input.ts
Create SCTE35 sidecar file	threefive sidecar video.ts
Fix SCTE-35 data mangled by ffmpeg	threefive sixfix video.ts
Show streams in mpegts stream	threefive show https://example.com/video.ts
Show iframes in mpegts stream	threefive iframes srt://10.10.1.3:9000
Show PTS values from mpegts stream	threefive pts udp://192.168.1.10:9000
Proxy the mpegts stream to stdout	threefive proxy https://wexample.com/video.ts
Multicast anything	threefive mcast some.file

---

[XML]

• XML New! updated 05/01/2025

[Cli]

• SCTE-35 Cli Super Tool Encodes, Decodes, and Recodes. This is pretty cool, it does SCTE-35 seven different ways.
  • The cli tool comes with builtin documentation just type threefive help

[HLS]

• Advanced Parsing of SCTE-35 in HLS with threefive All HLS SCTE-35 tags, Sidecar Files, AAC ID3 Header Timestamps, SCTE-35 filters... Who loves you baby?

[MPEGTS Packet Injection]

• The SuperKabuki MPEGTS Packet Injection Engine in the Cli

[SCTE-35 As a Service]

• Decode SCTE-35 without installing anything. If you can make an https request, you can use Sassy to decode SCTE-35. .

[Classes]

• The python built in help is always the most up to date docs for the library.

a@fu:~/build7/threefive$ pypy3

>>>> from threefive import Stream
>>>> help(Stream)

• Class Structure
• Cue Class Cue is the main SCTE-35 class to use.
• Stream Class The Stream class handles MPEGTS SCTE-35 streams local, Http(s), UDP, and Multicast.

---

[threefive now supports SRT]

• ( You have to unmute the audio )

https://github.com/user-attachments/assets/a323ea90-867f-480f-a55f-e9339263e511

• more SRT and threefive info

• checkout SRTfu

---

[more]

• Online SCTE-35 Parser Supporte Base64, Bytes,Hex,Int, Json, Xml, and Xml+binary.

• Encode SCTE-35 Some encoding code examples.

---

Python3 vs Pypy3 running threefive

• ( You have to unmute the audio )

https://github.com/user-attachments/assets/9e88fb38-6ad0-487a-a801-90faba9d72c6

---

Using the library

• Let me show you how easy threefive is to use.

• reading SCTE-35 xml from a file

a@fu:~/threefive$ pypy3
Python 3.9.16 (7.3.11+dfsg-2+deb12u3, Dec 30 2024, 22:36:23)
[PyPy 7.3.11 with GCC 12.2.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>>> from threefive import reader
>>>> from threefive import Cue
>>>> data =reader('/home/a/xml.xml').read()

• load it into a threefive.Cue instance

>>>> cue = Cue(data)

• Show the data as JSON

>>>> cue.show()
{
    "info_section": {
        "table_id": "0xfc",
        "section_syntax_indicator": false,
        "private": false,
        "sap_type": "0x03",
        "sap_details": "No Sap Type",
        "section_length": 92,
        "protocol_version": 0,
        "encrypted_packet": false,
        "encryption_algorithm": 0,
        "pts_adjustment": 0.0,
        "cw_index": "0x00",
        "tier": "0x0fff",
        "splice_command_length": 15,
        "splice_command_type": 5,
        "descriptor_loop_length": 60,
        "crc": "0x7632935"
    },
    "command": {
        "command_length": 15,
        "command_type": 5,
        "name": "Splice Insert",
        "break_auto_return": false,
        "break_duration": 180.0,
        "splice_event_id": 1073743095,
        "splice_event_cancel_indicator": false,
        "out_of_network_indicator": true,
        "program_splice_flag": false,
        "duration_flag": true,
        "splice_immediate_flag": false,
        "event_id_compliance_flag": true,
        "unique_program_id": 1,
        "avail_num": 12,
        "avails_expected": 5
    },
    "descriptors": [
        {
            "tag": 0,
            "identifier": "CUEI",
            "name": "Avail Descriptor",
            "provider_avail_id": 12,
            "descriptor_length": 8
        },
        {
            "tag": 0,
            "identifier": "CUEI",
            "name": "Avail Descriptor",
            "provider_avail_id": 13,
            "descriptor_length": 8
        },


    ]
}

• convert the data back to xml

>>>> print(cue.xml())
<scte35:SpliceInfoSection xmlns:scte35="https://scte.org/schemas/35"  ptsAdjustment="0" protocolVersion="0" sapType="3" tier="4095">
   <scte35:SpliceInsert spliceEventId="1073743095" spliceEventCancelIndicator="false" spliceImmediateFlag="false" eventIdComplianceFlag="true" availNum="12" availsExpected="5" outOfNetworkIndicator="true" uniqueProgramId="1">
      <scte35:BreakDuration autoReturn="false" duration="16200000"/>
   </scte35:SpliceInsert>
   <scte35:AvailDescriptor providerAvailId="12"/>
   <scte35:AvailDescriptor providerAvailId="13"/>
   <scte35:AvailDescriptor providerAvailId="14"/>
   <scte35:AvailDescriptor providerAvailId="15"/>
   <scte35:AvailDescriptor providerAvailId="16"/>
   <scte35:AvailDescriptor providerAvailId="17"/>
</scte35:SpliceInfoSection>

• convert to xml+binary

>>>> print(cue.xmlbin())
<scte35:Signal xmlns:scte35="https://scte.org/schemas/35">
    <scte35:Binary>/DBcAAAAAAAAAP/wDwVAAAT3f69+APcxQAABDAUAPAAIQ1VFSQAAAAwACENVRUkAAAANAAhDVUVJAAAADgAIQ1VFSQAAAA8ACENVRUkAAAAQAAhDVUVJAAAAEQdjKTU=</scte35:Binary>
</scte35:Signal>

• convert to base64

>>>> print(cue.base64())
/DBcAAAAAAAAAP/wDwVAAAT3f69+APcxQAABDAUAPAAIQ1VFSQAAAAwACENVRUkAAAANAAhDVUVJAAAADgAIQ1VFSQAAAA8ACENVRUkAAAAQAAhDVUVJAAAAEQdjKTU=

• convert to hex

>>>> print(cue.hex())
0xfc305c00000000000000fff00f05400004f77faf7e00f7314000010c05003c0008435545490000000c0008435545490000000d0008435545490000000e0008435545490000000f000843554549000000100008435545490000001107632935

• show just the splice command

>>>> cue.command.show()
{
    "command_length": 15,
    "command_type": 5,
    "name": "Splice Insert",
    "break_auto_return": false,
    "break_duration": 180.0,
    "splice_event_id": 1073743095,
    "splice_event_cancel_indicator": false,
    "out_of_network_indicator": true,
    "program_splice_flag": false,
    "duration_flag": true,
    "splice_immediate_flag": false,
    "event_id_compliance_flag": true,
    "unique_program_id": 1,
    "avail_num": 12,
    "avails_expected": 5
}

• edit the break duration

>>>> cue.command.break_duration=30
>>>> cue.command.show()
{
    "command_length": 15,
    "command_type": 5,
    "name": "Splice Insert",
    "break_auto_return": false,
    "break_duration": 30,
    "splice_event_id": 1073743095,
    "splice_event_cancel_indicator": false,
    "out_of_network_indicator": true,
    "program_splice_flag": false,
    "duration_flag": true,
    "splice_immediate_flag": false,
    "event_id_compliance_flag": true,
    "unique_program_id": 1,
    "avail_num": 12,
    "avails_expected": 5
}

• re-encode to base64 with the new duration

>>>> cue.base64()
'/DBcAAAAAAAAAP/wDwVAAAT3f69+ACky4AABDAUAPAAIQ1VFSQAAAAwACENVRUkAAAANAAhDVUVJAAAADgAIQ1VFSQAAAA8ACENVRUkAAAAQAAhDVUVJAAAAEe1FB6g='

• re-encode to xml with the new duration

>>>> print(cue.xml())
<scte35:SpliceInfoSection xmlns:scte35="https://scte.org/schemas/35"  ptsAdjustment="0" protocolVersion="0" sapType="3" tier="4095">
   <scte35:SpliceInsert spliceEventId="1073743095" spliceEventCancelIndicator="false" spliceImmediateFlag="false" eventIdComplianceFlag="true" availNum="12" availsExpected="5" outOfNetworkIndicator="true" uniqueProgramId="1">
      <scte35:BreakDuration autoReturn="false" duration="2700000"/>
   </scte35:SpliceInsert>
   <scte35:AvailDescriptor providerAvailId="12"/>
   <scte35:AvailDescriptor providerAvailId="13"/>
   <scte35:AvailDescriptor providerAvailId="14"/>
   <scte35:AvailDescriptor providerAvailId="15"/>
   <scte35:AvailDescriptor providerAvailId="16"/>
   <scte35:AvailDescriptor providerAvailId="17"/>
</scte35:SpliceInfoSection>

• show just the descriptors

>>>> _ = [d.show() for d in cue.descriptors]
{
    "tag": 0,
    "identifier": "CUEI",
    "name": "Avail Descriptor",
    "provider_avail_id": 12,
    "descriptor_length": 8
}
{
    "tag": 0,
    "identifier": "CUEI",
    "name": "Avail Descriptor",
    "provider_avail_id": 13,
    "descriptor_length": 8
}
{
    "tag": 0,
    "identifier": "CUEI",
    "name": "Avail Descriptor",
    "provider_avail_id": 14,
    "descriptor_length": 8
}
{
    "tag": 0,
    "identifier": "CUEI",
    "name": "Avail Descriptor",
    "provider_avail_id": 15,
    "descriptor_length": 8
}
{
    "tag": 0,
    "identifier": "CUEI",
    "name": "Avail Descriptor",
    "provider_avail_id": 16,
    "descriptor_length": 8
}
{
    "tag": 0,
    "identifier": "CUEI",
    "name": "Avail Descriptor",
    "provider_avail_id": 17,
    "descriptor_length": 8
}

• pop off the last descriptor and re-encode to xml

>>>> cue.descriptors.pop()
{'tag': 0, 'identifier': 'CUEI', 'name': 'Avail Descriptor', 'private_data': None, 'provider_avail_id': 17, 'descriptor_length': 8}
>>>> print(cue.xml())
<scte35:SpliceInfoSection xmlns:scte35="https://scte.org/schemas/35"  ptsAdjustment="0" protocolVersion="0" sapType="3" tier="4095">
   <scte35:SpliceInsert spliceEventId="1073743095" spliceEventCancelIndicator="false" spliceImmediateFlag="false" eventIdComplianceFlag="true" availNum="12" availsExpected="5" outOfNetworkIndicator="true" uniqueProgramId="1">
      <scte35:BreakDuration autoReturn="false" duration="2700000"/>
   </scte35:SpliceInsert>
   <scte35:AvailDescriptor providerAvailId="12"/>
   <scte35:AvailDescriptor providerAvailId="13"/>
   <scte35:AvailDescriptor providerAvailId="14"/>
   <scte35:AvailDescriptor providerAvailId="15"/>
   <scte35:AvailDescriptor providerAvailId="16"/>
</scte35:SpliceInfoSection>

[ The Cli tool ]

The cli tool installs automatically with pip or the Makefile.

• SCTE-35 Inputs
• SCTE-35 Outputs
• Parse MPEGTS streams for SCTE-35
• Parse SCTE-35 in hls
• Display MPEGTS iframes
• Display raw SCTE-35 packets from video streams
• Repair SCTE-35 streams changed to bin data by ffmpeg

Inputs

• Most inputs are auto-detected.
• stdin is auto selected and auto detected.
• SCTE-35 data is printed to stderr
• stdout is used when piping video
• mpegts can be specified by file name or URI.

threefive udp://@235.2.5.35:3535

• If a file comtains a SCTE-35 cue as a string( base64,hex,int,json,or xml+bin), redirect the file contents.

  threefive < json.json

• quoted strings(( base64,hex,int,json or xml+bin), can be passed directly on the command line as well.

threefive '/DAWAAAAAAAAAP/wBQb+ztd7owAAdIbbmw=='

Input Type	Cli Example
Base64	threefive '/DAsAAAAAyiYAP/wCgUAAAABf1+ZmQEBABECD0NVRUkAAAAAf4ABADUAAC2XQZU='
Hex	threefive 0xfc301600000000000000fff00506fed605225b0000b0b65f3b
HLS	threefive hls https://example.com/master.m3u8
JSON	threefive < json.json
Xmlbin	js threefive < xmlbin.xml

Streams

Protocol	Cli Example
File	threefive video.ts
Http(s)	threefive https://example.com/video.ts
Stdin	threefive < video.ts
UDP Multicast	threefive udp://@235.35.3.5:9999
UDP Unicast	threefive udp://10.0.0.7:5555
HLS	threefive hls https://example.com/master.m3u8

Outputs

• output type is determined by the key words base64, bytes, hex, int, json, and xmlbin.
• json is the default.
• Any input (except HLS,) can be returned as any output
  • examples Base64 to Hex etc...)

Output Type	Cli Example
Base 64	threefive 0xfc301600000000000000fff00506fed605225b0000b0b65f3b base64
Bytes	threefive 0xfc301600000000000000fff00506fed605225b0000b0b65f3b bytes
Hex	threefive '/DAsAAAAAyiYAP/wCgUAAAABf1+ZmQEBABECD0NVRUkAAAAAf4ABADUAAC2XQZU=' hex
Integer	threefive '/DAsAAAAAyiYAP/wCgUAAAABf1+ZmQEBABECD0NVRUkAAAAAf4ABADUAAC2XQZU=' int
JSON	threefive 0xfc301600000000000000fff00506fed605225b0000b0b65f3b json
Xml+bin	threefive 0xfc301600000000000000fff00506fed605225b0000b0b65f3b xmlbin

hls

• parse hls manifests and segments for SCTE-35

threefive hls https://example.com/master.m3u8

---

Iframes

• Show iframes PTS in an MPEGTS video

threefive iframes https://example.com/video.ts

---

packets

• Print raw SCTE-35 packets from multicast mpegts video

threefive packets udp://@235.35.3.5:3535

---

proxy

• Parse a https stream and write raw video to stdout

threefive proxy video.ts

---

pts

• Print PTS from mpegts video

threefive pts video.ts

---

sidecar

• Parse a stream, write pts,write SCTE-35 Cues to sidecar.txt

threefive sidecar video.ts

---

sixfix

• Fix SCTE-35 data mangled by ffmpeg

threefive sixfix video.ts

---

show

• Probe mpegts video ( kind of like ffprobe )

 threefive show video.ts

---

version

• Show version

 threefive version

---

help

• Help

 threefive help

---

[ threefive Streams Multicast, it's easy. ]

• The threefive cli has long been a Multicast Receiver( client )
• The cli now comes with a builtin Multicast Sender( server).
• It's optimized for MPEGTS (1316 byte Datagrams) but you can send any video or file.
• The defaults will work in most situations, you don't even have to set the address.
• threefive cli also supports UDP Unicast Streaming.

If you're tired of configuring strange kernel settings with sysctl trying to get multicast to work,
threefive multicast is written from scratch in raw sockets and autoconfigures most settings,
threefive adjusts the SO_RCVBUF, SO_SNDBUF, SO_REUSEADDR,SO_REUSEPORT,IP_MULTICAST_TTL and IP_MULTICAST_LOOP for you.
all you really need to do is make sure multicast is enabled on the network device, threefive can handle the rest.

ip link set wlp2s0  multicast on

a@fu:~$ threefive mcast help
usage: threefive mcast [-h] [-i INPUT] [-a ADDR] [-b BIND_ADDR] [-t TTL]

optional arguments:
  -h, --help            show this help message and exit
  -i INPUT, --input INPUT
                        like "/home/a/vid.ts" or "udp://@235.35.3.5:3535" or
                        "https://futzu.com/xaa.ts"
                        [default:sys.stdin.buffer]
  -a ADDR, --addr ADDR  Destination IP:Port [default:235.35.3.5:3535]
  -b BIND_ADDR, --bind_addr BIND_ADDR
                        Local IP to bind [default:0.0.0.0]
  -t TTL, --ttl TTL     Multicast TTL (1 - 255) [default:32]
a@fu:~$

• the video shows three streams being read and played from threefive's multicast, one stream is being converted to srt.
• the command

a@fu:~/scratch/threefive$ threefive mcast -i ~/mpegts/ms.ts

https://github.com/user-attachments/assets/df95b8da-5ca6-4bf3-b029-c95204841e43

• threefive mcast sends 1316 byte datagrams. Here's tcpdump multicastoutput.

---

iodisco.com/scte35

---

Install |SCTE-35 Cli | SCTE-35 HLS | Cue Class | Stream Class | Online SCTE-35 Parser | Encode SCTE-35 | SCTE-35 Examples | SCTE-35 XML and More XML | threefive runs Four Times Faster on pypy3 | SuperKabuki SCTE-35 MPEGTS Packet Injection
