tqdb 0.4.0

Embedded vector database using the TurboQuant algorithm (arXiv:2504.19874) — zero training, 2-4 bit compression, fast inner-product search

TurboQuantDB

An embedded vector database written in Rust with Python bindings, implementing the TurboQuant algorithm (arXiv:2504.19874) — zero training time, 2–4 bit compression, and provably unbiased inner product estimation.

Goal: make massive embedding datasets practical on lightweight hardware. A 100k-vector, 1536-dim collection that would occupy 586 MB as raw float32 fits in 108 MB on disk with TQDB b=4, or just 59 MB with b=2 — enabling laptop-scale RAG over millions of documents without a dedicated server.

Two deployment modes:

• Embedded — tqdb Python package (pip install tqdb), runs in-process (no daemon)
• Server — Axum HTTP service in server/, with multi-tenancy, RBAC, quotas, and async jobs

---

Key Properties

• Zero training — No train() step. Vectors are quantized and stored immediately on insert.
• 5–10× compression — b=4 reduces 1536-dim float32 embeddings from 586 MB to 108 MB (5.4×); b=2 reaches 59 MB (9.9×) at 100k vectors.
• Unbiased scoring — QJL transform guarantees unbiased inner product estimation.
• Optional ANN index — Build an HNSW graph after loading data for fast approximate search.
• Metadata filtering — MongoDB-style filter operators on any metadata field.
• Crash recovery — Write-ahead log (WAL) ensures durability without explicit flushing.
• Python native — Built with PyO3 and Maturin; no server or sidecar required.

---

Installation

Prerequisites

• Rust stable toolchain
• Python 3.10+
• C++ compiler: Visual Studio Build Tools (Windows) · xcode-select --install (macOS) · build-essential (Linux)

Build from source

python -m venv venv
source venv/bin/activate        # Windows: .\venv\Scripts\activate
pip install maturin
maturin develop --release

Install pre-built wheel

pip install tqdb

---

Recommended Setup

Two presets cover most use cases — no indexing required to get started:

from tqdb import Database

# Recommended — brute-force with dequantization reranking
db = Database.open(path, dimension=DIM, bits=4, rerank=True)
results = db.search(query, top_k=10)
# 95.5% Recall@1, 100% Recall@4 at 100k×1536  |  108 MB disk  |  ~50ms p50

# Minimum disk — 9.9× compression, still excellent recall
db = Database.open(path, dimension=DIM, bits=2, rerank=True)
results = db.search(query, top_k=10)
# 86.8% Recall@1, 99.3% Recall@4 at 100k×1536  |  60 MB disk  |  ~43ms p50

# Optional: build an HNSW index after bulk load for sub-10ms queries
db.create_index()
results = db.search(query, top_k=10, _use_ann=True)

Full parameter reference: docs/PYTHON_API.md

---

Quick Start

import numpy as np
from tqdb import Database

db = Database.open("./my_db", dimension=1536, bits=4, metric="ip", rerank=True)

db.insert("doc-1", np.random.randn(1536).astype("f4"), metadata={"topic": "ml"}, document="Machine learning intro")
db.insert("doc-2", np.random.randn(1536).astype("f4"), metadata={"topic": "systems"}, document="Rust memory model")

results = db.search(np.random.randn(1536).astype("f4"), top_k=5)
for r in results:
    print(r["id"], r["score"], r["document"])

---

Python API

Full reference: docs/PYTHON_API.md

# Open / create
db = Database.open(path, dimension, bits=4, seed=42, metric="ip",
                   rerank=True, fast_mode=False, rerank_precision=None,
                   collection=None, wal_flush_threshold=None)  # wal_flush_threshold default=5000; set higher for bulk loads

# Write
db.insert(id, vector, metadata=None, document=None)
db.insert_batch(ids, vectors, metadatas=None, documents=None, mode="insert")  # "insert"|"upsert"|"update"
db.upsert(id, vector, metadata=None, document=None)
db.update(id, vector, metadata=None, document=None)        # RuntimeError if not found
db.update_metadata(id, metadata=None, document=None)       # RuntimeError if not found

# Delete & retrieve
db.delete(id)                        # → bool
db.delete_batch(ids)                 # → int (count deleted)
db.get(id)                           # → {id, metadata, document} | None
db.get_many(ids)                     # → list[dict | None]
db.list_all()                        # → list[str]
db.list_ids(where_filter=None, limit=None, offset=0)       # paginated
db.count(filter=None)                # → int
db.stats()                           # → dict
len(db) / "id" in db                 # container protocol

# Search — brute-force by default; pass _use_ann=True to use HNSW index
results = db.search(query, top_k=10, filter=None, _use_ann=False,
                    ann_search_list_size=None, include=None)
# include: list of "id"|"score"|"metadata"|"document" (default all)
# ann_search_list_size: HNSW ef_search override (only used when _use_ann=True)

all_results = db.query(query_embeddings, n_results=10, where_filter=None)
# query_embeddings: np.ndarray (N, D) — returns list[list[dict]]

# Index
db.create_index(max_degree=32, ef_construction=200, n_refinements=5,
                search_list_size=128, alpha=1.2)

# Metadata filter operators
# $eq $ne $gt $gte $lt $lte $in $nin $exists $and $or
db.search(query, top_k=5, filter={"year": {"$gte": 2023}})
db.search(query, top_k=5, filter={"$and": [{"topic": "ml"}, {"year": {"$gte": 2023}}]})

---

Recommended Presets

Recommended — brute-force + reranking

db = Database.open(path, dimension=DIM, bits=4, rerank=True)
results = db.search(query, top_k=10, _use_ann=False)
# 95.5% Recall@1, 100% Recall@4 at 100k×1536  |  108 MB disk  |  ~50ms p50 (brute-force)

Minimum Disk — compress aggressively

db = Database.open(path, dimension=DIM, bits=2, rerank=True)
results = db.search(query, top_k=10, _use_ann=False)
# 86.8% Recall@1, 99.3% Recall@4 at 100k×1536  |  60 MB disk (9.9× smaller)  |  ~43ms p50

Optional — ANN index for lower latency

# Build once after inserting data; recall scales with ann_search_list_size
db.create_index()
results = db.search(query, top_k=10, _use_ann=True, ann_search_list_size=200)

---

Benchmarks

Three datasets from arXiv:2504.19874 — n=100k vectors each. Full script: benchmarks/paper_recall_bench.py.

Algorithm Validation — Recall vs Paper

Brute-force recall across all three datasets from arXiv:2504.19874 Figure 5 — n=100k vectors, paper values read visually from plots (approximate).

GloVe-200 (d=200, 100,000 corpus, 10,000 queries)

Config	@k=1	@k=2	@k=4	@k=8	@k=16	@k=32	@k=64
TurboQuant 2-bit (paper Fig. 5a)	≈55.0%	≈70.0%	≈83.0%	≈91.0%	≈96.0%	≈99.0%	≈100.0%
TQDB b=2 rerank=F	37.1%	50.0%	62.0%	73.0%	82.0%	88.9%	93.5%
TQDB b=2 rerank=T	52.8%	68.4%	81.1%	90.3%	95.5%	98.4%	99.5%
TurboQuant 4-bit (paper Fig. 5a)	≈86.0%	≈96.0%	≈99.0%	≈100.0%	≈100.0%	≈100.0%	≈100.0%
TQDB b=4 rerank=F	73.9%	88.3%	96.4%	99.2%	99.9%	100.0%	100.0%
TQDB b=4 rerank=T	82.6%	94.2%	98.7%	99.9%	100.0%	100.0%	100.0%

DBpedia OpenAI3 d=1536 (d=1536, 100,000 corpus, 1,000 queries)

Config	@k=1	@k=2	@k=4	@k=8	@k=16	@k=32	@k=64
TurboQuant 2-bit (paper Fig. 5b)	≈89.5%	≈98.0%	≈99.5%	≈100.0%	≈100.0%	≈100.0%	≈100.0%
TQDB b=2 rerank=F	79.7%	93.3%	98.3%	99.7%	99.9%	100.0%	100.0%
TQDB b=2 rerank=T	86.8%	96.2%	99.3%	99.9%	100.0%	100.0%	100.0%
TurboQuant 4-bit (paper Fig. 5b)	≈97.0%	≈100.0%	≈100.0%	≈100.0%	≈100.0%	≈100.0%	≈100.0%
TQDB b=4 rerank=F	92.6%	99.1%	99.9%	100.0%	100.0%	100.0%	100.0%
TQDB b=4 rerank=T	95.5%	99.5%	100.0%	100.0%	100.0%	100.0%	100.0%

DBpedia OpenAI3 d=3072 (d=3072, 100,000 corpus, 1,000 queries)

Config	@k=1	@k=2	@k=4	@k=8	@k=16	@k=32	@k=64
TurboQuant 2-bit (paper Fig. 5c)	≈90.5%	≈98.5%	≈99.5%	≈100.0%	≈100.0%	≈100.0%	≈100.0%
TQDB b=2 rerank=F	84.6%	95.1%	99.0%	100.0%	100.0%	100.0%	100.0%
TQDB b=2 rerank=T	89.2%	98.6%	99.8%	100.0%	100.0%	100.0%	100.0%
TurboQuant 4-bit (paper Fig. 5c)	≈97.5%	≈100.0%	≈100.0%	≈100.0%	≈100.0%	≈100.0%	≈100.0%
TQDB b=4 rerank=F	94.8%	99.1%	100.0%	100.0%	100.0%	100.0%	100.0%
TQDB b=4 rerank=T	96.0%	99.8%	100.0%	100.0%	100.0%	100.0%	100.0%

The GloVe gap (~12–18% at k=1) is expected: d=200 is the hardest case (fewest bits per dimension), and we evaluate on the first 100k vectors from a 1.18M corpus while the paper used a random sample. From k=4 onward the gap is ≤2.6% on GloVe and ≤1% on DBpedia. For high-dimensional embeddings (d≥1536), TQDB matches the paper within ~5% at k=1 and within 1% from k=4.

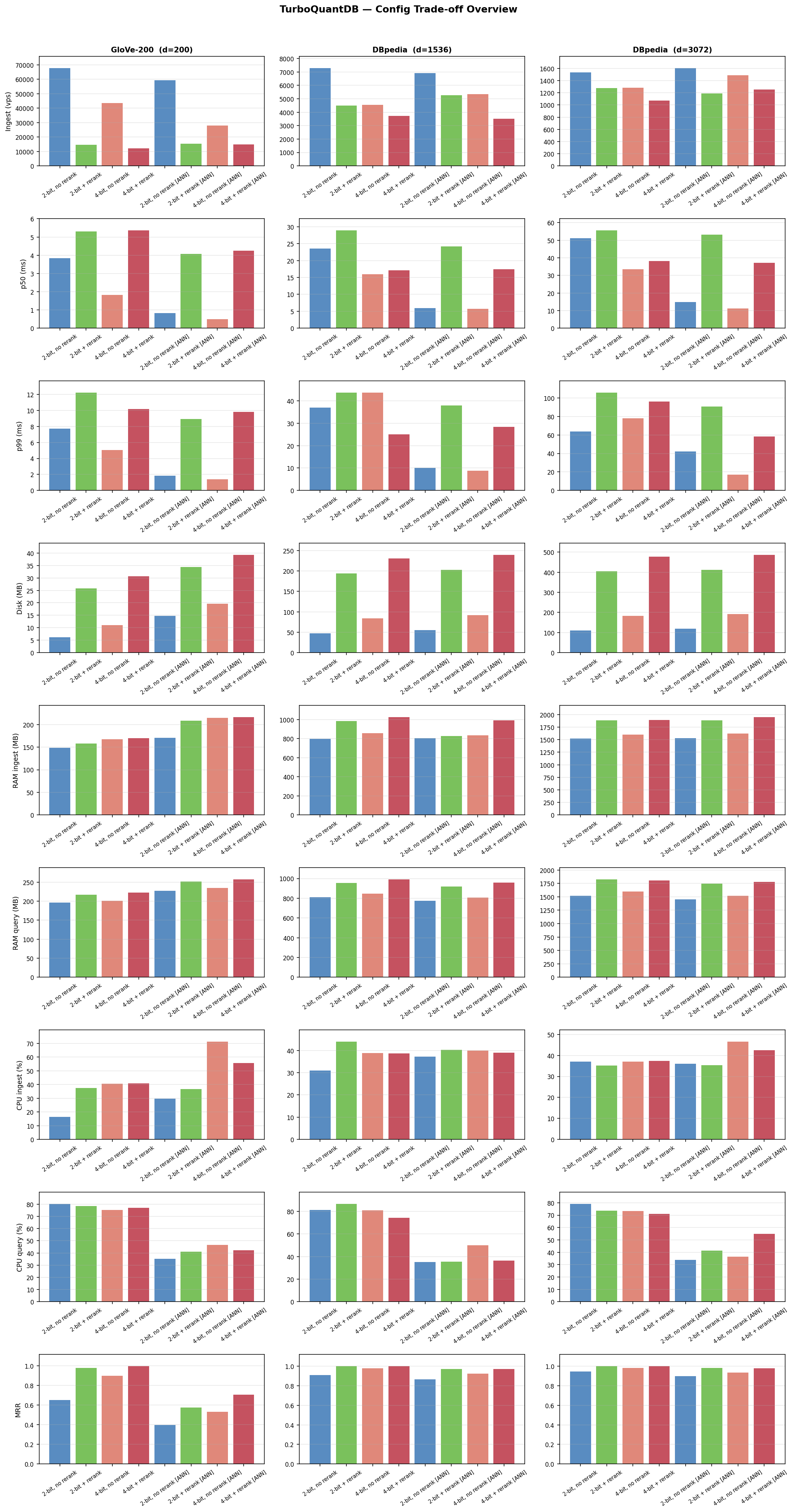

Performance & Config Trade-offs

All 8 configs — brute-force and ANN (HNSW md=32, ef=128). Disk MB for ANN includes graph.bin. RAM = peak RSS during query phase. Index = HNSW build time (ANN only).

GloVe-200 (d=200, 100,000 corpus, 10,000 queries)

Config	Mode	Ingest	Index	Disk MB	RAM MB	p50 ms	p99 ms	R@1	MRR
b=2 rerank=F	Brute	1.1s	—	16.8	206	13.97	18.73	37.1%	0.502
b=2 rerank=T	Brute	1.4s	—	16.8	209	18.89	21.49	52.8%	0.666
b=4 rerank=F	Brute	1.9s	—	22.9	214	17.60	38.56	73.9%	0.842
b=4 rerank=T	Brute	2.5s	—	22.9	216	20.72	42.72	82.6%	0.900
b=2 rerank=F	ANN	1.9s	19.3s	25.4	234	7.82	28.38	21.5%	0.282
b=2 rerank=T	ANN	1.3s	19.5s	25.4	240	11.39	32.27	37.4%	0.460
b=4 rerank=F	ANN	1.8s	18.1s	31.5	246	6.59	23.02	45.1%	0.501
b=4 rerank=T	ANN	2.3s	17.6s	31.5	245	11.54	34.35	61.2%	0.658

DBpedia OpenAI3 d=1536 (d=1536, 100,000 corpus, 1,000 queries)

Config	Mode	Ingest	Index	Disk MB	RAM MB	p50 ms	p99 ms	R@1	MRR
b=2 rerank=F	Brute	4.5s	—	59.5	759	39.98	45.60	79.7%	0.882
b=2 rerank=T	Brute	7.5s	—	59.5	812	46.81	72.57	86.8%	0.926
b=4 rerank=F	Brute	8.0s	—	108.3	811	46.15	50.99	92.6%	0.961
b=4 rerank=T	Brute	8.8s	—	108.3	861	53.25	58.44	95.5%	0.977
b=2 rerank=F	ANN	6.4s	69.1s	68.1	775	11.62	14.88	75.0%	0.827
b=2 rerank=T	ANN	6.7s	68.9s	68.1	776	35.38	50.56	83.9%	0.893
b=4 rerank=F	ANN	7.8s	69.3s	116.9	824	11.75	16.25	88.4%	0.915
b=4 rerank=T	ANN	9.1s	70.2s	116.9	824	39.84	56.82	93.7%	0.958

DBpedia OpenAI3 d=3072 (d=3072, 100,000 corpus, 1,000 queries)

Config	Mode	Ingest	Index	Disk MB	RAM MB	p50 ms	p99 ms	R@1	MRR
b=2 rerank=F	Brute	8.1s	—	108.3	1401	76.44	87.06	84.6%	0.913
b=2 rerank=T	Brute	11.4s	—	108.3	1419	86.75	99.18	89.2%	0.943
b=4 rerank=F	Brute	16.8s	—	206.0	1497	89.86	101.15	94.8%	0.972
b=4 rerank=T	Brute	17.7s	—	206.0	1518	101.23	113.31	96.0%	0.980
b=2 rerank=F	ANN	11.3s	128.0s	117.0	1416	15.94	22.14	80.7%	0.867
b=2 rerank=T	ANN	10.1s	128.4s	116.9	1418	63.59	92.24	87.2%	0.921
b=4 rerank=F	ANN	17.6s	127.5s	214.6	1514	17.60	26.17	90.3%	0.926
b=4 rerank=T	ANN	17.4s	129.3s	214.6	1516	72.50	106.91	94.8%	0.967

Reproduction: maturin develop --release && python benchmarks/paper_recall_bench.py --update-readme --track (requires pip install datasets psutil matplotlib)

---

RAG Integration

from tqdb.rag import TurboQuantRetriever

retriever = TurboQuantRetriever(db_path="./rag_db", dimension=1536, bits=4)
retriever.add_texts(texts=texts, embeddings=embeddings, metadatas=metadatas)

results = retriever.similarity_search(query_embedding=query_vec, k=5)
for r in results:
    print(r["score"], r["text"])

---

Architecture

TurboQuantDB is an embedded database — it runs in-process with no daemon.

./my_db/
├── manifest.json        — DB config (dimension, bits, seed, metric)
├── quantizer.bin        — Serialized quantizer state
├── live_codes.bin       — Memory-mapped quantized vectors (hot path)
├── live_vectors.bin     — Raw vectors for exact reranking (only if rerank_precision="f16" or "f32")
├── wal.log              — Write-ahead log
├── metadata.bin         — Per-vector metadata and documents
├── live_ids.bin         — ID → slot index
├── graph.bin            — HNSW adjacency list (if index built)
└── seg-XXXXXXXX.bin     — Immutable flushed segment files

Write path: insert() → quantize (QR rotation → MSE → Gaussian QJL) → WAL → live_codes.bin → flush to segment

Search (brute-force): query → precompute lookup tables → score all live vectors → top-k

Search (ANN): query → HNSW beam search → rerank → top-k

Quantization: Two-stage pipeline:

1. MSE — QR rotation + Lloyd-Max scalar quantization to bits per coordinate
2. QJL — Dense Gaussian projection, 1-bit quantized, bit-packed

The combination gives unbiased inner product estimates with near-optimal distortion, requiring no training data.

What comes from the paper vs. what is added here

The TurboQuant paper contributes the quantization algorithm — how to compress vectors and estimate inner products accurately. Its experiments use flat (exhaustive) search: all database vectors are scored against every query using the LUT-based asymmetric scorer. The paper's "indexing time virtually zero" claim refers to the quantizer requiring no training data, not to graph construction.

From the paper: two-stage MSE + QJL quantization, QR rotation, Lloyd-Max codebook, asymmetric LUT scoring, unbiased inner product estimation.

Added by TurboQuantDB (not in the paper): WAL persistence, memory-mapped storage, metadata/documents, HNSW graph index, reranking, Python bindings, and the HTTP server.

The brute-force search path (_use_ann=False, the default) is the paper-conformant mode — it scores all vectors using TurboQuant's LUT scorer, matching the paper's experimental setup exactly. The HNSW index is a practical engineering addition that reduces the candidate set before scoring, enabling sub-linear search at the cost of approximate recall. Pass _use_ann=True to engage the HNSW index (requires create_index() to have been called first).

Module Map

Path	Responsibility
src/python/mod.rs	Database class — Python-facing API
src/storage/engine.rs	TurboQuantEngine — insert/search/delete orchestration
src/storage/wal.rs	Write-ahead log
src/storage/segment.rs	Immutable append-only segments
src/storage/live_codes.rs	Memory-mapped hot vector cache
src/storage/graph.rs	HNSW graph index
src/quantizer/prod.rs	ProdQuantizer — MSE + QJL orchestrator
src/quantizer/mse.rs	MseQuantizer — QR rotation + Lloyd-Max codebook
src/quantizer/qjl.rs	QjlQuantizer — 1-bit Gaussian projection, bit-packed
python/tqdb/rag.py	TurboQuantRetriever — LangChain-style wrapper
server/	Optional Axum HTTP service (separate Cargo workspace)

---

Server Mode

Status: experimental. The server crate compiles and the core endpoints work, but it has not been hardened for production use. The embedded library (tqdb Python package, from tqdb import Database) is the primary supported interface.

An optional Axum-based HTTP server is available in server/ for multi-tenant deployments. It adds API key authentication, quota enforcement, and async job management (compaction, index building, snapshots).

cd server && cargo build --release
TQ_SERVER_ADDR=0.0.0.0:8080 TQ_LOCAL_ROOT=./data ./target/release/tqdb-server

See server/README.md for the full endpoint reference. Key env vars:

Variable	Default	Description
TQ_SERVER_ADDR	127.0.0.1:8080	Bind address
TQ_LOCAL_ROOT	./data	Storage root
TQ_JOB_WORKERS	2	Async job thread count

---

Performance Roadmap

The current implementation uses SIMD-accelerated scoring (AVX2) for the brute-force search inner loop, the MSE centroid scan, and the QJL bit-unpack inner product. The FWHT transform (legacy SRHT path) also has an AVX2 fast path.

GPU acceleration — batch ingest would benefit from cuBLAS GEMM (~3–5× for large batches on high-end cards). The ANN search path is memory-bound, not compute-bound, so GPU benefit there is minimal; the bottleneck is random cache misses during HNSW graph traversal rather than floating-point throughput.

AVX-512 codebook scan — on modern Intel CPUs the MSE centroid lookup can be vectorised 2× wider with AVX-512, potentially halving scoring latency per batch.

Persistent HNSW — incremental graph updates (no full rebuild after each ingest batch) would allow streaming use cases without periodic create_index() calls.

---

Research Basis

This is an independent implementation of ideas from the TurboQuant paper. The algorithm itself was authored by the original researchers.

Zandieh, A., Daliri, M., Hadian, M., & Mirrokni, V. (2025). TurboQuant: Online Vector Quantization with Near-optimal Distortion Rate. arXiv:2504.19874

@article{zandieh2025turboquant,
  title={TurboQuant: Online Vector Quantization with Near-optimal Distortion Rate},
  author={Zandieh, Amir and Daliri, Majid and Hadian, Majid and Mirrokni, Vahab},
  journal={arXiv preprint arXiv:2504.19874},
  year={2025}
}

---

License

Apache License 2.0 — see LICENSE.
