🌊 ZimaBlue

Simulate, test, and replay robotic pool cleaners.

Driving everywhere is not the same as cleaning everything.
ZimaBlue measures both — and lets you watch it happen.

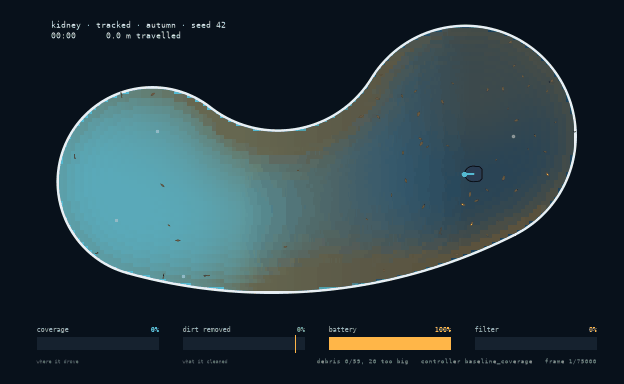

_{25 simulated minutes in a kidney pool, replayed at 260×.
Watch the coverage and dirt meters drift apart.}

Give ZimaBlue a pool, a cleaner, some dirt and a control algorithm. It simulates the run, records it, replays it, and scores how clean the pool actually got. That is a different question from how much of the floor the robot drove over, and the gap between the two is what this is for.

git clone https://github.com/JGalego/ZimaBlue
cd ZimaBlue
pip install -e ".[dev]"
zimablue demo

No GPU. No ROS. No Docker. No Omniverse. No multi-gigabyte assets.

What's in it

Contents

• Build a pool
• Add a cleaner — make it look like yours
• Make it dirty
• Run it
• Plan it
• Send a fleet
• Watch it — from behind, from the bumper, in 3D
• Measure it
• Check it against a real robot
• Analyse it
• Scale it
• Extend it
• Read more
• Did you know?

Build a pool

import zimablue as zb

pool = zb.make_pool("kidney")  # rectangular · sloped · l_shaped · oval · stairs
# stadium · mushroom  (chosen for their dynamics)

Geometry is a Shapely polygon plus a pluggable depth model, so a sloped floor and a flat one differ only in which model they hold. Drains, returns, skimmers, stairs and obstacles hang off it; the blocking ones come out of the navigable area, so coverage is measured against the floor the robot can actually reach.

The kidney is a chain of four circular arcs — two lobes, a belly under both, a scoop bitten out between them — meeting where their circles are tangent, which is how a kidney is set out on site. So it has no corners, and a wall follower meeting a corner behaves differently from one tracing a curve. Every radius is an argument: zb.make_pool("kidney", length=16.0, scoop_radius=2.0) gives a bigger pool with a deeper bite.

Have a photo instead of a spec? zb.pool_from_image("backyard.jpg", sample=(640, 410), width=8.4) finds the water, traces its edge and scales it. A photograph carries no scale of its own, so one real measurement is required; for a shot taken from the poolside, four points on a rectangle you can measure also undo the perspective, which is worth about 27% of the area. See imaging.

Colour rules find the water by default. Point segmenter=SamSegmenter.load(...) at a SAM export and a model finds it instead — worth it for a black-bottomed pool, or one half in shade. On a drone photo the two agree to 3.7%, which is a reasonable amount of confidence in both. See machine learning.

In a notebook, zb.preview(pool) renders it in the browser — drag to rotate, scroll to zoom. The pool's geometry is shipped to the page as JSON and projected there, so it needs no widget extensions and keeps working in an exported HTML file. Hand it a finished run and it tints the floor with the dirt left behind and draws the path that was driven.

Add a cleaner

Cleaners are built from components:

robot = zb.Cleaner(
    chassis=zb.Chassis(length=0.45, mass=10.5),
    cleaning=zb.CleaningSystem(
        brush=zb.Brush(width=0.38, aggressiveness=1.2),
        filter=zb.Filter(capacity=1200.0, mesh=45e-6),
    ),
    sensors=[zb.Encoder(), zb.IMU(), zb.Sonar(beam_angles=(0.0, 0.7, -0.7))],
)

Encoders, IMU, pressure/depth, contact and sonar share one pipeline of sampling rate, noise, bias with random walk, latency, quantisation, saturation, dropout and stuck values. Encoders report wheel speed, so odometry drifts because the wheels really do slip; no error is injected to make it happen.

You can break a sensor on purpose:

robot.sensors.sonar.inject_fault(
    bias=0.15,  # reads 15 cm long
    dropout_probability=0.02,  # loses 2% of pings
    start_time=300.0,  # ...starting five minutes in
)

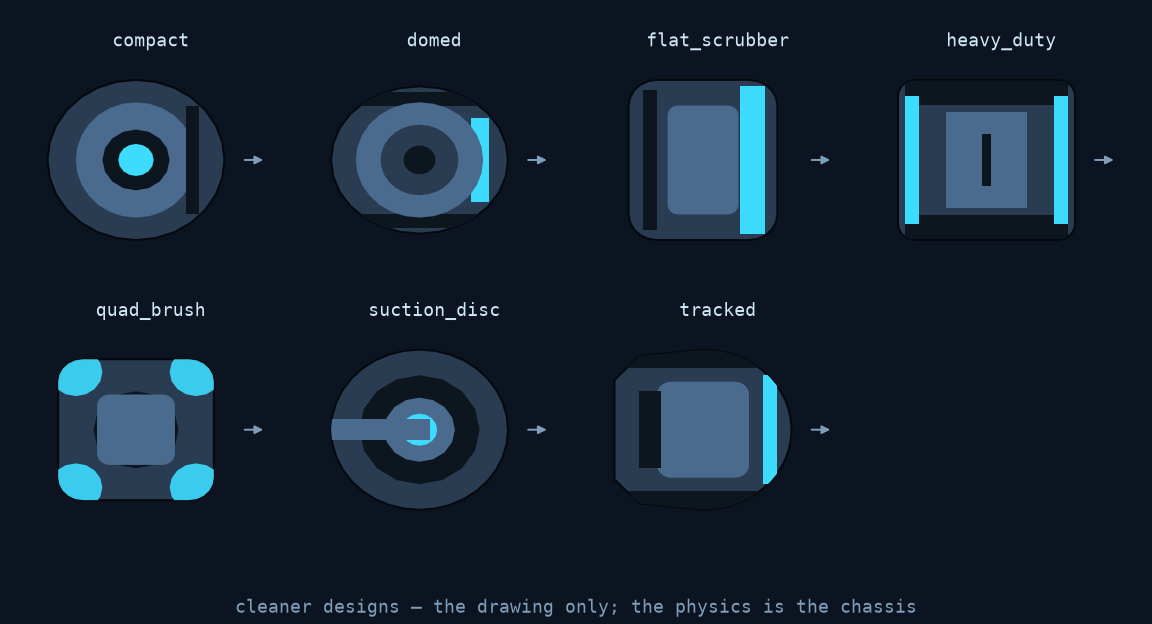

Make it look like yours

robot = zb.make_robot("tracked")
robot.design = zb.make_design("quad_brush")

Each archetype is named by form rather than by product, because the form is the useful abstraction and a library has no business shipping traced outlines of somebody's industrial design. To match a specific machine, measure it:

from zimablue.robot import CleanerDesign, Part
from zimablue.robot.design import ellipse, bar

mine = zb.Cleaner(
    name="mine",
    design=CleanerDesign(
        name="mine",
        body=ellipse(0.5, 0.44),
        parts=(Part(bar(0.34, 0.30, 0.09), colour="#3ddcff", lift=0.05, name="brush"),),
    ),
)

Coordinates run −0.5 to 0.5 and are scaled by the chassis, so any design fits any robot. It is a drawing and nothing else. Collision uses the chassis rectangle, cleaning uses the swath width, traction uses the mass — swapping a design changes every rendered pixel and not one number in the metrics. A drawing that quietly moved the results would be the worst kind of bug, so there is a test that a run scores identically whichever design it wears.

Make it dirty

Dirt carries density, particle size, adhesion and a settling velocity derived from the Ferguson–Church equation — 350 µm sand comes out at 47.6 mm/s against a measured ~45. Sediment and algae live in continuous rasters; leaves and twigs are discrete items, some too big for the intake to swallow.

Removal is gated by how much agitation breaks the bond, so the brush matters more the more adhered the dirt is: ~1.0× for sand, 2.2× for algae, 3.5× for biofilm. Turn the brush off and a robot can drive over algae all day.

Run it

sim = zb.Simulation(pool="kidney", robot="tracked", dirt="autumn", seed=42)
result = sim.run(minutes=30)

print(result.metrics.summary())
result.save("runs/example.zbr")

  coverage            83.0 %   (walls 77 %)
  dirt removed        39.2 %   (385 g of 982 g)
  uniformity          66.7 %
  revisits            1.94   extra passes/cell
  distance           389.1 m
  runtime             30.0 min
  energy              33.3 Wh   (battery 72 % left)
  collisions           513
  stuck                  0 events, 0.0 s
  debris                39 collected of 59, 20 too big for the intake
  dirt ceiling        91.8 %   (80 g this intake cannot lift)
  termination       duration

Driving it is a boustrophedon baseline, a random-bounce floor, a map-building systematic controller, or the ground-truth oracles, which are explicitly not deployable: lawnmower_oracle drives a perfect path, dirt_oracle heads for whatever is dirtiest. Yours needs a class with reset and step, and sees sensor readings only.

Or train one. zimablue[rl] puts a Gymnasium env over the same loop, at 24× real time on one core with no GPU, and the reward is the experiment: pay for coverage and you get a policy that drives beautifully over dirt it never picks up. See machine learning.

systematic runs an EKF over position, heading and gyro bias. The bias is only observable when the robot stops — a stationary gyro's reading is its bias — so zero-velocity updates are what keep heading from fanning out over half an hour.

Run the same version on the same platform, with the same scenario and seed, and you get the exact same recording every time. That comes from a fixed timestep, no wall-clock reads while stepping, and one seeded RNG tree whose named streams mean adding a sensor never shifts another's noise. .zbr is a ZIP of a JSON manifest, columnar npz frames, sparse events and dirt keyframes — unzip it and read it with numpy.load. Pool geometry and robot config are embedded, so a recording stays replayable after the preset it came from changes.

Plan it

Most of the single-robot coverage literature, implemented. The offline planners are given the pool and compute a whole route; the online ones decide the next move from what the sensors just said.

from zimablue.planners import PathFollower

zb.Simulation(pool="kidney", controller="bsa").run(minutes=20)

morse = PathFollower("morse")
zb.Simulation(pool="kidney", controller=morse, expose_truth=True).run(minutes=20)

The online ones share everything except the decision. One base class owns the EKF, the occupancy grid, the bump recovery and the driving; each algorithm implements one method that returns the next cell. If they each had their own motion layer, a difference in coverage could always be the motion layer's fault.

Following a plan is not free, and PathFollower is where the bill arrives. Drive it from the true pose and you have measured the route; drive it from dead reckoning and you have measured the route plus the localisation. On the rectangular pool sweep_optimal reaches 70.5% on truth and 49.6% on odometry — twenty-one points of the plan's value never reaches the floor.

python examples/compare_planners.py --minutes 20 --jobs 4 --plots out/

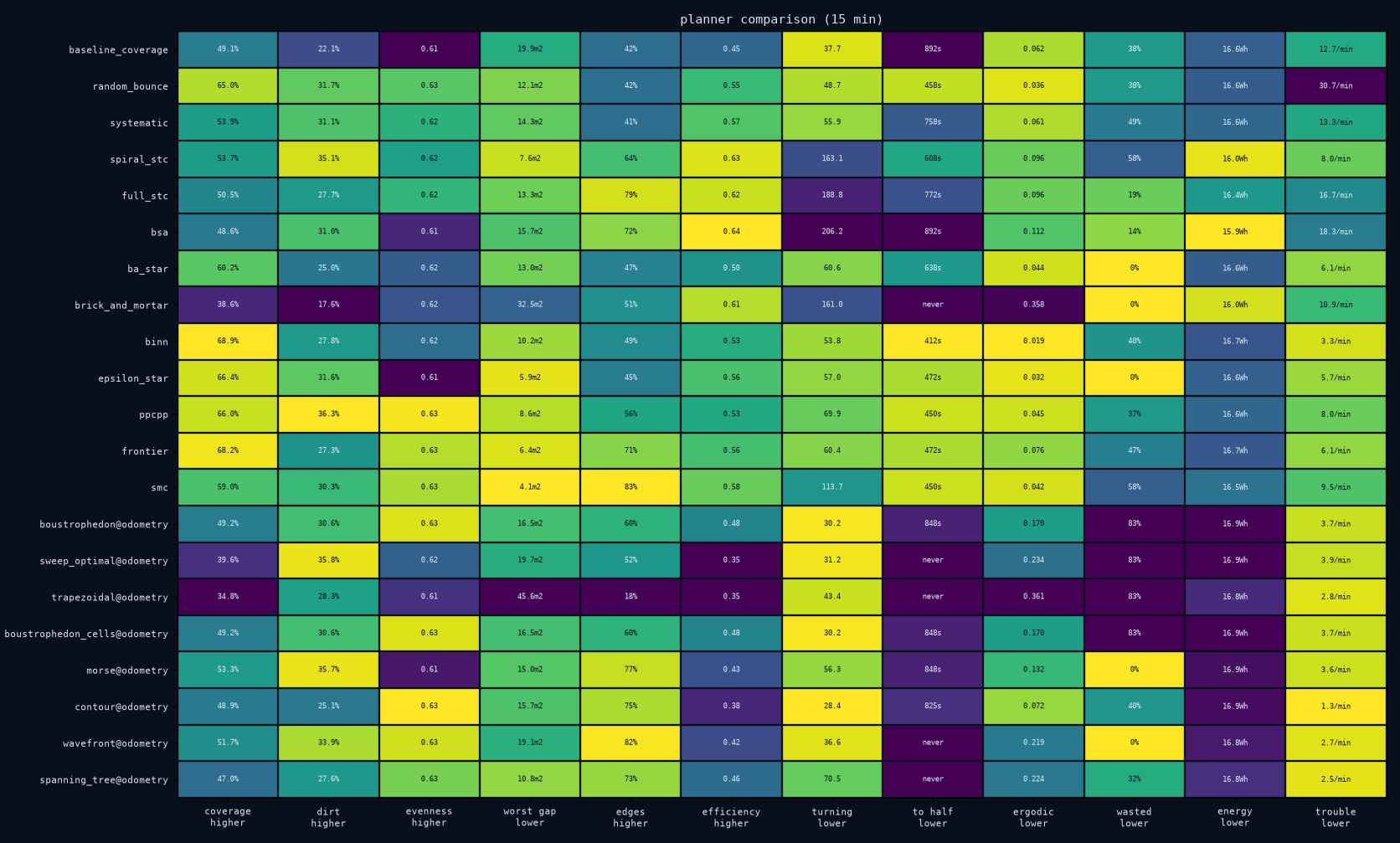

Each planner is measured on coverage, dirt, evenness, worst gap, edges, path efficiency, turning per metre, time to half the pool, ergodic error, wasted time, energy and collisions — deliberately not collapsed into one number. The columns that earn their place are efficiency, turning and the worst gap: a planner can reach 95% by driving over everything three times, and 90% coverage means something different depending on whether it left a thin margin everywhere or a whole corner.

The headline is not the winner. It is that random_bounce — drive straight, turn at random when you hit something — beats most of the table, including planners with completeness proofs. See coverage path planning.

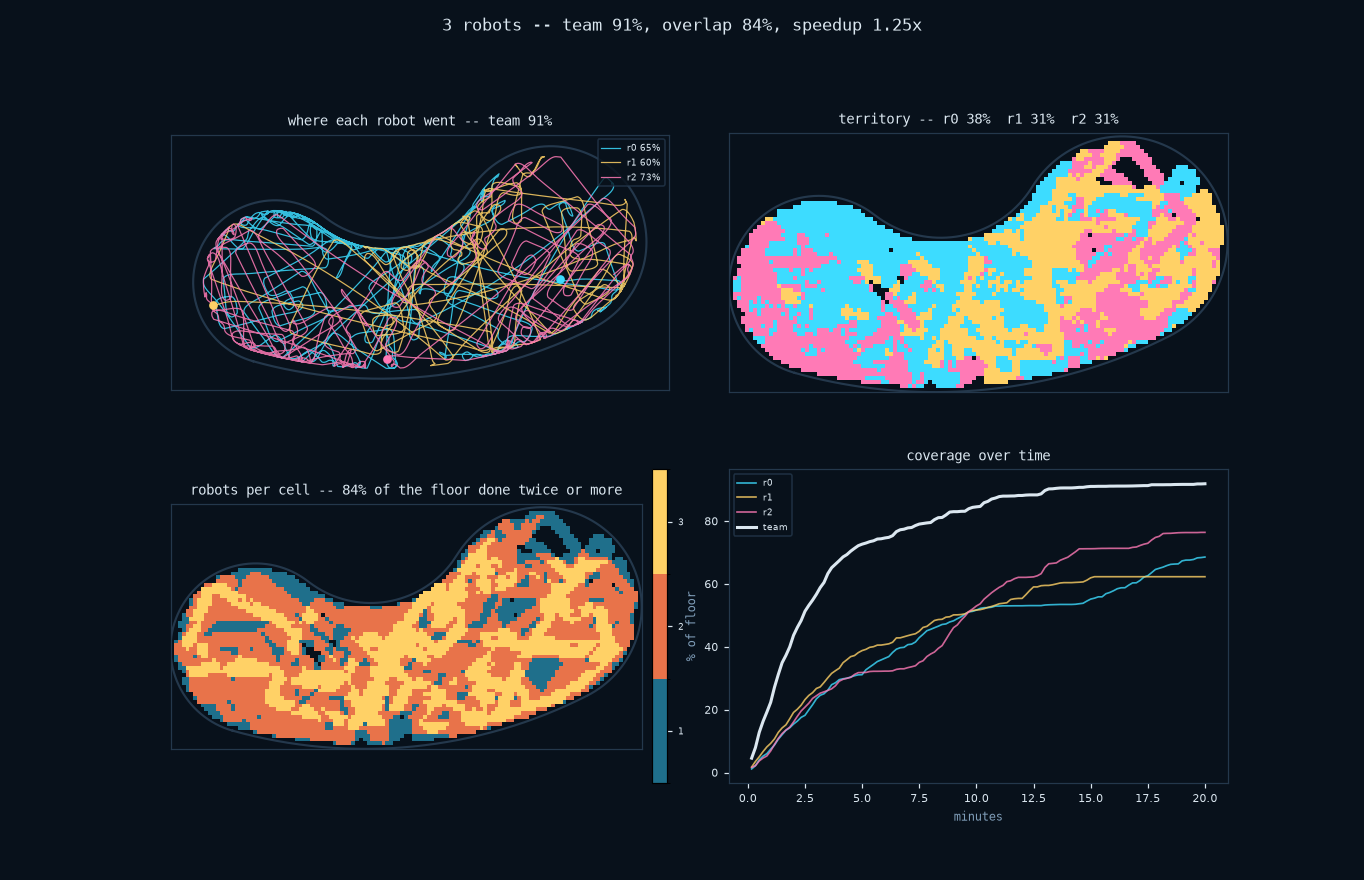

Send a fleet

result = zb.Fleet(pool="kidney", robots=3, controllers="auction").run(minutes=20)
print(result.summary())

  robots            3
  team coverage       90.7 %
  overlap             83.7 %   (floor two or more robots both did)
  speedup             1.25 x   (against the best single member)
  balance             0.85     (shortest run / longest)
  encounters           136     (robot-on-robot)

Coverage is the least interesting number there. Speedup has a ceiling equal to the robot count, and how far short it falls is the cost of sharing a pool. Overlap is the floor more than one robot did. Balance catches the failure coverage hides completely: one robot working while another parks in a corner it was assigned.

The robots share one dirt field, collide with each other, and see each other on the sonar. What they know about each other went over a radio, as estimates — so a fleet inherits every member's localisation error and then has to coordinate through it.

Either cut the pool up and hand each piece to a single-robot planner (voronoi, geodesic, strips, darp, forest), or coordinate without cutting anything (mstc, auction, binn_swarm, smc_swarm, and the shared-map version of every online planner, which is the default).

from zimablue.planners import partitioned

zb.Fleet(pool="kidney", robots=3, controllers=partitioned("darp", "sweep_optimal"))

The result worth the trouble: the same DARP partition followed from the true pose gives a 2.92x speedup with 0.3% overlap — near-perfect division of labour — and followed on dead reckoning gives 2.05x with 34%. The partition survives in the plan and evaporates in the execution.

And on a kidney pool the fourth robot is where the team stops being a team: coverage keeps climbing, 43% → 64% → 78% → 84%, while speedup peaks at three robots and then falls. Half the pool is already being done twice at three, and the fourth buys six points of floor for eight more of overlap and half again as many collisions. See fleets.

Watch it

zimablue replay runs/example.zbr

Playback runs at 0.25× to 25×, with pause, scrub, step and speed control; 1× plays the run at the speed it happened. The cleaned swath is drawn under the dirt, so a patch the robot drove over but failed to clean still looks dirty. Sonar beams, wall contacts, battery and filter fill are all on screen, and if the controller publishes a pose estimate it appears as an amber ghost drifting away from the true position.

Headless? zimablue replay run.zbr --gif out.gif.

From behind

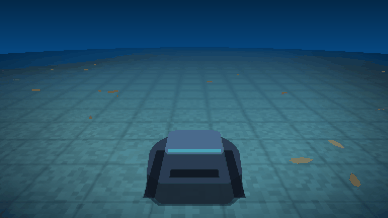

_{Chase cam. Close enough to see the brushes, far enough to see the swath.
Same two minutes: near enough in time to watch the dirt line recede.}

zimablue replay runs/example.zbr --chase --gif out.gif

The other two views each hide something. From above the robot is a postage stamp, so you read the path and lose the machine. From the bumper you never see the machine at all. A metre back and half a metre up you get both, and because the robot is now in front of the camera it has to be drawn — from its own design, so a domed suction unit and a quad-brush commercial machine look like different machines.

The camera follows with lag. Bolt it rigidly and a turn reads as the pool rotating, which is disorienting and wrong; let its heading chase the robot's and the turn reads as the robot swinging across frame.

From the bumper

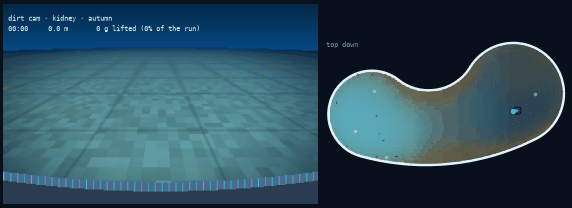

_{Dirt cam, with the top-down view alongside — the first two minutes, at two
simulated seconds a frame. The two panels disagree constantly.}

zimablue replay runs/example.zbr --dirtcam --gif out.gif

Watching from above is calming. From 18 cm off the floor the same pool is a silt plain with leaves in it, which is closer to what a cleaner is driving through. From above you see where the robot went; from down here you see what it left behind.

It is inverse perspective mapping over the same dirt raster the metrics are computed from — one NumPy expression per frame across a grid of rays, no 3D engine involved.

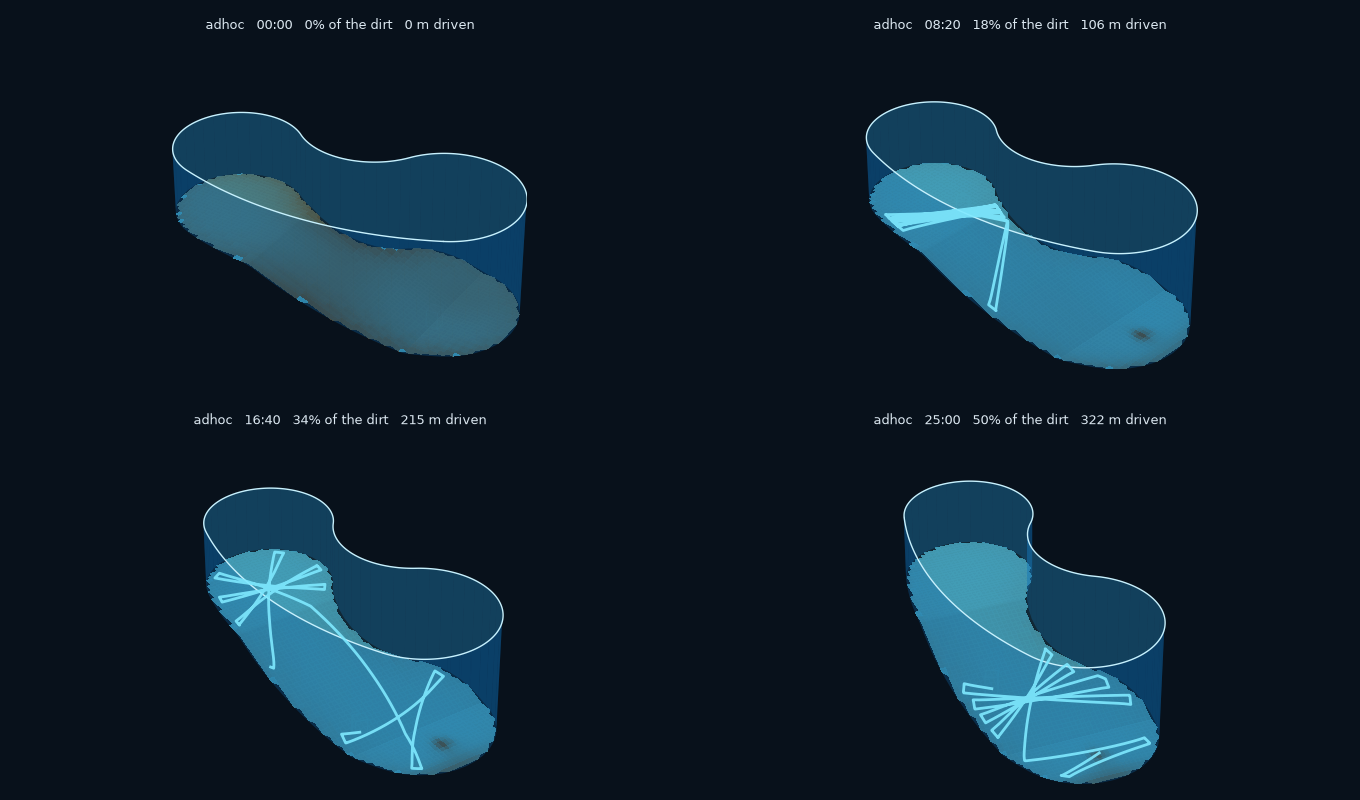

In 3D

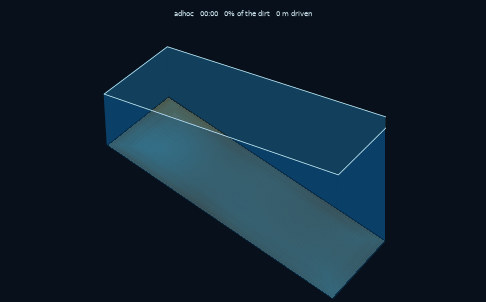

_{A sloped pool: 1.0 m at the shallow end, 2.4 m at the deep end.}

zimablue replay runs/example.zbr --3d --gif out.gif

The floor is a surface built from the pool's depth model, the walls are extruded from its boundary, and the robot sits at the local floor depth — so in a sloped pool it really is metres lower at the deep end. The camera orbits slowly for parallax, and vertical scale is exaggerated about 3.6× because a 12 m pool 2 m deep is otherwise a pancake.

This renders in 3D; it does not simulate in 3D. The motion still comes from the 2D backend. A 3D backend — buoyancy, contact, wall climbing, cameras — is designed but not built, and the roadmap says so.

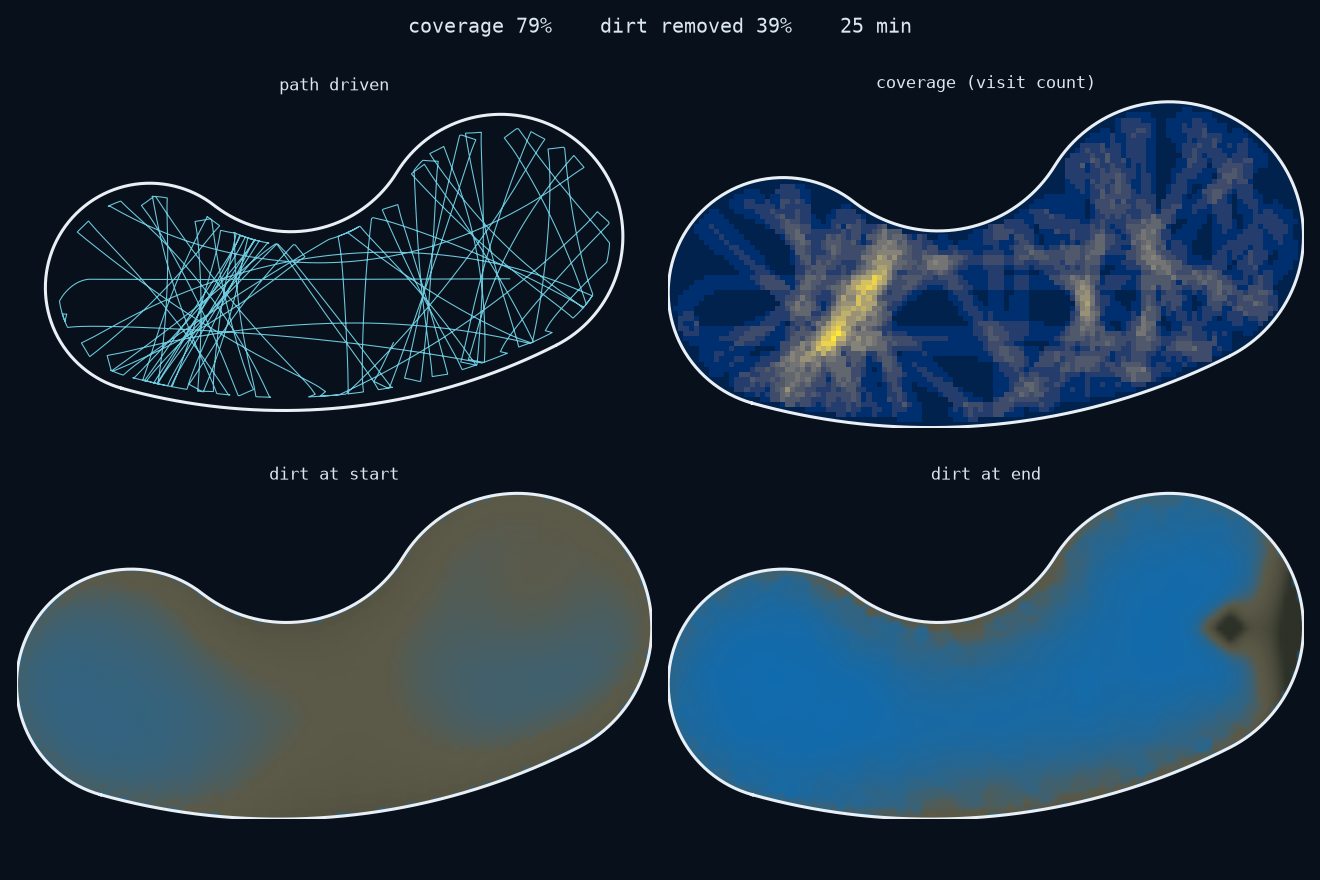

Measure it

Coverage is where the robot drove. Cleanliness is what it removed. They come apart, and most simulators will not tell you so.

The oracle makes it obvious. Over 30 minutes in a kidney pool:

The ranking inverts. Best coverage is worst cleaning: the oracle drives a perfect path, finishes early and stops, while the scrappier controllers keep going over the same adhered dirt, which is what actually removes it — twice as much driving for sixteen more points of dirt. Report only coverage and you rank these three exactly backwards.

Better localisation currently makes things worse. Calibrating the odometry improves the mapping controller's position estimate fivefold and halves its coverage.

The estimator is not at fault — 3.8 m after 340 m of travel with no absolute reference is respectable dead reckoning. The planner is. With a poor estimate the lane plan is effectively randomised and the robot wanders widely, covering ground the way random bounce does; with a good one it runs short disciplined lanes and spends its time turning. Coverage is being won by accident, and fixing that is the top roadmap item.

Check it against a real robot

Those numbers all come from motion this package generated, judged against ground truth it also generated. That is unfalsifiable, so there is now a path that is not.

python tools/fetch_trajectory.py --all
python examples/replay_real_trajectory.py

A Pioneer 3-DX driving a real building, tracked at 300 Hz by a real motion capture rig. The shipped sensor models are driven from that motion and the estimator is scored against where the robot actually was:

The motion is real, including a full second where the tracker lost the robot. The sensors are not — the noise is still ours — and there is no slip, so the estimator is being flattered in a known direction. Even so it says something the table above could not: the 13.7 m of drift is the slip model's doing, not a real trajectory being hard to integrate. And pioneer_slam2 ends 39° out on heading because the gyro bias is only observable when the robot stops, and that one rarely does.

The whole control loop runs on real hardware too, through the same ControlInput and DriveCommand a controller already sees. See on a robot.

Analyse it

Coverage and cleanliness say what a run achieved. They say nothing about how the robot behaved — whether it repeated itself, how fast it forgot where it started, whether the room was doing the work.

from zimablue.dynamics import transfer_operator, ergodic_score

operator = transfer_operator([run_a, run_b, run_c])
print(operator.summary())  # mixing rate
labels = operator.almost_invariant_sets(2)  # where it gets stuck

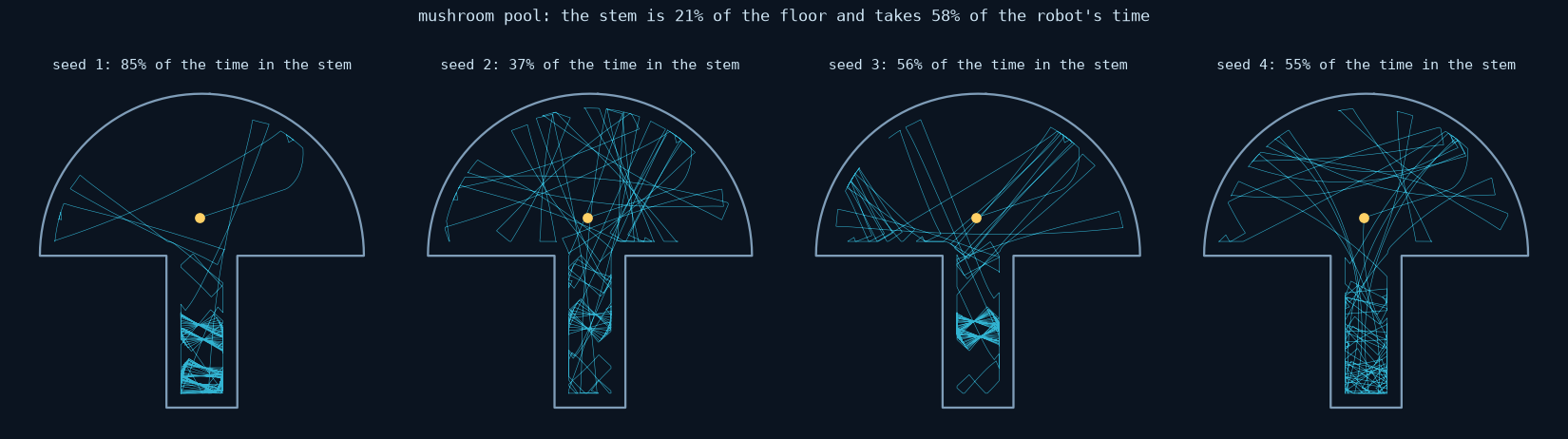

_{The mushroom pool. Same controller, same code, different seeds.}

The stem is 21% of the floor and takes 58% of the robot's time — 85% on one seed and 37% on another. Nothing about the algorithm causes that spread; the room does. mushroom and stadium are pool presets chosen for their billiard dynamics: one is a provable trap, the other provably ergodic.

The transfer operator finds the trap without being told the shape of the pool, and the ergodic metric catches something coverage structurally cannot — lawnmower_oracle achieves the best distribution of any controller at twelve minutes, then finishes, parks, and spends the rest of the cycle making it worse.

Predictions this exercise proved wrong are written up in behaviour, because they were made in public first.

Scale it

zimablue run   kidney --record runs/kidney.zbr        # a bundled scenario
zimablue run   scenarios/autumn_kidney.yaml           # or your own file
zimablue batch kidney --episodes 100 --out results.json

A scenario is YAML: pool, robot, dirt, controller, seed, duration, termination. Batches vary the seed and aggregate, keeping enough metadata to reproduce any individual failure exactly.

Extend it

Commercial pool cleaners are evaluated by driving them around a real pool with real dirt: slow, expensive, impossible to repeat. Meanwhile Gazebo, MuJoCo and Isaac Sim each make their engine the API, so anything pool-specific you build cannot outlive the engine.

Here the domain model is the API. Pools, dirt, cleaners, scenarios, recordings and metrics are ZimaBlue concepts. Whatever integrates the equations sits behind an interface and can be swapped — today it is a deterministic CPU-only 2D backend running at 25–30× real time on one core.

                         ZimaBlue domain API
                                 │
              ┌──────────────────┼──────────────────┐
        World model         Robot model         Controller
     pool · water · dirt   body · sensors      (replaceable)
              └──────────────────┼──────────────────┘
                                 │
                        SimulationBackend
                                 │
                  ┌──────────────┴──────────────┐
             Fast2DBackend                IsaacSimBackend
              (CPU, today)                  (planned)
                                 │
                    Recording · Replay · Metrics

A backend owns dynamics and sensing, nothing else. Dirt accounting, metrics and recording are computed by shared code from the state it returns, so a new backend inherits them and cannot redefine how they are measured. A .zbr written by the 3D backend will have to replay in the 2D viewer; that is the acceptance test.

Pools, robots, dirt, controllers and backends are all registries, so adding one means writing a function. Issues and pull requests welcome — see CONTRIBUTING.md, which is mostly about not breaking determinism and preferring a small real model to a large fake one.

Read more

Examples

Every one takes --minutes if you want a shorter run.

Did you know?

That sharp "chlorine" smell at a busy pool is mostly not chlorine, and the red stinging eyes are not chlorine's fault either. Chlorine reacts with what swimmers bring in with them — sweat, skin cells, sunscreen, and yes, pee — and the chloramines that come out of the reaction are what you smell and what stings. A pool that reeks is a pool that has been swum in. So shower first, and use the toilet before you get in.

ZimaBlue models sand, algae, biofilm and leaves. Swimmers are out of scope. (CDC)

License

MIT.
