3D Non-Maximum Suppression

Implementation of 3D non-maximum suppression (NMS-3D) for axis-aligned bounding boxes in PyTorch, with optional Plotly visualisation.

⬇️ Installation and Import

Now, this code is available with PyPI here. The package can be installed with:

pip install nms-3d          # NMS only, depends on torch
pip install "nms-3d[plot]"  # also plot_3d_boxes (plotly)

and can be imported as:

import nms_3d

Quick use:

from nms_3d import nms_3d

# boxes: (N, 7) tensor with columns SCORE, X MIN, Y MIN, Z MIN, X MAX, Y MAX, Z MAX
kept_boxes, kept_indices = nms_3d(boxes, iou_threshold=0.5, return_indices=True)

🤔 When to use this vs MONAI

MONAI already ships 3D box NMS (monai.data.box_utils.non_max_suppression) as part of a large medical-imaging framework. If MONAI is already in your stack, use it. This package is for when it is not: a ~100-line, torch-only function with no other dependencies, that gives the same result as MONAI and as torchvision.ops.nms on flat boxes (both are checked in the test suite).

📦 Package documentation

Package documentation is available here.

📂 Project Organization

The project consists of the following Python modules:

.
├── nms_3d/                # The NMS 3D package folder
│   ├── nms_3d.py          # Function that applies the NMS 3D algorithm.
│   └── plot_3d_boxes.py   # Function for creating 3D plots of bounding boxes using Plotly.
│
├── tests/                 # pytest suite (edge cases, torchvision and MONAI equivalence).
│
├── example.py             # The script that contains the 3D NMS application example.
│
├── bbox-coords/           # The folder that contains the bounding box .csv files before and after the 3D NMS.
│   ├── bbox-coords-before-nms-3d.csv  # Example file of bounding boxes to suppress.
│   └── bbox-coords-after-nms-3d.csv   # Output file after applying the 3D NMS on bbox-coords-before-nms-3d.csv.
│
└── output/                # The folder that contains the .html visualization of the boxes before and after the 3D NMS.
    ├── best_boxes_after_nms.html   # .html view of the boxes after the 3D NMS.
    ├── best_boxes_before_nms.html  # .html view of the boxes before the 3D NMS.

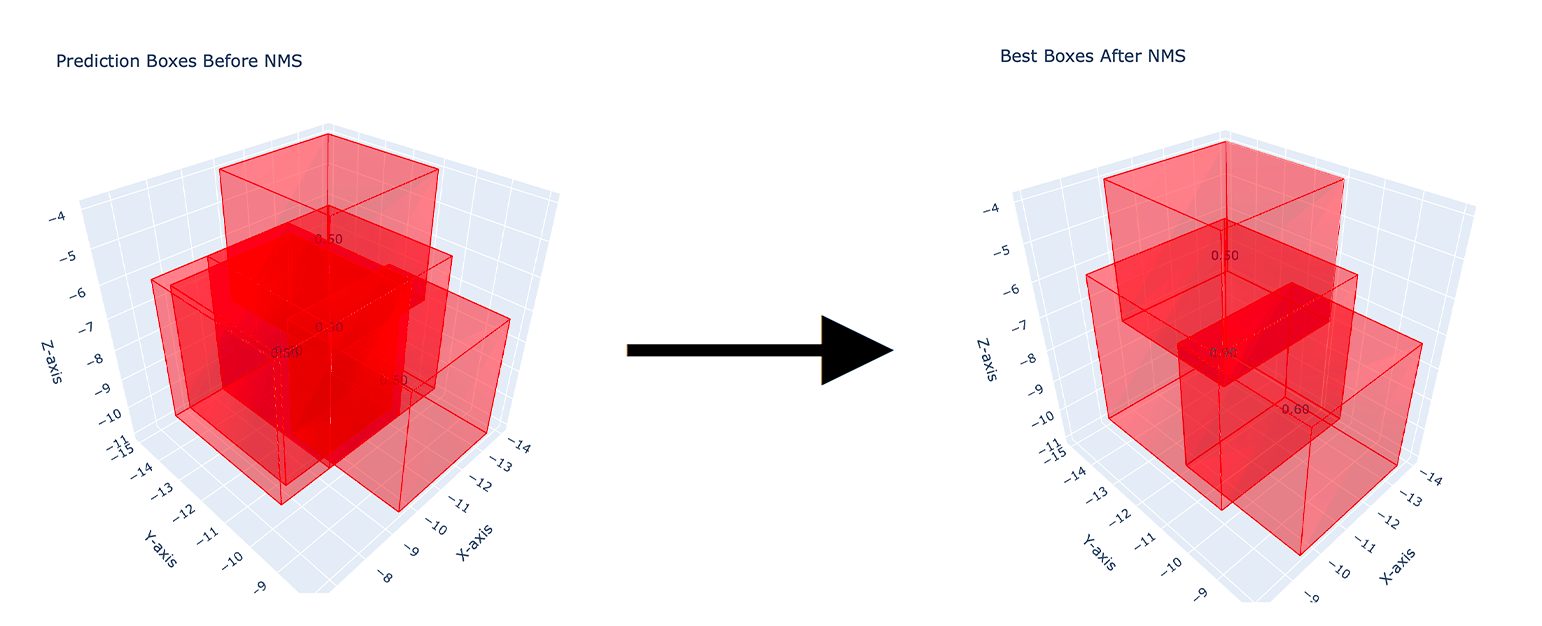

    └── NMS-image-example.png       # Example image used in this README.md file.

Run the application example with:

python3 example.py

This code will read the bounding box coordinates from bbox-coords-before-nms-3d.csv, perform 3D NMS, and save the result to bbox-coords-after-nms-3d.csv. Also, two 3D plots are saved as HTML files to show the boxes before and after NMS.

🚨 Requirements

Python>=3.9.5
torch>=2.2.2
plotly>=5.13.1  # optional, only for plot_3d_boxes

Install the requirements of example.py with:

pip3 install -r requirements.txt pandas

Run the tests with:

pip install -e ".[dev,plot]"
pytest

🤝 Contribution

👨‍💻 Ciro Russo, PhD

⚖️ License

MIT License
