clicknick 0.1.2

Context-aware nickname autocomplete for ClickPLC instruction windows.

clicknick

Context-aware nickname autocomplete for ClickPLC instruction windows.

Features

• Smart Autocomplete: Shows only relevant nicknames based on instruction type
• Multiple Filter Modes: Prefix, Contains, and Fuzzy matching
• Non-Intrusive: Works alongside Click PLC without modifications

How to Run

Option 1: Using uv (recommended)

uvx clicknick

If you don't have uv installed, you can get it from: https://github.com/astral-sh/uv#installation

Option 2: Using pip

pip install clicknick
python -m clicknick

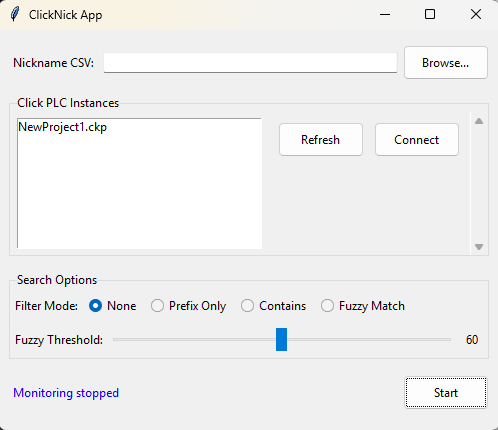

Usage

1. Select your ClickPLC nickname CSV file
2. Connect to your Click PLC instance
3. Start monitoring

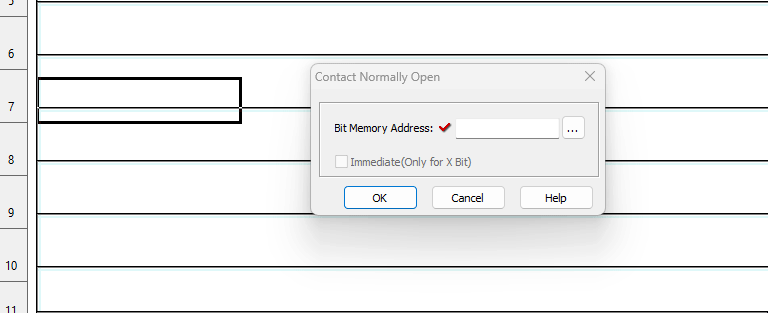

4. Open ClickPLC Instruction window and Type in added Combobox-Input to see autocomplete suggestions

Supported Windows

• Contact Normally Open/Closed
• Edge Contact
• Out, Set, Reset
• Compare (A with B)
• Timer, Counter
• Math instructions
• Shift Register
• Copy instruction
• Search instruction
• Search & Replace dialog

Requirements

• Windows 10/11
• Click PLC Software

Roadmap

• Get feedback and publish to PyPI
• Add support for inserting Nickname/Address into Math equation

---

Project Docs

For how to install uv and Python, see installation.md.

For development workflows, see development.md.

For instructions on publishing to PyPI, see publishing.md.

---

This project was built from simple-modern-uv.
