clicknick 0.9.1

Context-aware nickname autocomplete for ClickPLC instruction windows.

clicknick

Context-aware nickname autocomplete for ClickPLC instruction windows.

Features

• Live Nicknames: Immediate access to Nicknames in your CLICK Programming Software, via ODBC connection.
• Smart Autocomplete: Shows only relevant nicknames based on instruction type
• Multiple Filter Modes: Prefix, Contains, and Contains + Abbreviation matching
• Exclude: SC/SD addresses or your own
• Non-Intrusive: Works alongside Click PLC without modifications

How to Run

[!NOTE] For live nickname database functionality, you'll need Microsoft Access ODBC drivers installed. If you see an "ODBC drivers not found" warning, see our installation guide for help. CSV nickname file loading works without these drivers.

Option 1: Using uv (recommended)

Try it out:

uvx clicknick@latest

Install for offline use:

uv tool install clicknick

Run: clicknick (from command line or Start Menu)

Uninstall: uv tool uninstall clicknick
Upgrade: uv tool upgrade clicknick

If you don't have uv: https://github.com/astral-sh/uv#installation

Option 2: Using pip

pip install clicknick
python -m clicknick

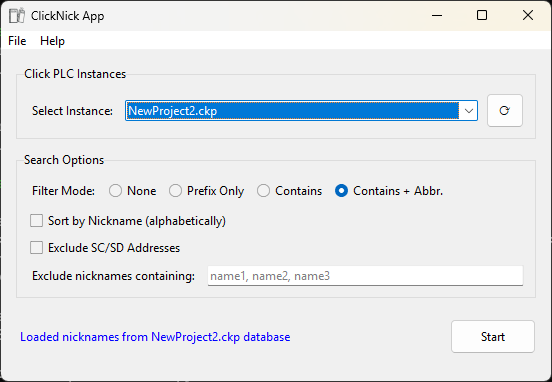

Usage

1. Select your ClickPLC nickname CSV file
2. Connect to your Click PLC instance
3. Start monitoring
4. Open ClickPLC Instruction window and Type in added Combobox-Input to see autocomplete suggestions

Supported Windows

• Contact Normally Open/Closed
• Edge Contact
• Out, Set, Reset
• Compare (A with B)
• Timer, Counter
• Math instructions
• Shift Register
• Copy instruction
• Search instruction
• Search & Replace dialogs
• Data Views
• Address Picker Find

Requirements

• Windows 10/11
• Click PLC Software

---

Project Docs

For how to install uv and Python, see installation.md.

For development workflows, see development.md.

For instructions on publishing to PyPI, see publishing.md.

---

This project was built from simple-modern-uv.
