Extension for django_tables2 can dynamically show or hide columns

Project description

django-tables2-column-shifter

Latest PyPI version GitHub Actions Requirements Status

About the app: Simple extension for django-tables2 to dynamically show or hide columns using jQuery. Application uses web storage to store information whih columns are visible or not. Using JQuery, Bootstrap3 or Bootstrap4 or Bootstrap5 and Django >=1.9.

Warning : - Since version 2.0 my extension works by default with bootstrap4.

I highly recommend to inherit explicite from tables class indicate on bootstrap version. I.e if you use in your project bootstrap in version 5. Your Tables classes should inherit from: django_tables2_column_shifter.tables.ColumnShiftTableBootstrap5.

Now you should inherit from:

  • for bootstrap2 - ColumnShiftTableBootstrap2,
  • for bootstrap3 - ColumnShiftTableBootstrap3,
  • for bootstrap4 - ColumnShiftTableBootstrap4,
  • for bootstrap5 - ColumnShiftTableBootstrap5,

Tested by tox with:

  • Python :3.6, 3.8
  • Django : 1.9, 1.10, 1.11, 2.0, 2.1, 3.0, 3.1, 3.2, master
  • django-tables2 : 1.5, 1.6, …, 1.21, 2.0, 2.1, 2.2, 2.3, master

Supported:

  • Django >= 1.9
  • django-tables2 >= 1.5.0 (earlier version probably will be work but wasn’t tested)
  • bootstrap2 / bootstrap3 / bootstrap4 / bootstrap4.1.3 / bootstrap5 beta3
  • JQuery

Supported locale:

  • EN - (English)
  • PL - (Polish)
  • EL - (Greek / Hellenic Republic)
  • PT-BR - (Portuguese - Brazilian)

More information about django-tables in here: https://django-tables2.readthedocs.io/

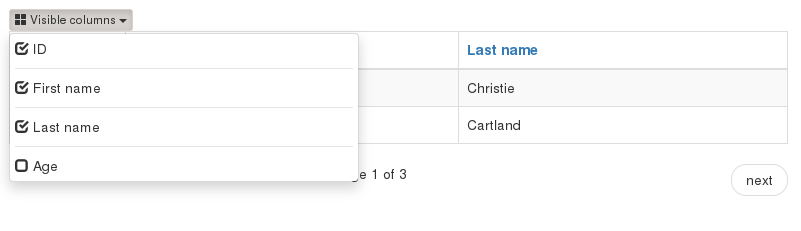

Screens:

screen 1 screen 2

How to Install:

  1. Install django-tables2-column-shifter using:

        pip install django-tables2-column-shifter

    or

        pip install git+https://github.com/djk2/django-tables2-column-shifter

    or

        pip install django-tables2-column-shifter.zip

    or

        pip install django-tables2-column-shifter.tar.gz

  2. Add django_tables2_column_shifter to your INSTALLED_APPS setting (after django_tables2) like this

    INSTALLED_APPS = [
        ...,
        'django_tables2',
        'django_tables2_column_shifter',
        ...,
    ]

  3. Add path to js script: django_tables2_column_shifter.min.js in your base django template. Script must be add after jquery.js and bootstrap.js and before </body> tag. Draw attention to fact that beginning from version 4 of bootstrap, the Popper.js is required to proper work of some of JS bootstrap scripts. More about dependencies here: https://getbootstrap.com/docs/4.0/getting-started/javascript/#dependencies

base.html:

{% load static %}

<body>
    ...
    ...
    <script src="{% static "jquery.min.js" %}"></script> {# require #}
    {# Popper is a dependency for bootstrap >= 4.0 #}
    <script src="{% static "bootstrap/js/popper.min.js" %}"></script>
    <script src="{% static "bootstrap/js/bootstrap.min.js" %}"></script>

    <script
        type="text/javascript"
        src="{% static "django_tables2_column_shifter/js/django_tables2_column_shifter.min.js" %}">
    </script>
</body>

Usage:

To use app, you must inherit your table class from django_tables2_column_shifter.tables.ColumnShiftTable

models.py - create ordinary model:

from django.db import models

class MyModel(models.Model):
    first_name = models.CharField("First name", max_length=50)
    last_name = models.CharField("Last name", max_length=50)

tables.py - change inherit to one of: ColumnShiftTableBootstrap2, ColumnShiftTableBootstrap3, ColumnShiftTableBootstrap4, ColumnShiftTableBootstrap5 (depends on which bootstrap version of bootstrap you are using):

from django_tables2_column_shifter.tables import (
    ColumnShiftTableBootstrap2, # If you use bootstrap2
    ColumnShiftTableBootstrap3, # If you use bootstrap3
    ColumnShiftTableBootstrap4, # If you use bootstrap4
    ColumnShiftTableBootstrap5, # If you use bootstrap5
)
from app.models import MyModel

# By default you probably inherit from django_table2.Table
# Change inherit to ColumnShiftTableBootstrap4
# if you use bootstrap4
class MyModelTable(ColumnShiftTableBootstrap4):
    class Meta:
        model = MyModel

# or if you use bootstrap5
class MyModelTable(ColumnShiftTableBootstrap5):
    class Meta:
        model = MyModel

views.py - In your view, nothing changes:

from .tables import MyModelTable
from .models import MyModel

def simple_list(request):
    queryset = MyModel.objects.all()
    table = MyModelTable(queryset)
    return render(request, 'template.html', {'table': table})

template.html - use default render_table tag to display table object (using bootstrap3 / bootstrap4 / bootstrap5):

{% extends "base.html" %}
{% load django_tables2 %}
{% render_table table %}

JS API:

To retrieve the invisible columns you can use the $.django_tables2_column_shifter_hidden() js API. You can either pass the 0-based index of the table in the page (i.e use $.django_tables2_column_shifter_hidden(1) to get the hidden columns for the 2nd table in the page) or just use it without parameters to retrieve the hidden columns for the first table. This API returns an array with the invisible column names.

These columns can then be used when you want to export only the visible columns, ie when the user clicks on the export button it would append an &excluded_columns=col1,col2 to the export button’s href which would then be used by the django-tables2 TableExporter (http://django-tables2.readthedocs.io/en/latest/pages/export.html#excluding-columns) to exclude these cols, i.e something like

exporter = TableExport(‘csv’, table, exclude_columns=self.request.GET.get(‘excluded_columns’).split(‘,))

Bootstrap2 (support for old projects):

If you use Bootstrap v2 in your project then table class has to inherit from ColumnShiftTableBootstrap2 imported from django_tables2_column_shifter.tables.

Bootstrap3 (support for old projects):

If you use Bootstrap v3 in your project then table class has to inherit from ColumnShiftTableBootstrap3 imported from django_tables2_column_shifter.tables.

Bootstrap4 :

If you use Bootstrap v4 in your project then table class has to inherit from ColumnShiftTableBootstrap4 imported from django_tables2_column_shifter.tables.

Bootstrap5:

If you use Bootstrap v5 in your project then table class has to inherit from ColumnShiftTableBootstrap5 imported from django_tables2_column_shifter.tables.

Warnings:

  • Warning : - If you use {% render_table %} tag with queryset (not table class instance), django-tables2-column-shifter will not be work. Queryset does not have template attribute:

    {% load django_tables2 %}
    {% render_table queryset %} {# not work #}

  • Warning : - If you use a different template than django_tables2_column_shifter/bootstrap*.html to render your table, probably django-tables2-column-shifter will not be work. Your custom template should inherit from django_tables2_column_shifter/bootstrap*.html

  • Warning : - Since version 2.0 the default template is not used for Table class. Moreover template django_tables2_column_shifter/table.html by default inherit from django_tables2_column_shifter/bootstrap4.html

Customizing:

  1. If you use more then one instance of the same Table class, you should use a different prefix for each instance:

    tab1 = MyModelTable(queryset, prefix='tab1')
    tab2 = MyModelTable(queryset, prefix='tab2')
    tab3 = MyModelTable(queryset, prefix='tab3')

  2. To disable shifter mechanism - set False to shift_table_column in your table class (default value is True):

    class MyModelTable(ColumnShiftTableBootstrap5):
       shift_table_column = False
       ...

  3. By default, all columns from sequence are visible, if you want limit visible columns, override method get_column_default_show(self) like that:

    class MyModelTable(ColumnShiftTableBootstrap5):
        def get_column_default_show(self):
            self.column_default_show = ['column1', 'column2']
            return super(MyModelTable, self).get_column_default_show()


Run demo:

  1. Download or clone project from https://github.com/djk2/django-tables2-column-shifter:

    git clone https://github.com/djk2/django-tables2-column-shifter.git

  2. Go to testproject directory:

    cd django-tables2-column-shifter/testproject

  3. Install requirements:

    pip install -r requirements.txt

  4. Run django developing server:

    python manage.py runserver
