napari-harpy 0.0.11

A spatial omics interface for napari.

napari-harpy: a spatial omics interface for napari.

Built around SpatialData and Harpy for interactive exploration, feature extraction, and object classification.

napari-harpy is a napari plugin for viewing, exploring, and analyzing SpatialData datasets. It includes its own viewer for loading and browsing data inside napari, alongside annotation, feature extraction, and interactive object classification workflows.

Installation

Install from PyPI:

pip install napari-harpy

Quickstart

The quickest way to try the plugin is to create a small example SpatialData object, write it to a temporary zarr store, read it back as an on-disk dataset, and launch the Harpy napari interface with Interactive.

import tempfile
from pathlib import Path

from spatialdata import read_zarr

from napari_harpy import Interactive
from napari_harpy.datasets import blobs_multi_region

zarr_path = Path(tempfile.mkdtemp()) / "blobs_multi_region.zarr"

sdata = blobs_multi_region()
sdata.write(zarr_path)

sdata = read_zarr(zarr_path)
Interactive(sdata)

This opens napari with the Harpy widgets docked and the blobs_multi_region dataset available in the shared viewer state.

The current repository contains four working widgets:

• Viewer
• Feature Extraction
• Object Classification
• Annotation

Today the plugin supports:

• loading and viewing SpatialData through the Harpy viewer widget
• selecting a labels element, optional image, compatible coordinate system, and linked table from the shared loaded SpatialData
• calculating intensity and morphology features through Harpy
• writing feature matrices into the selected AnnData table linked to the labels element, as .obsm[feature_key], with companion metadata in .uns["feature_matrices"][feature_key]
• interactive manual annotation of instances in labels elements
• interactive creation and editing of polygon shapes annotations
• background RandomForestClassifier retraining on the selected feature matrix stored in .obsm[feature_key] of the AnnData table linked to the labels element
• live prediction updates and labels recoloring
• explicit write-back of in-memory table state to zarr
• explicit reload of on-disk table state back into memory
• multi-sample workflows through multi-region tables and explicit labels/image/coordinate-system matching
• headless feature extraction and classifier application for scripted or batch processing

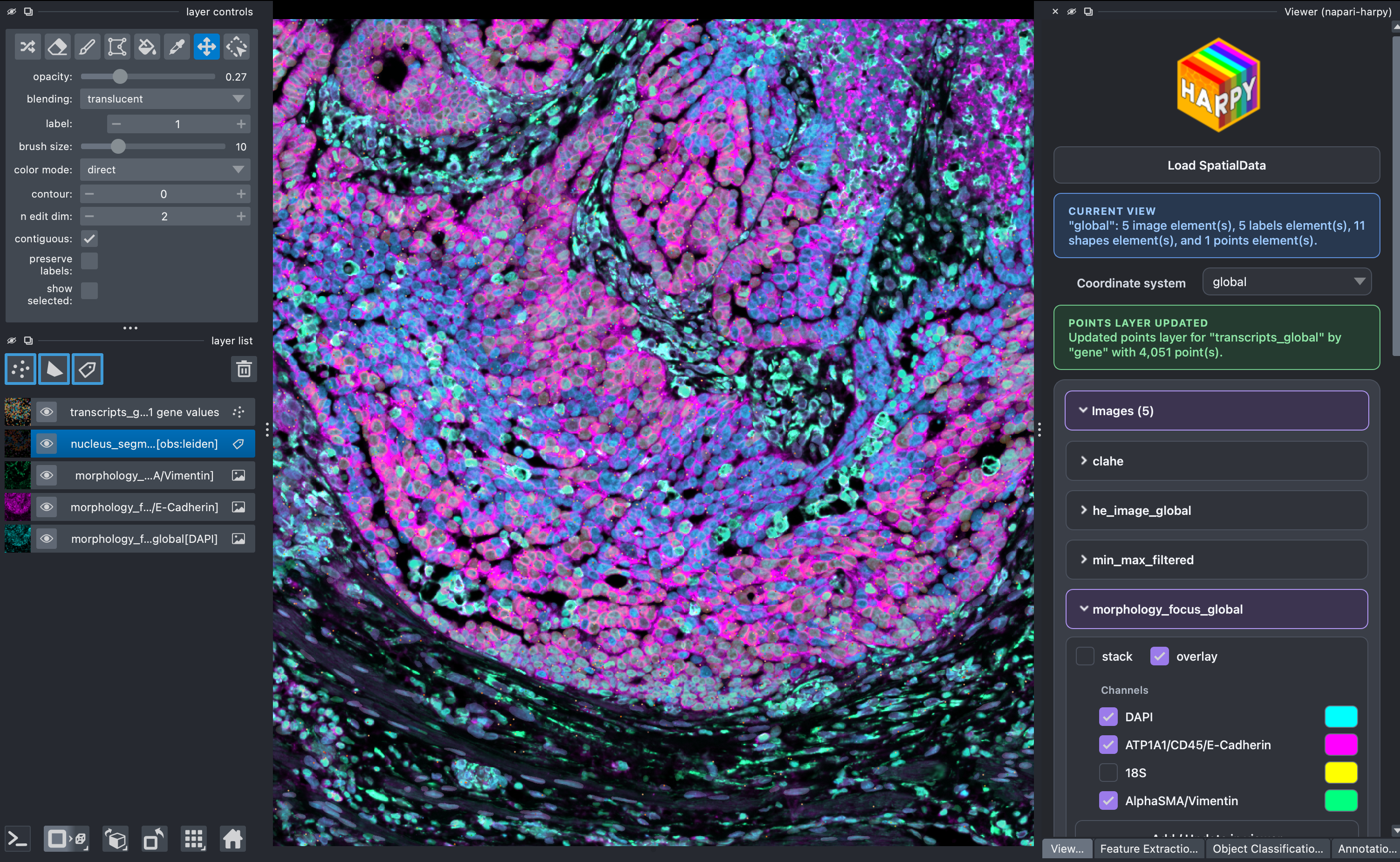

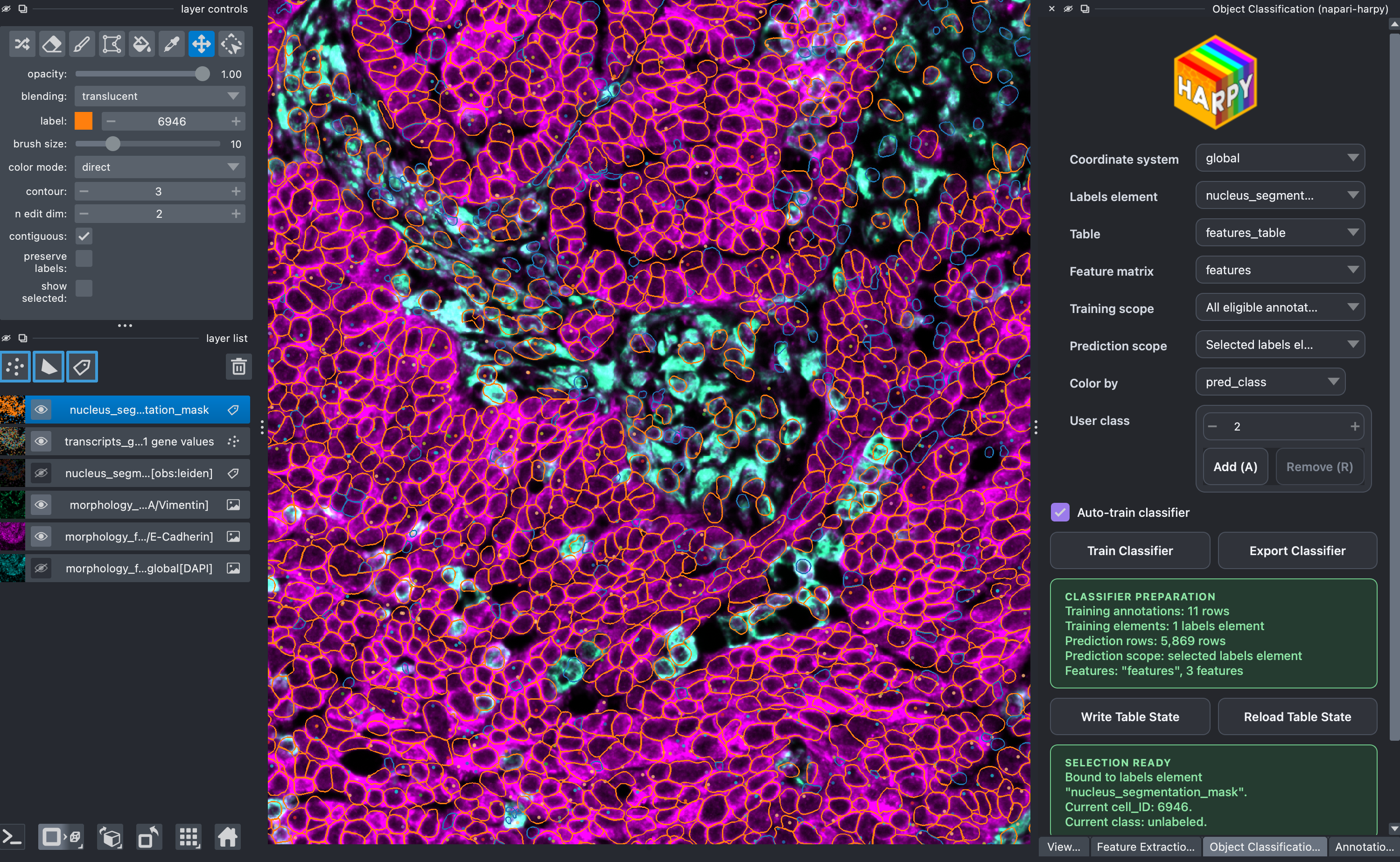

Example napari-harpy session:

Headless and Multi-Sample Workflows

For scripted or batch processing, use the public napari_harpy.headless module. It can apply an exported classifier to an existing feature matrix, or compute the required features before applying the classifier.

The headless APIs accept one labels element or a sequence of labels elements. For multi-sample data, pass matching labels, image, and coordinate-system sequences so Harpy can build or apply a shared table-level feature matrix across the selected samples. When features need image intensities, the channel selection is read from the exported classifier's source_channels metadata.

from spatialdata import read_zarr

from napari_harpy import headless

sdata = read_zarr("experiment.zarr")

result = headless.apply_classifier_with_feature_extraction_from_path(
    sdata,
    "classifier.harpy-classifier.joblib",
    table_name="table_multi",
    labels_name=["sample_1_labels", "sample_2_labels"],
    coordinate_system=["sample_1", "sample_2"],
    image_name=["sample_1_image", "sample_2_image"],
)

Local development

Create the development environment:

./create_env.sh

Then launch napari:

source .venv/bin/activate
napari

Open the widgets from the napari plugin menu:

• Plugins -> napari-harpy -> Viewer
• Plugins -> napari-harpy -> Feature Extraction
• Plugins -> napari-harpy -> Object Classification
• Plugins -> napari-harpy -> Annotation

Debug script

A small local debug script is available at scripts/debug_widget.py.

It creates a temporary blobs_multi_region zarr store, loads it into napari, and docks the Harpy widgets automatically. This is useful for quickly reproducing widget behavior during development.

Run it with:

source .venv/bin/activate
python scripts/debug_widget.py
