OIKAN: Neuro-Symbolic ML for Scientific Discovery

OIKAN: Neuro-Symbolic ML for Scientific Discovery

Overview

OIKAN is a neuro-symbolic machine learning framework inspired by Kolmogorov-Arnold representation theorem. It combines the power of modern neural networks with techniques for extracting clear, interpretable symbolic formulas from data. OIKAN is designed to make machine learning models both accurate and Interpretable.

Important Disclaimer: OIKAN is an experimental research project. It is not intended for production use or real-world applications. This framework is designed for research purposes, experimentation, and academic exploration of neuro-symbolic machine learning concepts.

Key Features

• 🧠 Neuro-Symbolic ML: Combines neural network learning with symbolic mathematics
• 📊 Automatic Formula Extraction: Generates human-readable mathematical expressions
• 🎯 Scikit-learn Compatible: Familiar .fit() and .predict() interface
• 🔬 Research-Focused: Designed for academic exploration and experimentation
• 📈 Multi-Task: Supports both regression and classification problems

Key Aspects

1. Neural Implementation: OIKAN uses a specialized architecture combining:

   • Feature transformation layers with interpretable basis functions
   • Symbolic regression for formula extraction (ElasticNet-based)
   • Automatic pruning of insignificant terms

    class OIKAN:
        def __init__(self, hidden_sizes=[64, 64], activation='relu',
                    polynomial_degree=2, alpha=0.1):
            self.neural_net = TabularNet(input_size, hidden_sizes, activation) # NN for predicting values in Data Augmentation (Additional)
            self.augmented_data = self.augment_data(X, y, augmentation_factor=5) # Generate augmented samples (Additional)
            self.symbolic_regression = SymbolicRegression(alpha=alpha, l1_ratio=0.5) # ElasticNet for symbolic regression (Main part)


2. Basis Functions: Core set of interpretable transformations:

   SYMBOLIC_FUNCTIONS = {
       'linear': 'x',           # Direct relationships
       'quadratic': 'x^2',      # Non-linear patterns
       'cubic': 'x^3',         # Higher-order relationships
       'interaction': 'x_i x_j', # Feature interactions
       'higher_order': 'x^n',    # Polynomial terms
       'trigonometric': 'sin(x)', # Trigonometric functions
       'exponential': 'exp(x)',  # Exponential growth
       'logarithmic': 'log(x)'  # Logarithmic relationships
   }


3. Formula Extraction Process:

   • Train neural network on raw data
   • Generate augmented samples for better coverage
   • Perform ElasticNet-regularization
   • Prune terms with coefficients below threshold
   • Export human-readable mathematical expressions

Quick Start

Installation

Method 1: Via PyPI (Recommended)

pip install -qU oikan

Method 2: Local Development

git clone https://github.com/silvermete0r/OIKAN.git
cd OIKAN
pip install -e .  # Install in development mode

System Requirements

Requirement	Details
Python	Version 3.11 or higher
Operating System	Platform independent (Windows/macOS/Linux)
Memory	Recommended minimum 4GB RAM
Disk Space	~100MB for installation (including dependencies)
GPU	Optional (for faster training)
Dependencies	torch, numpy, scikit-learn, sympy, tqdm

Regression Example

Suggestion: Please ensure that the data is normalized using standard scaling (or another suitable normalization method), as ElasticNet assumes that the model intercept has already been accounted for.

from oikan import OIKANRegressor
from sklearn.metrics import mean_squared_error

# Initialize model
model = OIKANRegressor(
    hidden_sizes=[32, 32], # Hidden layer sizes
    activation='relu', # Activation function (other options: 'tanh', 'leaky_relu', 'elu', 'swish', 'gelu')
    augmentation_factor=5, # Augmentation factor for data generation (default: 1)
    alpha=1.0, # ElasticNet regularization strength (Symbolic regression)
    l1_ratio=0.5, # ElasticNet mixing parameter (0 <= l1_ratio <= 1). 0 is equivalent to Ridge regression, 1 is equivalent to Lasso (Symbolic regression)
    sigma=5, # Standard deviation of Gaussian noise for data augmentation
    top_k=5, # Number of top features to select (Symbolic regression)
    epochs=100, # Number of training epochs
    lr=0.001, # Learning rate
    batch_size=32, # Batch size for training
    verbose=True, # Verbose output during training
    evaluate_nn=True, # Validate neural network performance before full process
    random_state=42 # Random seed for reproducibility (default: 42)
)

# Fit the model
model.fit(X_train, y_train)

# Make predictions
y_pred = model.predict(X_test)

# Evaluate performance
mse = mean_squared_error(y_test, y_pred)
print("Mean Squared Error:", mse)

# Get symbolic formula
formula = model.get_formula() # default: type='original' -> returns all formula without pruning | other options: 'sympy' -> simplified formula using sympy; 'latex' -> LaTeX format
print("Symbolic Formula:", formula)

# Get feature importances
importances = model.feature_importances()
print("Feature Importances:", importances)

# Save the model (optional)
model.save("outputs/model.json")

# Load the model (optional)
loaded_model = OIKANRegressor()
loaded_model.load("outputs/model.json")

Example of the saved symbolic formula (regression model): outputs/california_housing_model.json

Classification Example

Suggestion: Please ensure that the data is normalized using standard scaling (or another suitable normalization method), as ElasticNet assumes that the model intercept has already been accounted for.

from oikan import OIKANClassifier
from sklearn.metrics import accuracy_score

# Initialize model
model = OIKANClassifier(
    hidden_sizes=[32, 32], # Hidden layer sizes
    activation='relu', # Activation function (other options: 'tanh', 'leaky_relu', 'elu', 'swish', 'gelu')
    augmentation_factor=10, # Augmentation factor for data generation (default: 1)
    alpha=1.0, # ElasticNet regularization strength (Symbolic regression)
    l1_ratio=0.5, # ElasticNet mixing parameter (0 <= l1_ratio <= 1). 0 is equivalent to Ridge regression, 1 is equivalent to Lasso (Symbolic regression)
    sigma=5, # Standard deviation of Gaussian noise for data augmentation
    top_k=5, # Number of top features to select (Symbolic regression)
    epochs=100, # # Number of training epochs
    lr=0.001, # Learning rate
    batch_size=32, # Batch size for training
    verbose=True, # Verbose output during training
    evaluate_nn=True, # Validate neural network performance before full process
    random_state=42 # Random seed for reproducibility (default: 42)
)

# Fit the model
model.fit(X_train, y_train)

# Make predictions
y_pred = model.predict(X_test)

# Evaluate performance
accuracy = model.score(X_test, y_test)
print("Accuracy:", accuracy)

# Get symbolic formulas for each class
formulas = model.get_formula() # default: type='original' -> returns all formula without pruning | other options: 'sympy' -> simplified formula using sympy; 'latex' -> LaTeX format
for i, formula in enumerate(formulas):
    print(f"Class {i} Formula:", formula)

# Get feature importances
importances = model.feature_importances()
print("Feature Importances:", importances)

# Save the model (optional)
model.save("outputs/model.json")

# Load the model (optional)
loaded_model = OIKANClassifier()
loaded_model.load("outputs/model.json")

Example of the saved symbolic formula (classification model): outputs/iris_model.json

Architecture Diagram

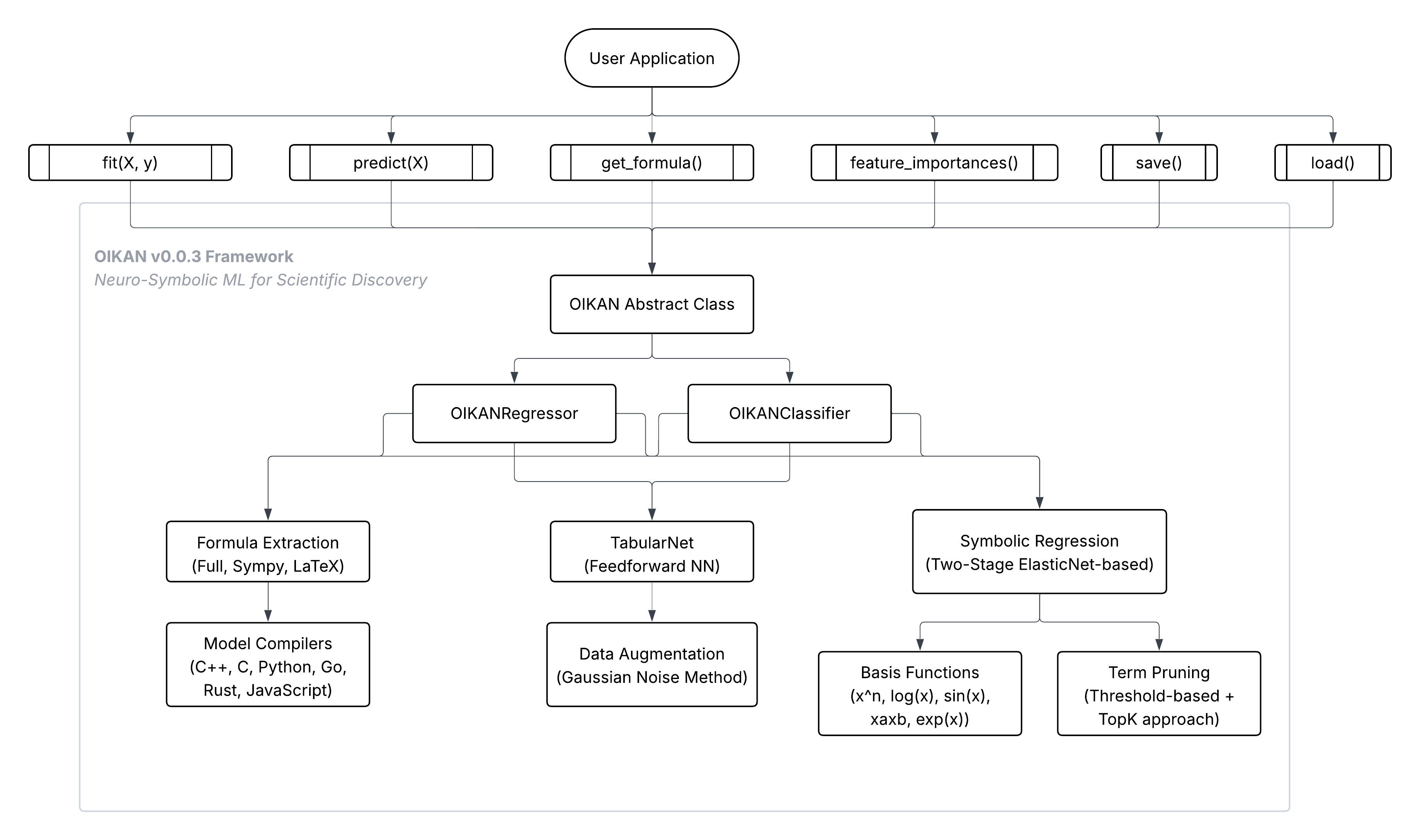

High-Level Architecture:

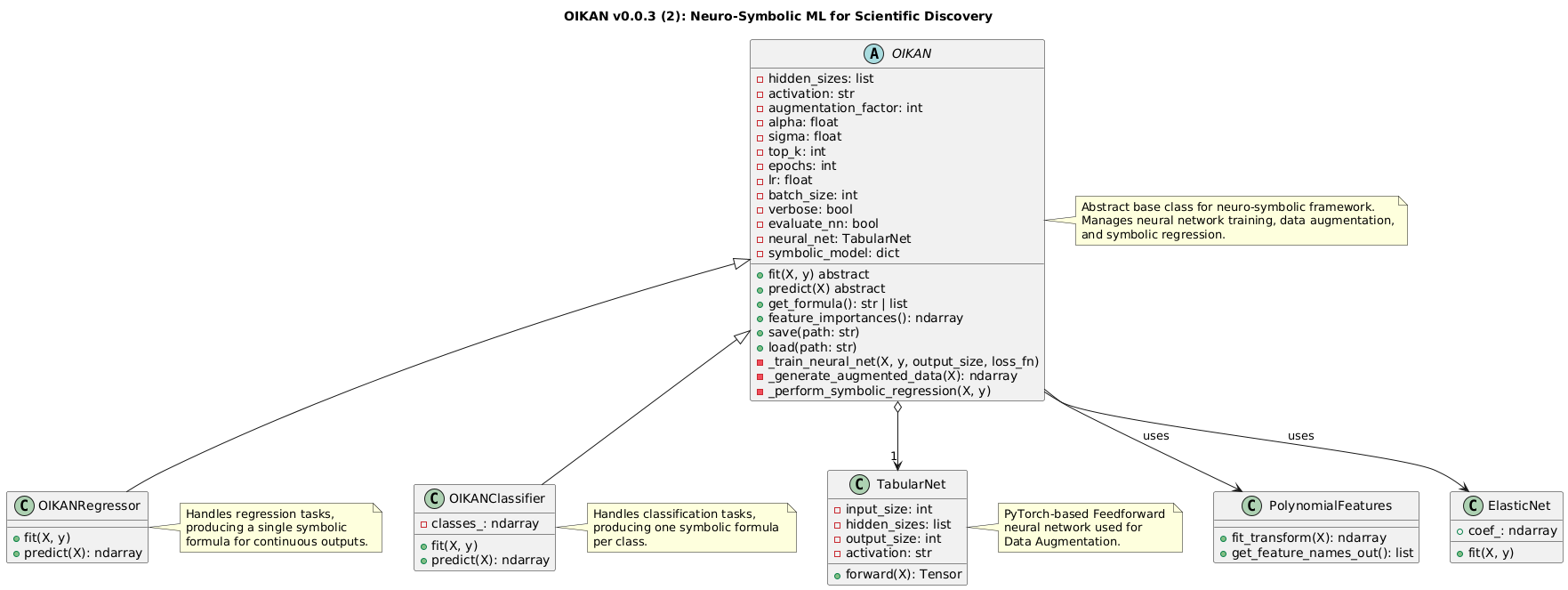

UML Diagram:

OIKAN Symbolic Model Compilers

OIKAN provides a set of symbolic model compilers to convert the symbolic formulas generated by the OIKAN model into different programming languages.

Currently, we support: Python, C++, C, JavaScript, Rust, and Go. This allows users to easily integrate the generated formulas into their applications or systems.

All compilers: model_compilers/

Example of Python Compiler

1. Regression Model:

import numpy as np
import json

def predict(X, symbolic_model):
    X = np.asarray(X)
    X_transformed = evaluate_basis_functions(X, symbolic_model['basis_functions'],
                                            symbolic_model['n_features'])
    return np.dot(X_transformed, symbolic_model['coefficients'])

if __name__ == "__main__":
    with open('outputs/california_housing_model.json', 'r') as f:
        symbolic_model = json.load(f)
    X = np.random.rand(10, symbolic_model['n_features'])
    y_pred = predict(X, symbolic_model)
    print(y_pred)

2. Classification Model:

import numpy as np
import json

def predict(X, symbolic_model):
    X = np.asarray(X)
    X_transformed = evaluate_basis_functions(X, symbolic_model['basis_functions'],
                                            symbolic_model['n_features'])
    logits = np.dot(X_transformed, np.array(symbolic_model['coefficients_list']).T)
    probabilities = np.exp(logits) / np.sum(np.exp(logits), axis=1, keepdims=True)
    return np.argmax(probabilities, axis=1)

if __name__ == "__main__":
    with open('outputs/iris_model.json', 'r') as f:
        symbolic_model = json.load(f)
    X = np.array([[5.1, 3.5, 1.4, 0.2],
                  [7.0, 3.2, 4.7, 1.4],
                  [6.3, 3.3, 6.0, 2.5]])
    y_pred = predict(X, symbolic_model)
    print(y_pred)

Contributing

We welcome contributions! Key areas of interest:

• Model architecture improvements
• Novel basis function implementations
• Improved symbolic extraction algorithms
• Real-world case studies and applications
• Performance optimizations

Please see CONTRIBUTING.md for guidelines.

Citation

If you use OIKAN in your research, please cite:

@software{oikan2025,
  title = {OIKAN: Neuro-Symbolic ML for Scientific Discovery},
  author = {Zhalgasbayev, Arman},
  year = {2025},
  url = {https://github.com/silvermete0r/OIKAN}
}

License

This project is licensed under the MIT License - see the LICENSE file for details.
