CytoDataFrame

CytoDataFrame extends Pandas functionality to help display single-cell profile data alongside related images.

CytoDataFrame is an advanced in-memory data analysis format designed for single-cell profiling, integrating not only the data profiles but also their corresponding microscopy images and segmentation masks. Traditional single-cell profiling often excludes the associated images from analysis, limiting the scope of research. CytoDataFrame bridges this gap, offering a purpose-built solution for comprehensive analysis that incorporates both the data and images, empowering more detailed and visual insights in single-cell research.

CytoDataFrame is best suited for work within Jupyter notebooks. With CytoDataFrame you can:

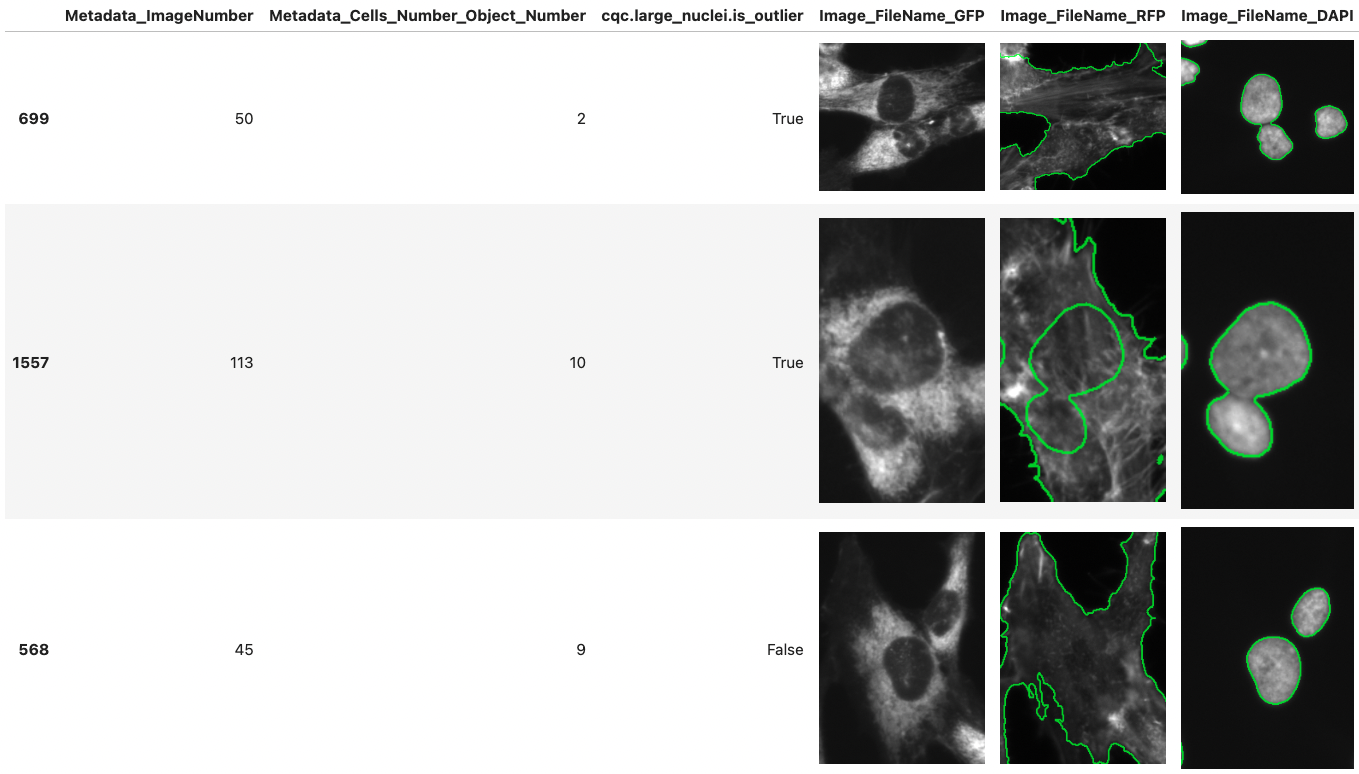

• View image objects alongside their feature data using a Pandas DataFrame-like interface.
• Highlight image objects using mask or outline files to understand their segmentation.
• Merge multiple channels into a single single-cell crop composite (similar to a Fiji composite) with display_options={"composite_channels": "all"} or a per-channel color mapping such as display_options={"composite_channels": {"OrigDNA": "cyan", "OrigRNA": "#ff00ff"}} (colors may be names, hex codes, or RGB tuples; cyan/magenta/yellow read more clearly than red/green/blue where channels overlap). A color legend is shown with the table, and display_options={"equalize_clip_limit": 0.01} gives a milder, less over-saturated result.
• Adjust image displays on-the-fly using interactive slider widgets.
• Display image objects even when bounding box columns are missing, by cropping from compartment-center offsets or rendering whole fields of view.
• Automatically detect 3D image volumes and render interactive trame views in notebooks when 3D dependencies are installed (with graceful fallback otherwise).

For 3D notebook display behavior:

• 3D-aware rendering is enabled by default (display_options={"auto_trame_for_3d": True}).
• Disable automatic trame switching with display_options={"auto_trame_for_3d": False}.
• Force trame layout regardless of auto-detection with display_options={"view": "trame"}.

For images without bounding box columns (e.g. older CellProfiler outputs or image-level data):

• Crop from compartment-center coordinates plus pixel offsets with display_options={"offset_bounding_box": {"x_min": -20, "y_min": -20, "x_max": 20, "y_max": 20}} (requires compartment center columns such as Nuclei_Location_Center_X/Y).
• Render the full field of view without cropping with display_options={"render_whole_image": True} (works even with no bounding box and no center columns).

For row display in notebook/widget tables:

• CytoDataFrame respects pandas display settings (display.max_rows, display.min_rows).
• When the table is larger than display.max_rows, the widget table inserts a midpoint ellipsis row (…) to indicate omitted rows.
• You can control truncation behavior by changing pandas display options before rendering.

📓 Want to see CytoDataFrame in action? Check out our example notebook for a quick tour of its key features.

✨ CytoDataFrame development began within coSMicQC - a single-cell profile quality control package. Please check out our work there as well!

Installation

Install CytoDataFrame from source using the following:

# install from pypi
pip install cytodataframe

# or install directly from source
pip install git+https://github.com/cytomining/CytoDataFrame.git

Contributing, Development, and Testing

Please see our contributing documentation for more details on contributions, development, and testing.

References

• coSMicQC
• pycytominer
• CellProfiler
• CytoTable
