v_ase combines ASE's convenient terminal and Python workflow with the flexibility of direct 3D structure manipulation. Open structures and trajectories with one command, inspect or measure them in a local browser, edit atoms when needed, and export publication or CAD-ready results.

Phosphorene nanoribbon manipulation

The example above turns a literature-derived phosphorene nanosheet into a twisted nanoribbon. Each crystallographic slice is rotated around its own center of mass in 15 degree steps while bonds remain visible.

Quick Start

Install from PyPI:

python -m pip install v_ase-gui

Or install the current GitHub source:

git clone https://github.com/lgyEthan/v_ase.git
cd v_ase
python -m pip install -e .

Start an empty workspace or open a file:

v_ase gui
v_ase gui FILE

Examples:

v_ase gui POSCAR
v_ase gui trajectory.extxyz
v_ase gui relaxation.traj
v_ase gui project.vase

The default View mode is optimized for visualization, trajectories, measurement, appearance, bonds, supercells, and export. Use the top-bar mode switch or start directly in Edit when atomic coordinates must change:

v_ase gui structure.vasp --interactive

No Node.js installation or hosted account is required. Closing the v_ase browser document releases the blocking terminal process.

Everyday Workflow

Goal	Action
Inspect a structure	Middle-drag to orbit, wheel to zoom, left-click to select
Edit coordinates	Enter Edit, select atoms, press `Esc` to focus the viewport, then use `G` or `R`
Measure geometry	Select 2, 3, or 4 atoms in the required order
Play a trajectory	Use the bottom timeline or `Space`; FPS and Skip update live
Style a figure	Use Structure > Appearance/Bonding and View
Repeat or wrap a cell	Use Structure > Cell & Replication
Save the whole session	Use Export > Save Project to create a self-contained `.vase`
Reuse only the visual style	Use Export > Save Settings
Hand the scene to an AI	Launch with `--for-ai` and provide the bundled agent skill

Viewport tip: after selecting atoms, press Esc to close the control panel before using G or R. The selection is preserved and keyboard focus returns to the 3D viewport.

AI And Agent Use

v_ase exposes atomistic state directly to an AI agent. The agent can read elements, labels, coordinates, cell, PBC, constraints, trajectory frames, measurements, camera, bonds, materials, and render settings without repeatedly interpreting screenshots.

Start a machine-readable session:

v_ase gui STRUCTURE --for-ai

The first output line is a JSON handshake containing:

the normal GUI URL for human takeover;
semantic state and command-schema URLs;
the live window.v_aseAI browser API;
the installed path and HTTP URL for the agent skill.

An agent can configure and verify the structure, camera, lighting, analysis, and export state, render the final image, then give the same live document back to the user for manual refinement.

Teach An Agent v_ase

Use the complete v_ase agent skill, not only its first page. The compatibility link skills_v_ase.md resolves to the same canonical skill. The folder contains:

SKILL.md: triggers, workflow, safety rules, and verification gates;
references/semantic-api.md: supported state, edit, camera, render, and export commands;
references/workflows-and-examples.md: complete working recipes;
references/safety-and-errors.md: destructive actions and recovery;
references/evaluation.md: end-to-end tests an agent should run.

For an AI client that supports skill folders, place the entire visualizing-atomic-structures-with-v-ase directory in that client's skills directory. For example:

# Codex
cp -R v_ase/skills/visualizing-atomic-structures-with-v-ase "$CODEX_HOME/skills/"

# Claude Code, from a project root
mkdir -p .claude/skills
cp -R v_ase/skills/visualizing-atomic-structures-with-v-ase .claude/skills/

For clients without a skill loader, provide SKILL.md and the relevant one-level references/ files in the agent context. The contract is vendor-neutral; it does not require an OpenAI or Anthropic API.

Structure Manipulation

Phosphorene Nanoribbon

The main example starts from a puckered black-phosphorene unit cell, repeats it into a one-layer nanosheet, and rotates each successive crystallographic slice by 15 degrees around the ribbon axis through that slice's center of mass.

Try the exact assets:

v_ase gui examples/readme_scene_assets/phosphorene_nanosheet.cif --interactive

To reproduce the operation, select one crystallographic slice, set Rotate pivot to Selection COM, press R, lock the ribbon axis with X, type 15, and confirm. Repeat for neighboring slices with the required signed angle.

The source coordinates are converted directly from the black-phosphorene cell and positions reported in the supporting information of Villegas et al.. The puckered anisotropic structure is consistent with the black-phosphorus description in Qiao et al., Nature Communications 5, 4475 (2014). This example demonstrates deterministic manipulation; it is not presented as an energy-minimized nanoribbon.

Rotation References

Every atom rotation displays three references through the selected pivot:

axis line: the actual rotation axis;
neutral start line: the direction at the moment R started;
amber current line: the direction after the current rotation.

For periodic 2D matching, additional cyan candidate lines show low-boundary- strain commensurate angles. Candidate guides remain visually separate from the start and current references. Magnetic snapping is optional.

Graphene/hBN Commensurate Rotation

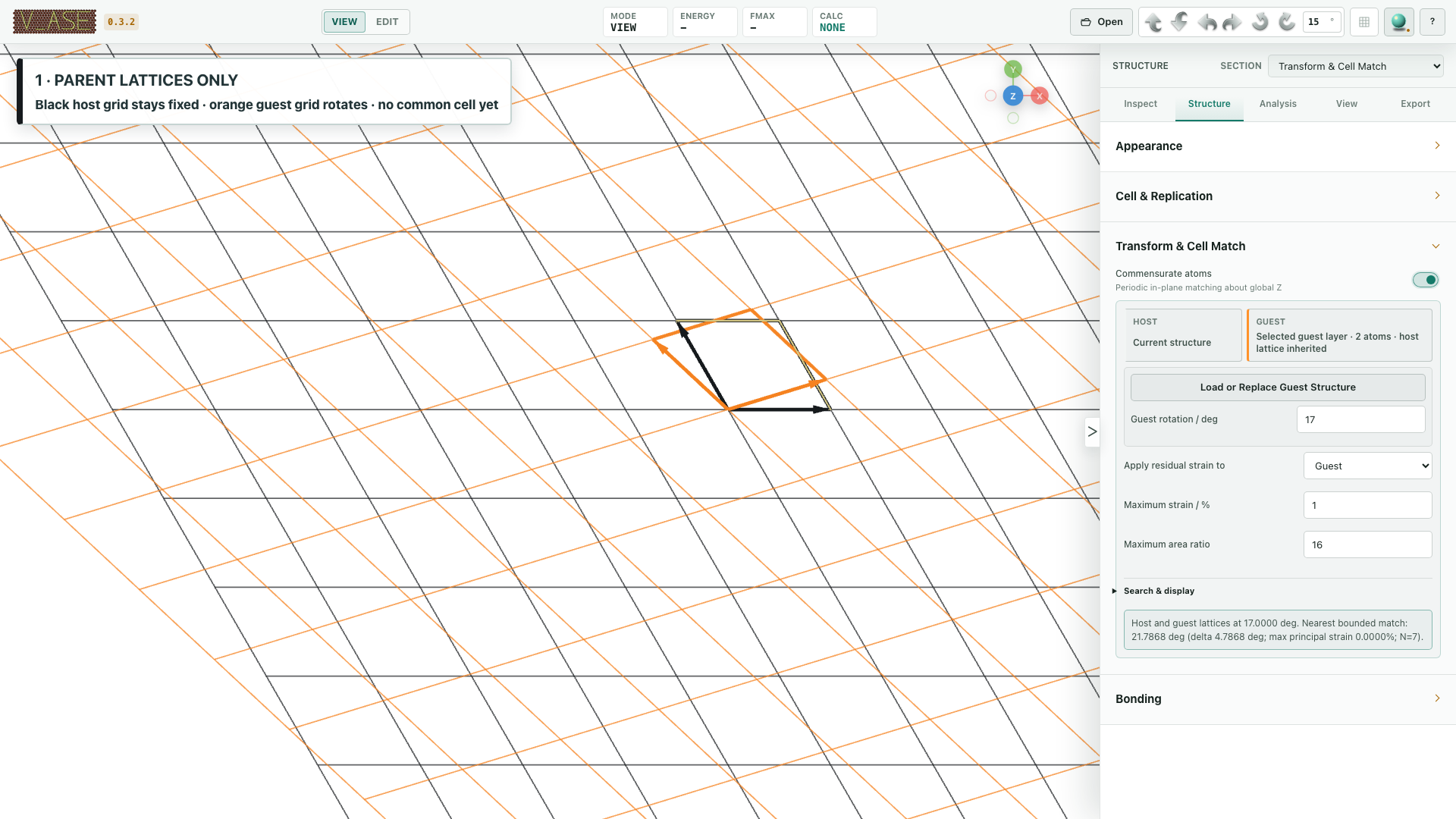

Graphene hBN commensurate guide

Open the included stack, select the hBN layer, then use R, Z. The guide searches reproducible integer cell matches and labels candidate angle/strain pairs; enabling Magnetic angle snap pulls the current rotation into the selected tolerance.

v_ase gui examples/readme_scene_assets/graphene_hbn_commensurate.traj --interactive

The normal R operation edits selected atoms. Cell Transform is a different operation that applies an integer matrix to the periodic cell and all trajectory frames. The equations and assumptions are documented in unit_cell_aware_rotate.md.

Measurement And Analysis

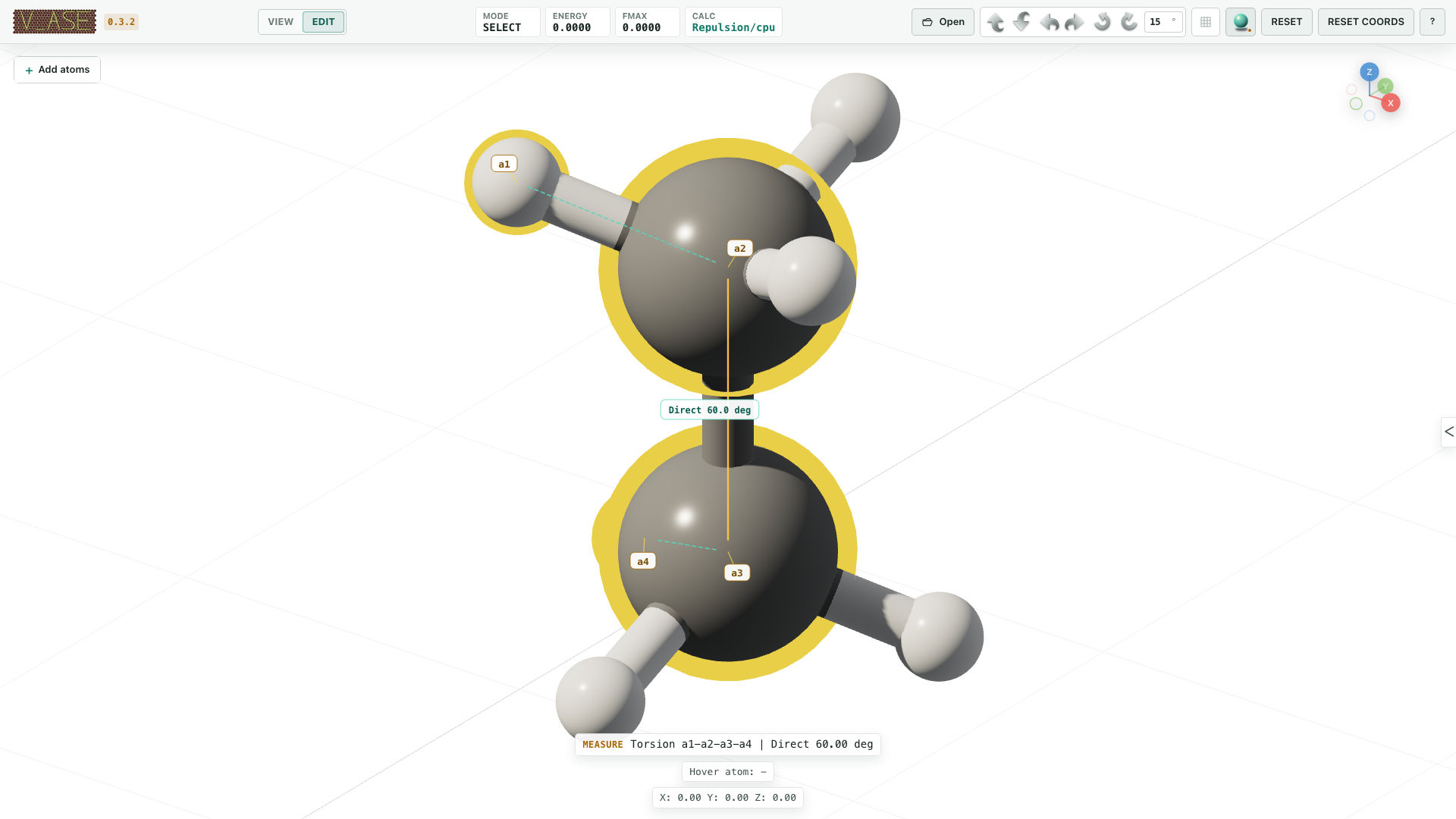

Ordered atom measurement

Select atoms in order:

1 atom: element, label, position, force, charge, tag, and magnetic moment;
2 atoms: direct distance and minimum-image distance;
3 atoms: angle a1-a2-a3, centered on a2;
4 atoms: signed torsion a1-a2-a3-a4;
5 or more atoms: total and per-label selection counts.

The ordered reference labels a1 through a4 are separate from atom indices. Hovered-atom information is also separate, so a saved measurement remains visible while the pointer moves.

Try the measurement scene:

v_ase gui examples/readme_scene_assets/ethane_measurement.cif

Analysis adds displacement vectors for trajectories. Choose the previous frame or a specific reference frame, toggle minimum-image correction, and style the vectors as 3D or flat 2D arrows. Displayed supercells repeat the vectors, and a visual translation moves both endpoints without changing the physical displacement.

Constraints

ASE remains authoritative when Apply constraints is enabled. Constraint visualization is local to each atom rather than merged at a group center.

FixedLine

A compact cyan collar and local axis remain visible without selection. During G, ASE restricts the atom to that line.

FixedLine movement

v_ase gui examples/readme_scene_assets/fixedline.traj --interactive

FixedPlane And FixScaled

Each constrained atom keeps its own local ring, crosshair, and normal marker. When G starts, a larger translucent guide plane appears at that atom's original position so the permitted surface remains visible while the atom moves. Multiple selected atoms retain independent planes; no center-of-mass plane is substituted.

VASP selective dynamics read as FixScaled are displayed from their allowed fractional directions.

FixedPlane movement and guide plane

v_ase gui examples/readme_scene_assets/fixedplane.traj --interactive

FixAtoms

Fixed atoms keep their element color but use a distinct constrained surface treatment. They remain identifiable without looking selected.

Hookean

Hookean constraints show their inactive cutoff and engaged state separately. After the constrained distance passes rt, a shaded 3D helical spring appears between the constrained atoms.

Hookean constraint

Hookean motion

v_ase gui examples/readme_scene_assets/hookean.traj --interactive

Relaxation

Repulsive relaxation trajectory

Structure > Relaxation places every optimization step on a dedicated timeline. A single loaded structure gains a relaxation movie after the first run. If a source trajectory is already open, source and relaxation timelines remain separate and the active timeline is clearly selected.

The included example starts from a deliberately compressed C60 geometry and runs ASE FIRE with v_ase's repulsive fallback calculator:

v_ase gui examples/readme_scene_assets/crowded_c60_initial.cif --interactive

The fallback calculator is intended for removing obvious close contacts, not for predictive chemistry. Its cutoff scale and strength are editable. Attach a scientific ASE calculator when the optimized energy or forces will be used as physical results.

Trajectories

Multi-frame inputs add a timeline below the viewport. Scrubbing updates the frame continuously, selected atom indices persist when topology permits, FPS changes apply during playback, and Skip advances by skip + 1 source frames per tick.

Bond topology is evaluated for each frame, so bonds form or break when a pair crosses its cutoff. Appearance, pair settings, supercell display, camera, and analysis settings remain active across the movie.

Video export uses FPS as playback speed. Optional N x interpolation creates (source_frames - 1) * N + 1 output frames. Minimum-image interpolation uses periodic cells to avoid jumps across a boundary. Interpolation takes longer because more frames are rendered.

Appearance, Bonds, And Rendering

Structure > Appearance controls each stable atom label:

ASE chemical TYPE and independent visual label;
visibility and selection availability;
color and radius;
Standard, Metal, or Rubber material;
all/partial/none selection checkbox.

View mode applies appearance by label. Edit mode can keep per-atom material overrides. Relabeling does not reorder the table or merge otherwise distinct atom types accidentally.

Pairwise bond settings

Structure > Bonding provides automatic inference, explicit label-pair cutoffs, and manual index pairs. A pair cutoff of zero disables that pair. Changes apply immediately. Bonds support:

cell-local or periodic minimum-image display;
cylinder or flat 2D geometry;
custom color or two half-bonds using the atom colors;
configurable diameter;
live formation and breaking during Edit transforms.

View controls projection, atomic scale, anti-aliasing, sphere smoothness, background, 2D/3D display, grid, axes, unit cell, overlays, and cell material. New documents use orthographic projection and a true-white background.

The top-bar renderer switches between fast modeling light and Sun/soft-shadow rendering. Sun source, target, intensity, and direction can be manipulated in the viewport and carried into Blender export.

Export And Save

Command	Result
Export POSCAR	Current physical ASE structure in VASP format
Export ASE Pickle	ASE `Atoms`, labels, constraints, arrays, and a valid `SinglePointCalculator`
Export Image	Lossless WebP or optimized PNG from the exact preview frame
Export Video	H.264 MOV or MPEG-4 AVI with optional interpolation
Export Blender	Optimized scene script with atoms, bonds, cell, camera, and Sun
Export 3DM	Instanced Rhino geometry, metadata, and saved camera views
Export OBJ	OBJ/MTL, camera, and metadata in a ZIP
Save Project	Self-contained `.vase` with structure/trajectory and visual state
Save Settings	Reusable visual settings without coordinates

The Preview Area is the authoritative image/video frame. Its aspect ratio, camera, crop, lighting, atom scale, and included overlays match the export. Cell, grid, axes, and background can be included or excluded independently.

The system save picker is opened before expensive rendering or scene generation when the browser supports it. Canceling the picker cancels the export.

.vase is self-contained and does not reference the original input file. Opening an ordinary structure in an existing tab keeps the current visual settings; opening .vase restores the saved project.

Rhino export requires the optional dependency:

python -m pip install "v_ase-gui[rhino]"

OBJ export has no optional Python dependency.

Documents And File Opening

The top-bar Open button starts with the operating system file picker. A selected file can:

replace the active document;
append structures to its current trajectory;
open in a new independent v_ase tab.

The + beside the document tabs creates an empty independent document. Each tab owns its structure, trajectory, camera, selection, history, settings, calculator, and .vase output.

Adding .vase to an existing trajectory imports only its structures and keeps the current tab's visual state. Replacing a tab or opening a new one restores the complete .vase project.

Python

from ase.build import molecule
from v_ase.visualize import view

atoms = molecule("H2O")
view(atoms)  # View mode

Return an edited ASE object:

edited = view(atoms, viz_only=False)
print(edited.positions)

view() accepts one ASE Atoms, a sequence of frames, or a supported file path. view_edit() remains a compatibility alias for Edit mode.

File Formats

Common inputs include POSCAR/CONTCAR, VASP files, XDATCAR, vasprun.xml, XYZ/extxyz, ASE .traj, LAMMPS dump/data, CIF, and .vase. ASE readers cover additional formats.

Use --format when an ambiguous filename does not identify the reader:

v_ase gui ABCD --format POSCAR
v_ase gui ABCD --format vasprun.xml
v_ase gui ABCD --format lammpstrj
v_ase gui ABCD --format data

Use --index : for every frame, --index -1 for the last frame, or an integer for one frame.

Repeated POSCAR/CONTCAR species blocks remain separate visual labels. For example, O Cu O with counts 1 14 5 becomes O1, Cu, and O2 while all oxygen atoms remain ASE element O.

Controls

Input	Action
Left click / Shift + click	Select / extend selection
Left drag	Box select
Middle drag	Orbit without inertia
Shift + middle drag	Pan
Wheel	Zoom
`G` / `R`	Move / rotate selected atoms
`X`, `Y`, `Z` during `G`/`R`	Lock transform axis
`X`, `Y`, `Z` otherwise	Align camera to an axis
Number keys	Exact move distance or rotation angle
`Enter` or left click	Confirm transform
`Esc` or right click	Cancel transform
`Ctrl+C`, `Ctrl+V`	Copy and paste atoms
`Ctrl+Z`, `Ctrl+Shift+Z`	Undo and redo structure or camera changes
`Delete` / `Backspace`	Delete selected atoms
`Space`	Play or pause the active timeline
Left / Right Arrow	Previous / next frame in the active timeline
`Tab` or `Esc`	Open a collapsed control panel
`Esc` with the panel open	Close it and return focus to the viewport

The ? button contains the complete shortcut table.

Remote Servers

Install v_ase on both the local computer and remote host, then run one command locally:

v_ase gui USER@SERVER:/absolute/path/to/STRUCTURE

An SSH config alias works:

v_ase gui physics:/absolute/path/to/trajectory.extxyz

v_ase selects private ports automatically, starts the backend beside the remote file, creates the SSH tunnel, and opens the local browser. The source file and full trajectory cache remain on the server; only the current frame data required for local Three.js rendering crosses the tunnel. Use ProxyJump in ~/.ssh/config when a login node is required.

Troubleshooting

v_ase command is not found

Install and run with the same Python environment:

python -m pip install --upgrade v_ase-gui
python -m v_ase.cli --version

If the module command works but the console command does not, reactivate the environment or add its Python scripts directory to PATH.

The browser does not open, or WSL prints gio: ... Operation not supported

The terminal also prints the complete local URL. Ctrl+click it or copy the text beginning with http:// into Chrome, Edge, Firefox, or another browser. Keep the terminal process running.

Example with sensitive session identifiers masked:

(base) giyeok@DESKTOP-XXXX:~$ v_ase gui
gio: http://127.0.0.1:58039/workspace?workspace_id=xxxx&session_id=xxxx: Operation not supported

For better WSL performance, keep trajectories under the Linux filesystem rather than /mnt/c/....

A file is detected with the wrong format

Force the reader:

v_ase gui FILE --format POSCAR
v_ase gui FILE --format vasprun.xml
v_ase gui FILE --format lammpstrj
v_ase gui FILE --format data

Replicated supercell atoms cannot be selected

In Edit, displayed replicas are noneditable previews. Use Set Supercell as Cell to create real ASE atoms and an editable larger cell. In View, displayed replicas are selectable and participate in center, distance, and other measurements.

Video export is unavailable or slow

Video export requires at least two frames and browser MediaRecorder support. MOV/AVI conversion uses the bundled imageio-ffmpeg. Interpolation renders additional frames and requires stable atom count, element, label, and ordering between adjacent source frames.

A large trajectory opens or plays slowly

Keep the default View mode unless editing is required.
Use --stream-frames when frame data should be loaded on demand.
Keep browser hardware acceleration enabled.
Close unused v_ase tabs; inactive tabs pause rendering but retain document state in memory.
In WSL, keep data in the Linux filesystem.

Installation fails while pip checks an unrelated package version

A package version reported as None usually belongs to a different incomplete or manually installed distribution in that environment. Run python -m pip check, repair that distribution, or use a clean environment:

python -m venv .venv
python -m pip install --upgrade pip
python -m pip install v_ase-gui

Run v_ase --help or v_ase gui --help for all CLI options. Report reproducible problems at GitHub Issues.

Download files

Download the file for your platform. If you're not sure which to choose, learn more about installing packages.

Source Distribution

v_ase_gui-0.0.103.tar.gz (65.6 MB view details)

Uploaded Jul 28, 2026 Source

Built Distribution

If you're not sure about the file name format, learn more about wheel file names.

The dropdown lists show the available interpreters, ABIs, and platforms. Enable javascript to be able to filter the list of wheel files.

v_ase_gui-0.0.103-py3-none-any.whl (7.1 MB view details)

Uploaded Jul 28, 2026 Python 3

File details

Details for the file v_ase_gui-0.0.103.tar.gz.

File metadata

Download URL: v_ase_gui-0.0.103.tar.gz
Upload date: Jul 28, 2026
Size: 65.6 MB
Tags: Source
Uploaded using Trusted Publishing? No
Uploaded via: twine/6.2.0 CPython/3.11.0

File hashes

Hashes for v_ase_gui-0.0.103.tar.gz
Algorithm	Hash digest
SHA256	`0e5a419cb6f41193fa82ae25430998654d237761a779c54868c4ff8a418d78c2`
MD5	`d1cb34e9a87e5079af506f30bd95a97c`
BLAKE2b-256	`45c3a0119f39e33484d5cb9661fae9f50cc355951769bf7a7526d9ce2bf625e6`

See more details on using hashes here.

File details

Details for the file v_ase_gui-0.0.103-py3-none-any.whl.

File metadata

Download URL: v_ase_gui-0.0.103-py3-none-any.whl
Upload date: Jul 28, 2026
Size: 7.1 MB
Tags: Python 3
Uploaded using Trusted Publishing? No
Uploaded via: twine/6.2.0 CPython/3.11.0

File hashes

Hashes for v_ase_gui-0.0.103-py3-none-any.whl
Algorithm	Hash digest
SHA256	`9a481e8f75f6e50c544c4476569df5049bef9b5c0c30bfec4456fccd2d7b5de1`
MD5	`dd96b1ef76f57e51bae183a830c54107`
BLAKE2b-256	`8ec6319d7e64f73b61d86433654e710c21e7dd52914bf9ea3612fc119576f985`
