lets-plot 4.3.0

An open source library for statistical plotting

Lets-Plot

Lets-Plot is a multiplatform plotting library built on the principles of the Grammar of Graphics.

The library' design is heavily influenced by Leland Wilkinson work The Grammar of Graphics describing the deep features that underlie all statistical graphics.

This grammar [...] is made up of a set of independent components that can be composed in many different ways. This makes [it] very powerful because you are not limited to a set of pre-specified graphics, but you can create new graphics that are precisely tailored for your problem.

• Hadley Wickham, "ggplot2: Elegant Graphics for Data Analysis"

Grammar of Graphics for Python

A bridge between R (ggplot2) and Python data visualization.
To learn more see the documentation site at lets-plot.org.

Grammar of Graphics for Kotlin

Notebooks

Create plots in Kotlin Notebook, Datalore, Jupyter with Kotlin Kernel
or any other notebook that supports Kotlin Kernel.
To learn more see the Lets-Plot Kotlin API project at GitHub.

Compose Multiplatform

Embed Lets-Plot charts in Compose Multiplatform applications.
To learn more see the Lets-Plot Skia Frontend project at GitHub.

JVM and Kotlin/JS

Embed Lets-Plot charts in JVM (Swing, JavaFX) and Kotlin/JS applications.
To learn more see the Lets-Plot Kotlin API project at GitHub.

"Lets-Plot in SciView" plugin

Scientific mode in PyCharm and in IntelliJ IDEA provides support for interactive scientific computing and data visualization.

Lets-Plot in SciView plugin adds support for interactive plotting to IntelliJ-based IDEs with the Scientific mode enabled.

Note: The Scientific mode is NOT available in communinty editions of JetBrains IDEs.

Also read:

• Scientific mode in PyCharm
• Scientific mode in IntelliJ IDEA

What is new in 4.3.0

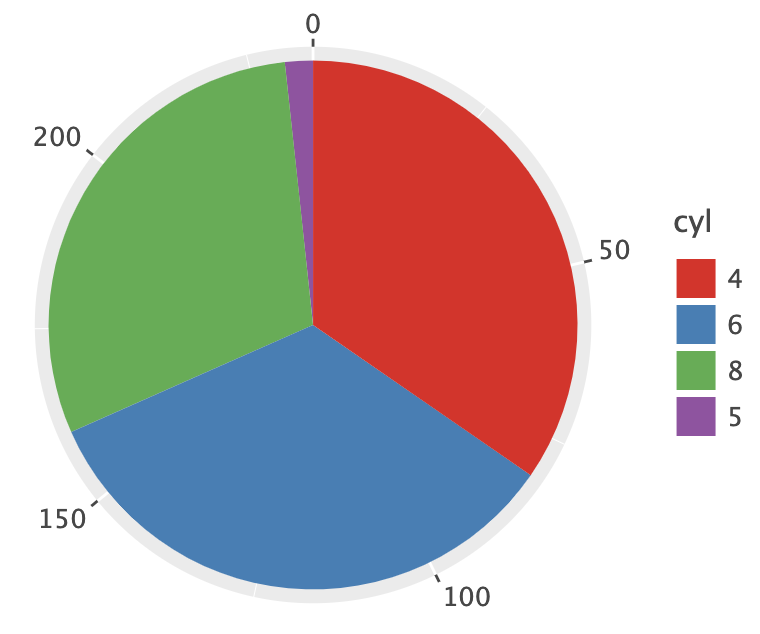

• coord_polar()

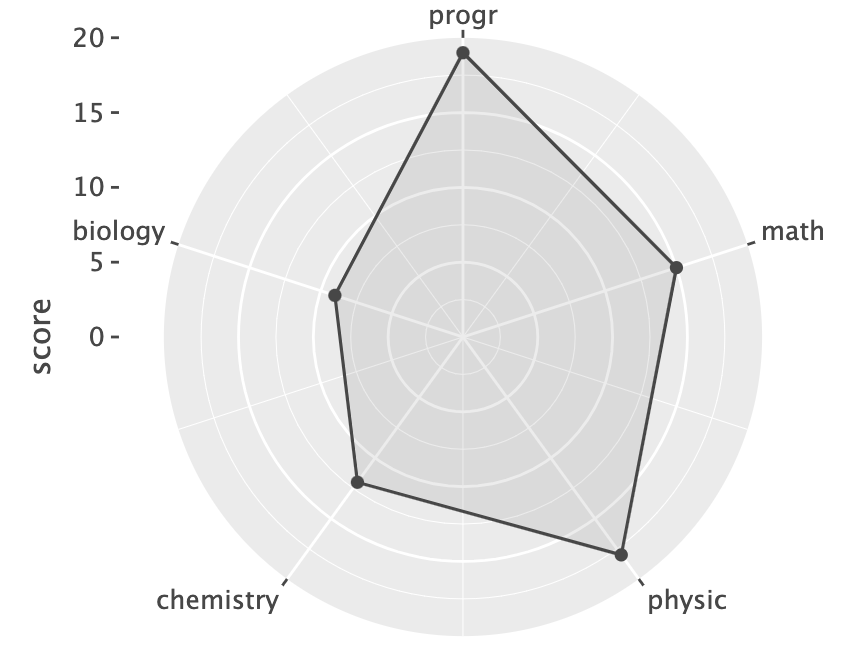

  The polar coordinate system is most commonly used for pie charts, but
  it can also be used for constructing Spyder or Radar charts using the flat option.




  See: example notebook.

• In the theme():

  • panel_inset parameter - primarily used for plots with polar coordinates.

    See: example notebook.

  • panel_border_ontop parameter - enables the drawing of panel border on top of the plot geoms.

  • panel_grid_ontop, panel_grid_ontop_x, panel_grid_ontop_y parameters - enable the drawing of grid lines on top of the plot geoms.

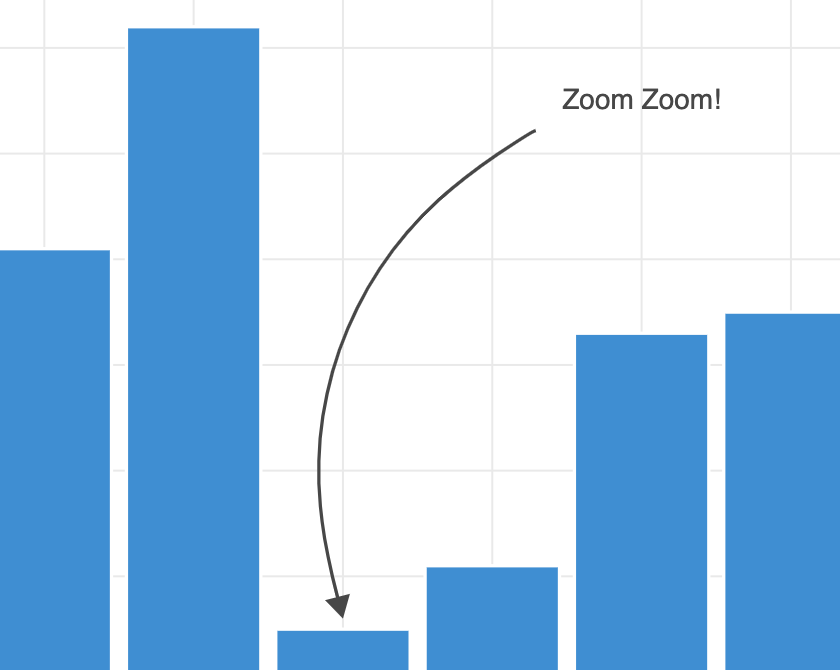

• geom_curve()




  See: example notebook.

• [UNIQUE] Visualizing Graph-like Data with geom_segment() and geom_curve()

  • Aesthetics size_start, size_end, stroke_start and stroke_end enable better alignment of
    segments/curves with nodes of the graph by considering the size of the nodes.

  • The spacer parameter allows for additional manual fine-tuning.




  See:

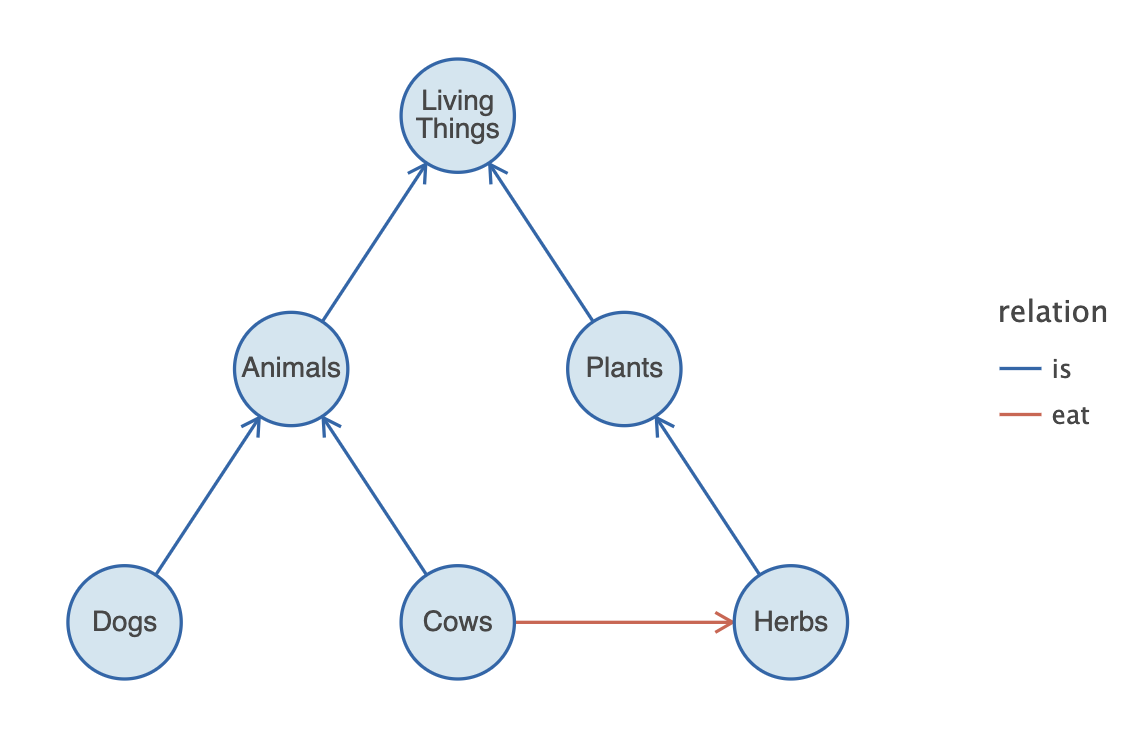

  • A simple graph example

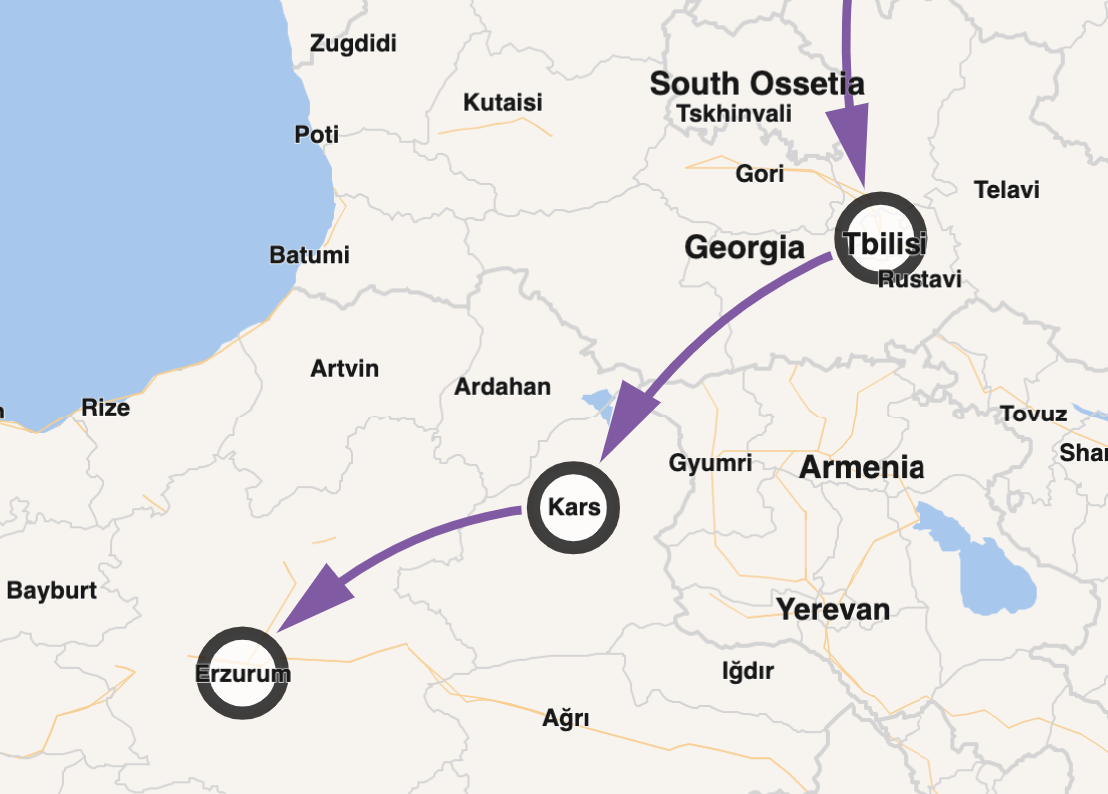

  • An interactive map example

• The alpha_stroke Parameter in geom_label()

  Use the alpha_stroke parameter to apply alpha to entire label. By default, alpha is only applied to the label background.

  See: example notebook.

• Showing Plots in External Browser

  The LetsPlot.setup_show_ext() directive allows plots to be displayed in an external browser window.

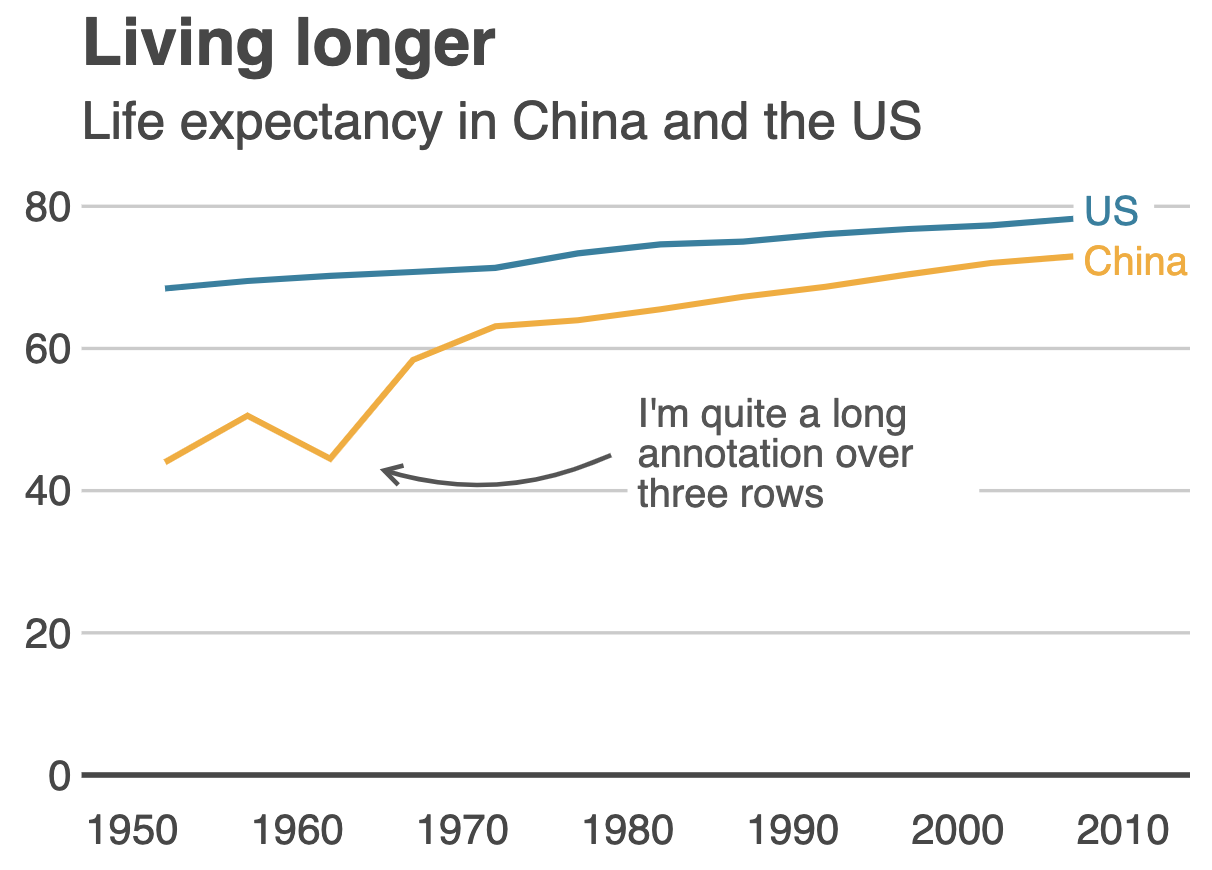

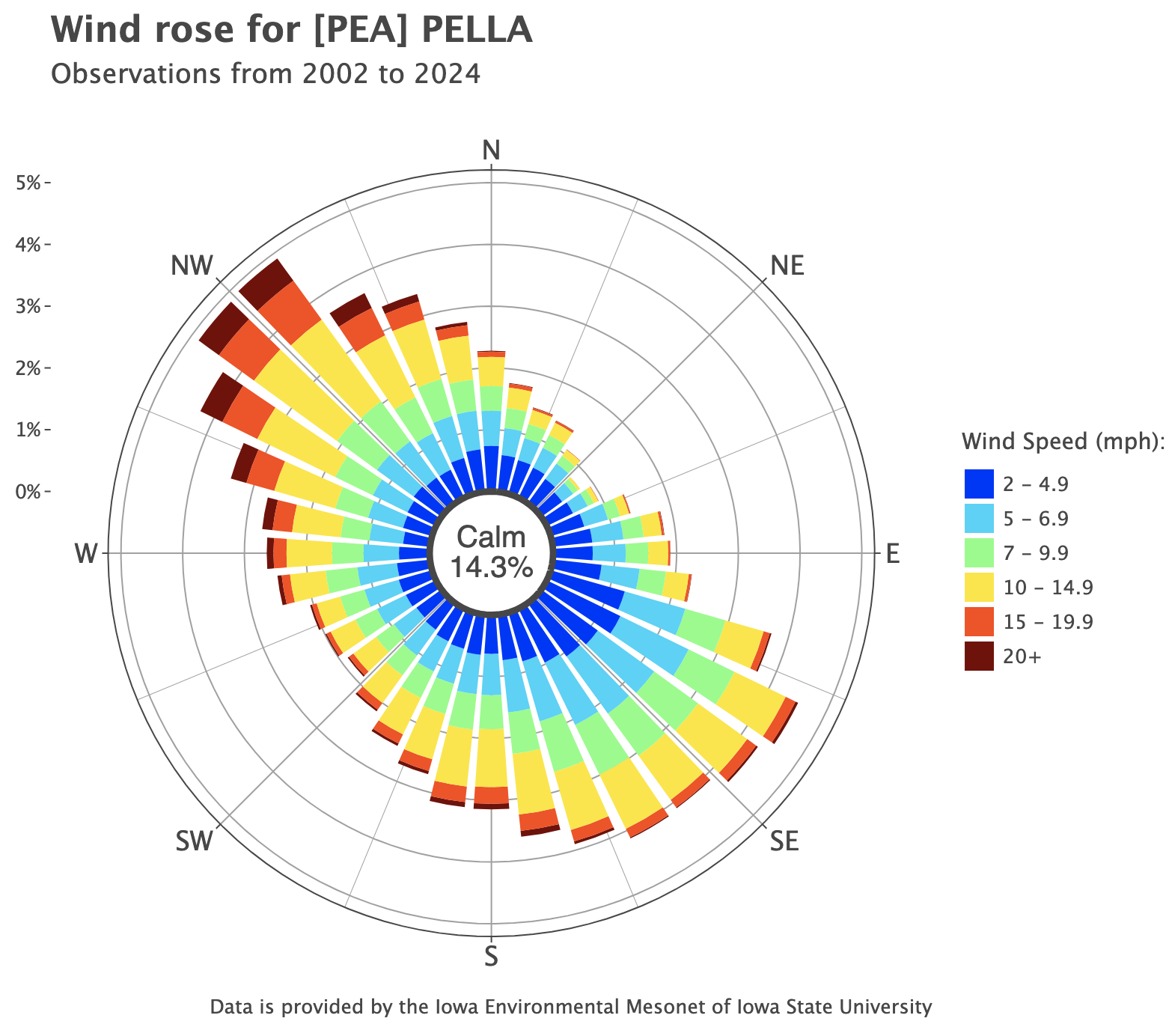

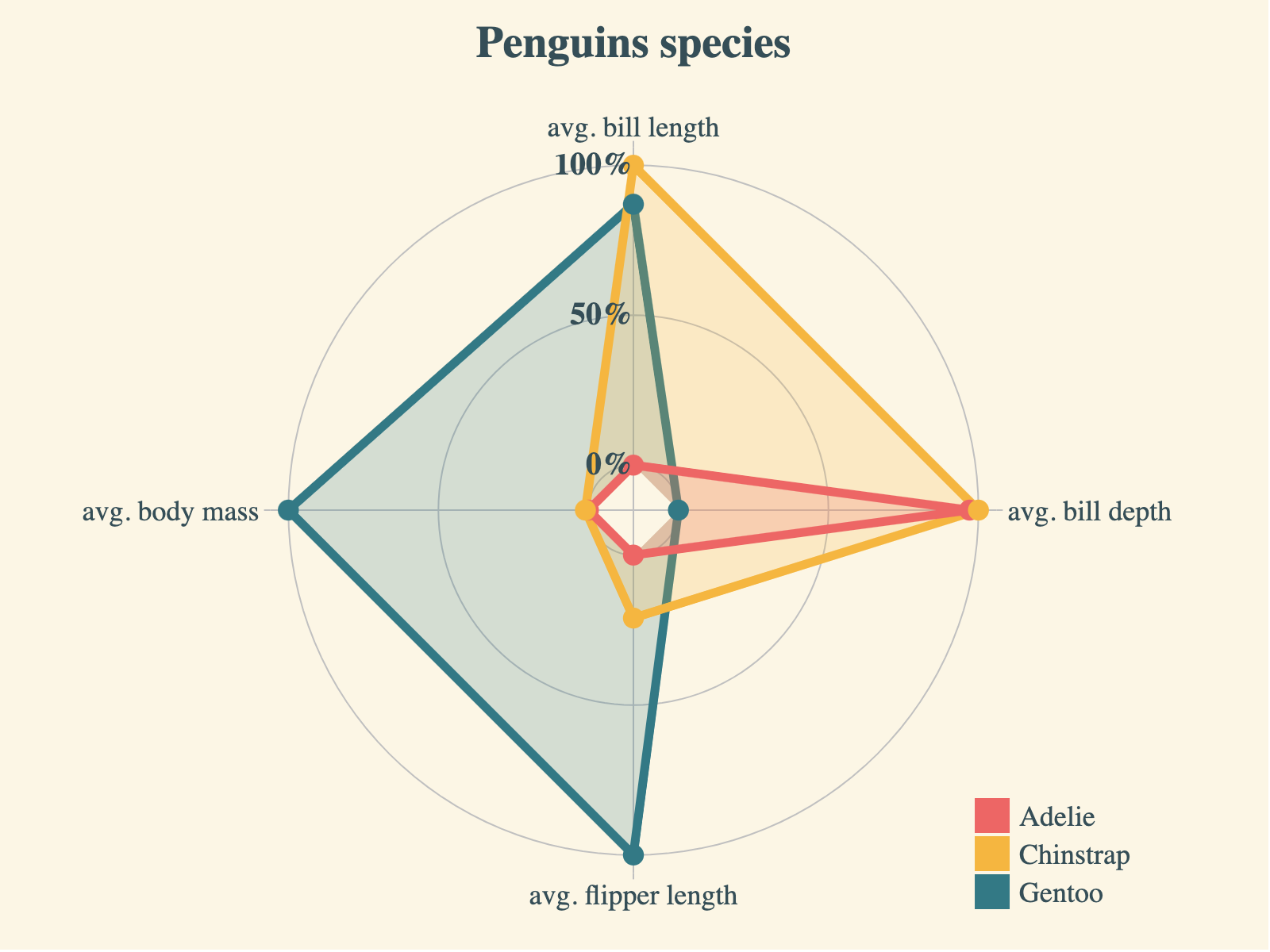

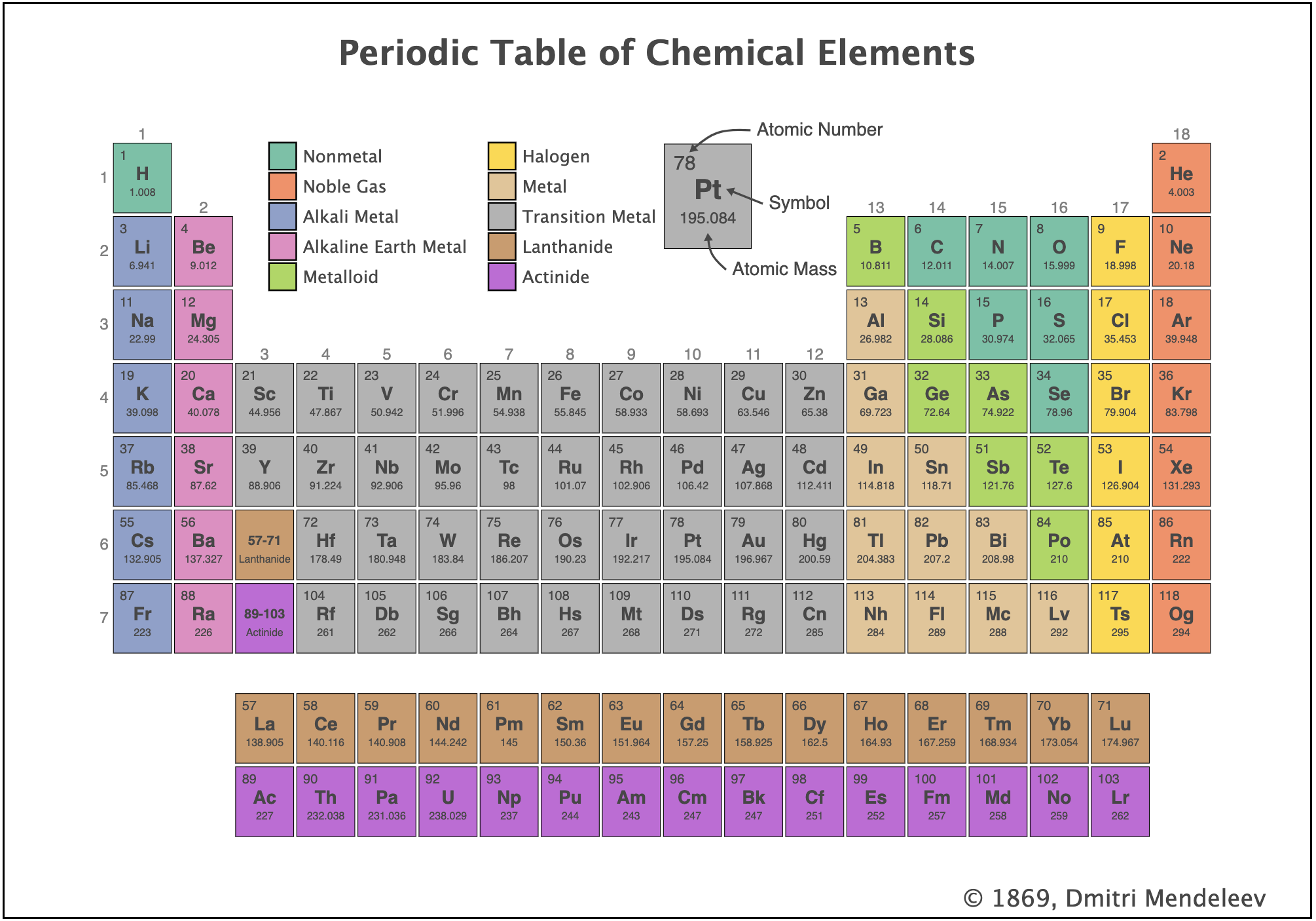

• Updates in the Gallery



Change Log

See CHANGELOG.md for other changes and fixes.
