lets-plot 2.5.1

An open source library for statistical plotting

Lets-Plot

Lets-Plot is an open-source plotting library for statistical data.

The design of Lets-Plot library is heavily influenced by Leland Wilkinson work The Grammar of Graphics describing the deep features that underlie all statistical graphics.

This grammar [...] is made up of a set of independent components that can be composed in many different ways. This makes [it] very powerful because you are not limited to a set of pre-specified graphics, but you can create new graphics that are precisely tailored for your problem.

• Hadley Wickham, "ggplot2: Elegant Graphics for Data Analysis"

We provide ggplot2-like plotting API for Python and Kotlin users.

Lets-Plot for Python

A bridge between R (ggplot2) and Python data visualization.

Learn more about Lets-Plot for Python installation and usage at the documentation website: https://lets-plot.org.

Lets-Plot for Kotlin

Lets-Plot for Kotlin adds plotting capabilities to scientific notebooks built on the Jupyter Kotlin Kermel.

You can use this API to embed charts into Kotlin/JVM and Kotlin/JS applications as well.

Lets-Plot for Kotlin at GitHub: https://github.com/JetBrains/lets-plot-kotlin.

"Lets-Plot in SciView" plugin

Scientific mode in PyCharm and in IntelliJ IDEA provides support for interactive scientific computing and data visualization.

Lets-Plot in SciView plugin adds support for interactive plotting to IntelliJ-based IDEs with the Scientific mode enabled.

Note: The Scientific mode is NOT available in communinty editions of JetBrains IDEs.

Also read:

• Scientific mode in PyCharm
• Scientific mode in IntelliJ IDEA

What is new in 2.5.1

Mostly a maintenance release.

Nevertheless, few new features and improvements were added as well, among them:

• New rendering options in geom_text(), geom_label()
• geom_imshow() is now supporting cmap and extent parameters (also, norm, vmin and vmax were fixed)

You will find more details about fixes and improvements in the CHANGELOG.md.

What is new in 2.5.0

• Plot Theme

  • theme_bw()

    See: example notebook.

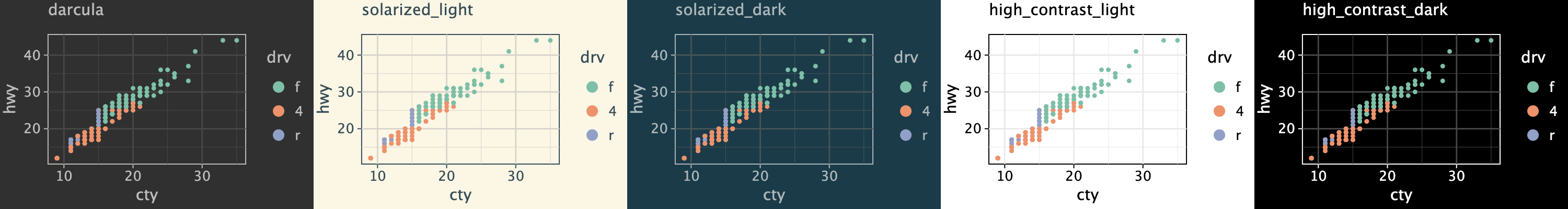

  • Theme Flavors

    Theme flavor offers an easy way to change the colors of all elements in a theme to match a specific color scheme.

    In this release, we have added the following flavors:

    • darcula
    • solarized_light
    • solarized_dark
    • high_contrast_light
    • high_contrast_dark



  See: example notebook.

  • New parameters in element_text()

    • size, family (example notebook)
    • hjust, vjust for plot title, subtitle, caption, legend and axis titles (example notebook)
    • margin for plot title, subtitle, caption, axis titles and tick labels (example notebook)

• New Plot Types

  geom_label().

  See: example notebook.

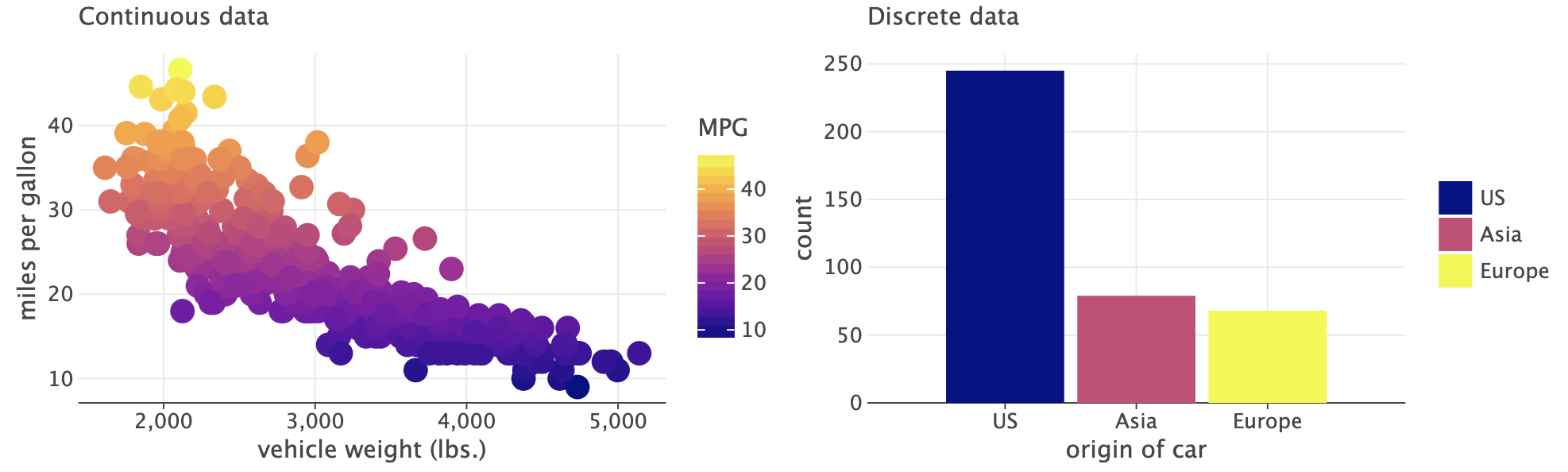

• Color Scales

  Viridis color scales: scale_color_viridis(), scale_fill_viridis().

  Supported colormaps:

  • magma
  • inferno
  • plasma
  • viridis
  • cividis
  • turbo
  • twilight



  See: example notebook.

Change Log

See CHANGELOG.md for other changes and fixes.

License

Code and documentation released under the MIT license. Copyright © 2019-2022, JetBrains s.r.o.
